MXR-4
Kod EAN: 4007754273366
4-channel audio mixer, with DSP effect unit, integrated MP3 player and Bluetooth receiver. Integrated USB audio interface (will be identified and addressed as an external sound card) Full-duplex USB port (allows for simultaneous recording and repro...
106,60 € brutto
(inkl. 23% DPH)
86,67 € netto

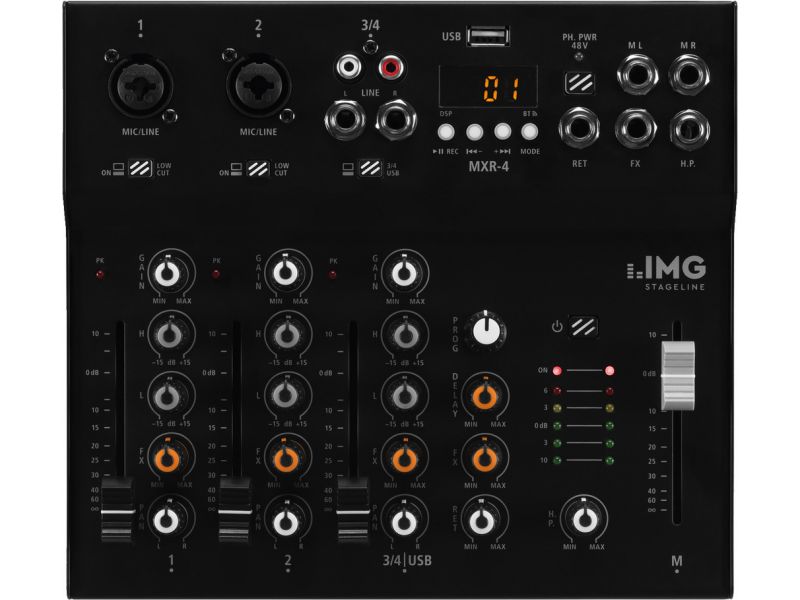

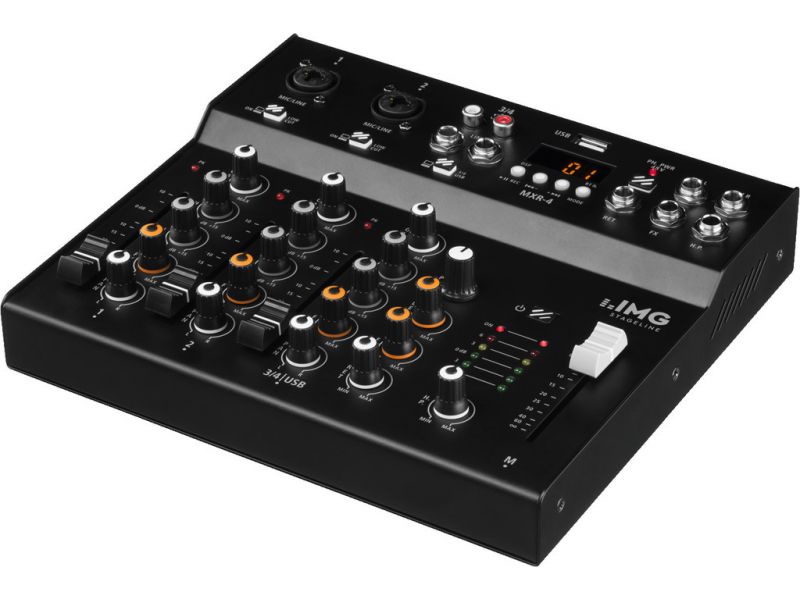

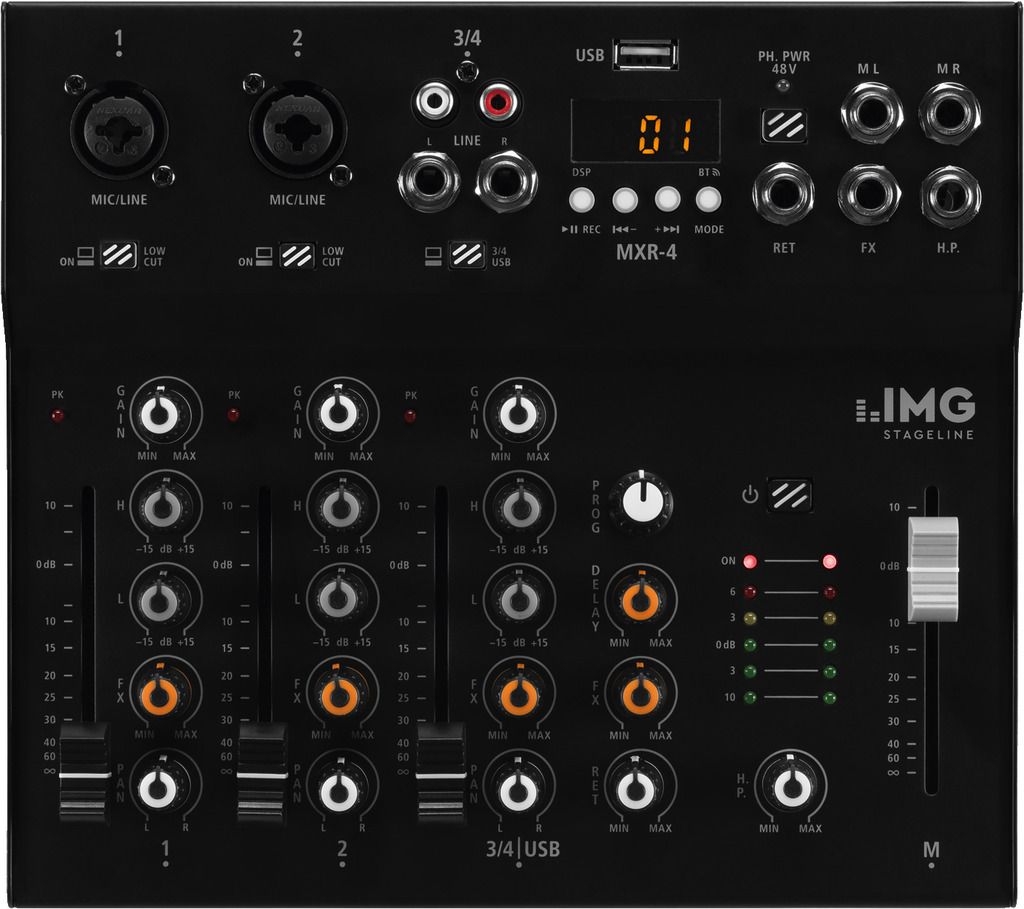

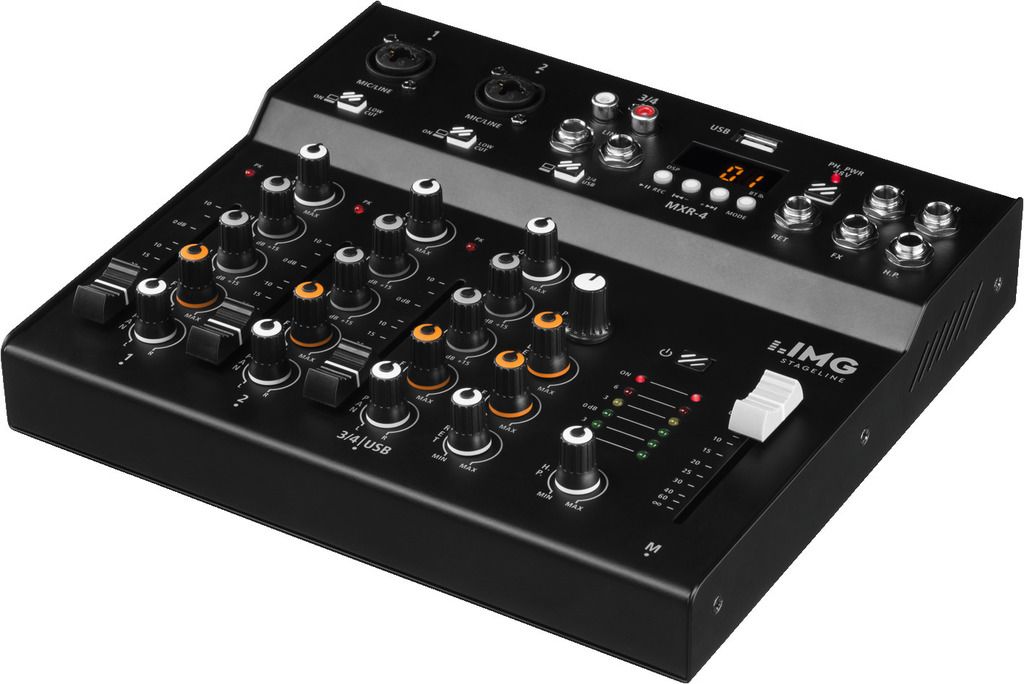

MXR-4
4-channel audio mixer,
with DSP effect unit, integrated MP3 player and Bluetooth receiver.
- Integrated USB audio interface (will be identified and addressed as an external sound card)
- Full-duplex USB port (allows for simultaneous recording and reproduction) for reproduction of digital audio data from a PC and for recording mixings onto a PC
- 2 mono input channels with gain control, 2-way equalizer and pan pot
- 1 stereo input channel with 2-way equalizer and balance control
- MP3 player
- USB port
- Bluetooth receiver
- 16 adjustable delay effects
- Adjustable aux return input and FX send output
- +48 V phantom power, can be activated as required
- Adjustable headphone output
- Stereo LED level display
- Power is provided via USB or supplied power supply
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Input channels | 4 |
| Number of mix/mono | 2 |
| No. of stereo | 1 |
| Mic input | 2 mV, bal. 2 x XLR |
| Line input | 100 mV (stereo), 2 x 6.3 mm jack L/R 60 mV (mono), 2 x 6.3 mm jack |
| Aux input | 400 mV, 1 x 6.3 mm jack L/R |
| Master output | 500 mV, 1 x 6.3 mm jack L/R |
| Effect send | 4.4 V, 1 x 6.3 mm jack |
| Headphones | ≥ 8 Ω, 1 x 6.3 mm jack |
| USB | yes |
| Bluetooth | yes |
| Frequency range | 20-20,000 Hz |
| THD | < 0.03% |
| S/N ratio | > 83 dB(A) |
| Equalizer bass | ±15 dB/80 Hz |
| Equalizer treble | ±15 dB/12 kHz |
| Phantom power | +48 V |
| Power supply | USB or encl. power supply |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 228 x 53 x 205 mm |
| Width | 228 mm |
| Height | 53 mm |
| Depth | 205 mm |
| Weight | 1.4 kg |
| Packaging dimensions (W x H x L) | 0.255 x 0.24 x 0.08 m |
| Gross weight | 1.625 kg |
| Net weight | 1.48 kg |
