DMP-250
Kod EAN:
Kompaktní vkládací modul MP3 přehrávače
SPH-60X
Kod EAN: 4007754025477
Reproduktor s plným rozsahom, 30 W, 8 Ω Vyvŕtané pólové jadro Veľmi dobrá linearita frekvenčnej odozvy aj vo vysokofrekvenčnom rozsahu Pre všeobecné použitie Šasi z úspešných koncepcií stavieb CT193 a CT194 časopisu Klang+Ton Klang+Ton 02/2019 “We hi...
42,80 € brutto
(inkl. 23% DPH)
34,80 € netto

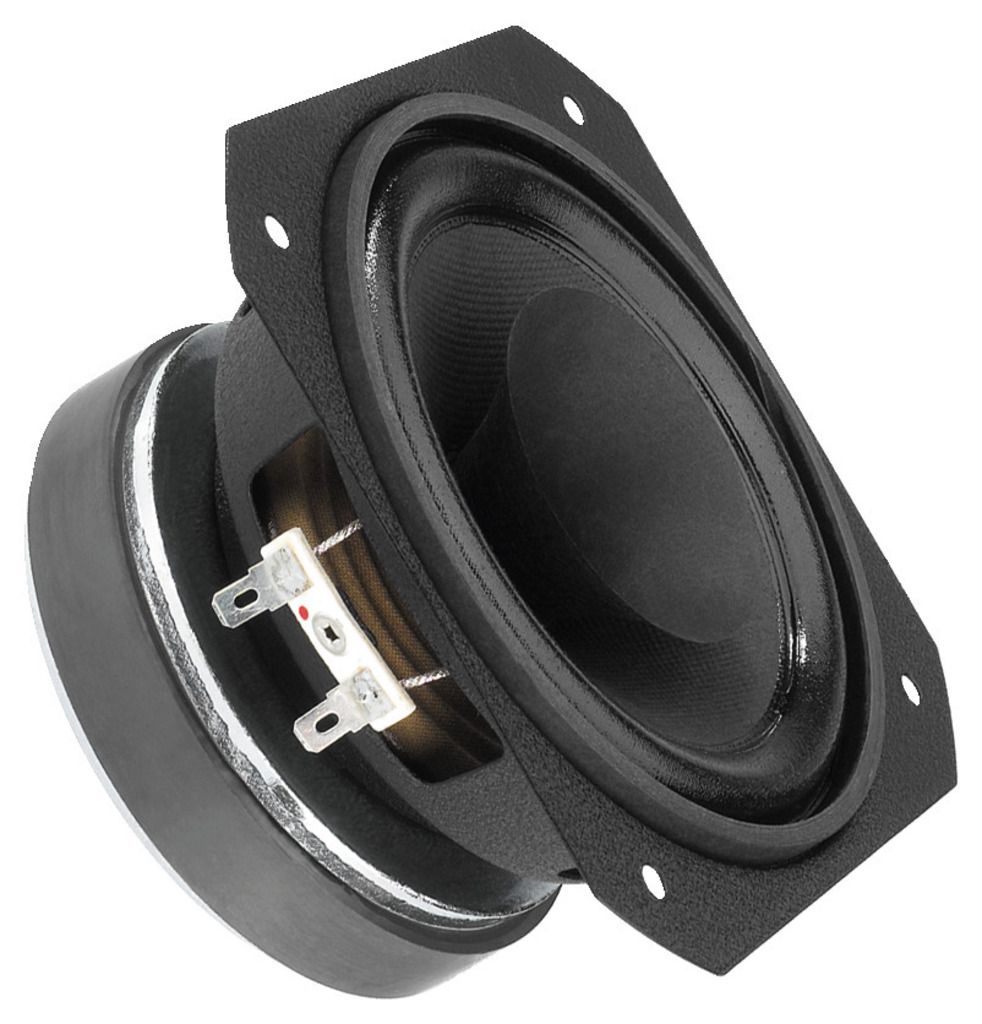

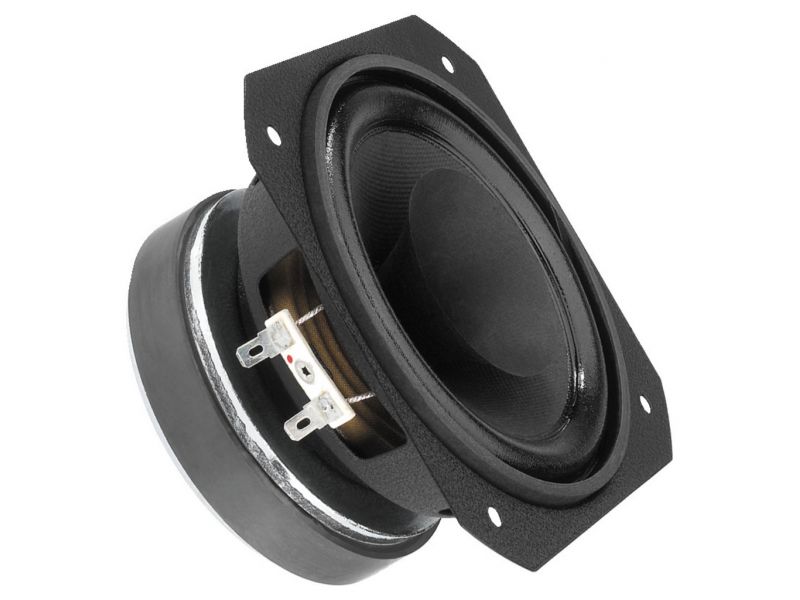

SPH-60X
Reproduktor s plným rozsahom, 30 W, 8 Ω
- Vyvŕtané pólové jadro
- Veľmi dobrá linearita frekvenčnej odozvy aj vo vysokofrekvenčnom rozsahu
- Pre všeobecné použitie
- Šasi z úspešných koncepcií stavieb CT193 a CT194 časopisu Klang+Ton
Klang+Ton 02/2019“We highly recommend this excellent standard full range speaker with a set of parameters very well suited for practical applications.”
(Speaker building concept Cheap Trick 302)
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

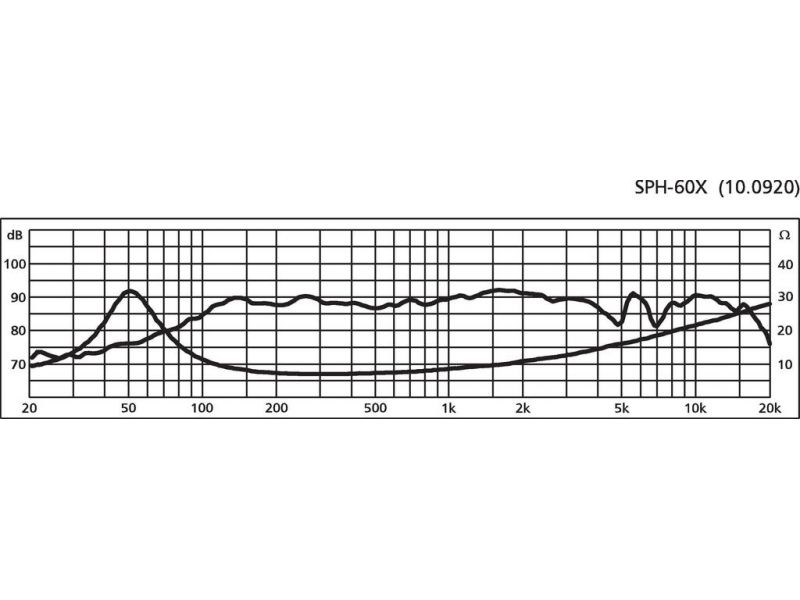

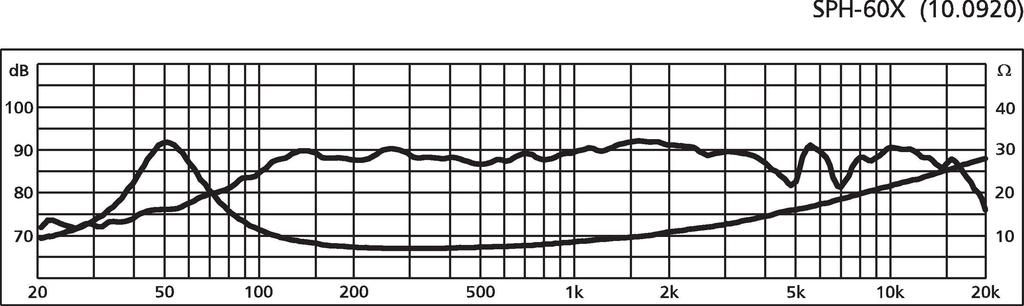

| Frequency range | f3-20,000 Hz |
| Resonant frequency (fs) | 60 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 1.19 mm/N |
| Moving mass (Mms) | 5.9 g |
| Mech. Q factor (Qms) | 2.17 |
| Electr. Q factor (Qes) | 0.53 |
| Total Q factor (Qts) | 0.42 |
| Equivalent volume (Vas) | 9 l |
| DC resistance (Re) | 6.2 Ω |
| Force factor (BxL) | 5.10 Tm |
| Voice coil induct. (Le) | 0.4 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 1.3 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | 370 g |
| Magnet diameter | Ø 100 mm |

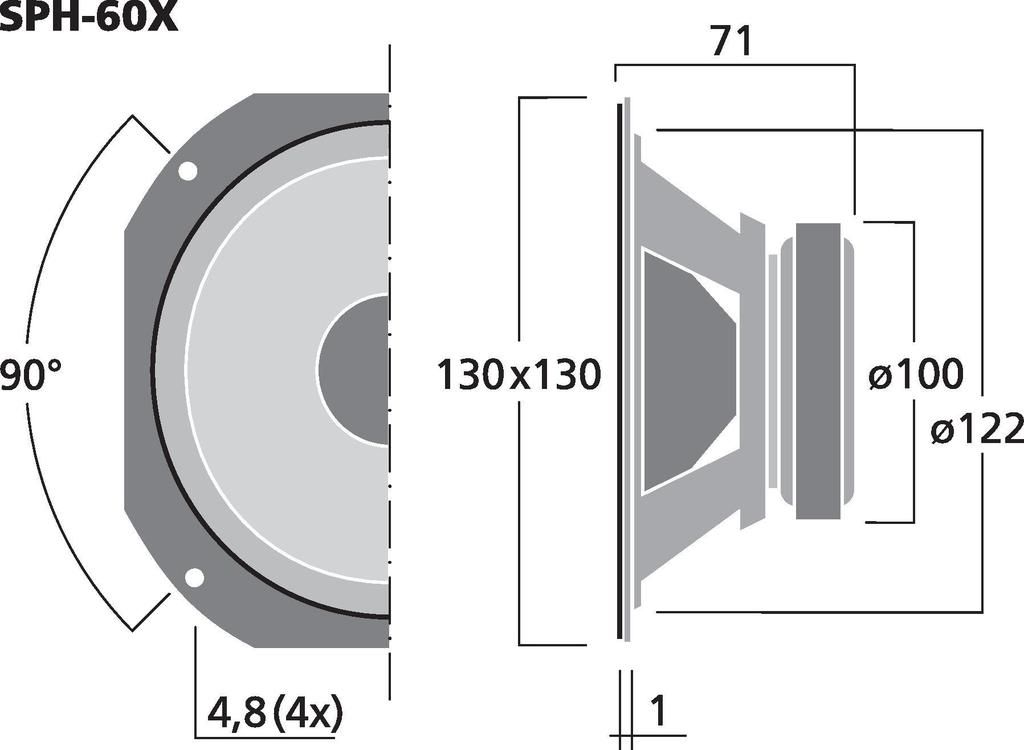

| Mounting cutout | Ø 122 mm |
| Mounting depth | 70 mm |
| Dimensions | 130 x 130 x 71 mm |
| Width | 130 mm |
| Height | 130 mm |
| Depth | 71 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.07 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
| Packaging dimensions (W x H x L) | 0.135 x 0.085 x 0.135 m |
| Gross weight | 1.135 kg |
| Net weight | 1.07 kg |
