RACK-MXT52MP3
Kod EAN: 4007754414660
Wall-mounted housing, for mounting the mixer with integrated MP3 player MXT-52MP3. Sheet steel version Light grey powder coating (RAL 7035) Attached hinged cover, opens downwards, non-removable, lockable Round rear panel cutout (40 mm) for cable in...
332,60 € brutto
(inkl. 23% DPH)
270,41 € netto
RACK-MXT52MP3

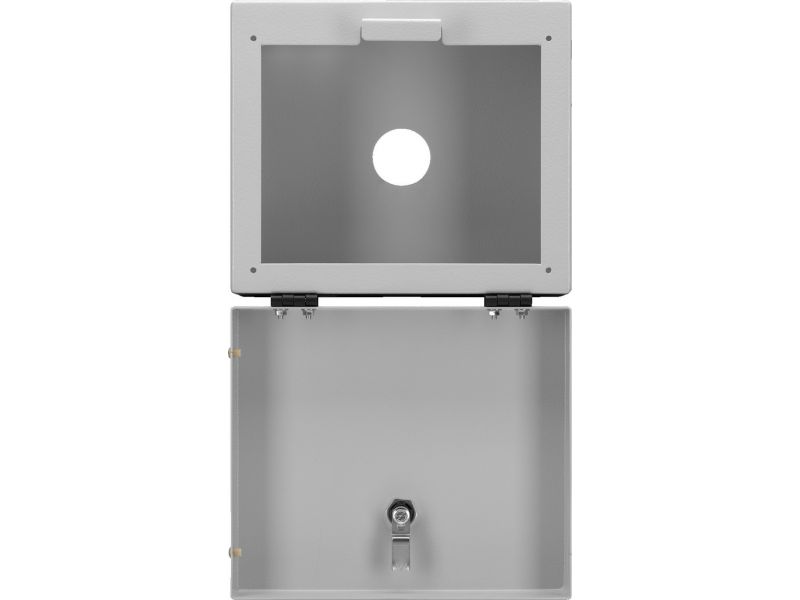

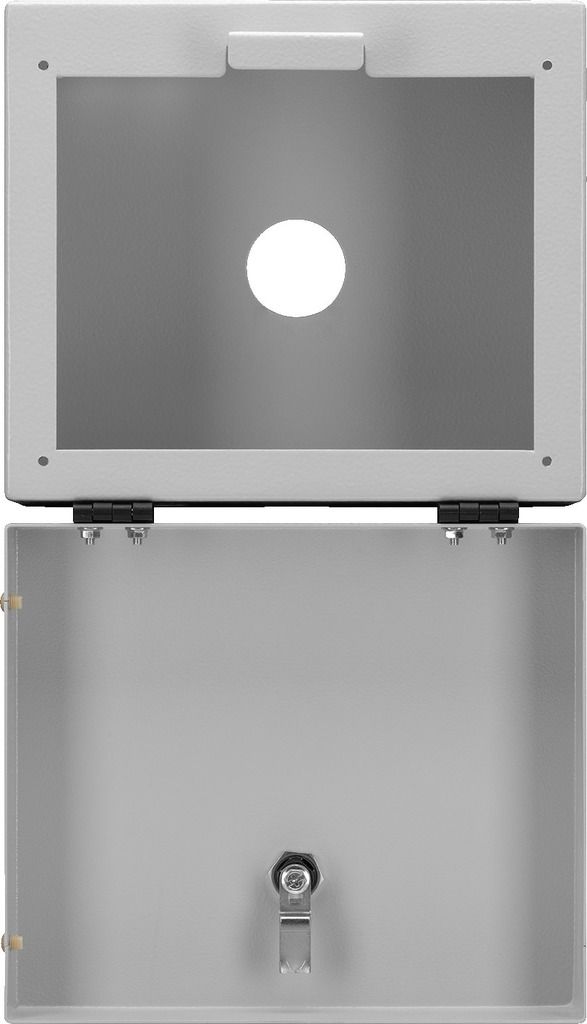

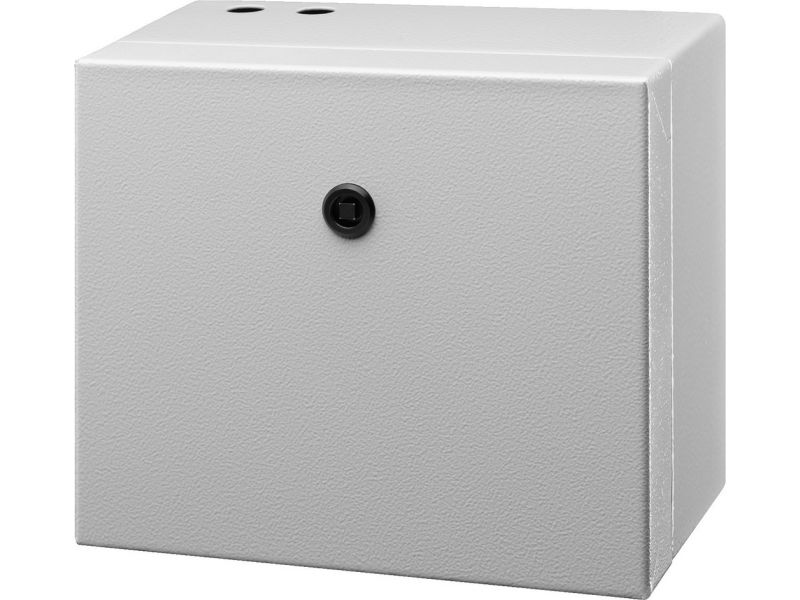

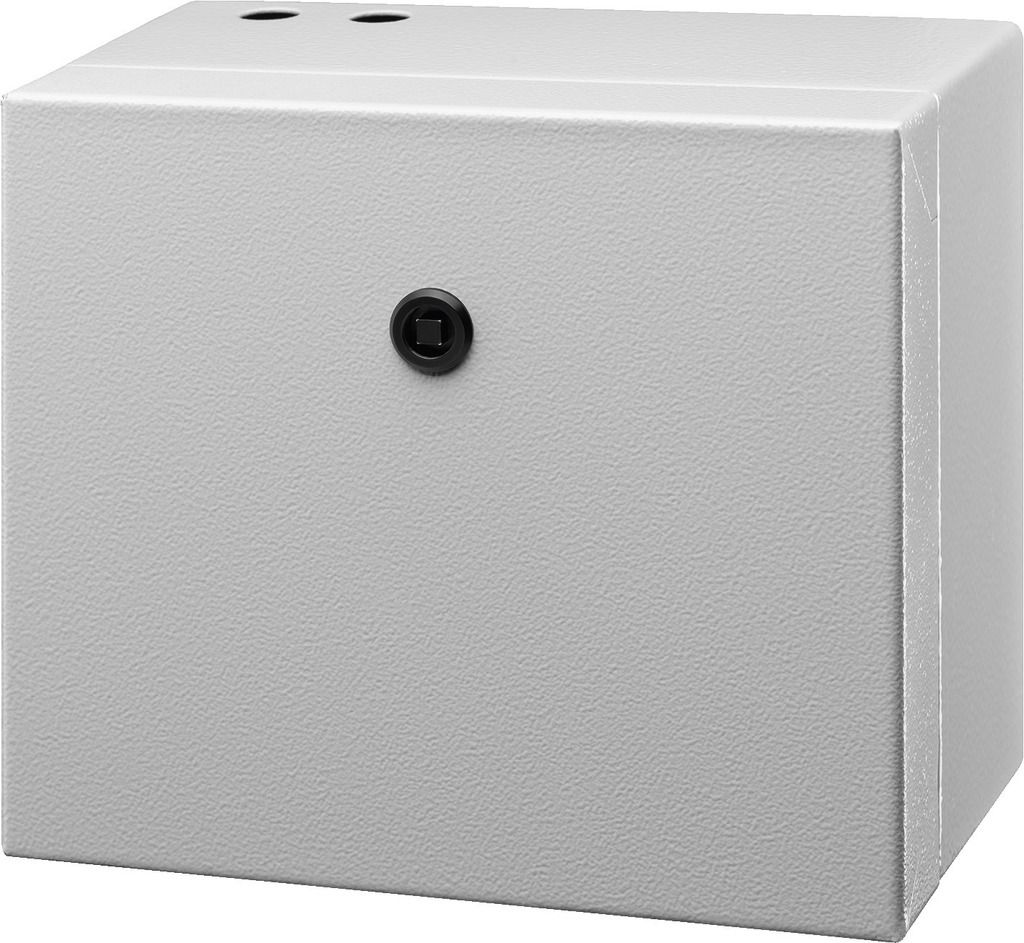

Wall-mounted housing,
for mounting the mixer with integrated MP3 player MXT-52MP3.
- Sheet steel version
- Light grey powder coating (RAL 7035)
- Attached hinged cover, opens downwards, non-removable, lockable
- Round rear panel cutout (40 mm) for cable inlet
- Two round cutouts at the top (16 mm) for cable inlet, high-strength cable gland possible
- Two round cutouts at the bottom (16 mm) for cable inlet, high-strength cable gland possible
- Max. mounting depth behind the front panel: 74 mm
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Parametry
| Intended use/capacity | wall-mounted housing |
| Size | suitable for MXT-52MP3 |
| Colour | grey (RAL 7035) |
| Version | hinged cover, opens downwards, non-removable, lockable |
| Material | sheet steel housing, powder-coated |
| Mounting accessories | matching key |
| Usable depth | 74 mm |
| Outside dimensions | 220 x 190 x 126 mm |
| Width | 220 mm |
| Height | 190 mm |
| Depth | 126 mm |
| Weight | 2 kg |
