IMC-300T/VA
Kod EAN: 4007754422764
With this 360° pendant speaker, it is possible to implement a relatively large-scale PA application. When installed at a mounting height of 4 m, you are able to provide a homogeneous sound radiation for approx. 200 m2. The speaker features an excellent...
448,00 € brutto
(inkl. 20% DPH)
373,33 € netto
IMC-300T/VA

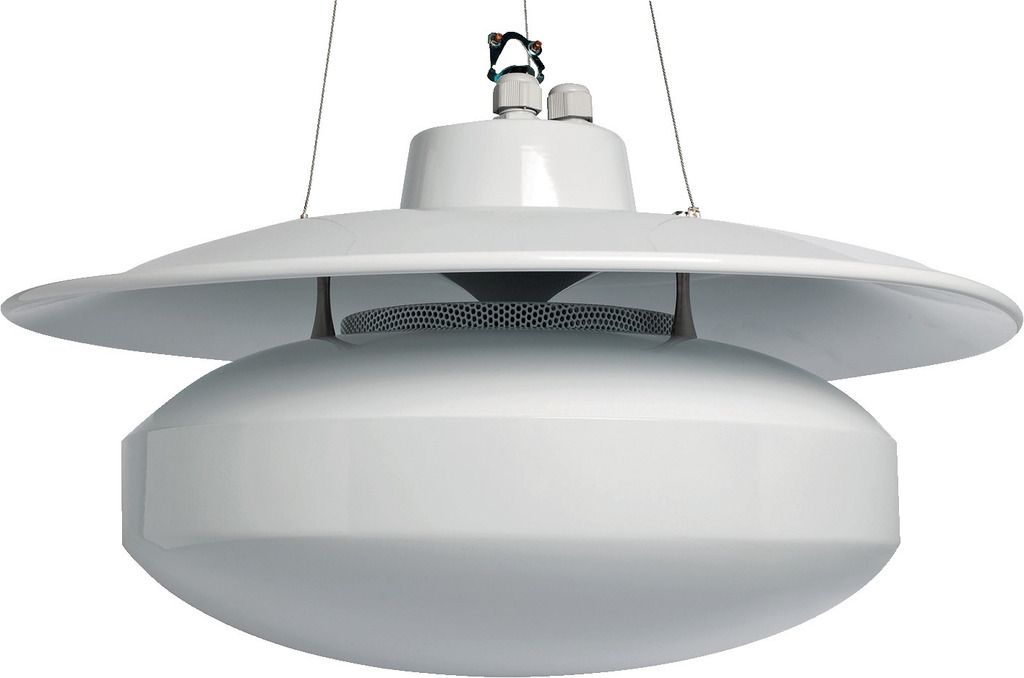

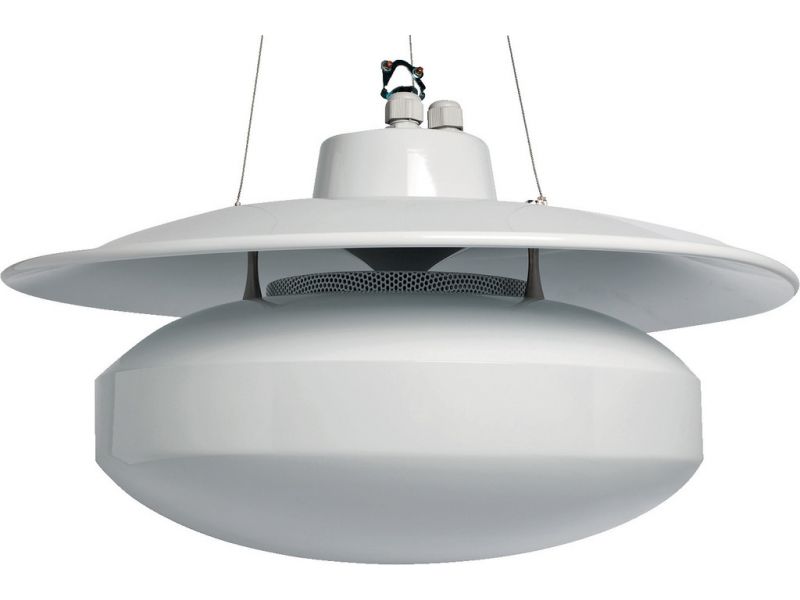

With this 360° pendant speaker, it is possible to implement a relatively large-scale PA application. When installed at a mounting height of 4 m, you are able to provide a homogeneous sound radiation for approx. 200 m2. The speaker features an excellent sound quality due to the 2-way coaxial speaker system with a large housing.
High-quality 2-way PA pendant speaker,
with perfect 360° sound radiation and EN 54-24 certification.
- 100 V line technique: 30/20/10 W
- 2-way coaxial speaker (6.5")
- Elaborate reflector design for a wide and homogeneous omnidirectional radiation
- Excellent sound reproduction due to the attached housing, even down to the bass
- Recommended intallation height: approx. 4 m (reflector)
- White lacquered sheet steel housing
- Suspension via steel safety ropes and snap hooks
- Cable inlet via high-strength cable gland (PG11)
- Ceramic terminal
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Power rating (RMS) | 30/20/10 W |
| Frequency range | 60-20,000 Hz |
| Bass speaker | 1 |
| Tweeter | 1 |
| Number of speakers | 2 |
| Speaker size | 6.5" |
| SPL | 83 dB/W/m |
| Max. rated SPL | 98 dB |
| Radiation angle/beam angle | H: 360°/V: 160° |
| Radiation angle, horizontal | 360° |
| Radiation angle, vertical | 160° |
| Housing material | metal |
| Colour | white |
| Mounting device | steel rope with snap hook |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | Ø 480 mm x 300 mm |
| Width | Ø 480 mm |
| Height | 300 mm |
| Weight | 4.5 kg |
| Inputs | 1 x high-strength cable gland (PG11) |
| Other features | EN 54 |
| Accessories | supplied with safety rope for suspended installation |
| Packing dimensions (W x H x L) | 0.57 x 0.36 x 0.57 m |
| Gross weight | 7.66 kg |
| Net weight | 5 kg |
