HT-22/8
Kod EAN: 4007754008920
Kužeľový výškový reproduktor, 10 W, 8 Ω Klasický výškový reproduktor pre hi-fi, auto hi-fi a ako náhrada Klang+Ton 02/2012 “The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front...
15,50 € brutto
(inkl. 20% DPH)
12,92 € netto

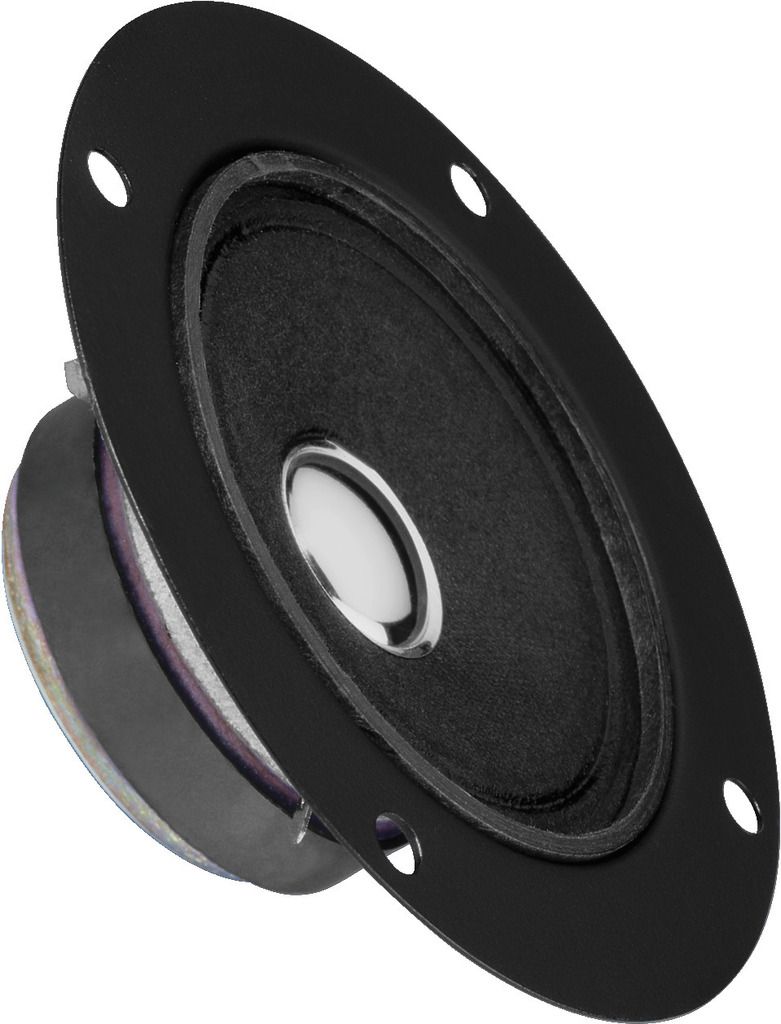

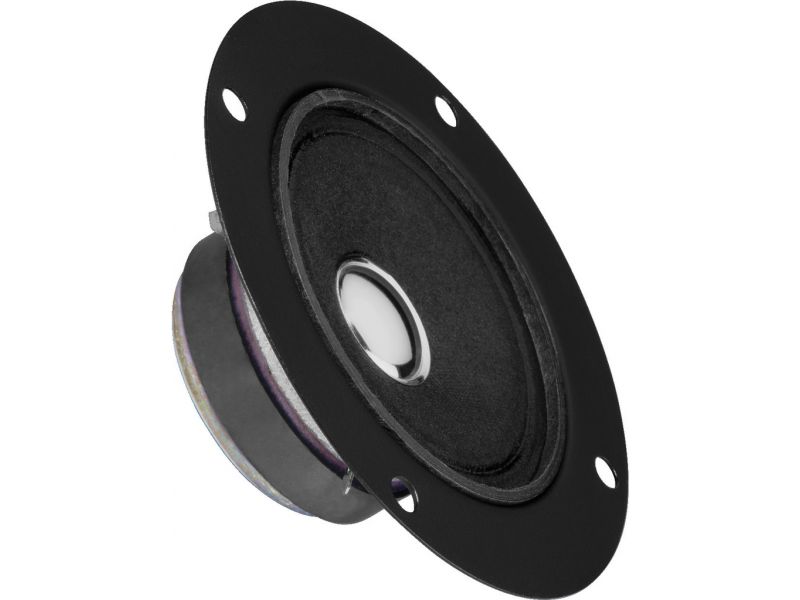

HT-22/8
Kužeľový výškový reproduktor, 10 W, 8 Ω
- Klasický výškový reproduktor pre hi-fi, auto hi-fi a ako náhrada
Klang+Ton 02/2012“The unit at the most favourable price was the surprise in the test ... provides the most balanced frequency response in front of the microphone ... very attractive price, to be used without any problems, offers best measured values.”
Klang+Ton 02/2018“Quite respectable. [...] considering the modest use of material, a remarkable performance.” (SP-13/4 and HT-22/8 in the Cheap Trick 296 of Klang+Ton)
Parametry
| Impedance (Z) | 8 Ω |

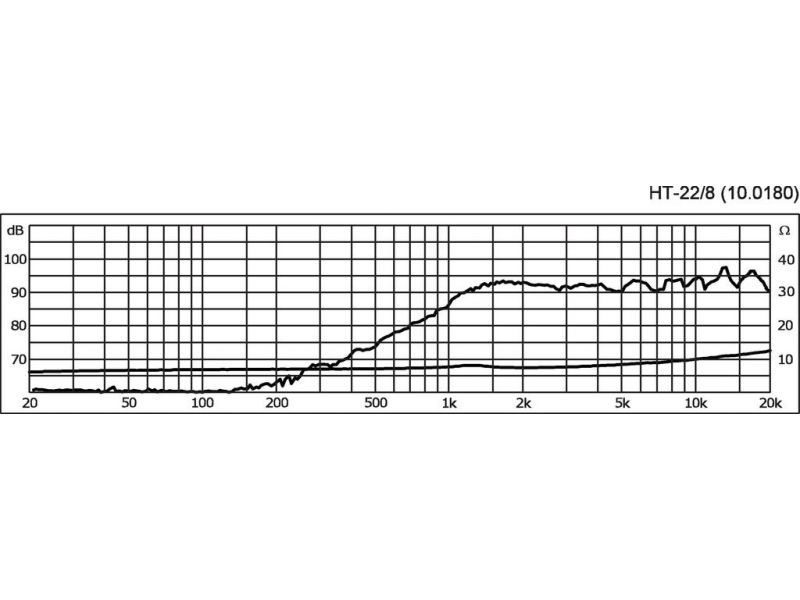

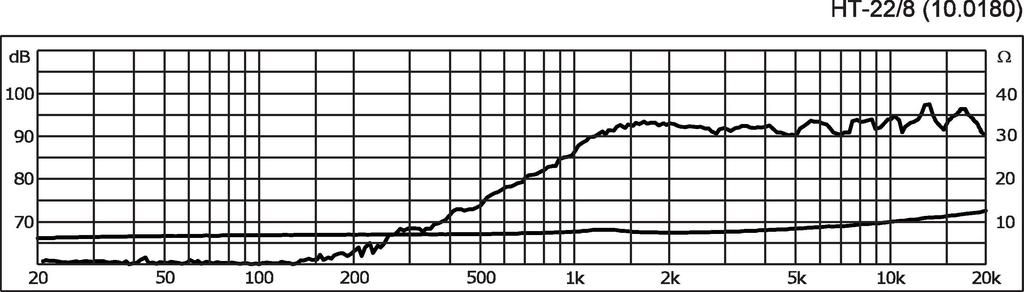

| Frequency range | fx-19,000 Hz |
| Resonant frequency (fs) | 1,500 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,500 Hz |
| Power rating (RMS) | 10 W |
| Peak music power output (MAX) | 20 W |
| SPL | 91 dB/W/m |
| Voice coil diameter | Ø 12 mm |

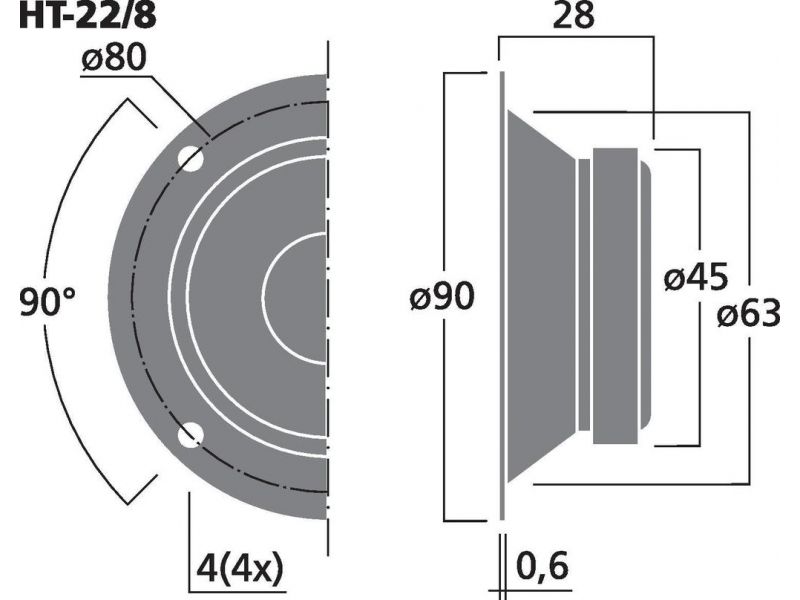

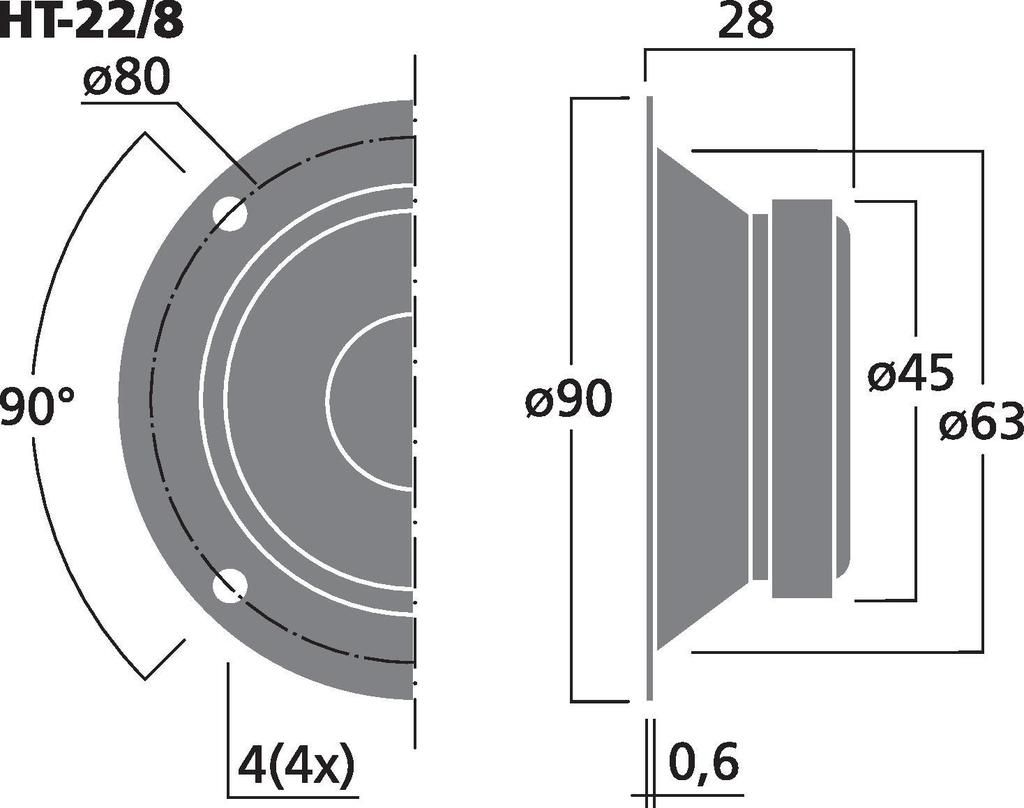

| Magnet diameter | Ø 45 mm |
| Mounting cutout | Ø 63 mm |
| Mounting depth | 27.4 mm |
| Mounting hole diameter | Ø 80 mm |
| Hole spacing X-axis | 56 mm |
| Hole spacing Y-axis | 56 mm |
| Dimensions | Ø 90 mm x 28 mm |
| Outside diameter | Ø 90 mm |
| Width | Ø 90 mm |
| Depth | 28 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.14 kg |
| Packing unit | 1 |
| Type of speaker | 2" |
| Packing dimensions (W x H x L) | 0.095 x 0.035 x 0.095 m |
| Gross weight | 0.154 kg |
| Net weight | 0.14 kg |
