SP-302E
Kod EAN: 4007754153538
Hi-fi stredobasový reproduktor, 100 W, 4 Ω Viacúčelový reproduktor Penový priestor Náhradný reproduktor pre uzavreté systémy
69,60 € brutto
(inkl. 20% DPH)
58,00 € netto

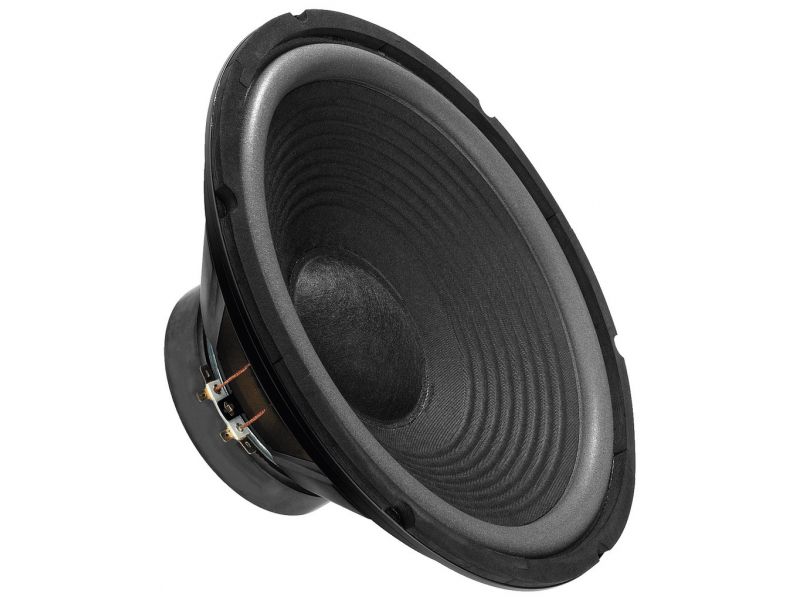

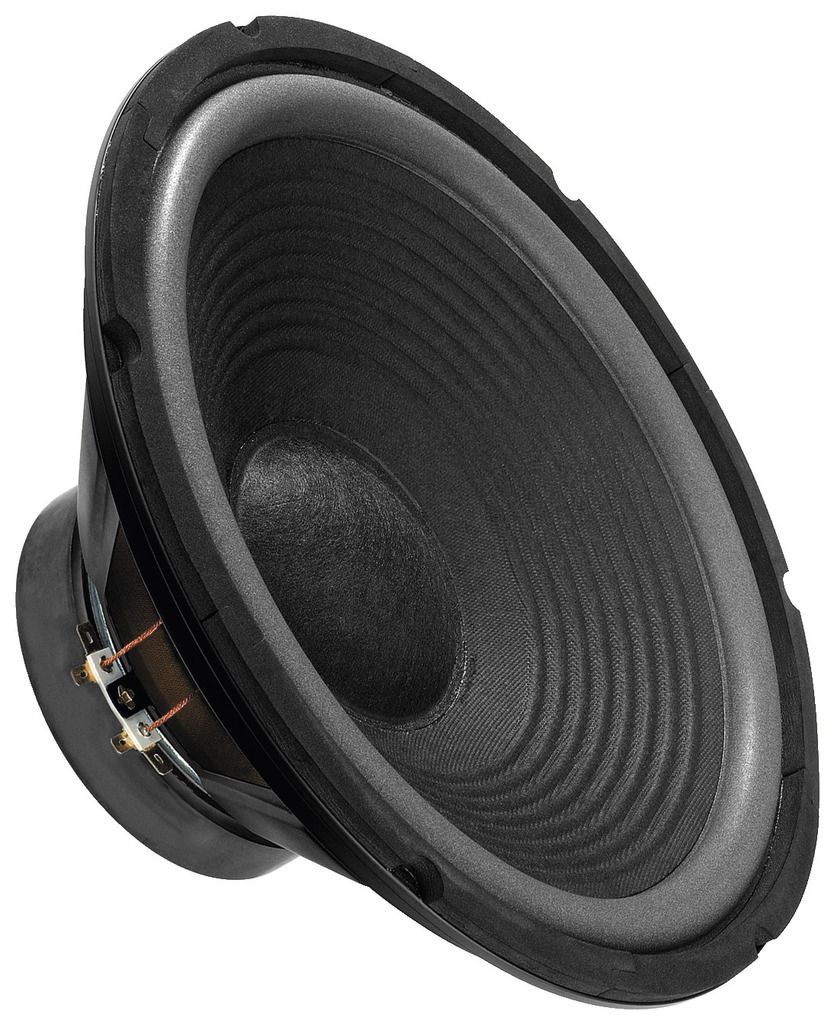

SP-302E
Hi-fi stredobasový reproduktor, 100 W, 4 Ω
- Viacúčelový reproduktor
- Penový priestor
- Náhradný reproduktor pre uzavreté systémy
Parametry
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |
| Frequency range | f3-5,500 Hz |
| Resonant frequency (fs) | 39 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 95 dB/W/m |
| Suspension compl. (Cms) | 0.39 mm/N |
| Moving mass (Mms) | 40 g |
| Mech. Q factor (Qms) | 4.24 |
| Electr. Q factor (Qes) | 0.87 |
| Total Q factor (Qts) | 0.72 |
| Equivalent volume (Vas) | 141 l |
| DC resistance (Re) | 3.6 Ω |
| Force factor (BxL) | 6.63 Tm |
| Voice coil induct. (Le) | 1.1 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 518 cm2 |
| Magnet weight | 960 g |
| Magnet diameter | Ø 125 mm |

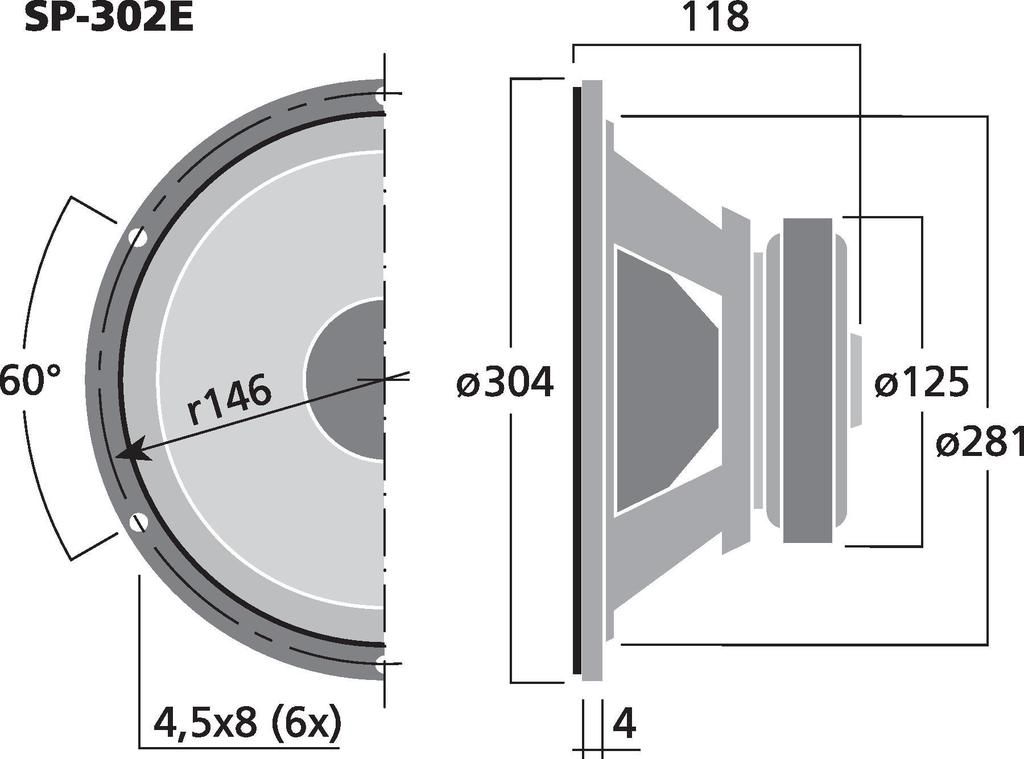

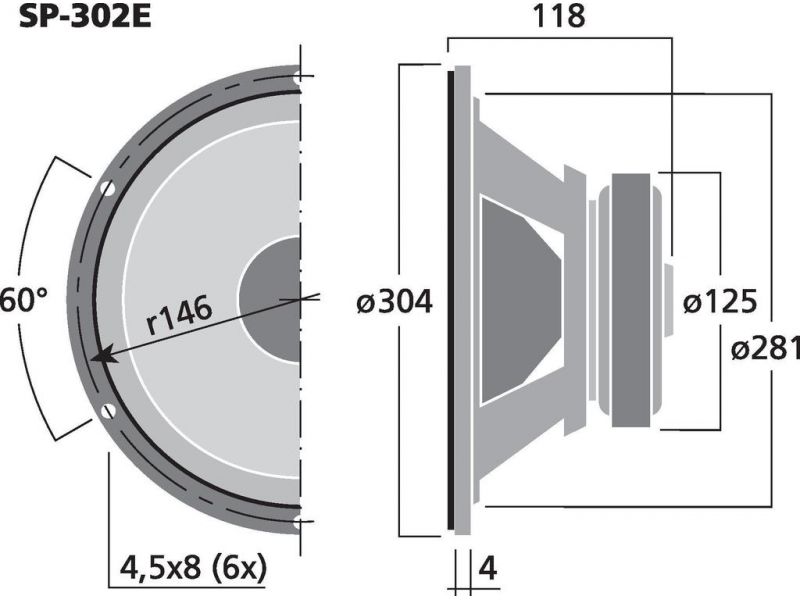

| Mounting cutout | Ø 281 mm |
| Mounting depth | 114 mm |
| Mounting hole diameter | Ø 292 mm |
| Dimensions | Ø 304 mm x 118 mm |
| Outside diameter | Ø 304 mm |
| Width | Ø 304 mm |
| Height | Ø 304 mm |
| Depth | 118 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.58 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.31 x 0.14 x 0.315 m |
| Gross weight | 2.76 kg |
| Net weight | 2.585 kg |
