SPH-130
Kod EAN: 4007754025330
Hi-fi bass-midrange speaker, 55 W, 8 Ω Paper cone with special coating Rubber surround with optimised profile Extra wide and linear radiation range, free of resonance Perfect components for modern 2-way combinations up to DAppolito arrangements, also...
51,10 € brutto
(inkl. 20% DPH)
42,58 € netto

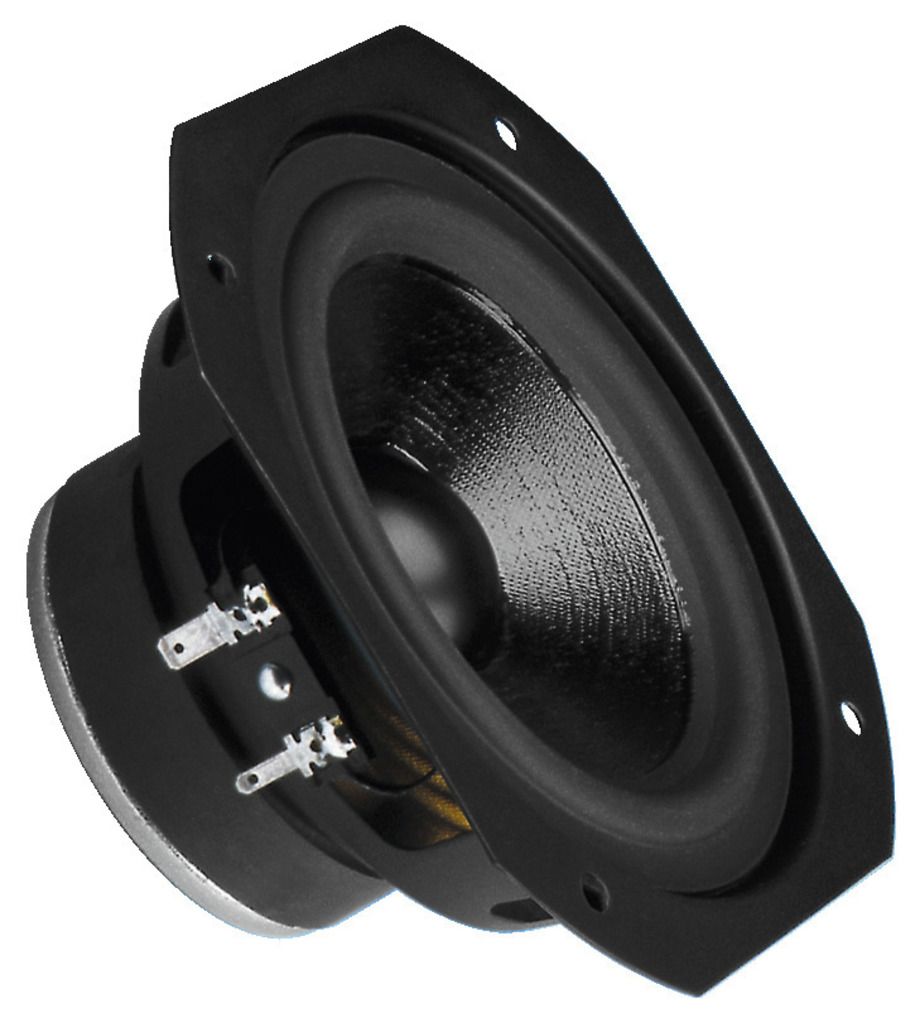

SPH-130
Hi-fi bass-midrange speaker, 55 W, 8 Ω
- Paper cone with special coating
- Rubber surround with optimised profile
- Extra wide and linear radiation range, free of resonance
- Perfect components for modern 2-way combinations up to DAppolito arrangements, also for use as a midrange speaker in multi-way speaker systems
Parametry
| Impedance (Z) | 8 Ω |

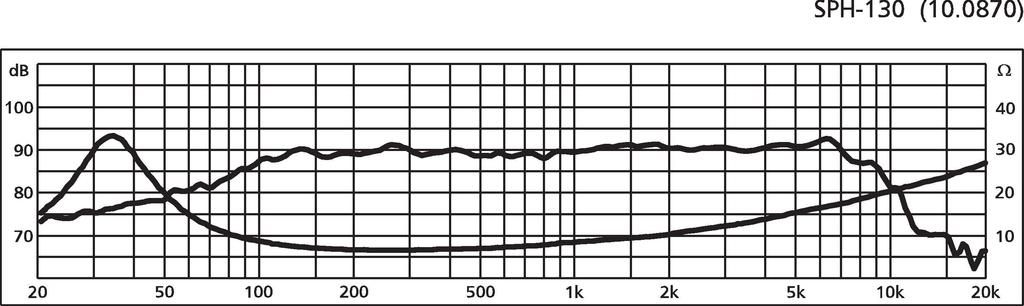

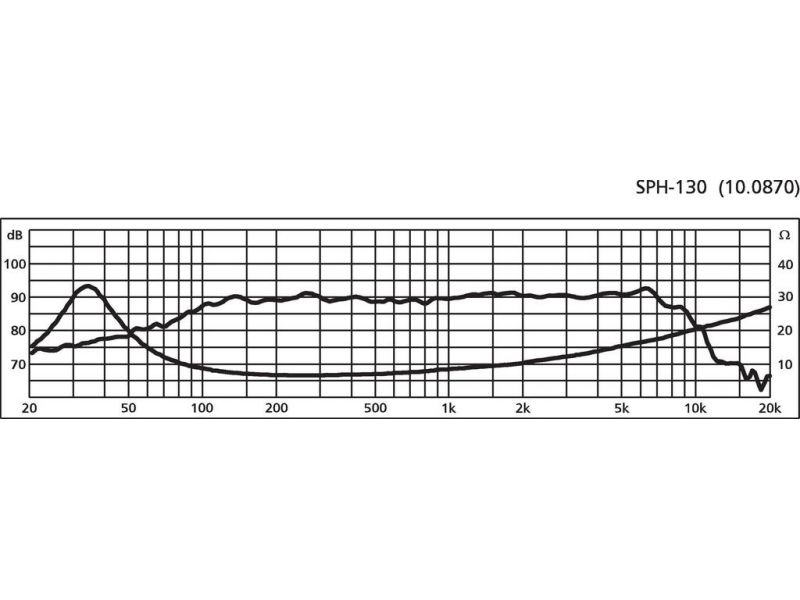

| Frequency range | f3-6,000 Hz |
| Resonant frequency (fs) | 38 Hz |
| Power rating (RMS) | 55 W |
| Peak music power output (MAX) | 80 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 2.14 mm/N |
| Moving mass (Mms) | 8.2 g |
| Mech. Q factor (Qms) | 1.91 |
| Electr. Q factor (Qes) | 0.39 |
| Total Q factor (Qts) | 0.32 |
| Equivalent volume (Vas) | 22 l |
| DC resistance (Re) | 5.7 Ω |
| Force factor (BxL) | 5.40 Tm |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | 230 g |
| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 129 mm |
| Mounting depth | 64.2 mm |

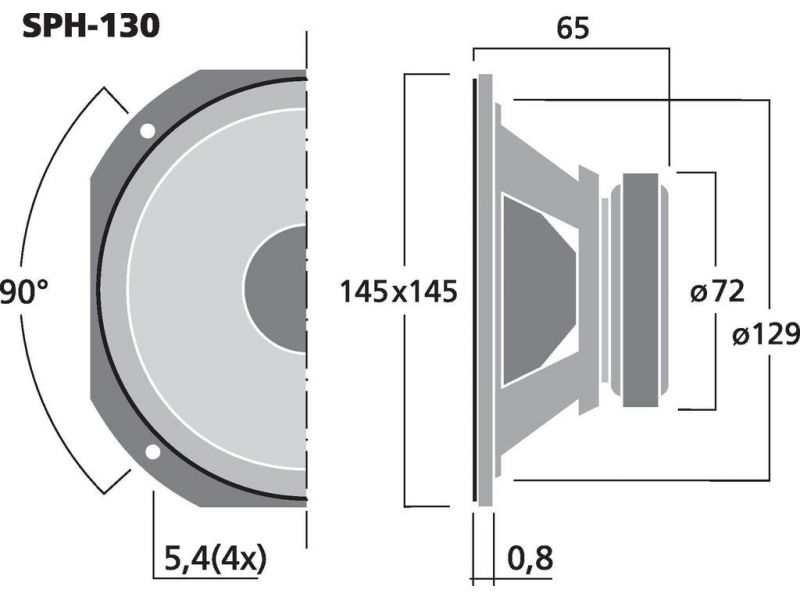

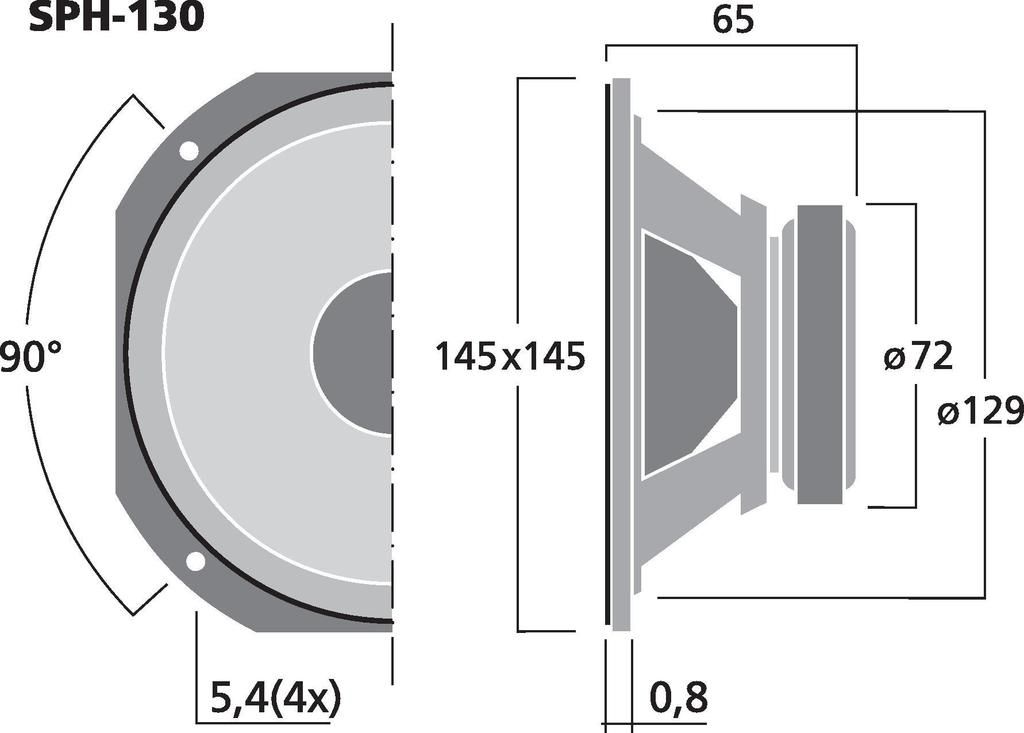

| Dimensions | 145 x 145 x 65 mm |
| Width | 145 mm |
| Height | 145 mm |
| Depth | 65 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.755 kg |
| Packing unit | 1 |
| Type of speaker | 5.5" |
| Packing dimensions (W x H x L) | 0.15 x 0.08 x 0.15 m |
| Gross weight | 0.81 kg |
| Net weight | 0.755 kg |
