FTR18-4080HDX/8

Kod EAN: 0739894560252

PA subwoofer, 1,000 W, 8 Ω Glass fibre reinforced waterproof impregnated paper cone Optimised double suspension Ventilated magnet arrangement for dynamic heat dissipation Manufacturer information: Celestion International LtdClaydon Business Par...

víc

Staň se partnerem
Kup teď

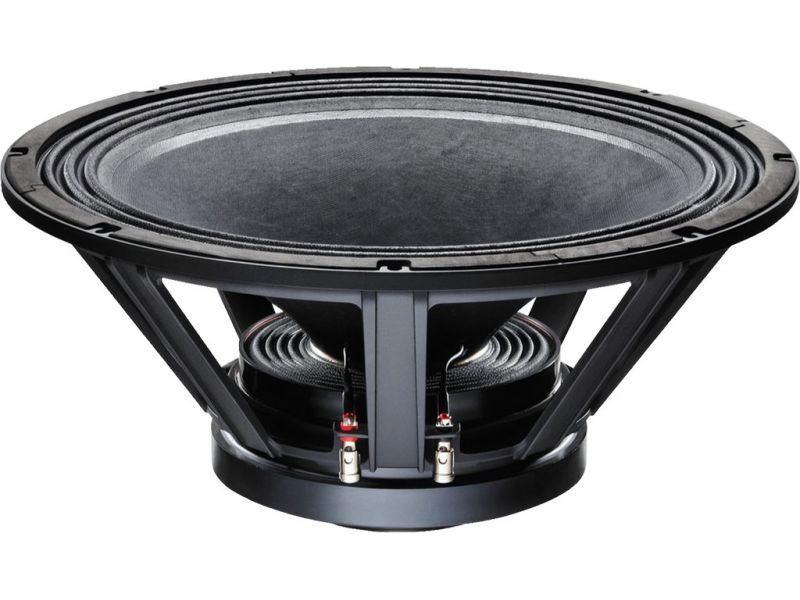

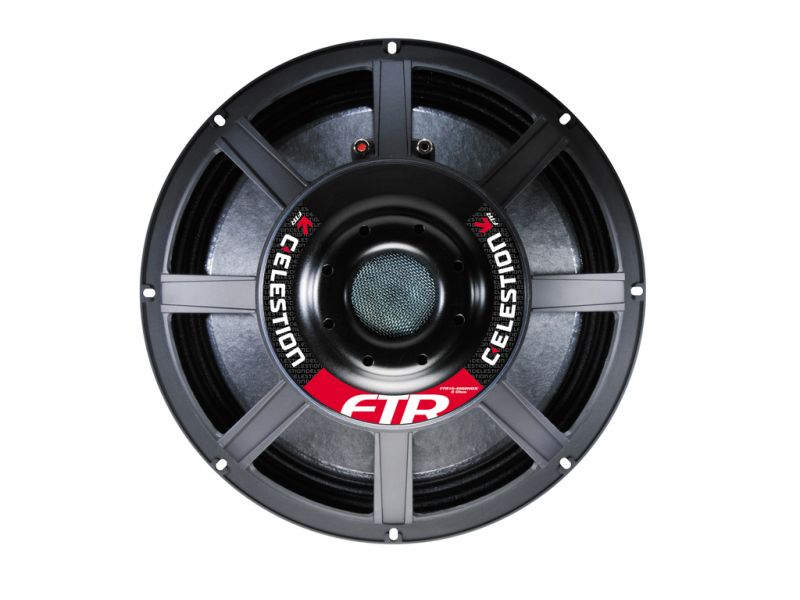

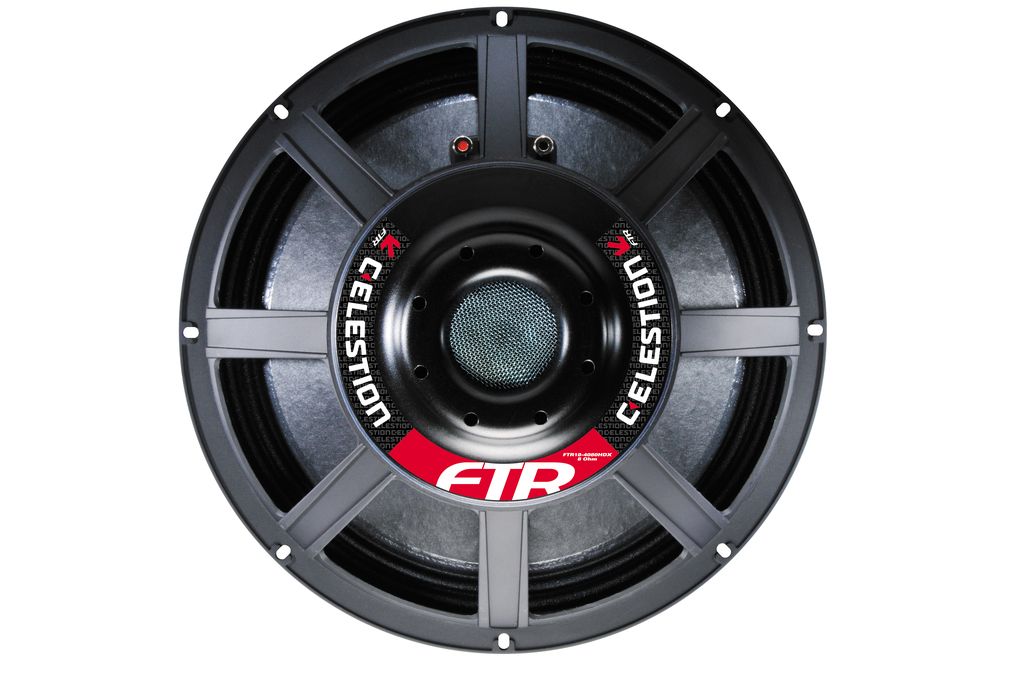

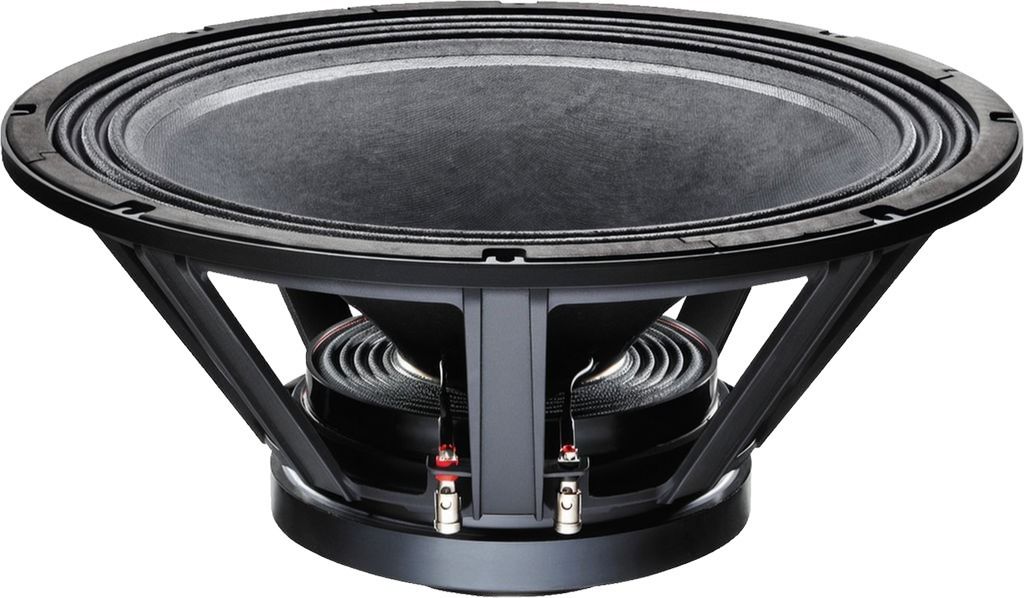

FTR18-4080HDX/8

PA subwoofer, 1,000 W, 8 Ω
  • Glass fibre reinforced waterproof impregnated paper cone
  • Optimised double suspension
  • Ventilated magnet arrangement for dynamic heat dissipation
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 30-2,500 Hz
Resonant frequency (fs) 39.2 Hz
Power rating (RMS) 1,000 W
Peak music power output (MAX) 2,000 W
SPL 95 dB/W/m
Suspension compl. (Cms) 0.10 mm/N
Moving mass (Mms) 171.75 g
Mech. Q factor (Qms) 5.387
Electr. Q factor (Qes) 0.466
Total Q factor (Qts) 0.429
Equivalent volume (Vas) 174.9 l
DC resistance (Re) 5.00 Ω
Force factor (BxL) 21.29 Tm
Voice coil induct. (Le) 1.79 mH
Voice coil diameter Ø 100 mm
Voice coil winding height 25 mm
Voice coil material copper wire
Voice coil former glass fibre
Linear excursion (XMAX) ± 10.1 mm
Eff. cone area (Sd) 1,134.12 cm2
Magnet weight 3.1 kg
Mounting cutout Ø 416 mm
Mounting depth 205 mm
Mounting hole diameter Ø 429-440 mm
Dimensions Ø 452 mm x 205 mm
Outside diameter Ø 452 mm
Width Ø 452 mm
Height Ø 452 mm
Depth 205 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 9.8 kg
Packing unit 1
Type of speaker 18"
Packaging dimensions (W x H x L) 0.5 x 0.24 x 0.5 m
Gross weight 12.5 kg
Net weight 10.7 kg

Na stáhnutí

Produktová karta FTR18-4080HDX/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
