EPS32

Kod EAN: 4007754418491

Amplifier, 2 x 15 W For mounting onto DIN rails according to DIN EN 60529, 2 HP 2-channel class D amplifier Selectable mode stereo/bridged Inputs to be switched externally Balanced and unbalanced inputSumming amplifier input Microphone input Separate...

víc

198,00 € brutto

(inkl. 20% DPH)
165,00 € netto

Staň se partnerem
Kup teď

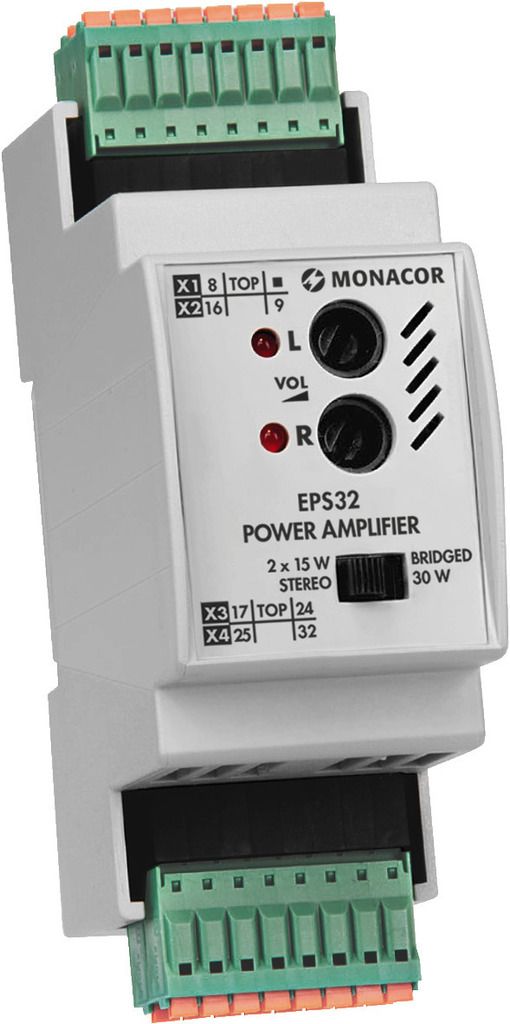

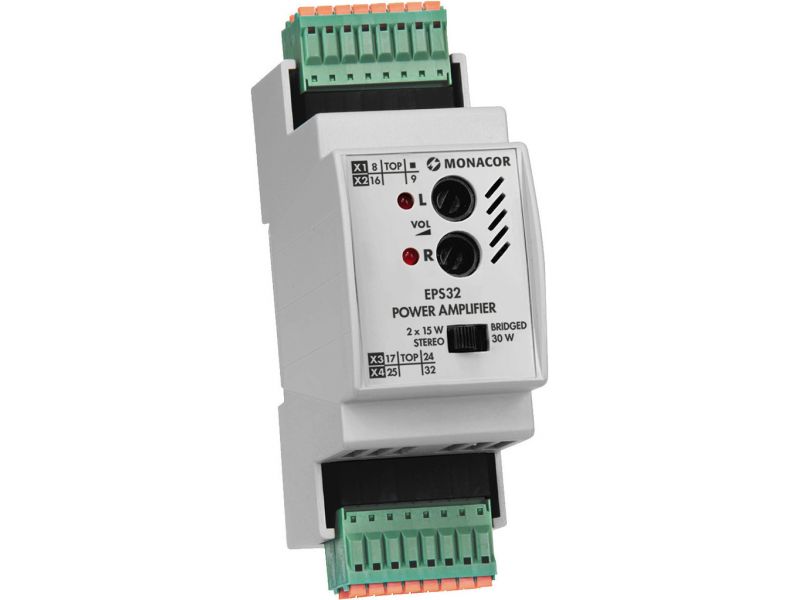

EPS32

Amplifier, 2 x 15 W
  • For mounting onto DIN rails according to DIN EN 60529, 2 HP
  • 2-channel class D amplifier
  • Selectable mode stereo/bridged
  • Inputs to be switched externally
  • Balanced and unbalanced input
  • Summing amplifier input
  • Microphone input
  • Separate volume control for each channel
  • High-efficiency green design

Parametry

Peak output power 30 W
Power rating 24 W
Power rating at 4 Ω 2 x 12 W
Power rating at 8 Ω 2 x 6 W
Power rating with 4 Ω bridged operation 1 x 24 W
Power rating with 8 Ω bridged operation 1 x 12 W
Output impedance 4-8 Ω
Channels 2
Inputs 1 V/47 kΩ (bal.), 22 kΩ (unbal.)
Frequency range 42-21,000 Hz
S/N ratio 92 dB
THD 0.05%
Phantom power 9-12 V
Operating voltage (possible alternative) DC 12-26 V, rec. DC 24 V
Admiss. ambient temp. -20 °C to +40 °C
Width 36 mm
Height 101 mm
Depth 62 mm
Weight 98 g
Connections spring-loaded terminals
Packaging dimensions (W x H x L) 0.037 x 0.095 x 0.075 m
Gross weight 0.1297 kg
Net weight 0.098 kg

Na stáhnutí

Produktová karta EPS32 Technický produktový list konformitaetserklaerung-ukca konformitaetserklaerung-ce
