EPS110/RS485
Kod EAN: 4007754419740
MP3 player, event-driven. For mounting onto DIN rails according to DIN EN 60715, 2 HP For SDHC/SD/MMC cards up to 32 GB (FAT32), not included in the scope of delivery Extensive playback functions 7 binary inputs In/Out string triggers RS-485 interf...
461,00 € brutto
(inkl. 20% DPH)
384,17 € netto

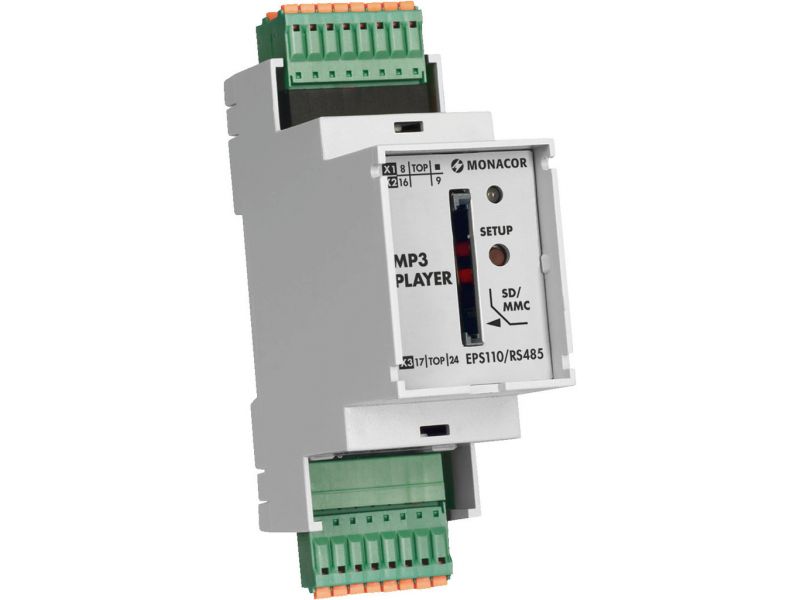

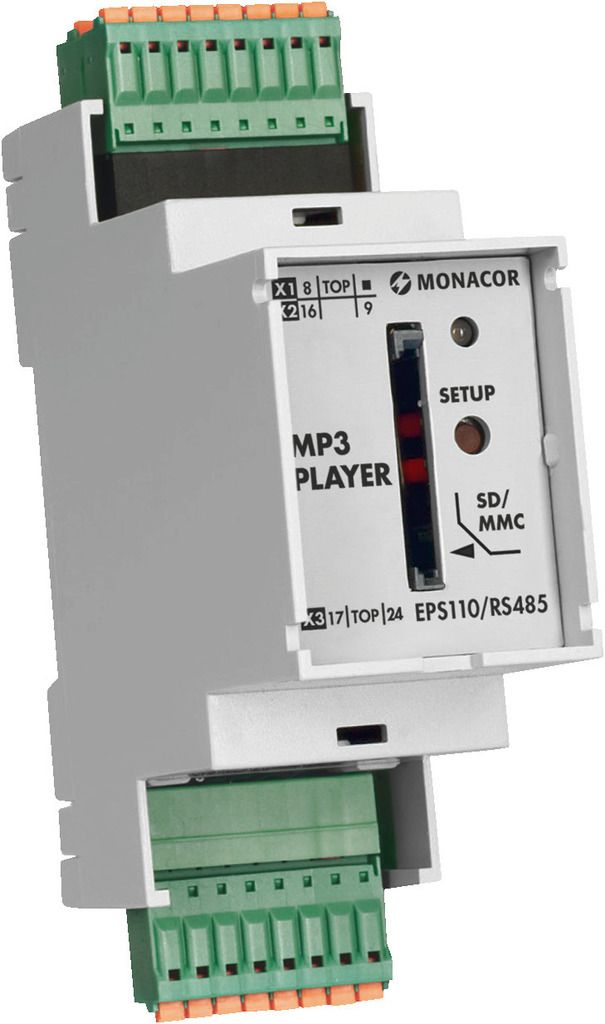

EPS110/RS485
MP3 player,
event-driven.
- For mounting onto DIN rails according to DIN EN 60715, 2 HP
- For SDHC/SD/MMC cards up to 32 GB (FAT32), not included in the scope of delivery
- Extensive playback functions
- 7 binary inputs
- In/Out string triggers
- RS-485 interface for communication
- Decentral extensions
- Connection for EIB push-button sensor
- Balanced stereo line output, can also be used as a headphone output
- Delay function up to 60 seconds
- Free configuration software
- Firmware update possible
Parametry
| Description | MP3 player |
| Media | MP3, WAV |
| Frequency range | 18-20,000 Hz |
| THD | 0.001% |
| Output, analogue | 2 V/600 Ω |
| Operating voltage (possible alternative) | 7-24 V |
| Power supply (possible alternative) | 60 mA (7 V) 25 mA (24 V) |
| Admiss. ambient temp. | -35-+55 °C |
| Dimensions | 74 x 113 x 35 mm |
| Weight | 96 g |
| Connections | 7 binary outputs |
| Packing dimensions (W x H x L) | 0.037 x 0.095 x 0.075 m |
| Gross weight | 0.1155 kg |
