DT-352NF
Kod EAN: 4007754260281
Hi-fi dome tweeter, 80 W, 8 Ω 25 mm (1") metal dome, finest resolution of the high frequency range No ferrofluid in the air gap of the drive system Special light metal alloy without resonance behaviour typical for metal Double magnet system with dri...
71,00 € brutto
(inkl. 20% DPH)
59,17 € netto

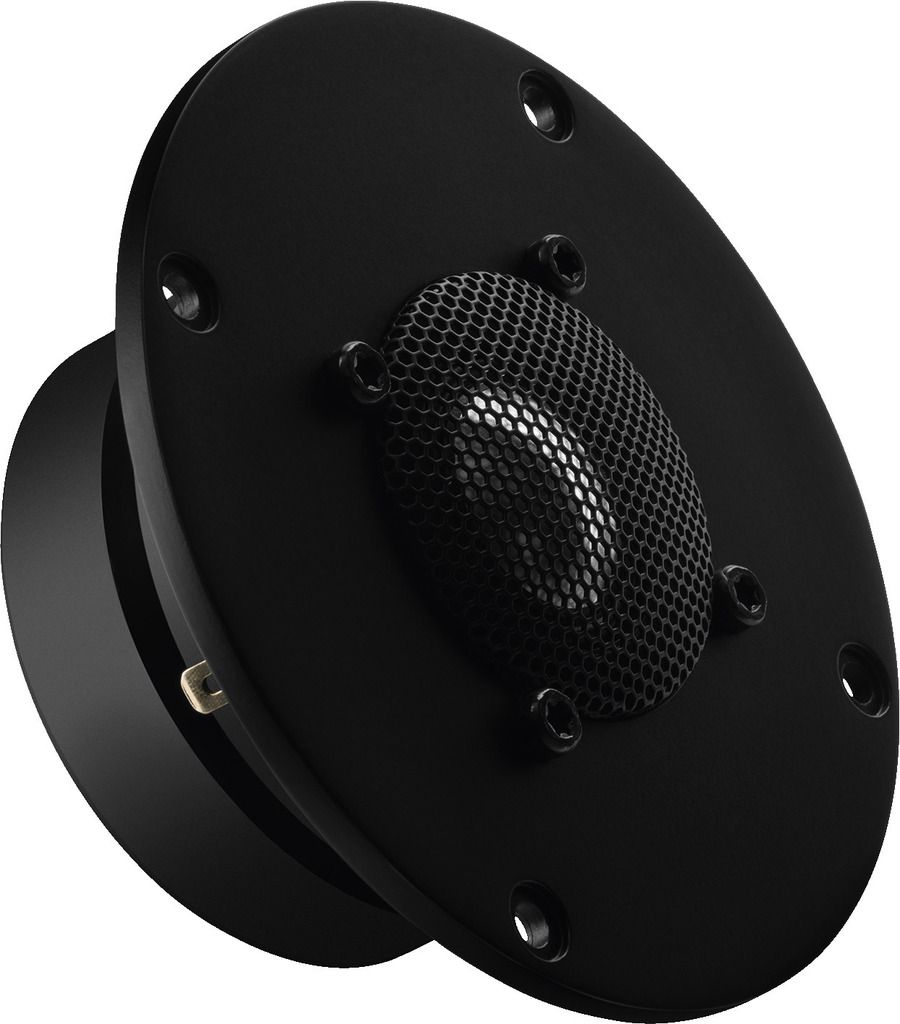

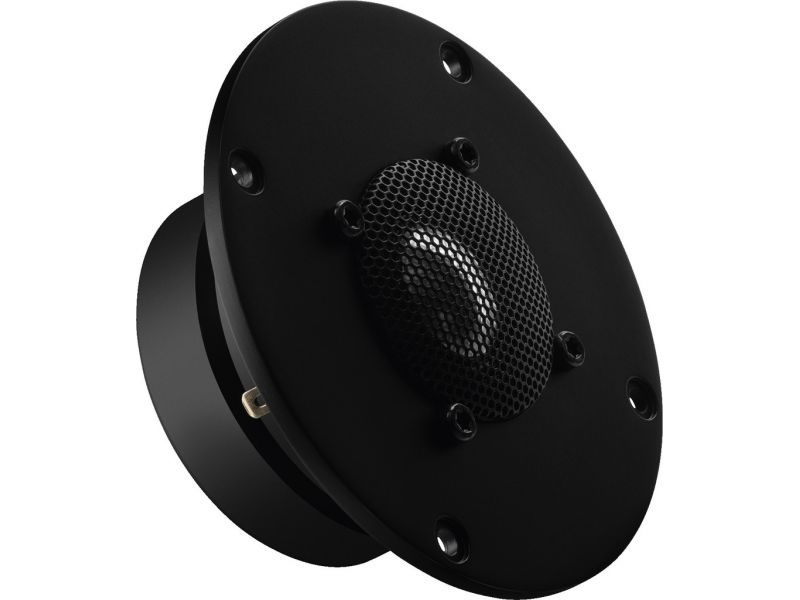

DT-352NF
Hi-fi dome tweeter, 80 W, 8 Ω
- 25 mm (1") metal dome, finest resolution of the high frequency range
- No ferrofluid in the air gap of the drive system
- Special light metal alloy without resonance behaviour typical for metal
- Double magnet system with drilled pole core
- Damped coupling volume for a low resonant frequency
- For use with a crossover frequency from 1,500 Hz on via 18 dB filter
- Very wide radiation range, goes beyond 25 kHz
HOBBY HiFi 06/2018
“A top price-performance recommendation: With the DT-352NF, MONACOR provides an outstanding dome tweeter which perfectly meets any requirement. Compared with the sound quality, the price is far more attractive than expected.”
Parametry
| Impedance (Z) | 8 Ω |
| Frequency range | fx-25,000 Hz |
| Resonant frequency (fs) | 800 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz/1,500 Hz (18 dB) |
| Power rating (RMS) | 80 W |
| Peak music power output (MAX) | 150 W |
| SPL | 91 dB/W/m |

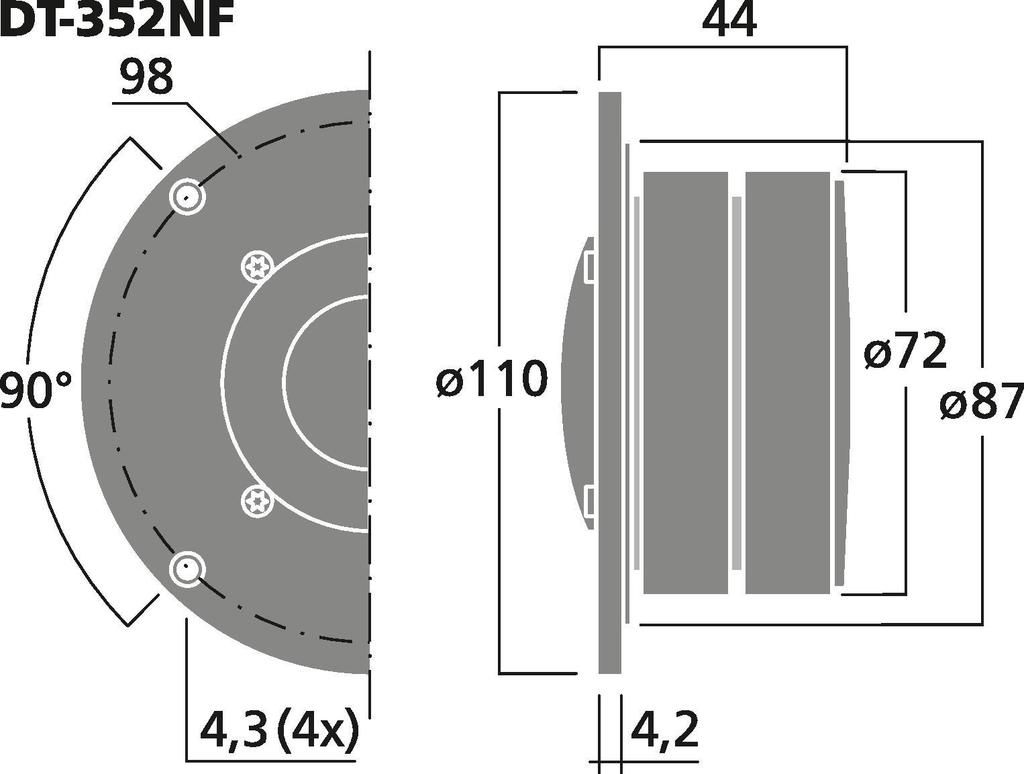

| Voice coil diameter | Ø 25 mm |
| Magnet diameter | Ø 72 mm |
| Mounting cutout | Ø 87 mm |
| Mounting depth | 42 mm |
| Mounting hole diameter | Ø 98 mm |
| Hole spacing X-axis | 69.3 mm |
| Hole spacing Y-axis | 69.3 mm |
| Dimensions | Ø 110 x 46 mm |
| Outside diameter | Ø 110 mm |
| Width | Ø 110 mm |
| Depth | 46 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.77 kg |
| Packing unit | 1 |
| Packing dimensions (W x H x L) | 0.13 x 0.095 x 0.13 m |
| Gross weight | 0.86 kg |
| Net weight | 0.77 kg |
