DRIVE-08A

Kod EAN: 4007754276251

With the DRIVE series you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjust...

víc

510,00 € brutto

(inkl. 20% DPH)
425,00 € netto

Staň se partnerem
Kup teď

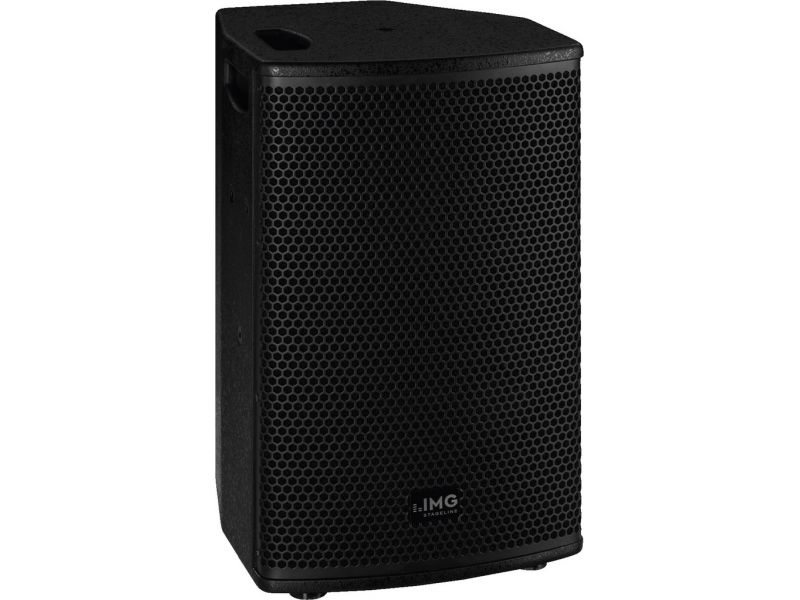

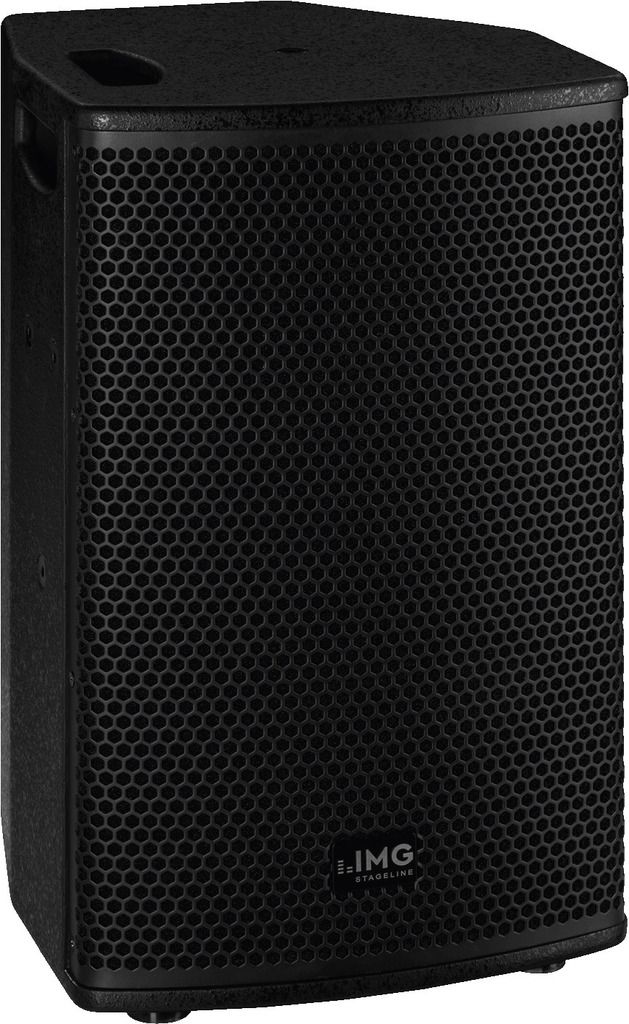

DRIVE-08A

With the DRIVE series
you will get robust and easy-to-use PA speakers which are suitable for versatile applications and feature the latest DSP-controlled amplifier technology. There are 3 selectable presets available to provide a perfect sound adjustment for any kind of application. These robust and high-quality cabinets made of birch plywood are suitable for general use. The arrangement of the handles allow for easy manageability.
Professional active DSP speaker system with 2-channel amplifier, 200 W
  • Compact 8/2 full range system with cabinet made of birch plywood
  • DSP-controlled 2-channel amplifier (bass: class D, tweeter: class A/B)
  • 3 selectable presets
  • FLAT (linear adjustment)
  • MUSIC (slightly raised bass and treble)
  • LOW CUT (with high-pass filter for application with an additional subwoofer)
  • 20 cm (8") bass speaker and 25 mm (1") horn tweeter, can be turned by 90°
  • Excellent sound characteristics
  • High-quality coating and neat workmanship
  • Multi-purpose positioning and installation options
  • Horn tweeter with consistent radiation pattern
  • M8 threaded inserts for suspended installation, stand sleeve

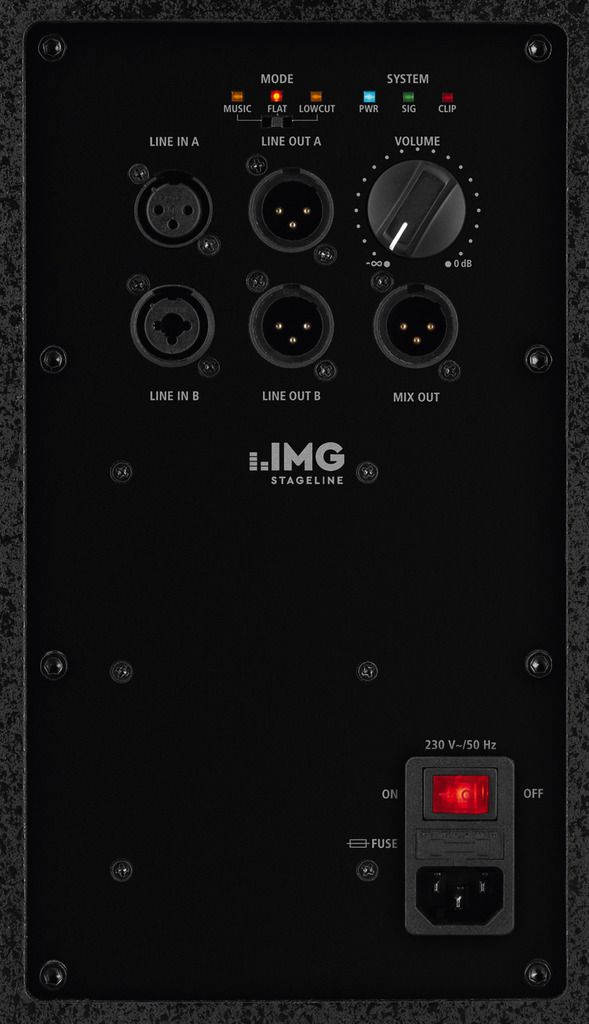

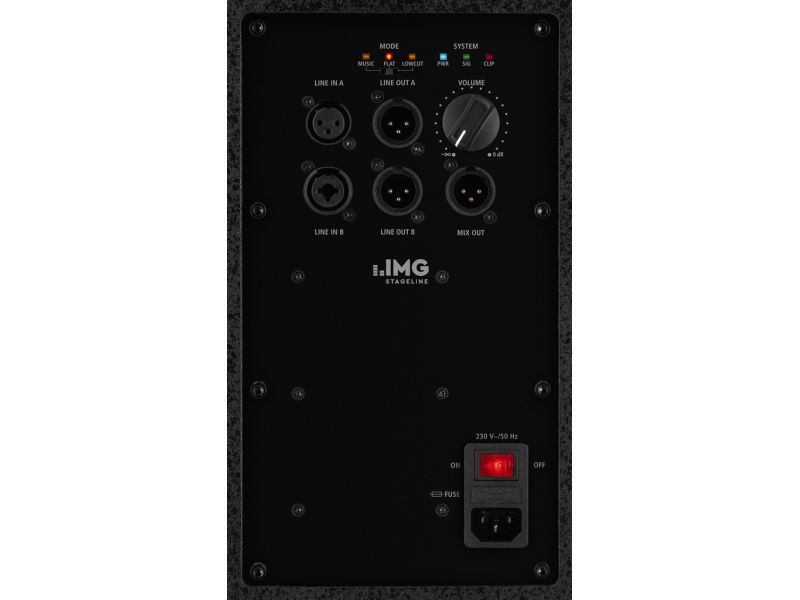

  • Volume control

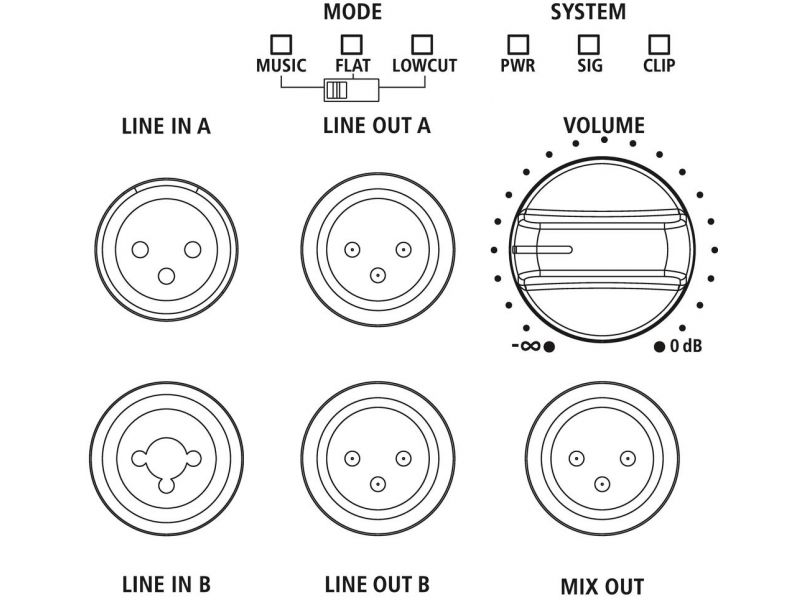

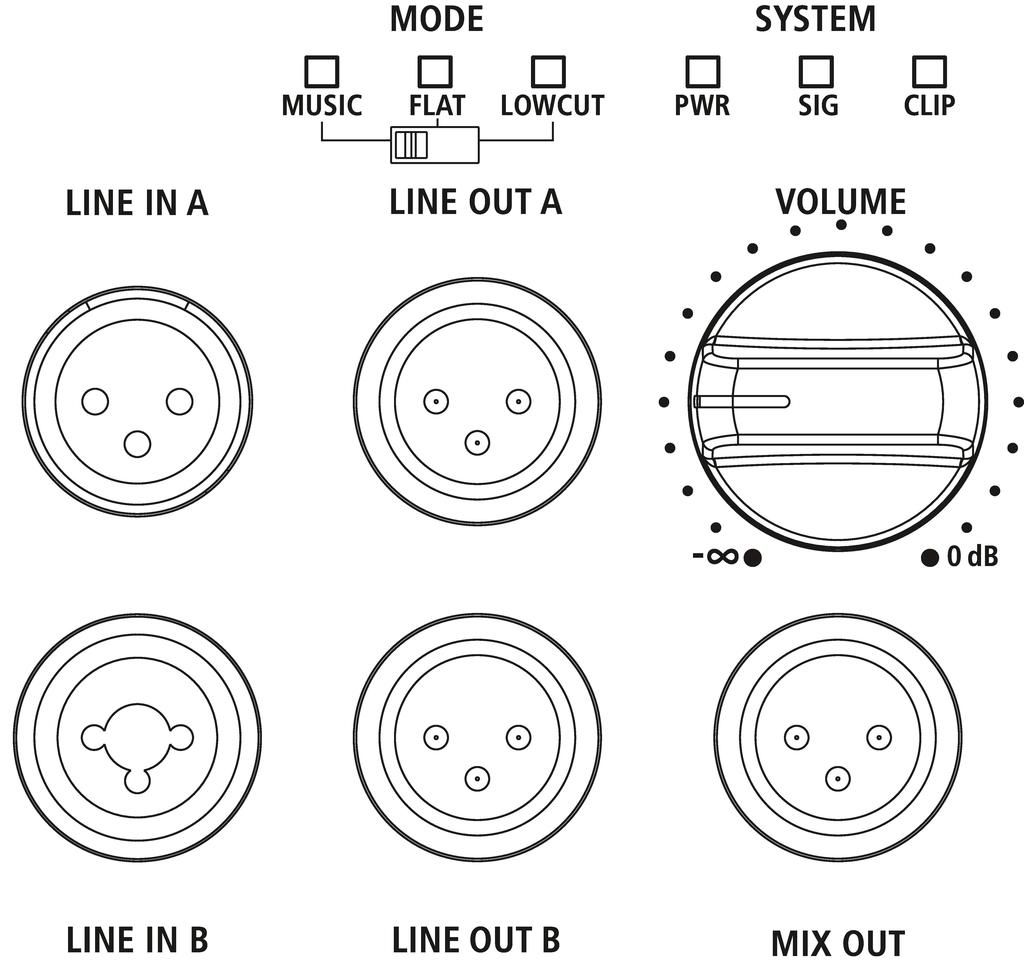

  • 2 x balanced line in
  • 2 x parallel line out
  • 1 x balanced mix out
  • Power and clip indicator

Parametry

Active/passive active
Transmission technology cable
Total output power 400 W
Power rating (RMS) DSP-controlled 200 W (140 + 60) bass: 140 W treble: 60 W
Frequency range 60-20,000 Hz
Input signal 790 mV/40 kΩ (line, bal.)
System 8/2 full range
Bass speaker 20 cm (8") bass speaker
Tweeter 25 mm (1") horn tweeter
Number of speakers 2
Speaker size 20 cm (8")
SPL 98 dB/W/m
Max. rated SPL 122 dB
Radiation angle/beam angle H: 90°/V: 60°, horn can be turned
Radiation angle, horizontal 90°
Radiation angle, vertical 60°
Housing material birch plywood
Colour black
Mounting device M8 threaded inserts, stand sleeve
Admiss. ambient temp. 0-40 °C
Power supply ˜ 230 V/50 Hz/250 VA
Dimensions 270 x 460 x 290 mm
Width 270 mm
Height 460 mm
Depth 290 mm
Weight 9.4 kg
Inputs 1 x comb. XLR/6.3 mm: line 1 x XLR: line
Outputs 2 x XLR par. out 1 x XLR mix out
Other features DSP-controlled limiter 3 selectable presets
Packaging dimensions (W x H x L) 0.38 x 0.54 x 0.36 m
Gross weight 12.24 kg
Net weight 9.4 kg

Na stáhnutí

Produktová karta DRIVE-08A konformitaetserklaerung-ukca konformitaetserklaerung-ce Návod na obsluhu
