DIB-102
Kod EAN: 4007754131840
DI Boxes For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically...
67,90 € brutto
(inkl. 23% DPH)
55,20 € netto
DIB-102
DI Boxes
For an optimum signal transmission from musical instruments to a mixer or amplifier. By using a transformer coupling, interferences due to matching problems, e.g. hum loops, are prevented to a large extent. Input and output are galvanically isolated.
For adapting line levels, please use units of the LTR series!

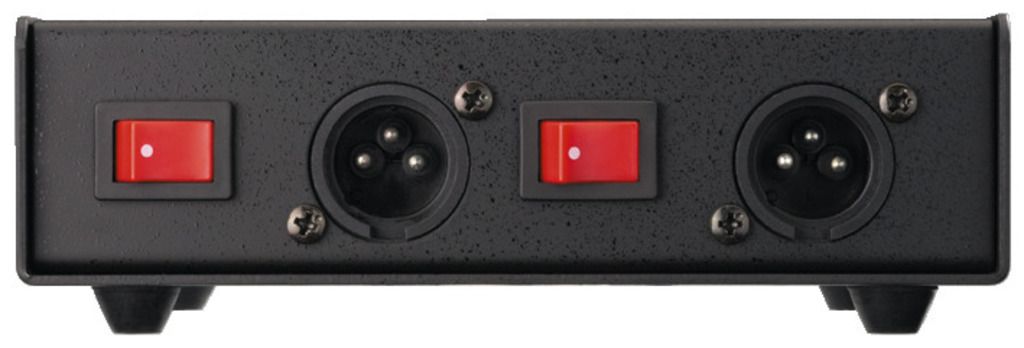

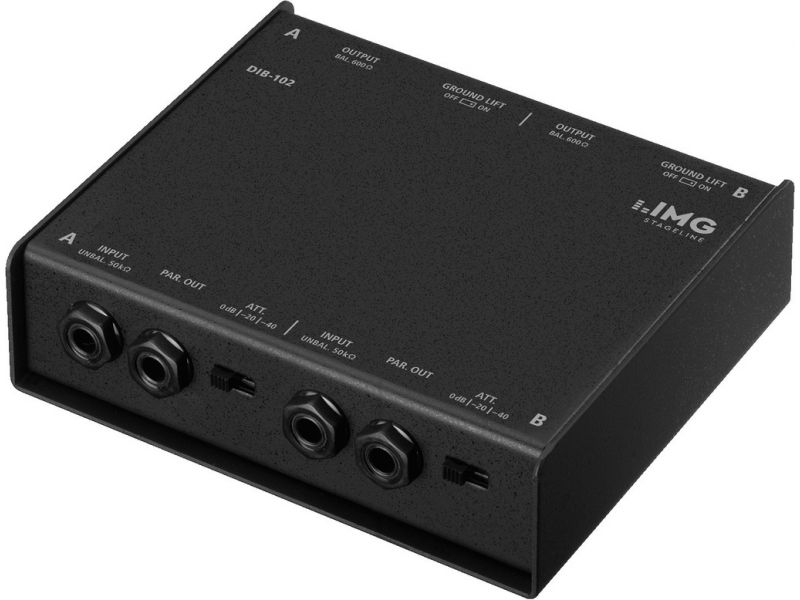

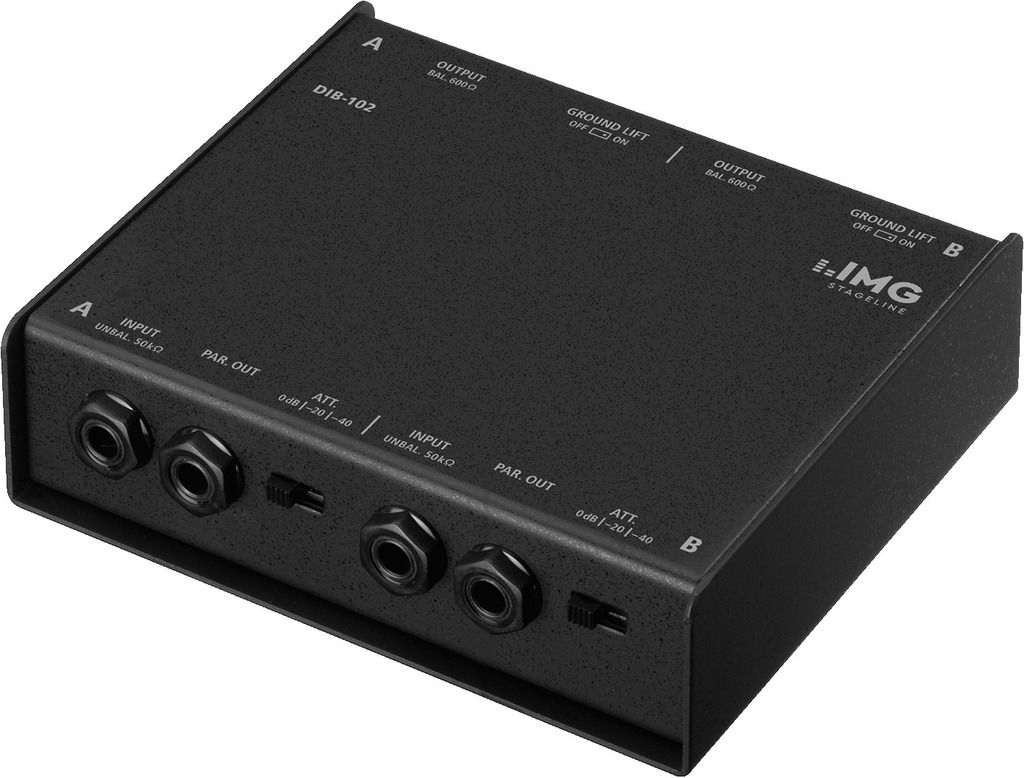

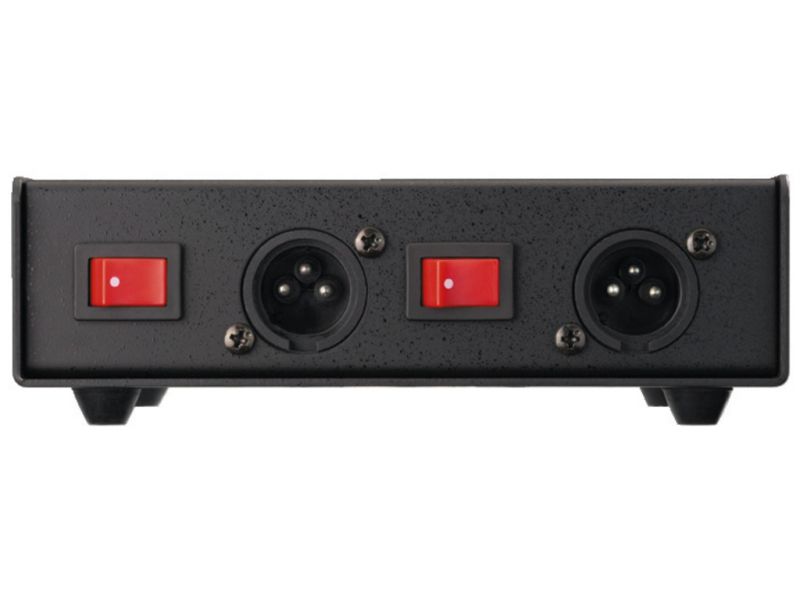

2-channel DI box
- 3-fold attenuation switch (0/-20/-40 dB) for each channel
- 1 ground lift switch for each channel
- 1 instrument feed-through output for each channel
- Wideband balancing transformer
- Robust metal housing
tools4music 06/2009
on the LSP-102, LC-31, FGA-102, FGA-202, DIB-102
“Recommendable and fit for on-the-road applications. An attractively priced little audio aid, perfect for the ever accompanying tool case.”
tools4music 02/2010
“The DIB-102 from IMG Stage Line impresses by both the attractive price and the very stable housing. The frequency curve is exemplary.”
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Description | DI box |
| Frequency range | 15-30,000 Hz |
| Input impedance | 50 kΩ |
| Output impedance | 600 Ω, XLR50 kΩ, jack |
| Transmission ratio | 10:1 |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 148 x 50 x 130 mm |
| Weight | 755 g |
| Inputs | 2 x 6.3 mm jack, unbal. |
| Outputs | 2 x 6.3 mm jack, unbal.,par. out2 x XLR, bal. |
