CF18VJD/8

Kod EAN: 0739894580656

PA subwoofer, 1,600 W, 8 Ω Ventilated magnet arrangement for dynamic heat dissipation Two demodulation rings Long voice coil for an improved control at long excursion Optimised double suspension Manufacturer information: Celestion International...

víc

Staň se partnerem
Kup teď

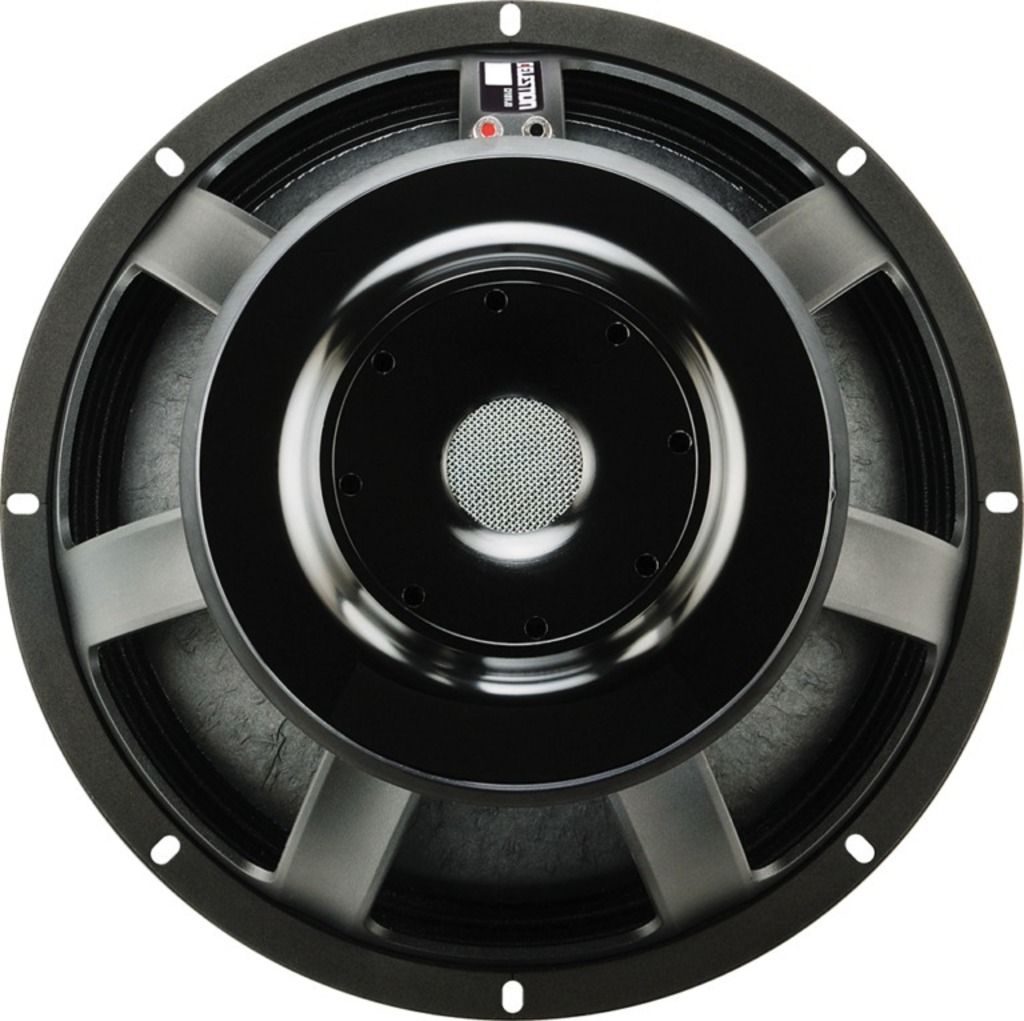

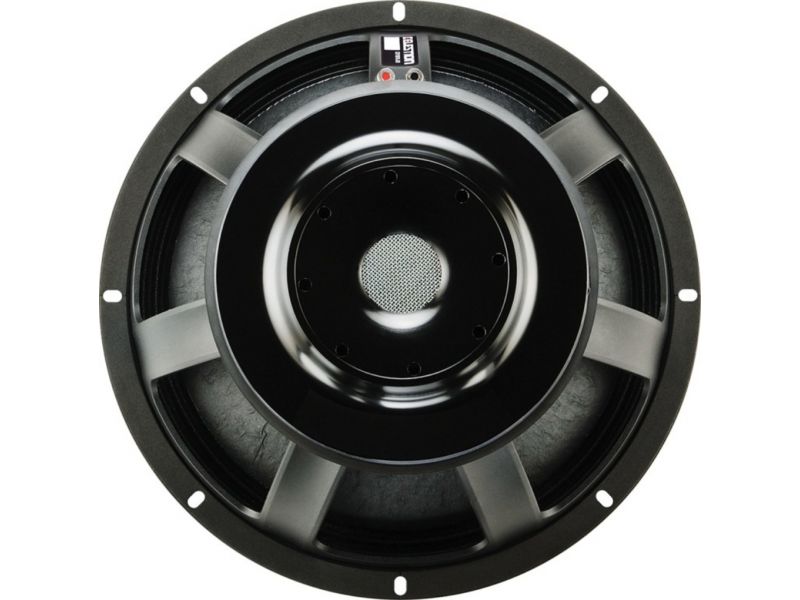

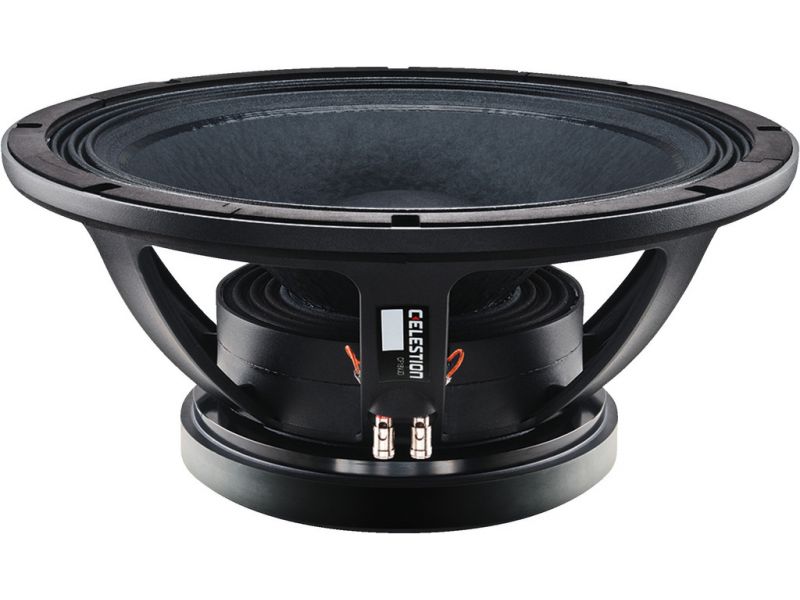

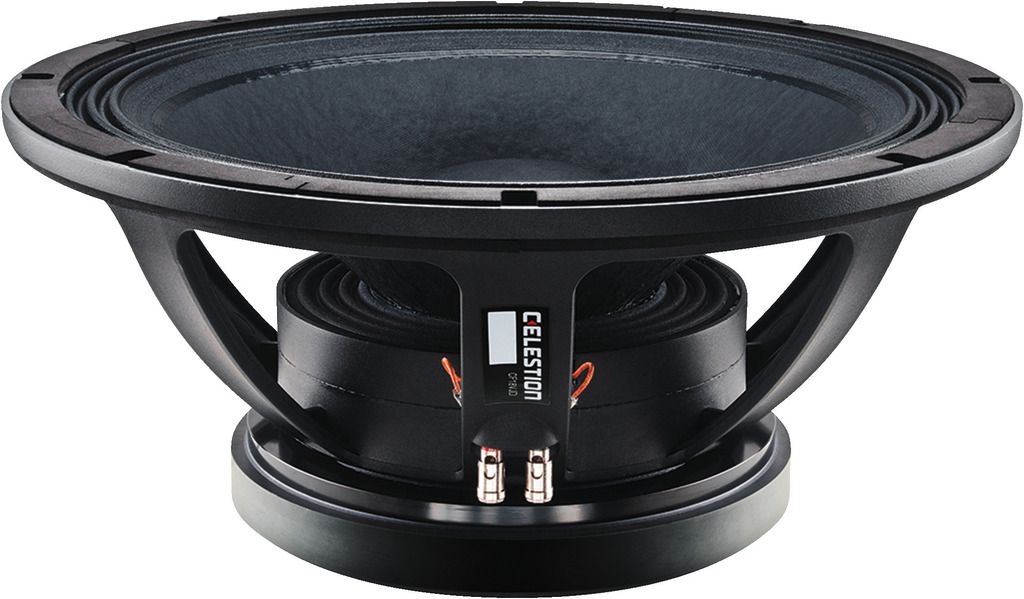

CF18VJD/8

PA subwoofer, 1,600 W, 8 Ω
  • Ventilated magnet arrangement for dynamic heat dissipation
  • Two demodulation rings
  • Long voice coil for an improved control at long excursion
  • Optimised double suspension
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 25-1,500 Hz
Resonant frequency (fs) 34.5 Hz
Power rating (RMS) 1,600 W
Peak music power output (MAX) 3,200 W
SPL 97 dB/W/m
Suspension compl. (Cms) 0.08 mm/N
Moving mass (Mms) 265.420 g
Mech. Q factor (Qms) 4.573
Electr. Q factor (Qes) 0.332
Total Q factor (Qts) 0.309
Equivalent volume (Vas) 145.8 l
DC resistance (Re) 6.13 Ω
Force factor (BxL) 32.59 Tm
Voice coil induct. (Le) 1.87 mH
Voice coil diameter Ø 125 mm
Voice coil winding height 30 mm
Voice coil material copper wire
Voice coil former glass fibre
Linear excursion (XMAX) ± 12 mm
Eff. cone area (Sd) 1,134.12 cm2
Magnet weight 4.93 kg
Mounting cutout Ø 416 mm
Mounting depth 233 mm
Mounting hole diameter Ø 432-441 mm
Dimensions Ø 462 mm x 233 mm
Outside diameter Ø 462 mm
Width Ø 462 mm
Height Ø 462 mm
Depth 233 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 21 kg
Packing unit 1
Type of speaker 18"
Packaging dimensions (W x H x L) 0.5 x 0.25 x 0.5 m
Gross weight 23.3 kg
Net weight 21 kg

Na stáhnutí

Produktová karta CF18VJD/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca Technický produktový list
