CDX1-1412/8
Kod EAN: 0739894646451
PA horn driver, 35 W, 8 Ω Very compact design for mobile applications One-piece polyamide-coated cone and surround Recommended crossover frequency: 2,000 Hz (12 dB/oct.) 2-hole screw mounting Also available as 16 Ω version (CDX1-1412/16) Manufact...

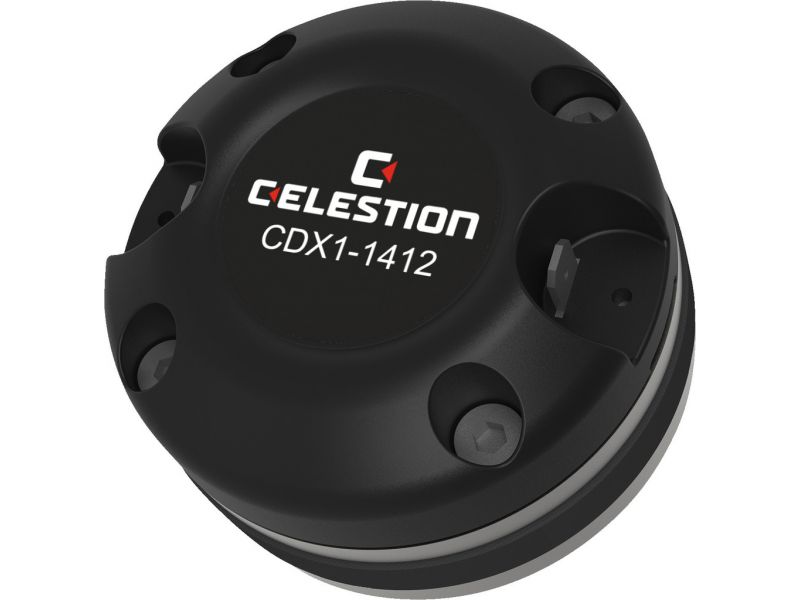

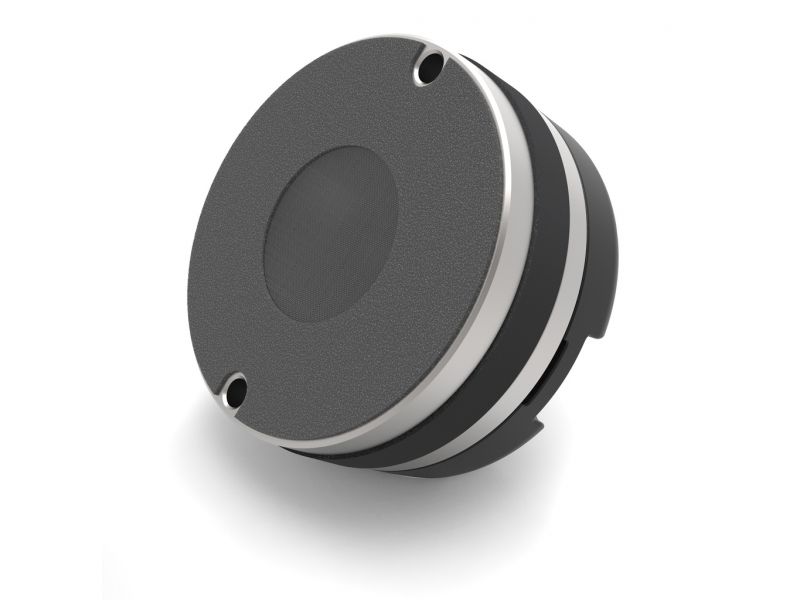

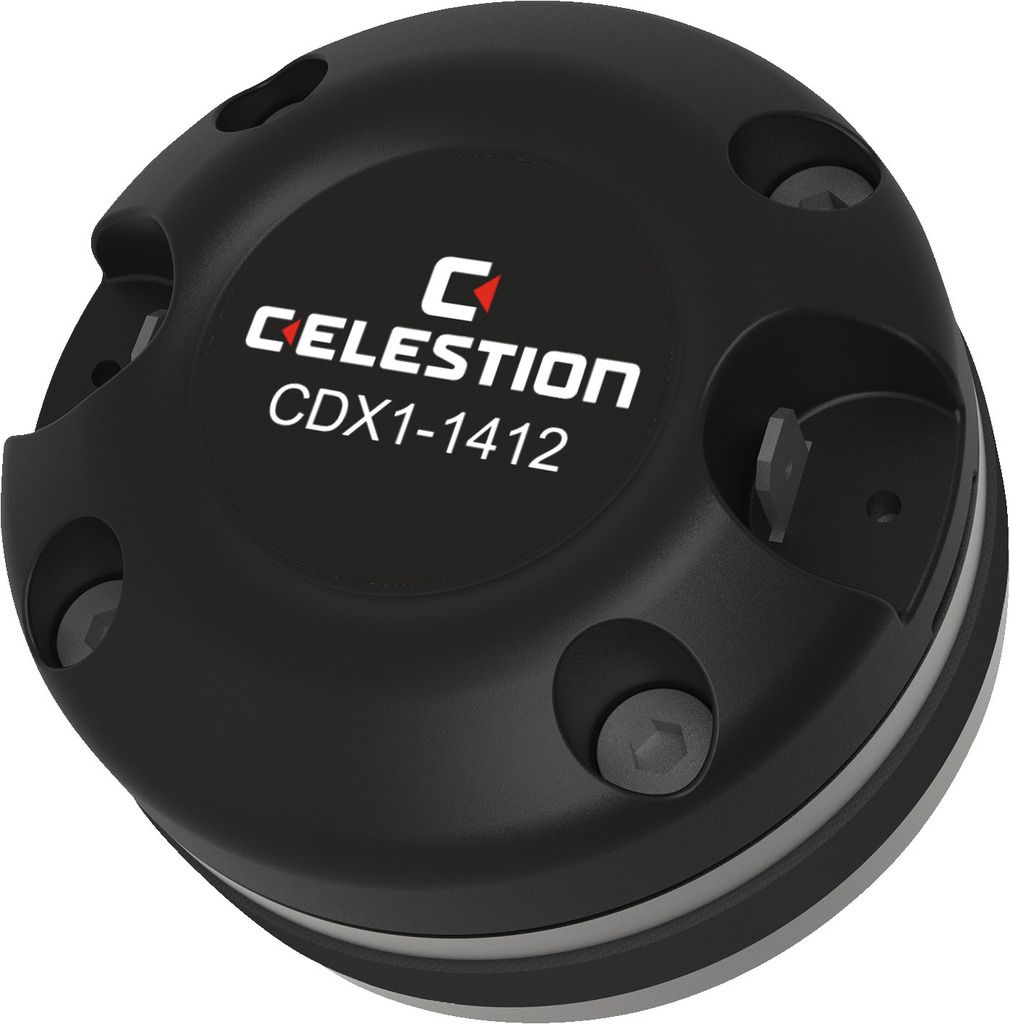

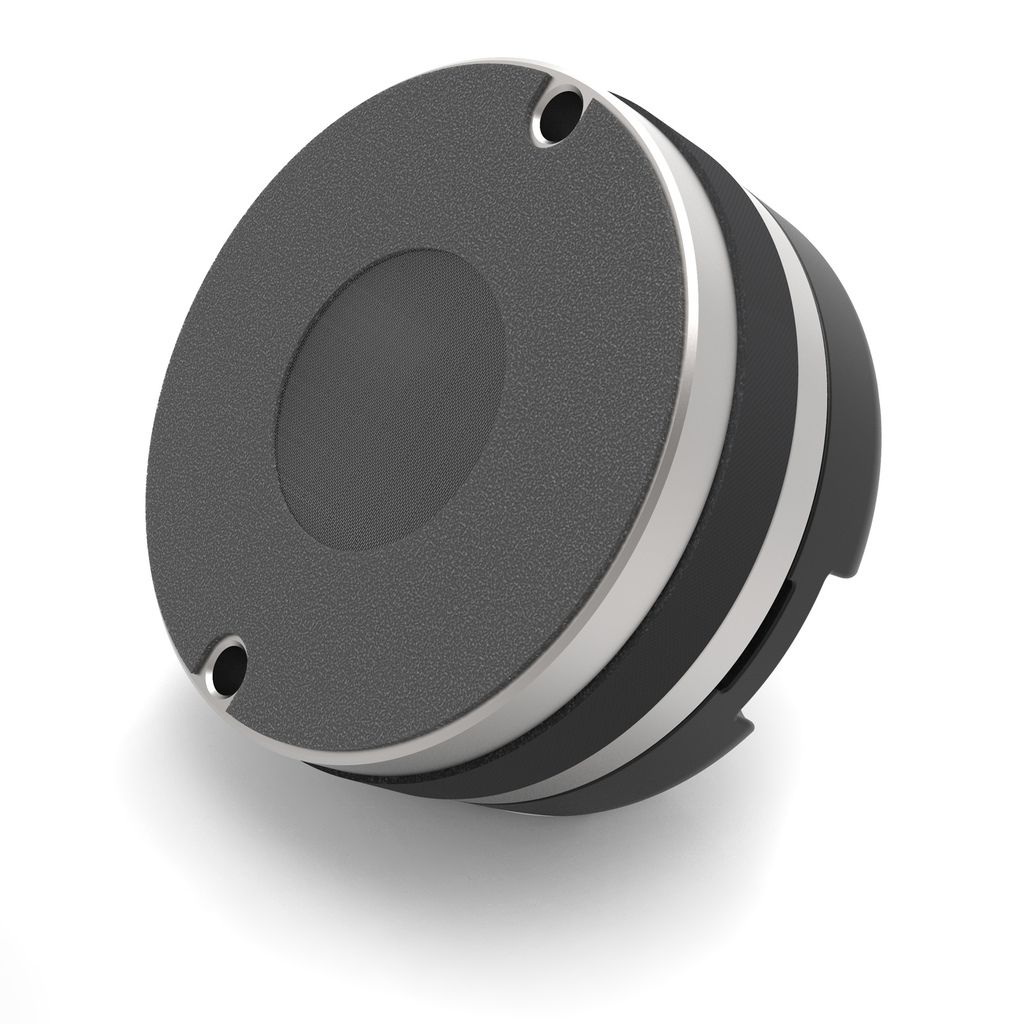

CDX1-1412/8
PA horn driver, 35 W, 8 Ω
- Very compact design for mobile applications
- One-piece polyamide-coated cone and surround
- Recommended crossover frequency: 2,000 Hz (12 dB/oct.)
- 2-hole screw mounting
- Also available as 16 Ω version (CDX1-1412/16)
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 1,500-20,000 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,000 Hz |
| Power rating (RMS) | 35 W |
| Peak music power output (MAX) | 70 W |
| SPL | 106 dB/W/m |
| Voice coil diameter | Ø 35 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | polyimide |
| Outlet | Ø 25 mm |
| Mounting cutout | dep. on horn |
| Mounting depth | dep. on horn |
| Mounting hole diameter | Ø 52 mm (2x M5) |
| Dimensions | Ø 60 mm x 34.5 mm |
| Outside diameter | Ø 60 mm |
| Width | Ø 60 mm |
| Height | Ø 60 mm |
| Depth | 34.5 mm |
| Colour | black/silver |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.35 kg |
| Packing unit | 1 |
| Type of speaker | 1" |
| Packaging dimensions (W x H x L) | 0.115 x 0.065 x 0.115 m |
| Gross weight | 0.4 kg |
| Net weight | 0.35 kg |
