CF1025C/8
Kod EAN: 0739894590457
PA bass-midrange speaker, 300 W, 8 Ω Balanced ventilation for enhanced cooling Two demodulation rings Manufacturer information: Celestion International LtdClaydon Business Park, Great Blakenham,IpswichSuffolk IP6 0NLUnited Kingdominfo@celestion...

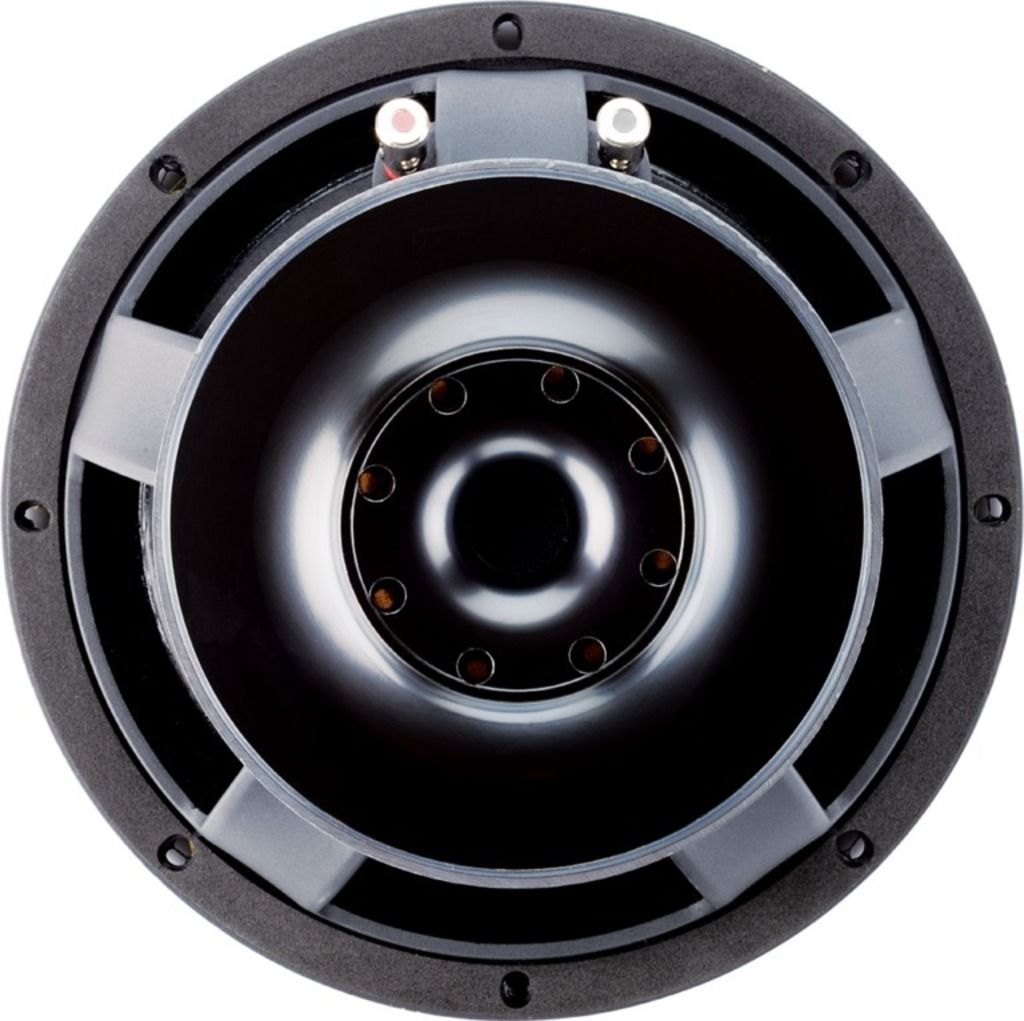

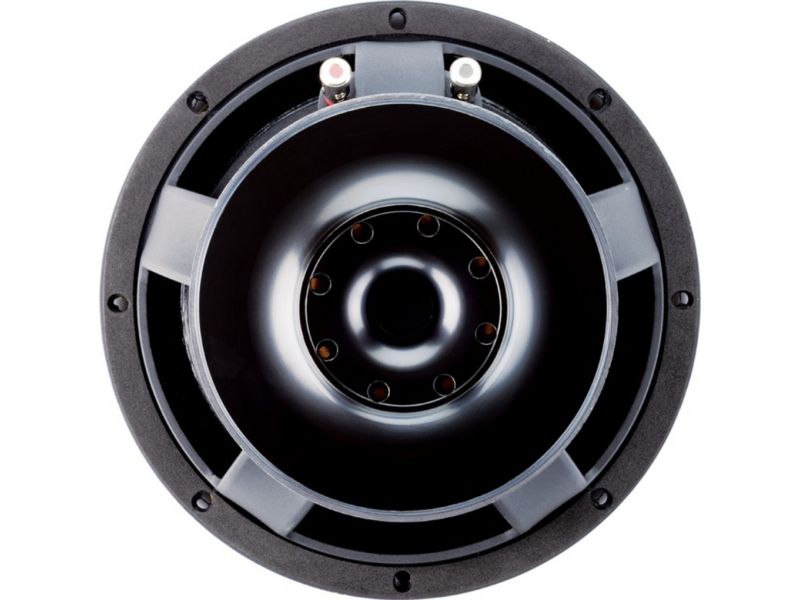

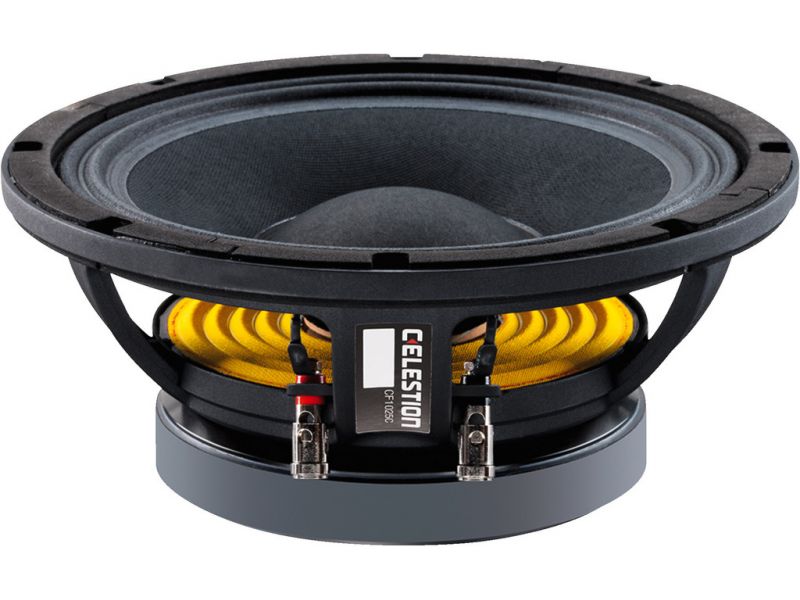

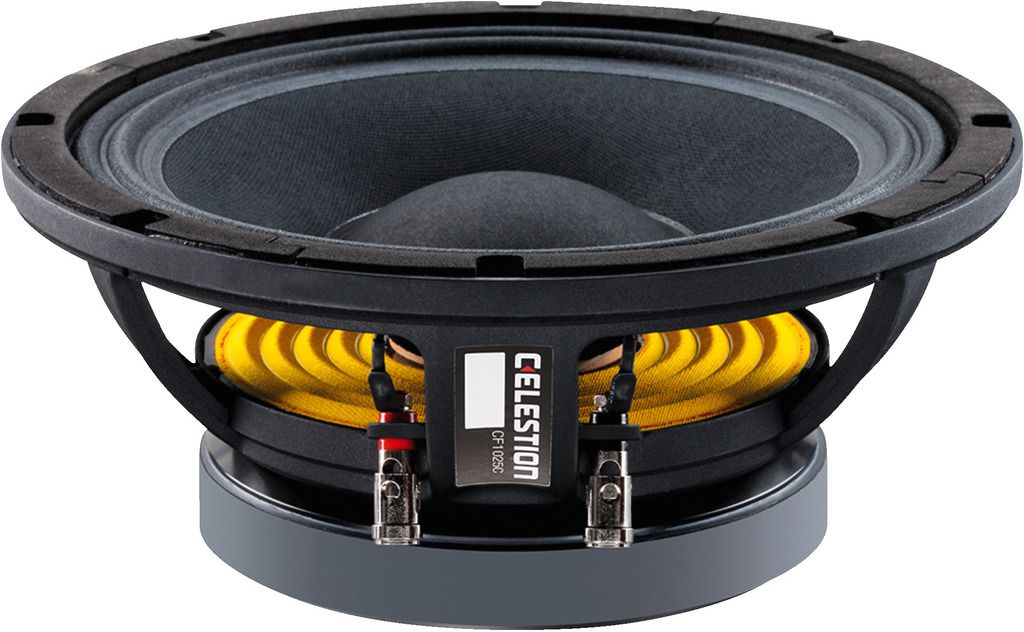

CF1025C/8
PA bass-midrange speaker, 300 W, 8 Ω
- Balanced ventilation for enhanced cooling
- Two demodulation rings
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Deutschland
info@monacor.com
Zum Falsch 36
28307 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 60-5,000 Hz |
| Resonant frequency (fs) | 54.8 Hz |
| Power rating (RMS) | 300 W |
| Peak music power output (MAX) | 600 W |
| SPL | 99 dB/W/m |
| Suspension compl. (Cms) | 0.23 mm/N |
| Moving mass (Mms) | 37.03 g |
| Mech. Q factor (Qms) | 2.338 |
| Electr. Q factor (Qes) | 0.299 |
| Total Q factor (Qts) | 0.265 |
| Equivalent volume (Vas) | 38.6 l |
| DC resistance (Re) | 5.15 Ω |
| Force factor (BxL) | 14.82 Tm |
| Voice coil induct. (Le) | 0.57 mH |
| Voice coil diameter | Ø 64 mm |
| Voice coil winding height | 12.5 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 4.25 mm |
| Eff. cone area (Sd) | 346.36 cm2 |
| Magnet weight | 1.7 kg |
| Mounting cutout | Ø 230.8 mm |
| Mounting depth | 119 mm |
| Mounting hole diameter | Ø 244.5-247 mm |
| Dimensions | Ø 265 mm x 119 mm |
| Outside diameter | Ø 265 mm |
| Width | Ø 265 mm |
| Height | Ø 265 mm |
| Depth | 119 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.9 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.3 x 0.16 x 0.3 m |
| Gross weight | 5.6 kg |
| Net weight | 4.9 kg |
