CF0617M/8
Kod EAN: 739894588652
PA midrange speaker, 200 W, 8 Ω Inverse dust cap allows for tight positioning of a phase plug, e.g. with horn applications Long-term stable, temperature-resistant, flat foam surround Ideally suited for multi-way PA systems, high-quality studio monito...
CF0617M/8

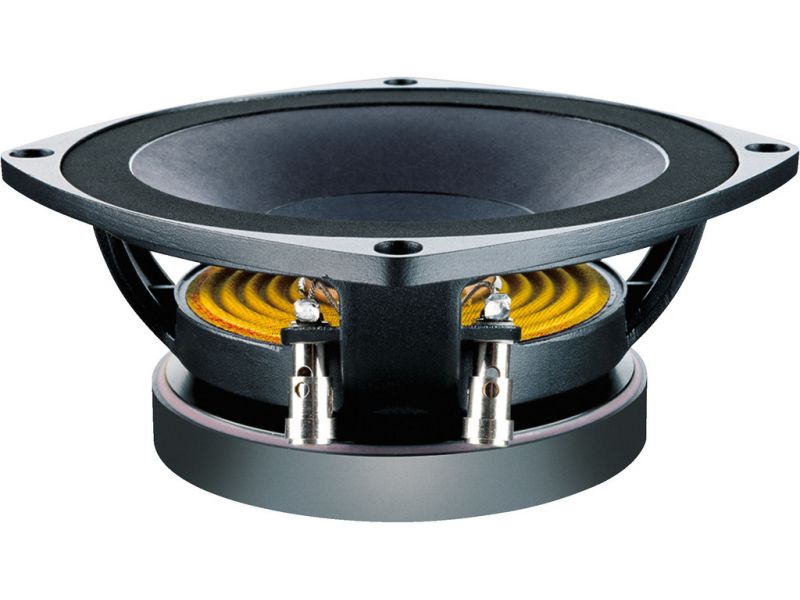

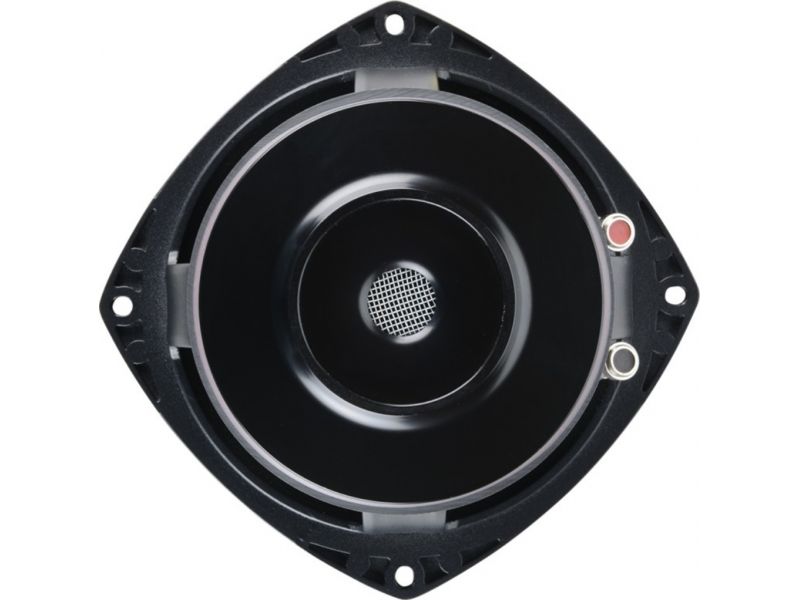

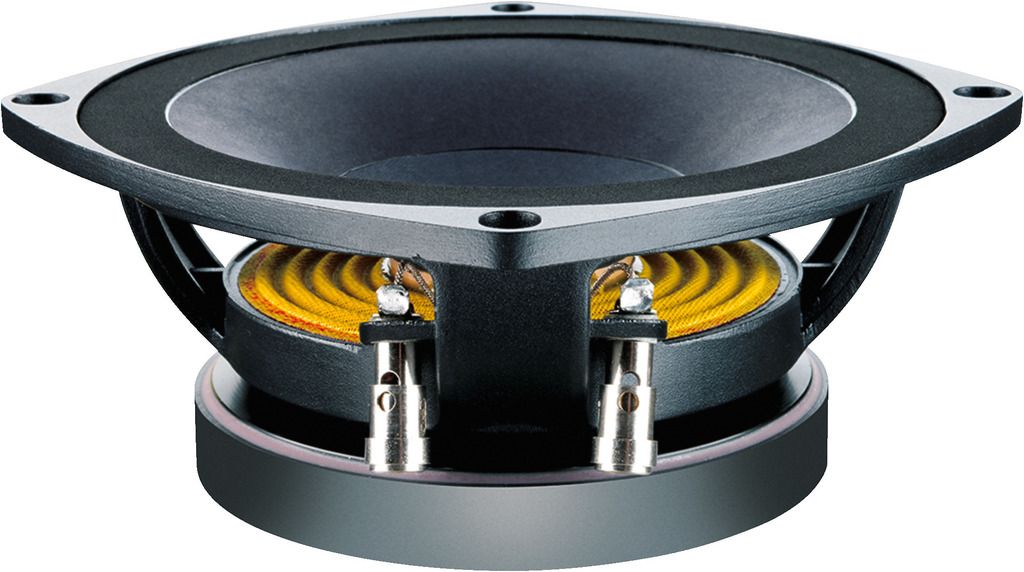

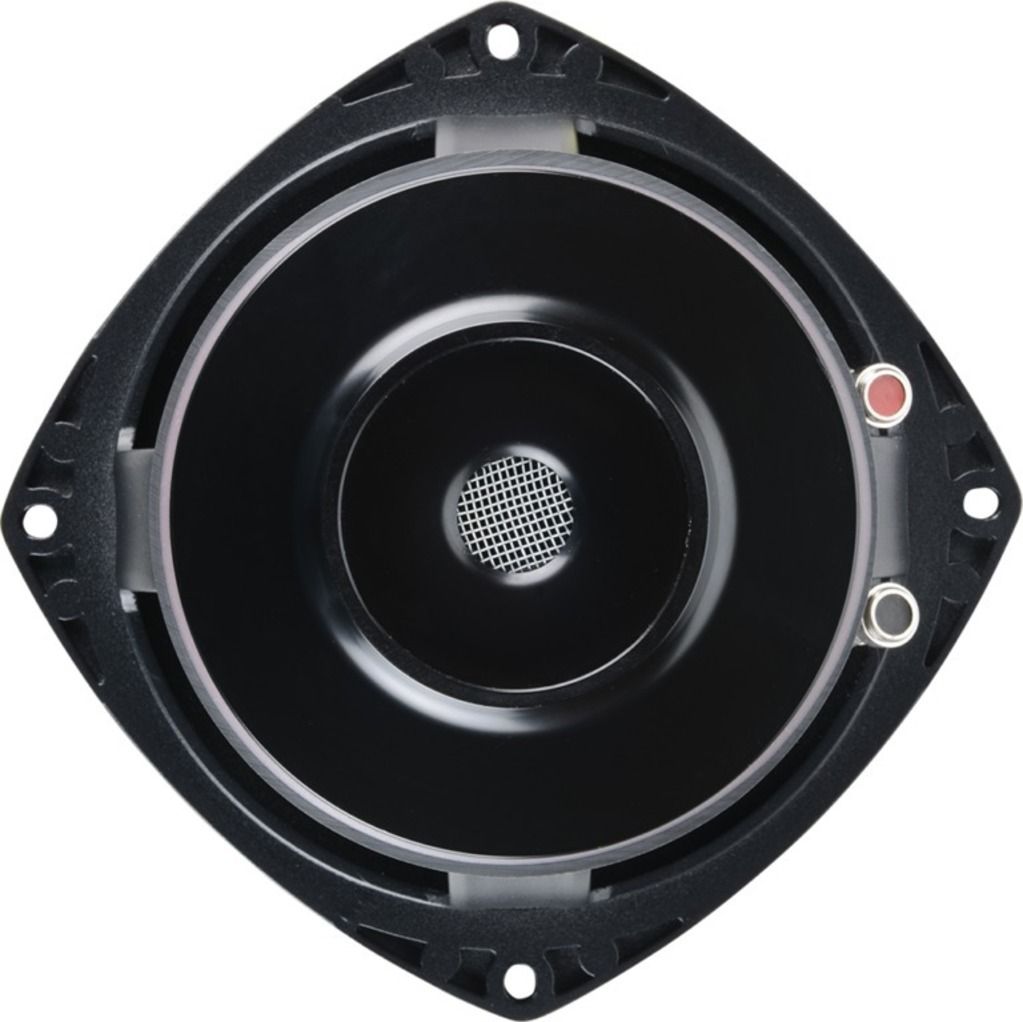

PA midrange speaker, 200 W, 8 Ω
- Inverse dust cap allows for tight positioning of a phase plug, e.g. with horn applications
- Long-term stable, temperature-resistant, flat foam surround
- Ideally suited for multi-way PA systems, high-quality studio monitors and hi-fi
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

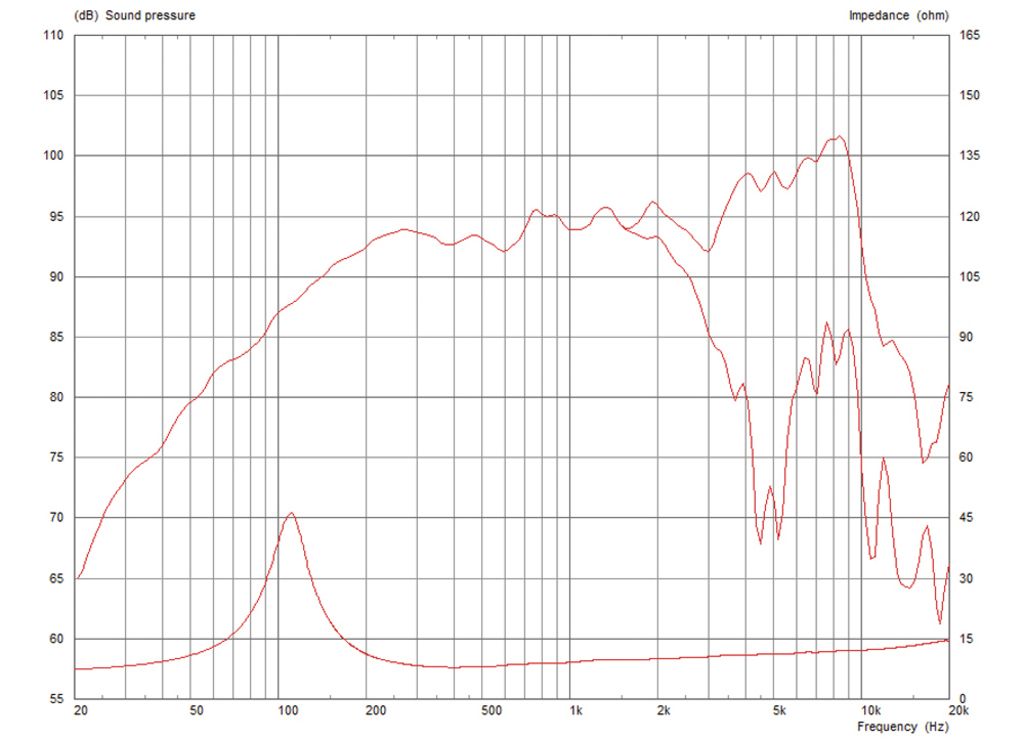

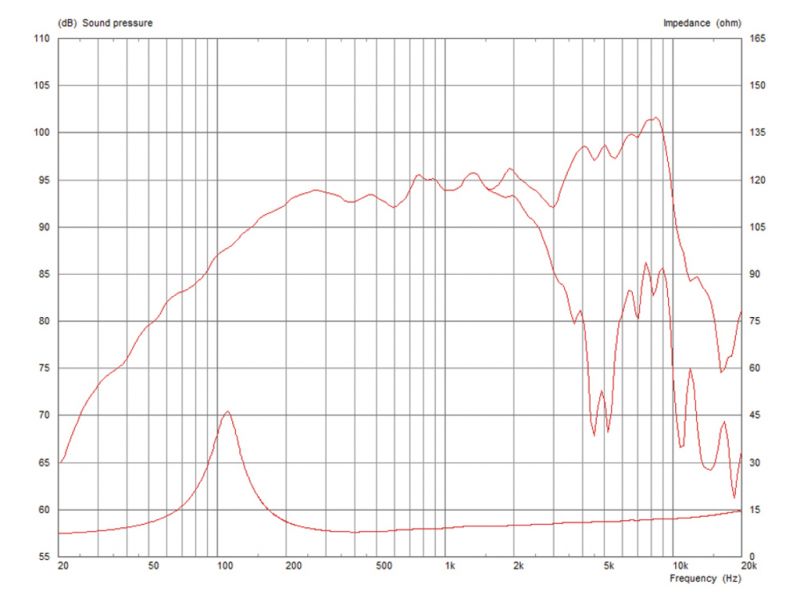

| Frequency range | 300-7,000 Hz |
| Resonant frequency (fs) | 116.6 Hz |
| Power rating (RMS) | 200 W |
| Peak music power output (MAX) | 400 W |
| SPL | 96 dB/W/m |
| Suspension compl. (Cms) | 0.1 mm/N |
| Moving mass (Mms) | 11.5 g |
| Mech. Q factor (Qms) | 6.93 |
| Electr. Q factor (Qes) | 0.481 |
| Total Q factor (Qts) | 0.451 |
| Equivalent volume (Vas) | 5.4 l |
| DC resistance (Re) | 5.3 Ω |
| Force factor (BxL) | 9 Tm |
| Voice coil induct. (Le) | 1.73 mH |
| Voice coil diameter | Ø 45 mm |
| Voice coil winding height | 8.4 mm |
| Voice coil material | flat copper-coated aluminium wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 2.7 mm |
| Eff. cone area (Sd) | 153.9 cm2 |
| Magnet weight | 0.6 kg |
| Mounting cutout | Ø 150 mm |
| Mounting depth | 78.5 mm |
| Mounting hole diameter | 173-175 mm |
| Dimensions | 189 x 189 x 78.5 mm |
| Width | 189 mm |
| Height | 189 mm |
| Depth | 78.5 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.9 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.19 x 0.11 x 0.19 m |
| Gross weight | 2.5 kg |
| Net weight | 1.9 kg |
