CDX20-3020/8

Kod EAN: 0739894597555

PA horn driver, 100 W, 8 Ω High-quality 50 mm (2") compression driver with 75 mm (3") voice coil and ferrite magnet One-piece titanium cone and surroundRecommended crossover frequency: 800 Hz (12 dB/oct.) 4-hole screw mounting Manufacturer inform...

víc

Staň se partnerem
Kup teď

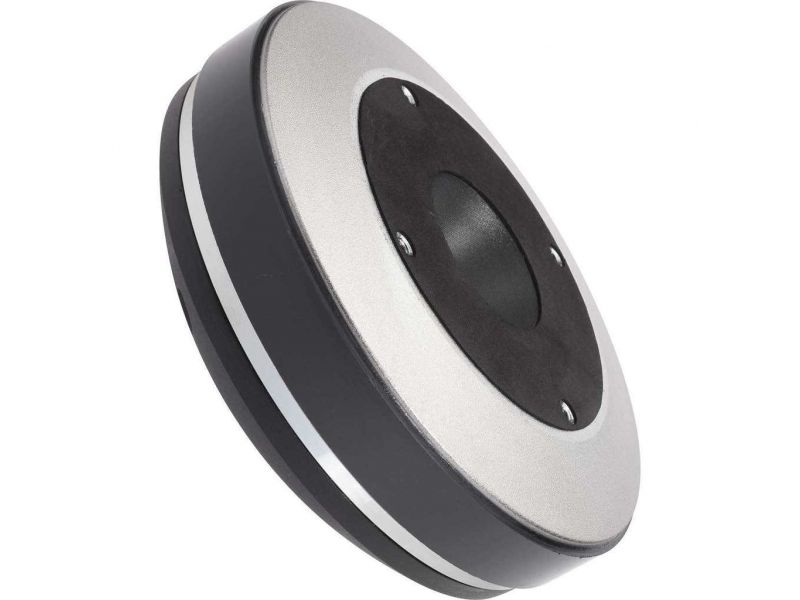

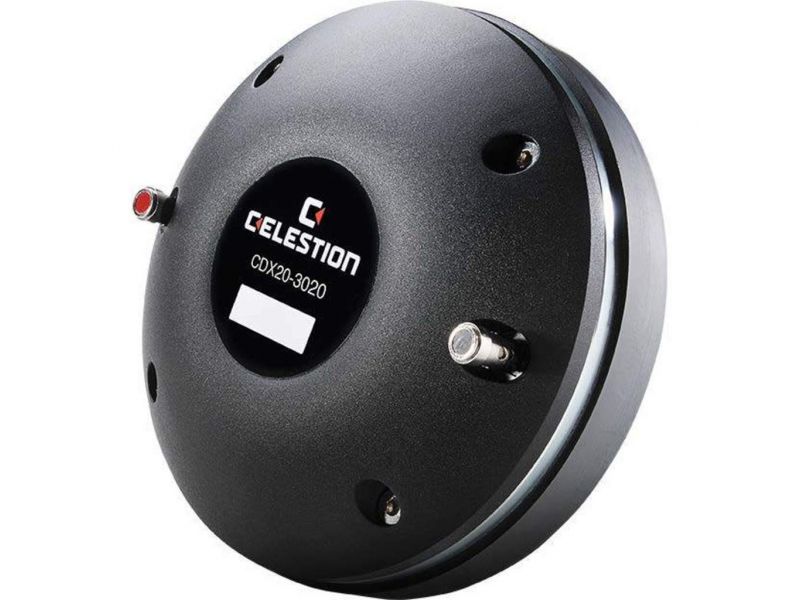

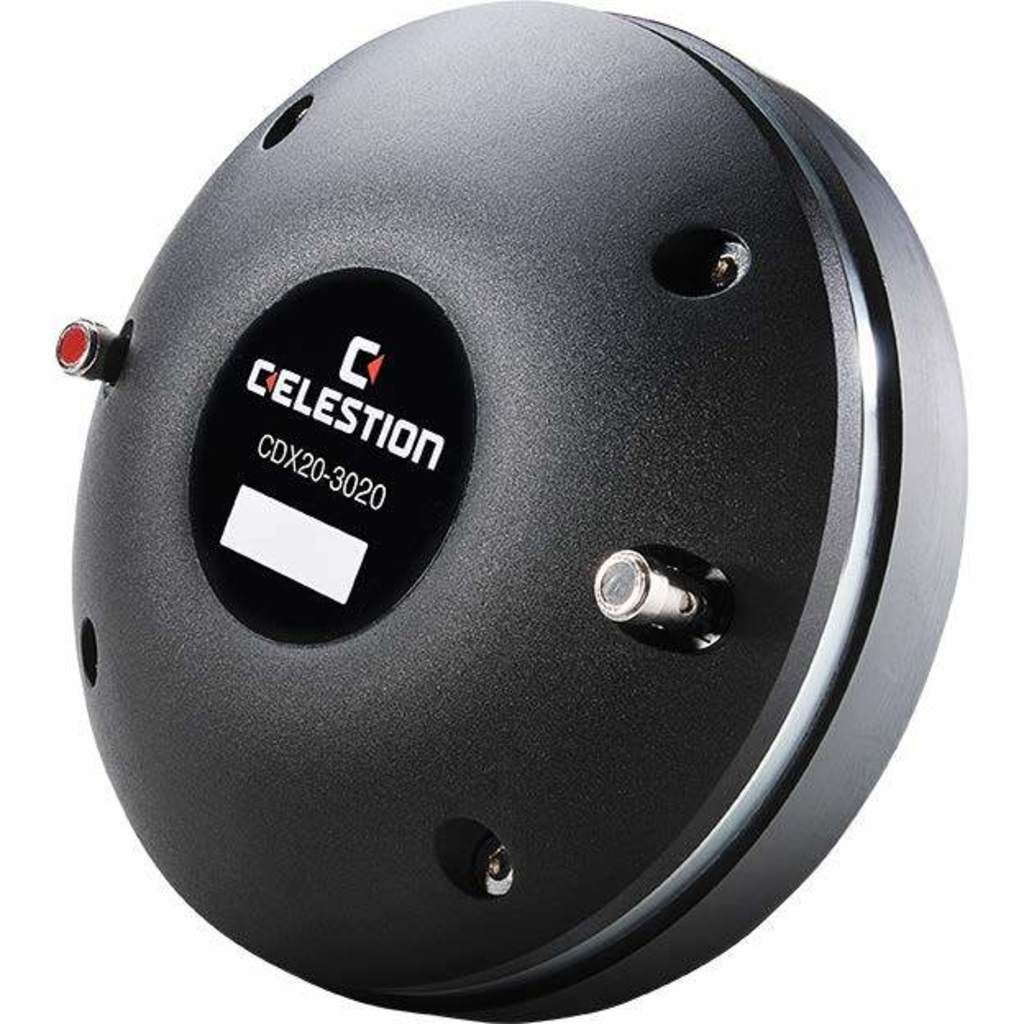

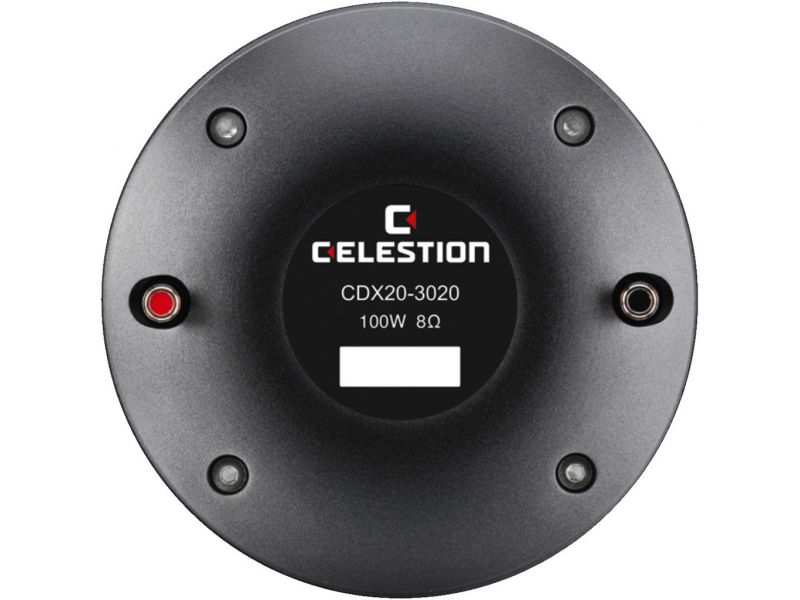

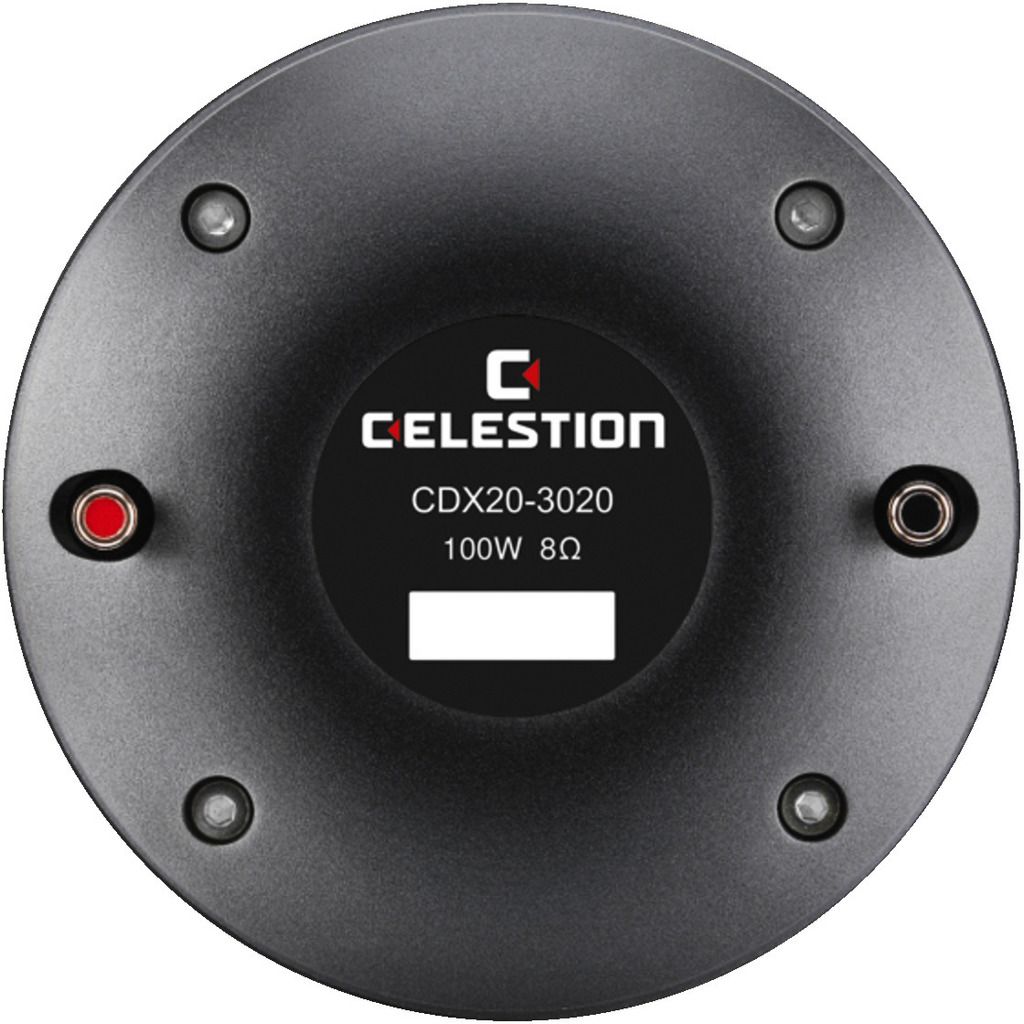

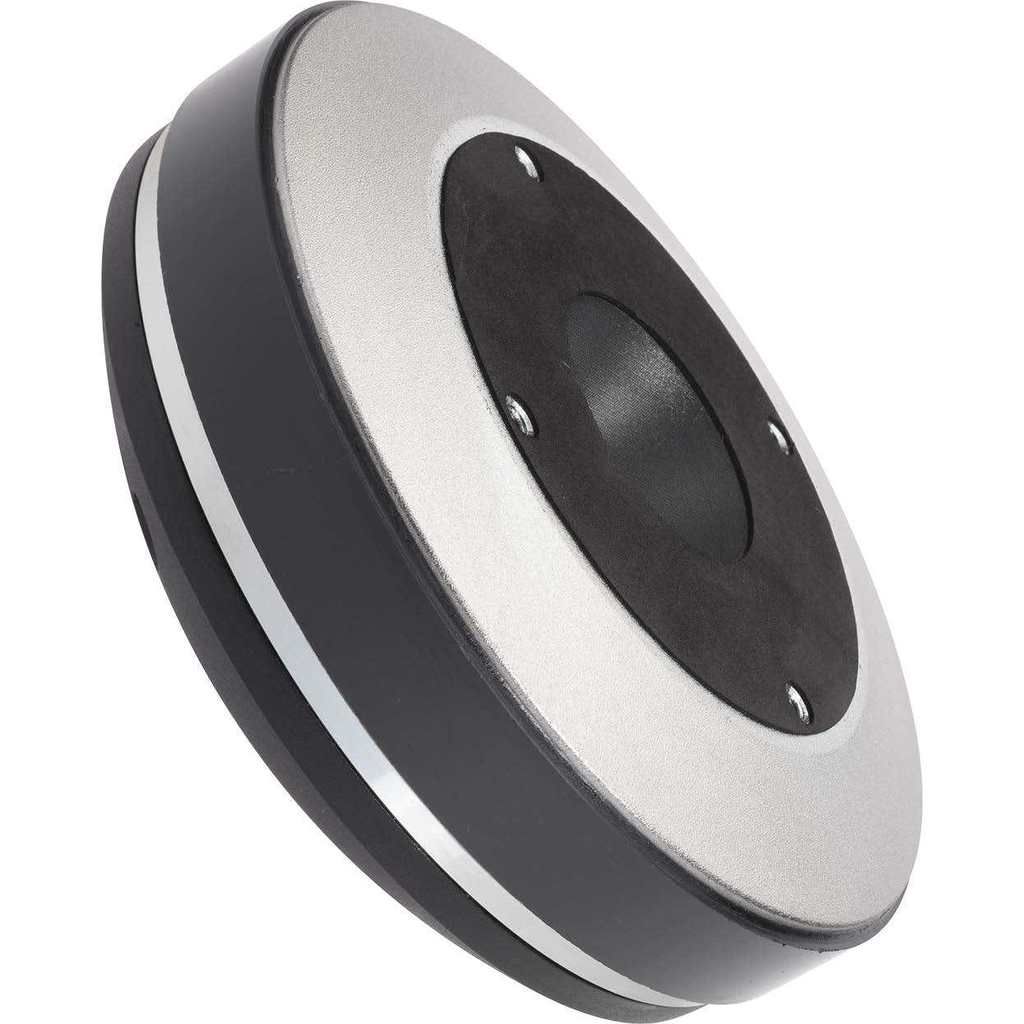

CDX20-3020/8

PA horn driver, 100 W, 8 Ω
  • High-quality 50 mm (2") compression driver with 75 mm (3") voice coil and ferrite magnet
  • One-piece titanium cone and surround
  • Recommended crossover frequency: 800 Hz (12 dB/oct.)
  • 4-hole screw mounting
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

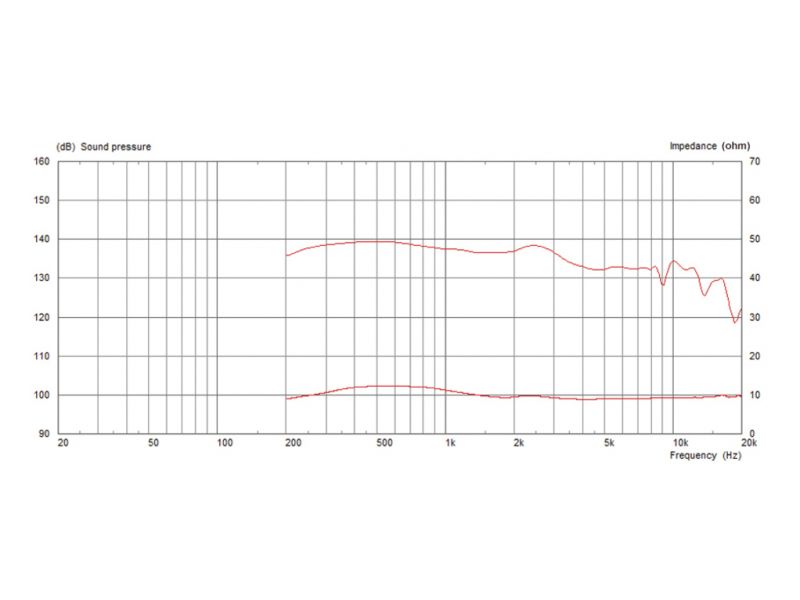

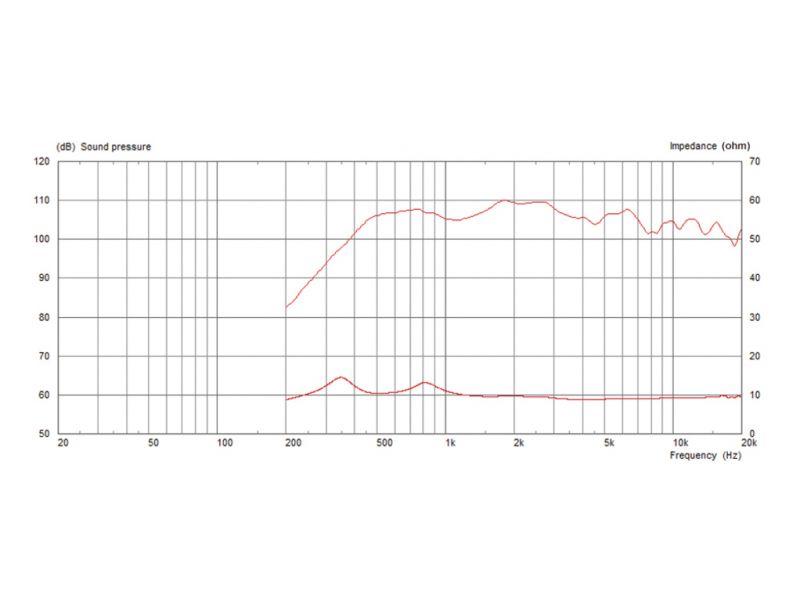

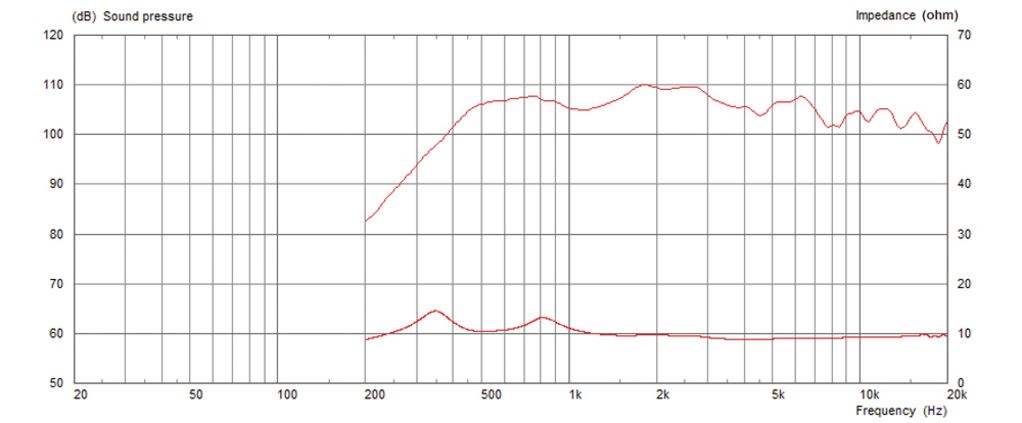

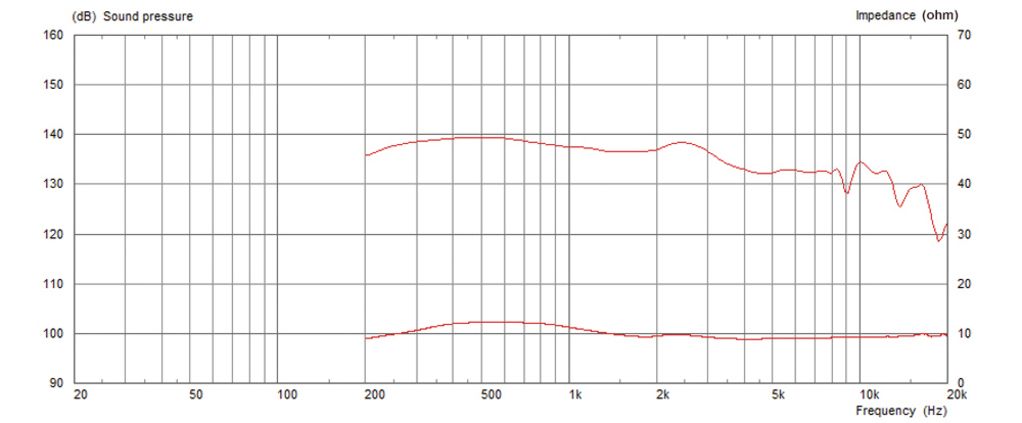

Frequency range 500-18,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 800 Hz
Power rating (RMS) 100 W
Peak music power output (MAX) 200 W
SPL 107 dB/W/m
Voice coil diameter Ø 75 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 50 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 102 mm (4 x MN6)
Dimensions Ø 180 mm x 68 mm
Outside diameter Ø 180 mm
Width Ø 180 mm
Height Ø 180 mm
Depth 68 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 5.4 kg
Packing unit 1
Type of speaker 2"
Packaging dimensions (W x H x L) 0.23 x 0.089 x 0.19 m
Gross weight 5.6 kg
Net weight 5.4 kg

Na stáhnutí

Produktová karta CDX20-3020/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
