CDX14-2420/8

Kod EAN: 0739894577946

PA horn driver, 70 W, 8 Ω High-quality 35 mm (1.4") compression driver with 60 mm (2.4") voice coil and neodymium magnet Phase plug with maximum modal suppressionDeep-drawn titanium cone and ployimide surround Recommended crossover frequency: 1,200 H...

víc

Staň se partnerem
Kup teď

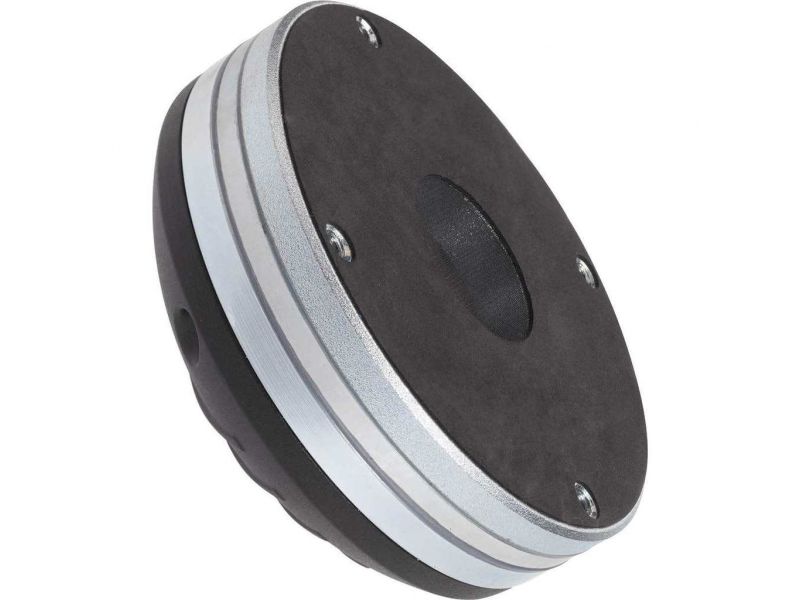

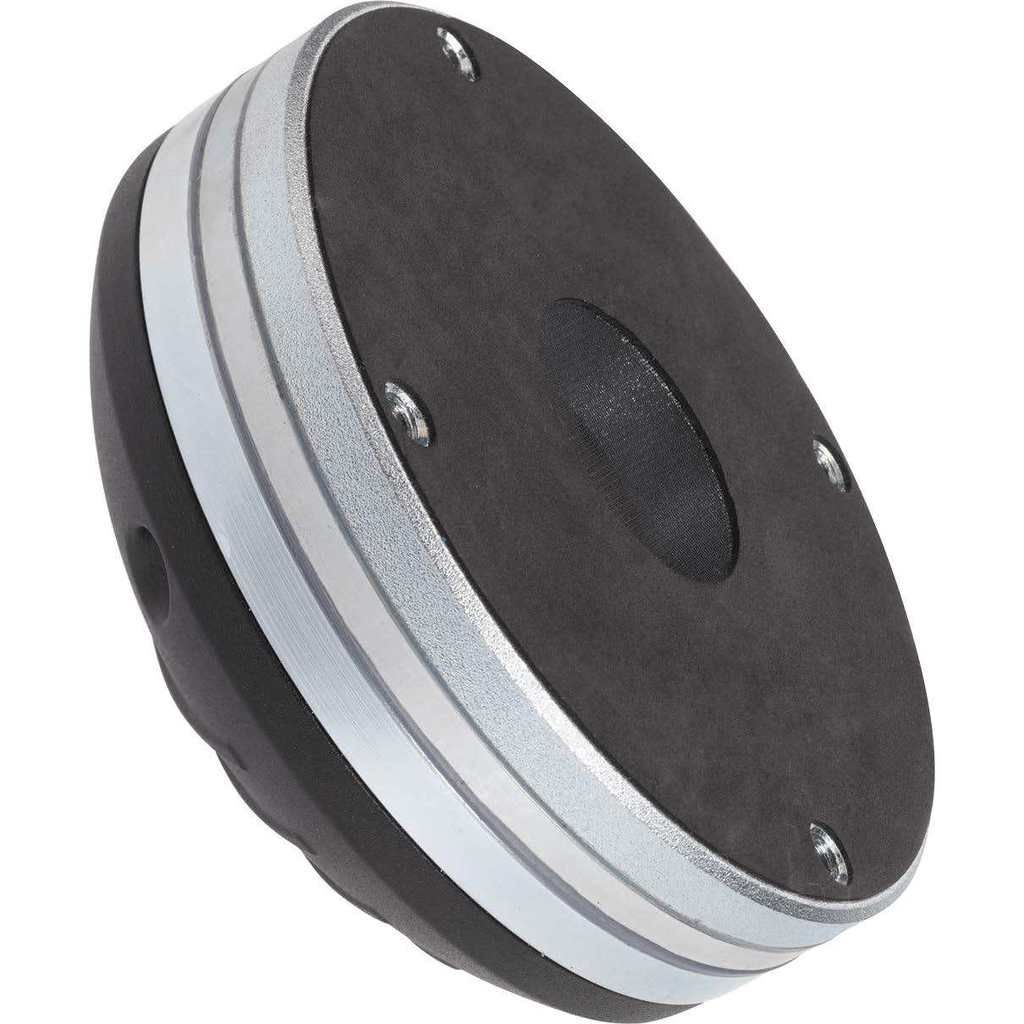

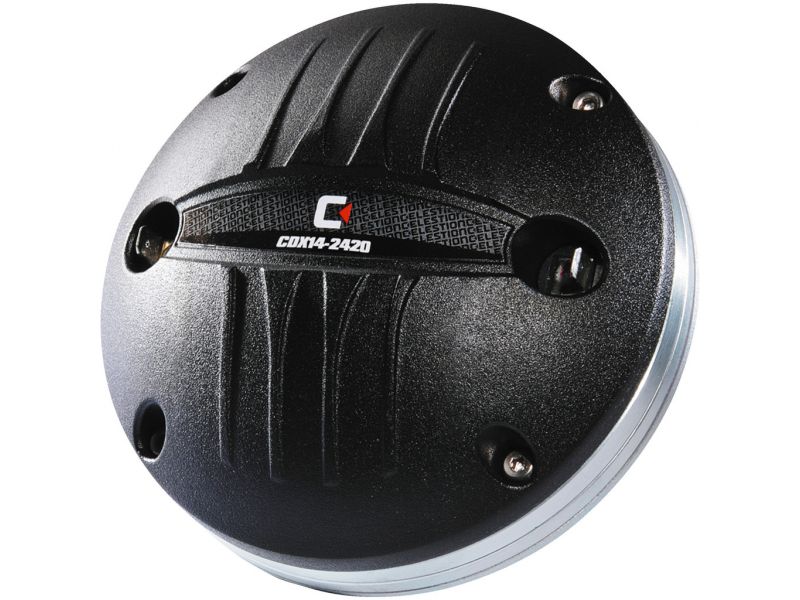

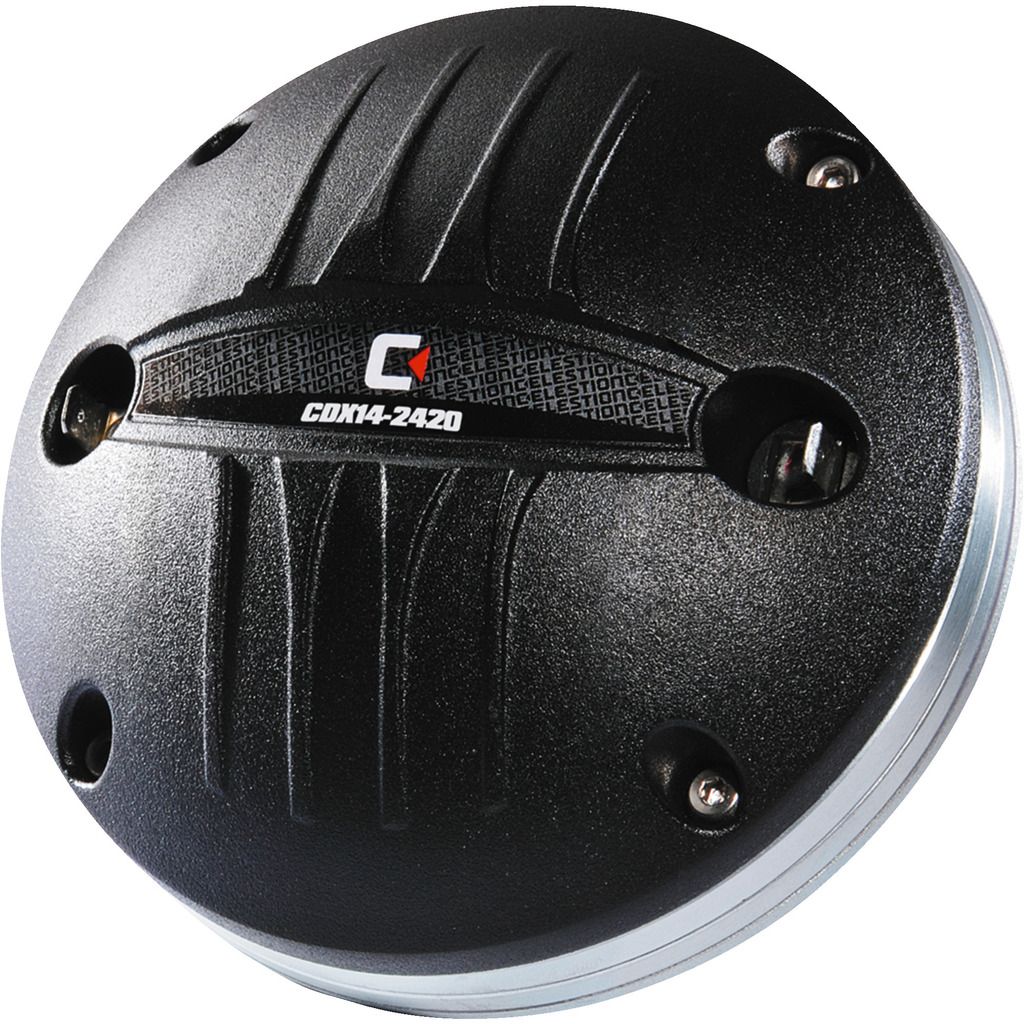

CDX14-2420/8

PA horn driver, 70 W, 8 Ω
  • High-quality 35 mm (1.4") compression driver with 60 mm (2.4") voice coil and neodymium magnet
  • Phase plug with maximum modal suppression
  • Deep-drawn titanium cone and ployimide surround
  • Recommended crossover frequency: 1,200 Hz (12 dB/oct.)
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

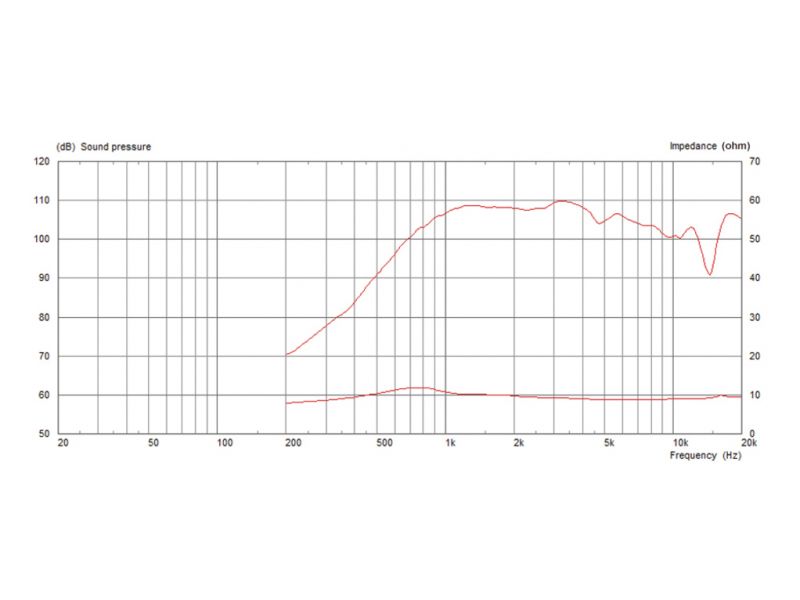

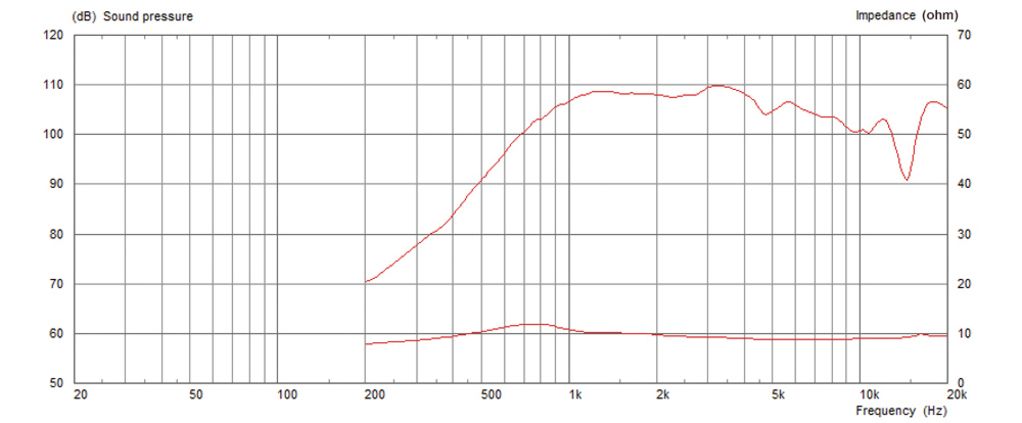

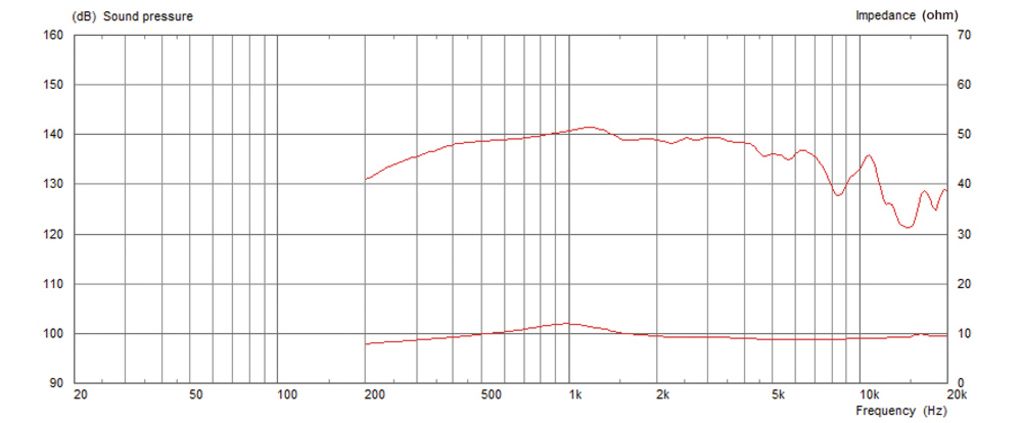

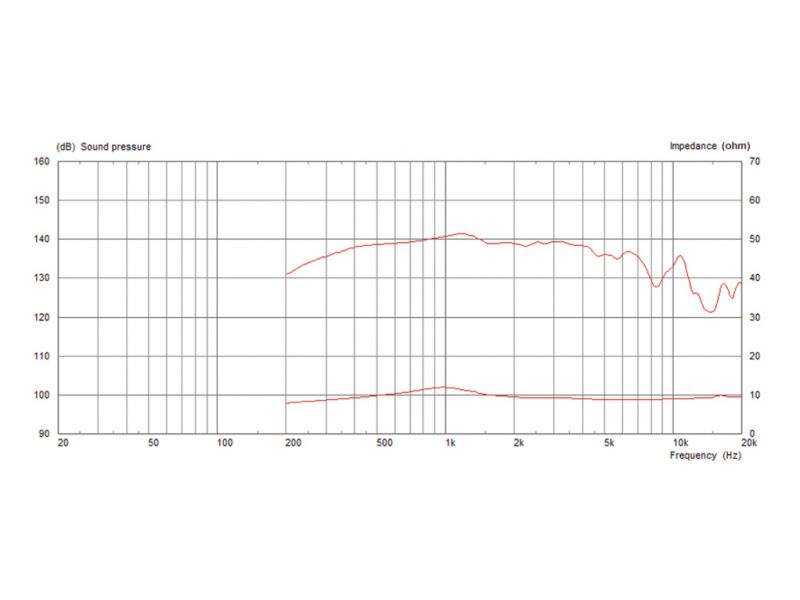

Frequency range 800-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 1,200 Hz
Power rating (RMS) 70 W
Peak music power output (MAX) 140 W
SPL 106.5 dB/W/m
Voice coil diameter Ø 60 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 36 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 102 mm (4 x M6)
Dimensions Ø 116 mm x 56 mm
Outside diameter Ø 116 mm
Width Ø 116 mm
Height Ø 116 mm
Depth 56 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.75 kg
Packing unit 1
Type of speaker 1.4"
Packaging dimensions (W x H x L) 0.135 x 0.07 x 0.175 m
Gross weight 1.91 kg
Net weight 1.75 kg

Na stáhnutí

Produktová karta CDX14-2420/8 konformitaetserklaerung-ce konformitaetserklaerung-ukca Technický produktový list
