CDX1-1745/8

Kod EAN: 0739894536349

PA horn driver, 40 W, 8 Ω High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet One-piece polyamide cone and surround Sound castle cone arrangement Recommended crossover frequency: 2,200 Hz (12 dB/oct.) 2-hole an...

víc

Staň se partnerem
Kup teď

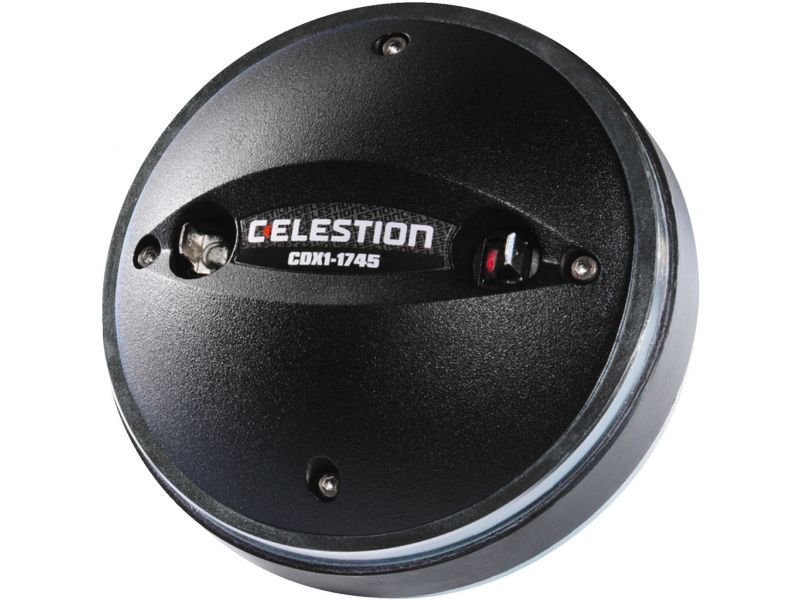

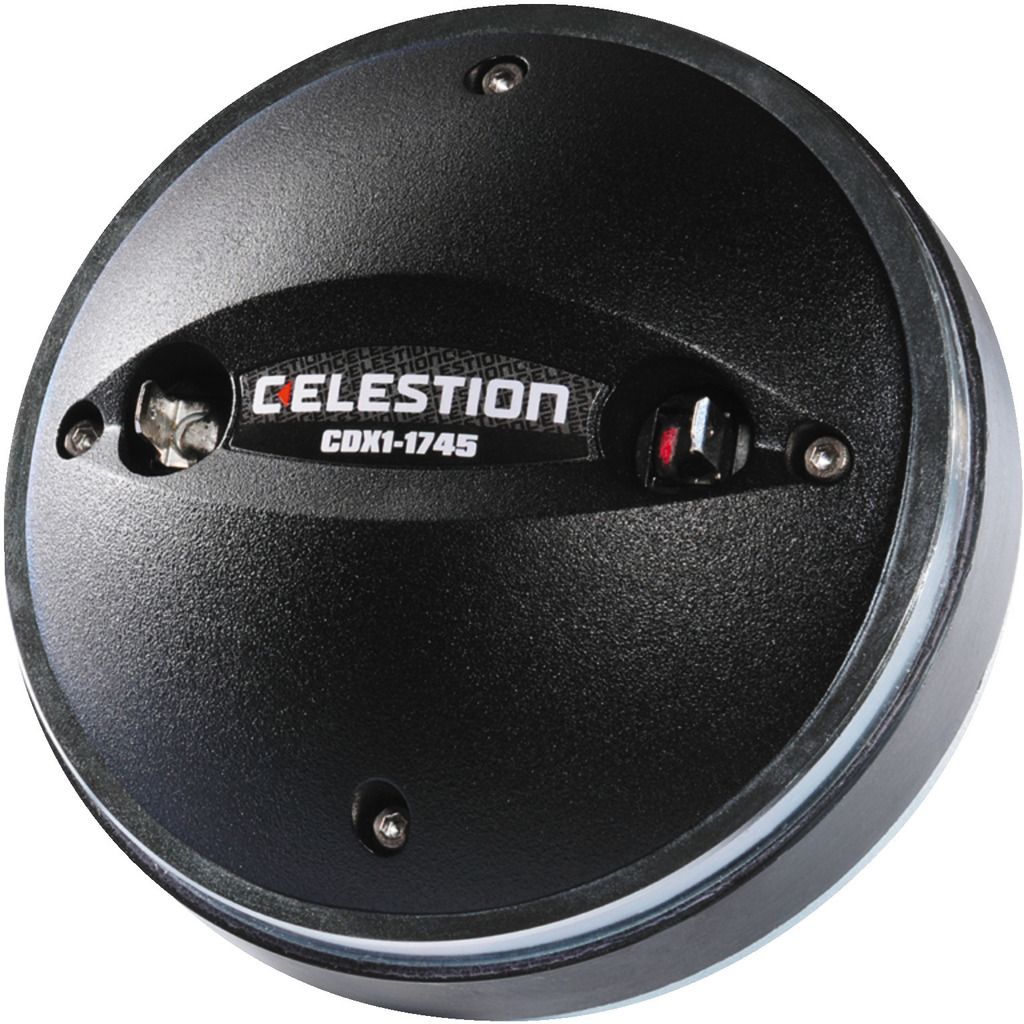

CDX1-1745/8

PA horn driver, 40 W, 8 Ω
  • High-quality 25 mm (1") compression driver with 44 mm (1.75") voice coil and ferrite magnet
  • One-piece polyamide cone and surround
  • Sound castle cone arrangement
  • Recommended crossover frequency: 2,200 Hz (12 dB/oct.)

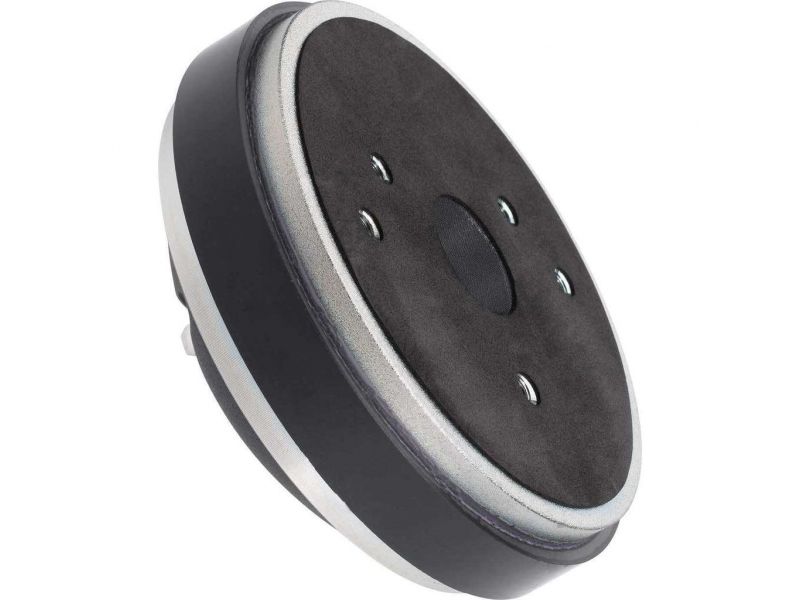

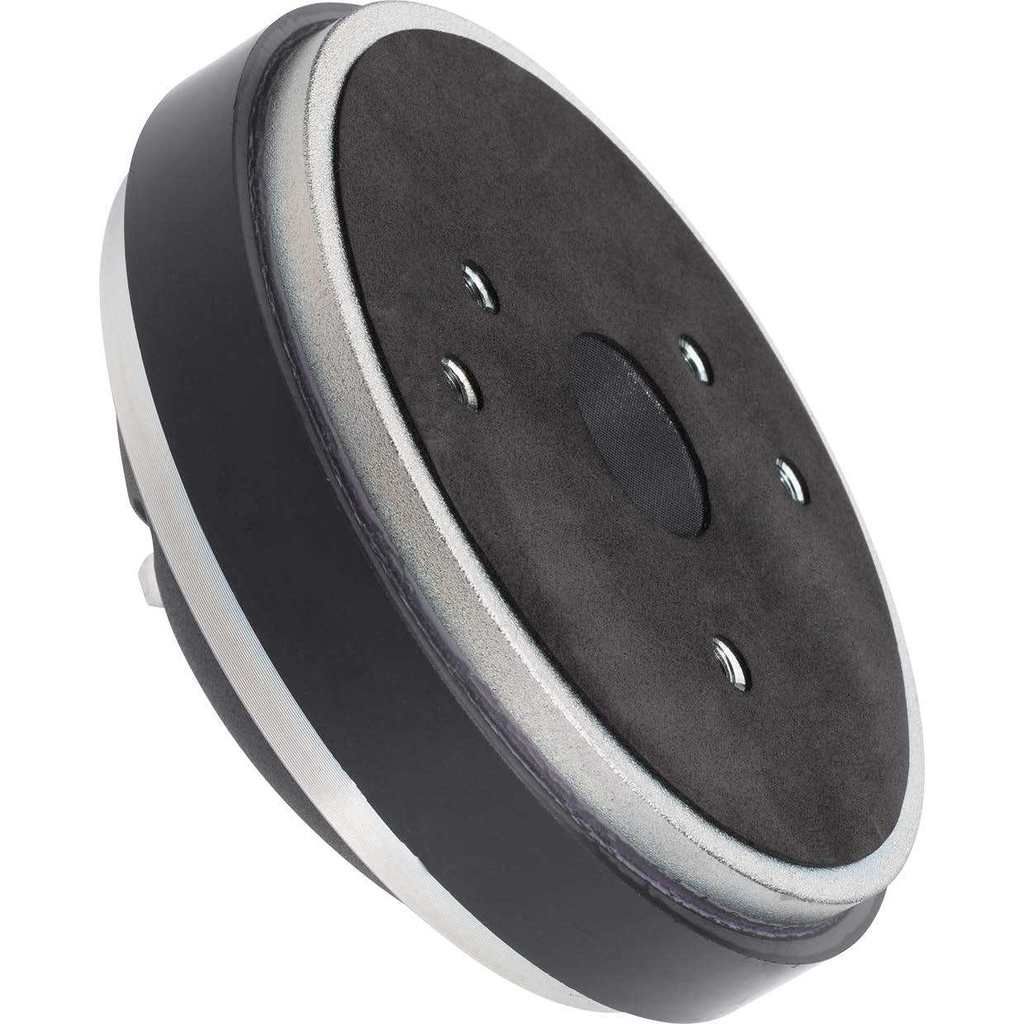

  • 2-hole and 3-hole screw mounting
  • Also available as 16 Ω version (CDX1-1745/16) or with 35 mm standard thread (CDX1-1746/8)

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

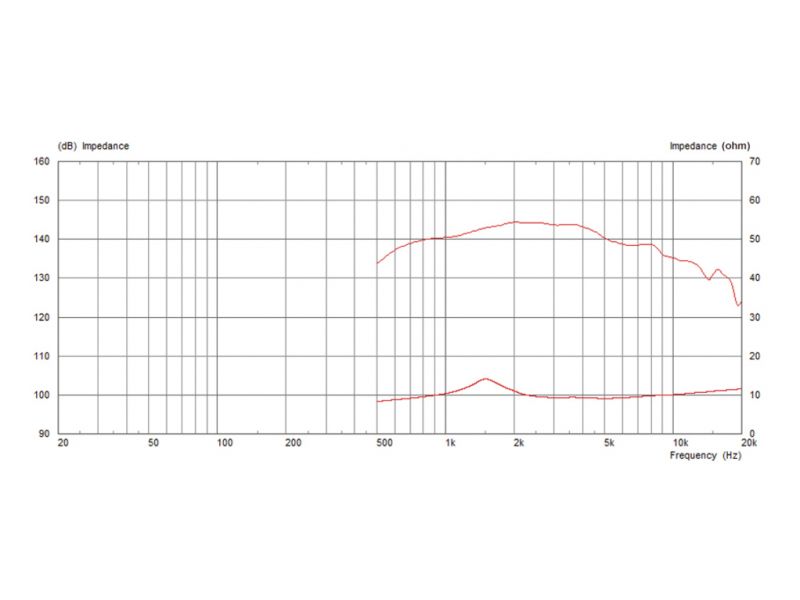

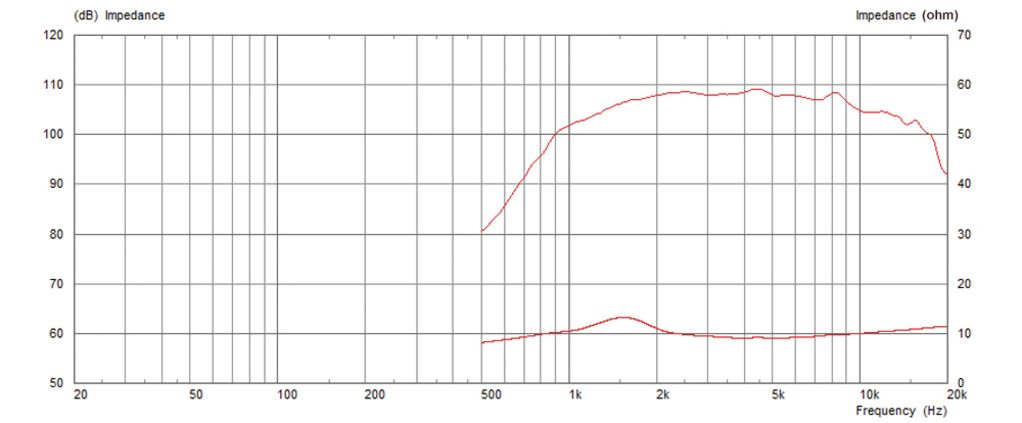

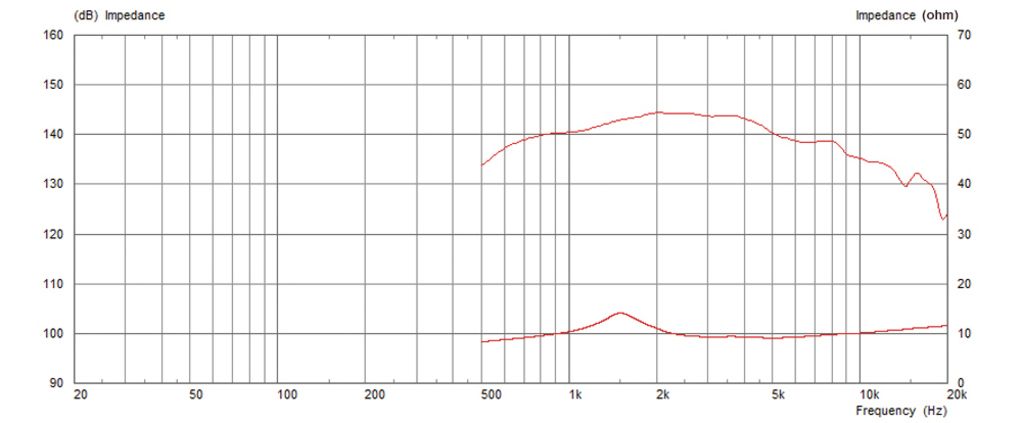

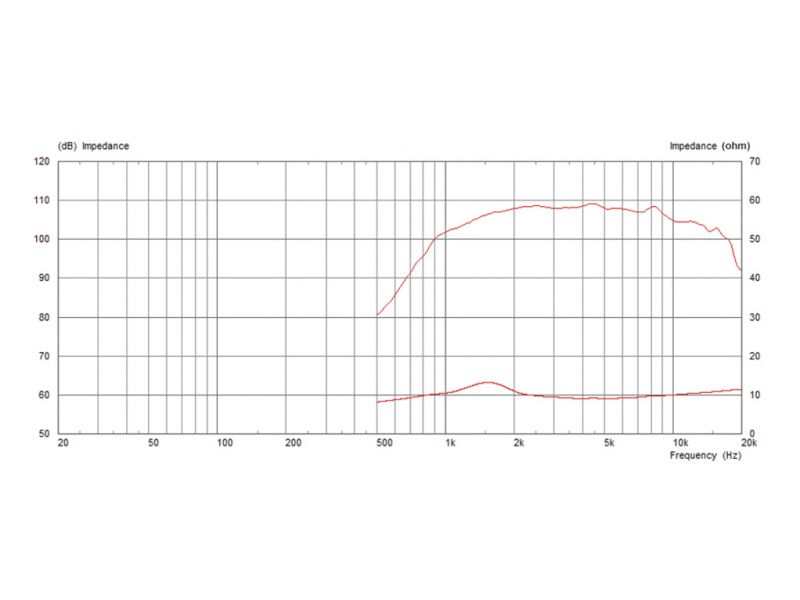

Frequency range 1,200-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,200 Hz
Power rating (RMS) 40 W
Peak music power output (MAX) 80 W
SPL 110 dB/W/m
Voice coil diameter Ø 44 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (2x M6), Ø 57 mm (3x M6)
Dimensions Ø 120 mm x 56 mm
Outside diameter Ø 120 mm
Width Ø 120 mm
Height Ø 120 mm
Depth 56 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 1.96 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.135 x 0.07 x 0.175 m
Gross weight 2.1 kg
Net weight 1.96 kg

Na stáhnutí

Produktová karta CDX1-1745/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
