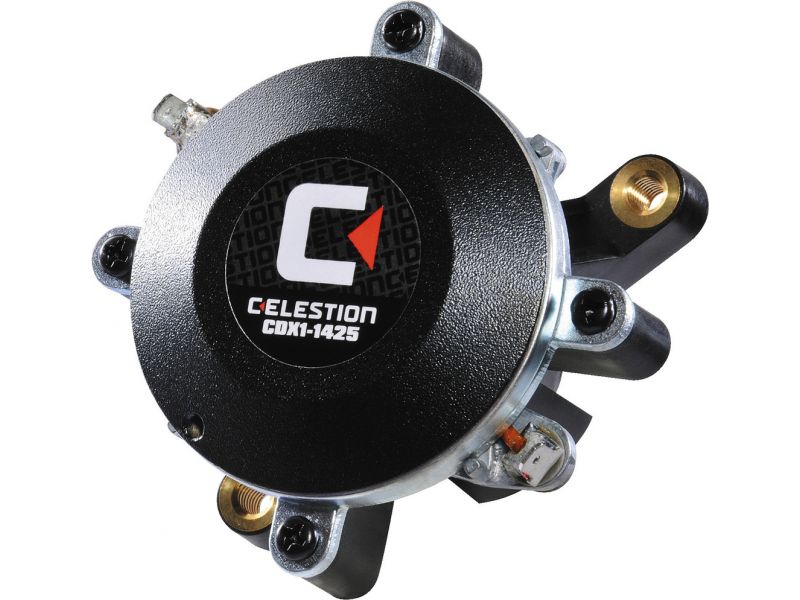

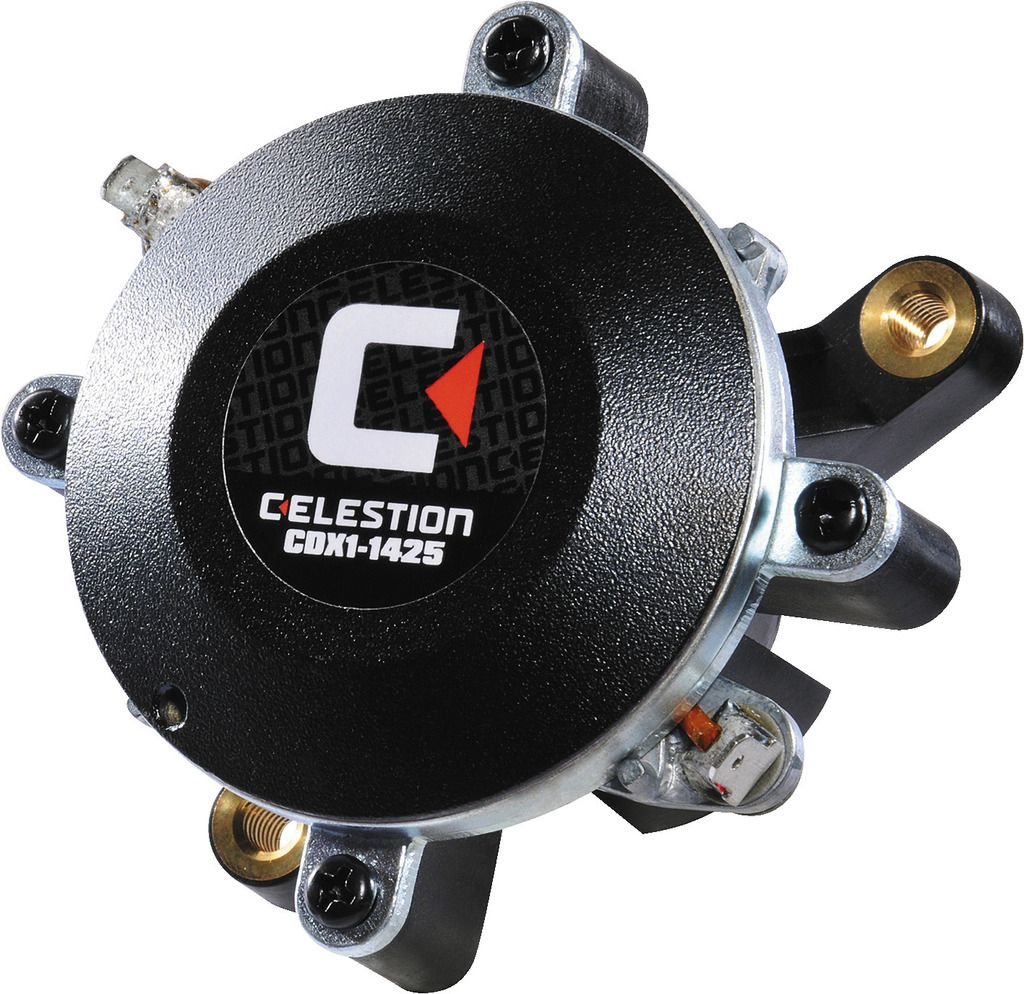

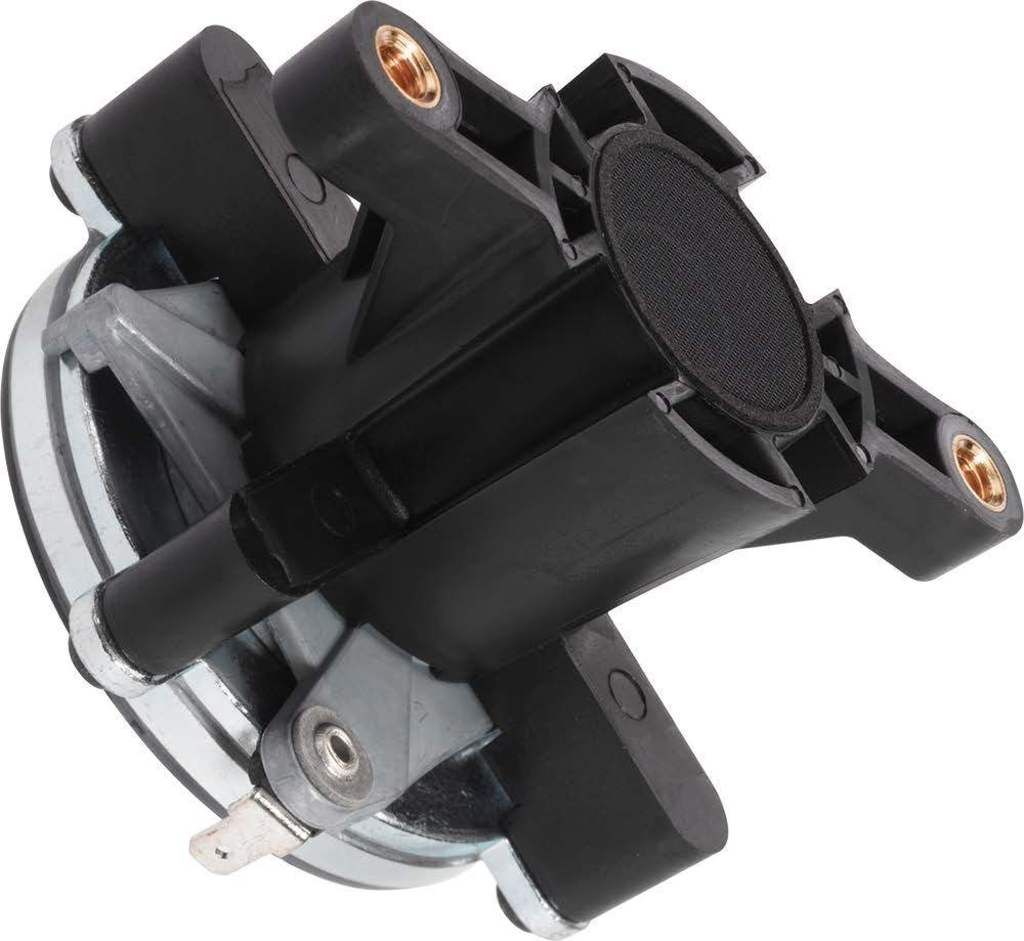

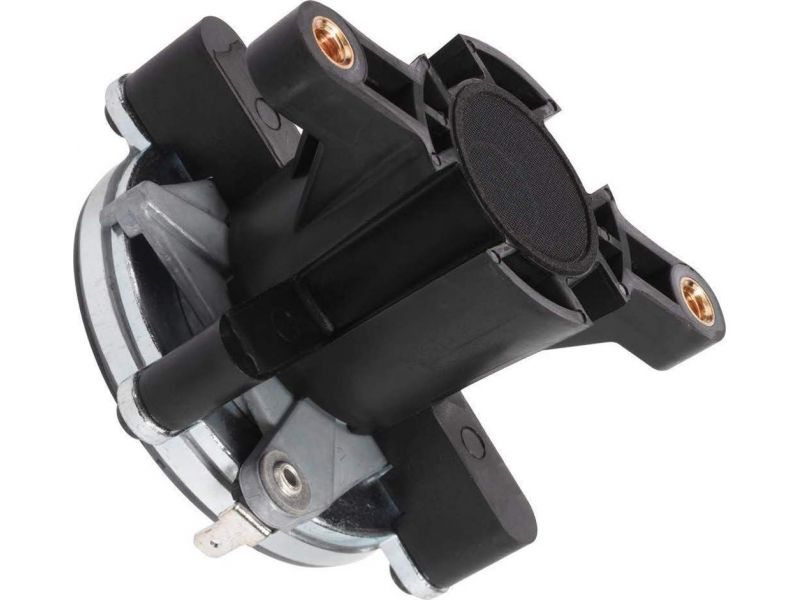

CDX1-1425/8

PA horn driver, 25 W, 8 Ω
  • High-quality 25 mm (1") compression driver with 35 mm (1.4") voice coil and ferrite magnet
  • Aluminium cone with elastomer surround
  • Inductance copper coil for an improved RF performance
  • Recommended crossover frequency: 2,500 Hz (12 dB/oct.)
  • 2-hole screw mounting

Parametry

Impedance (Z) 8 Ω
Transmission technology cable
Frequency range 2,000-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,500 Hz
Power rating (RMS) 25 W
Peak music power output (MAX) 50 W
SPL 108 dB/W/m
Voice coil diameter Ø 35 mm
Voice coil material flat copper-coated aluminium wire
Outlet Ø 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (2x M6)
Dimensions Ø 90 mm x 58 mm
Outside diameter Ø 90 mm
Width Ø 90 mm
Height Ø 90 mm
Depth 58 mm
Colour black/silver
Admiss. ambient temp. 0-40 °C
Weight 0.42 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.09 x 0.08 x 0.09 m
Gross weight 0.45 kg
Net weight 0.42 kg

Na stáhnutí

Produktová karta CDX1-1425/8 konformitaetserklaerung-ukca konformitaetserklaerung-ce Technický produktový list
