FTX0820/8
Kod EAN: 0739894591058
PA coaxial speaker, 200 W, 8 Ω 200 mm (8") PA bass speaker of high power capability and high efficiency Coaxially arranged horn tweeter Optimised drive with one common magnet only for high-frequency driver and bass driver Integrated demodulation ring...
194,00 € brutto
(inkl. 20% DPH)
161,67 € netto

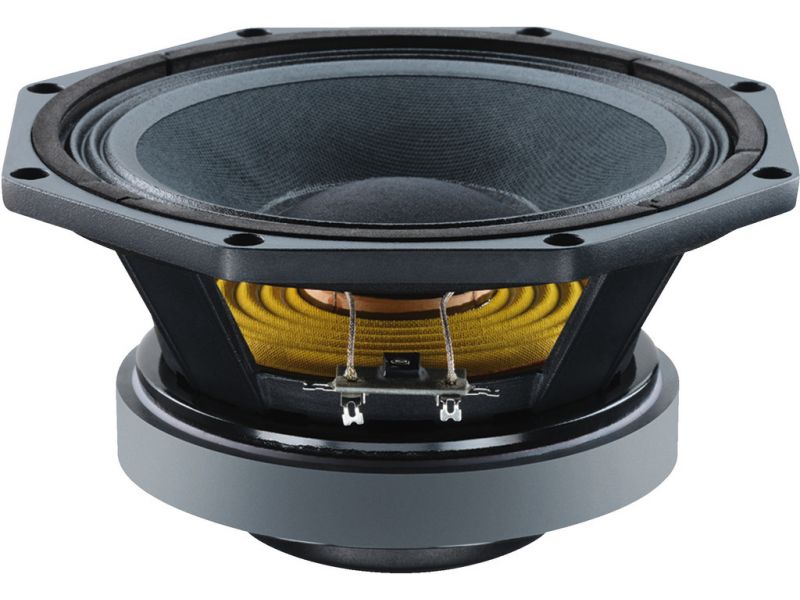

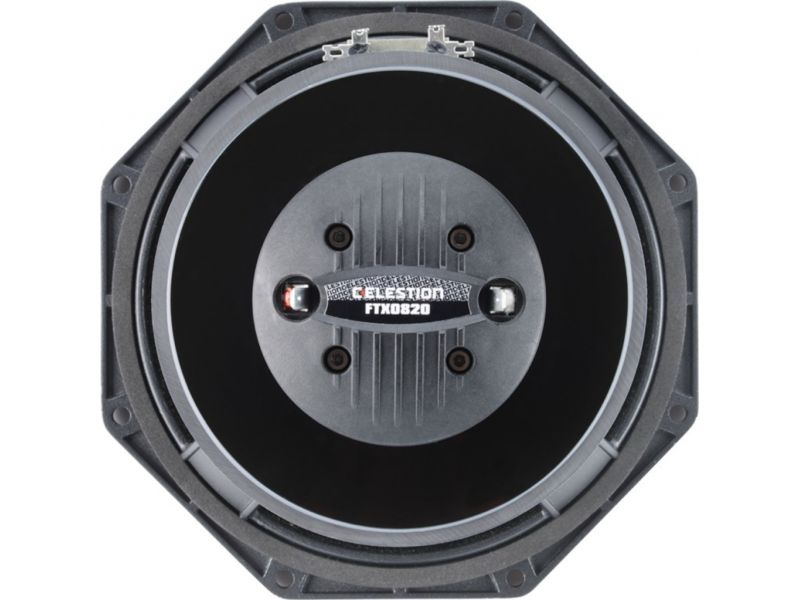

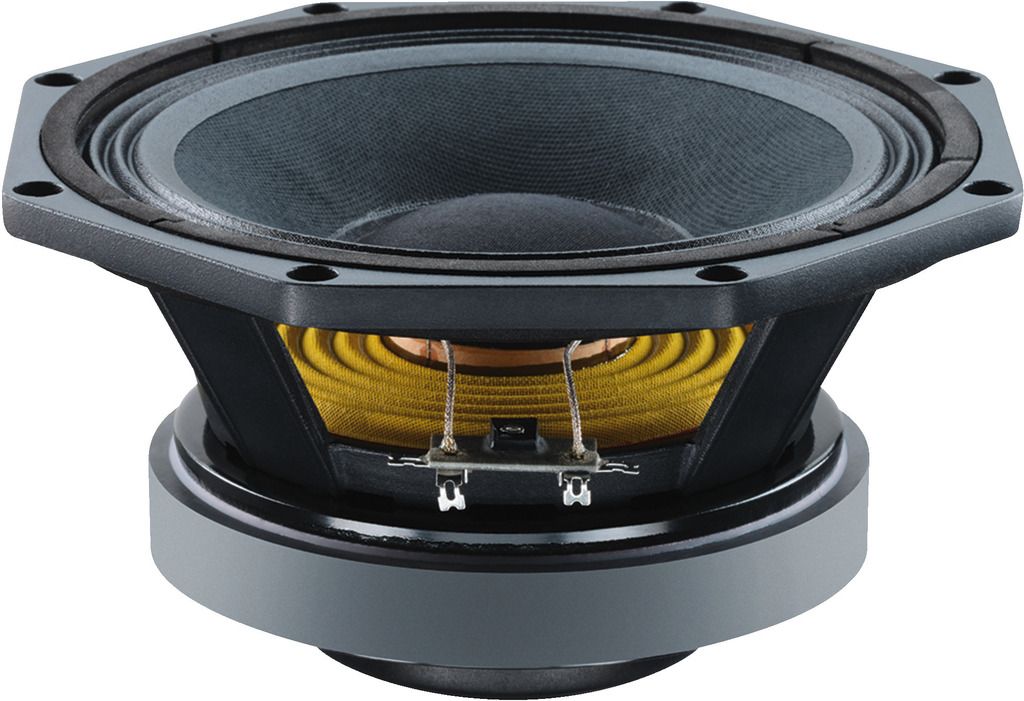

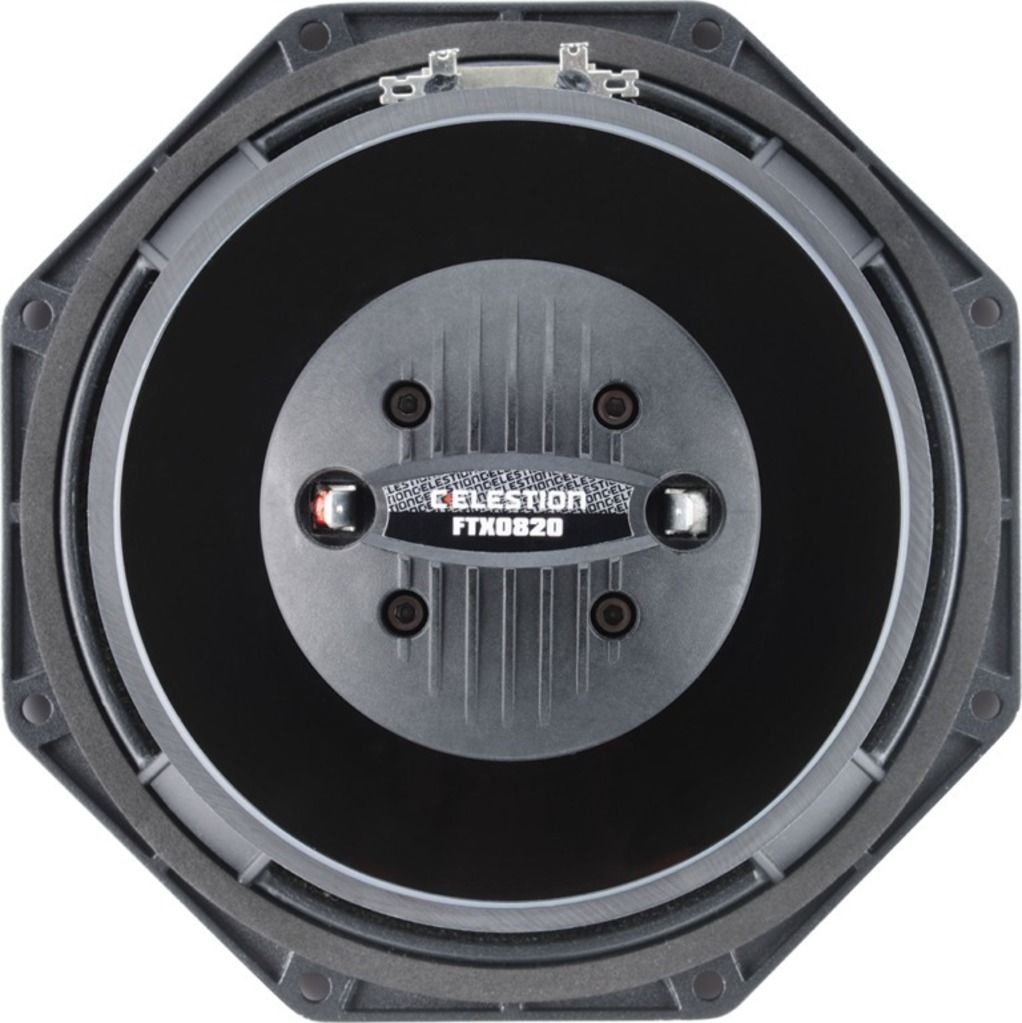

FTX0820/8
PA coaxial speaker, 200 W, 8 Ω
- 200 mm (8") PA bass speaker of high power capability and high efficiency
- Coaxially arranged horn tweeter
- Optimised drive with one common magnet only for high-frequency driver and bass driver
- Integrated demodulation rings for reducing electromagnetic distortions
- Robust diecast aluminium basket with rear ventilation of the centering spider
- 100° nominal HF coverage
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

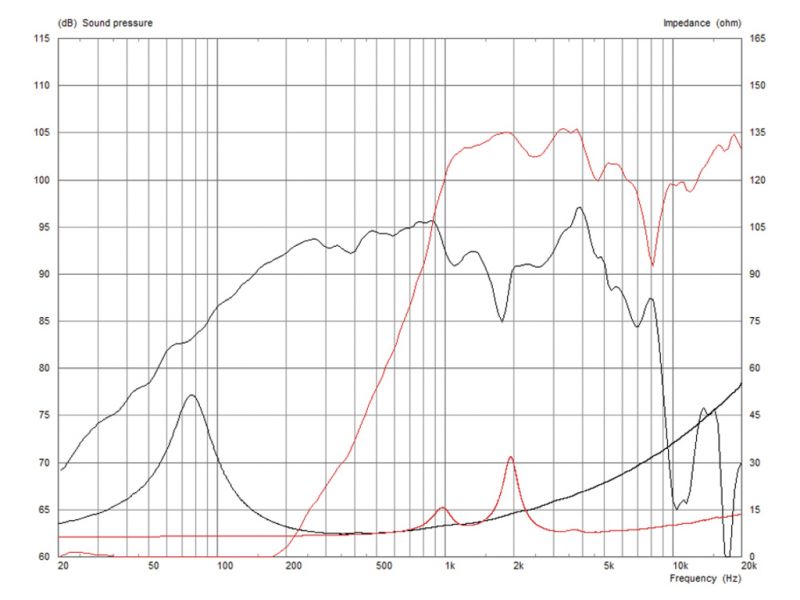

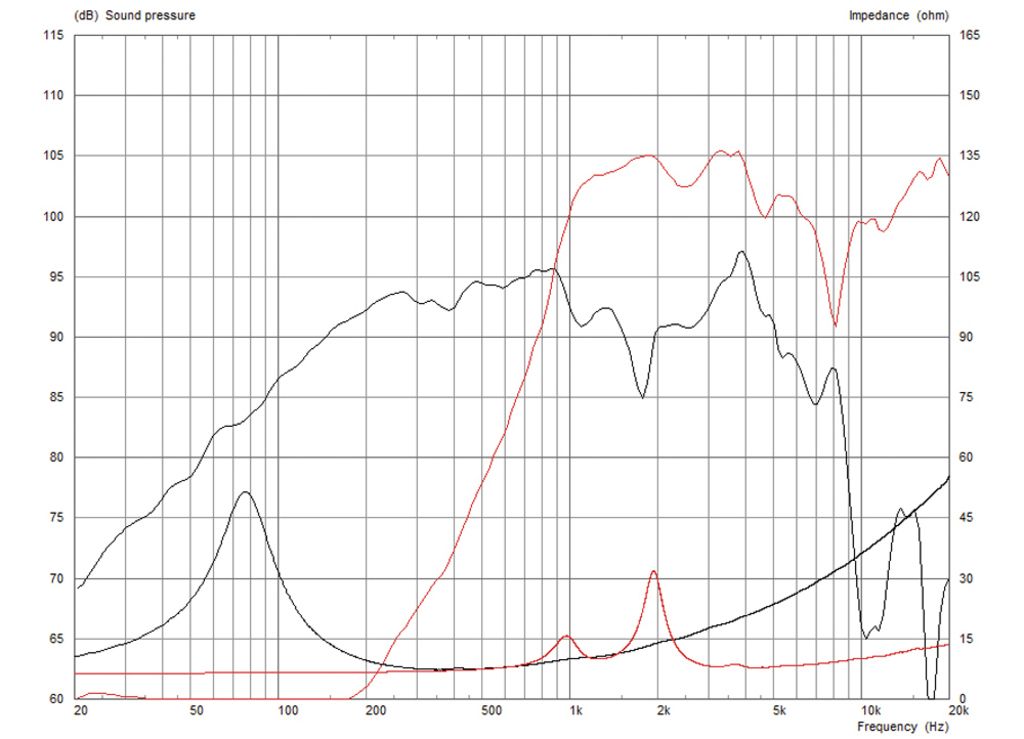

| Frequency range | 70-5,000 Hz (bass speaker) 1500-20,000 Hz (tweeter) |
| Resonant frequency (fs) | 78.80 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 200 W (bass) / 40 W (tweeter) |
| Peak music power output (MAX) | 400 W (bass) / 80 W (tweeter) |
| SPL | 94 dB (bass) / 103 dB (tweeter) |
| Radiation angle | 100° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 100° |
| Suspension compl. (Cms) | 0.18 mm/N |
| Moving mass (Mms) | 22.66 g |
| Mech. Q factor (Qms) | 2.8 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.279 |
| Equivalent volume (Vas) | 13.1 l |
| DC resistance (Re) | 5.85 Ω |
| Force factor (BxL) | 14.56 Tm |
| Voice coil induct. (Le) | 0.62 mH |
| Voice coil diameter | Ø 50 mm (bass speaker) / Ø 34 mm (tweeter) |
| Voice coil winding height | 12 mm |
| Voice coil material | flat copper wire |
| Voice coil former | glass fibre |
| Linear excursion (XMAX) | ± 4 mm |
| Eff. cone area (Sd) | 226.984 cm2 |
| Magnet weight | 1.5 kg |
| Mounting cutout | Ø 187 mm |
| Mounting depth | 123 mm |
| Mounting hole diameter | Ø 210 mm |
| Dimensions | Ø 225 mm x 123 mm |
| Outside diameter | Ø 225 mm |
| Width | 225 mm |
| Height | 225 mm |
| Depth | 123 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 4.1 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packing dimensions (W x H x L) | 0.229 x 0.152 x 0.229 m |
| Gross weight | 4.54 kg |
| Net weight | 4.1 kg |
