CDX1-1070/8

Kod EAN: 0739894591645

PA horn driver, 24 W, 8 Ω 25 mm (1") compression driver with 25 mm (1") voice coil and ferrite magnet One-piece PETP cone and surround Recommended crossover frequency: 2,200 Hz (12 dB/oct.) 2-hole screw mounting

Staň se partnerem
Kup teď

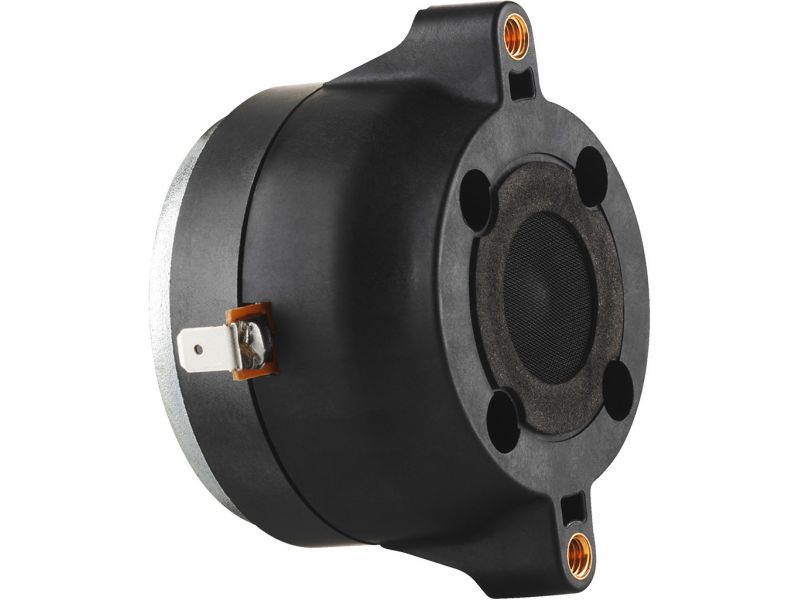

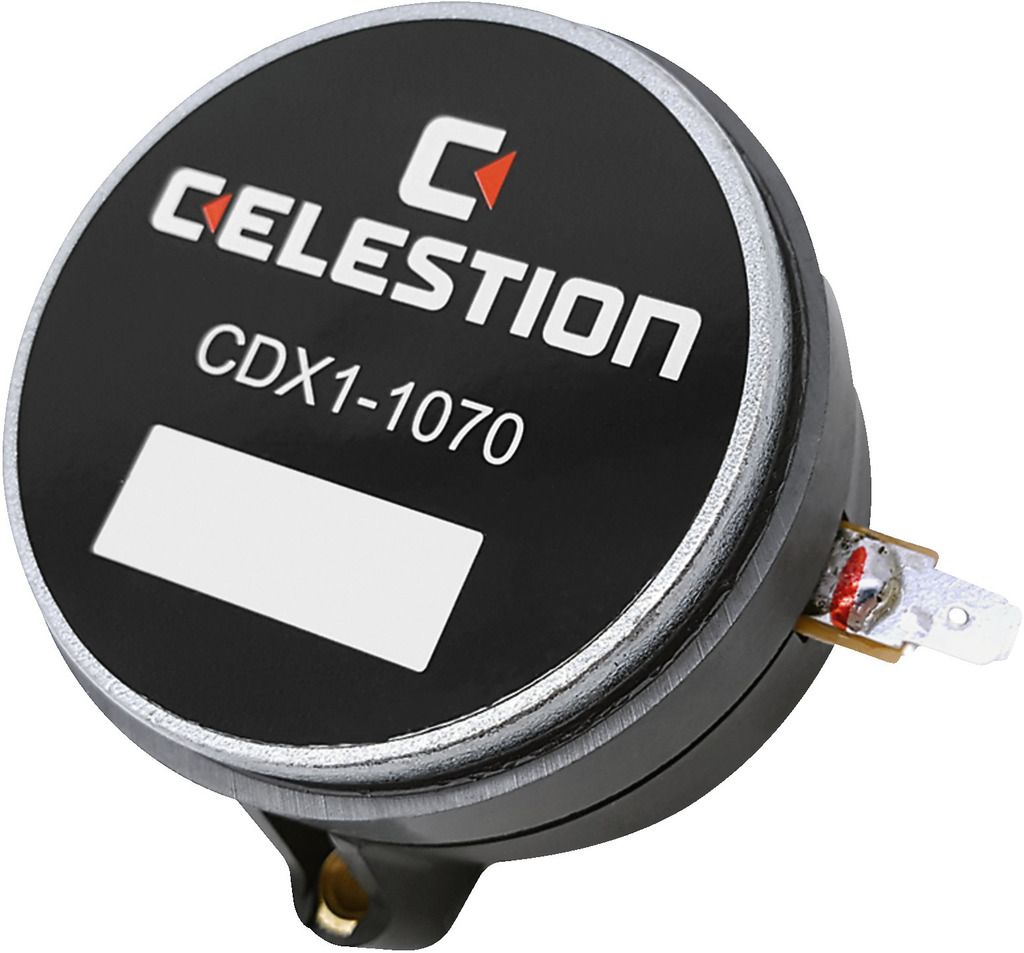

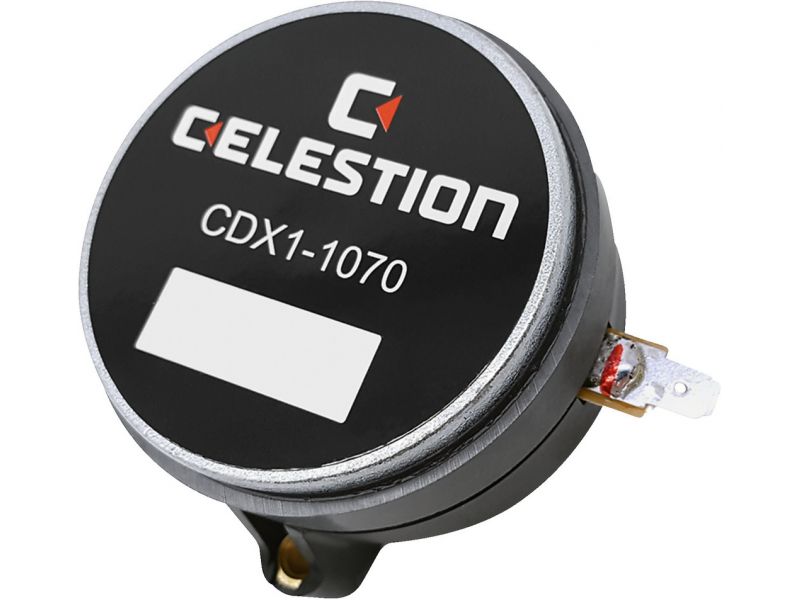

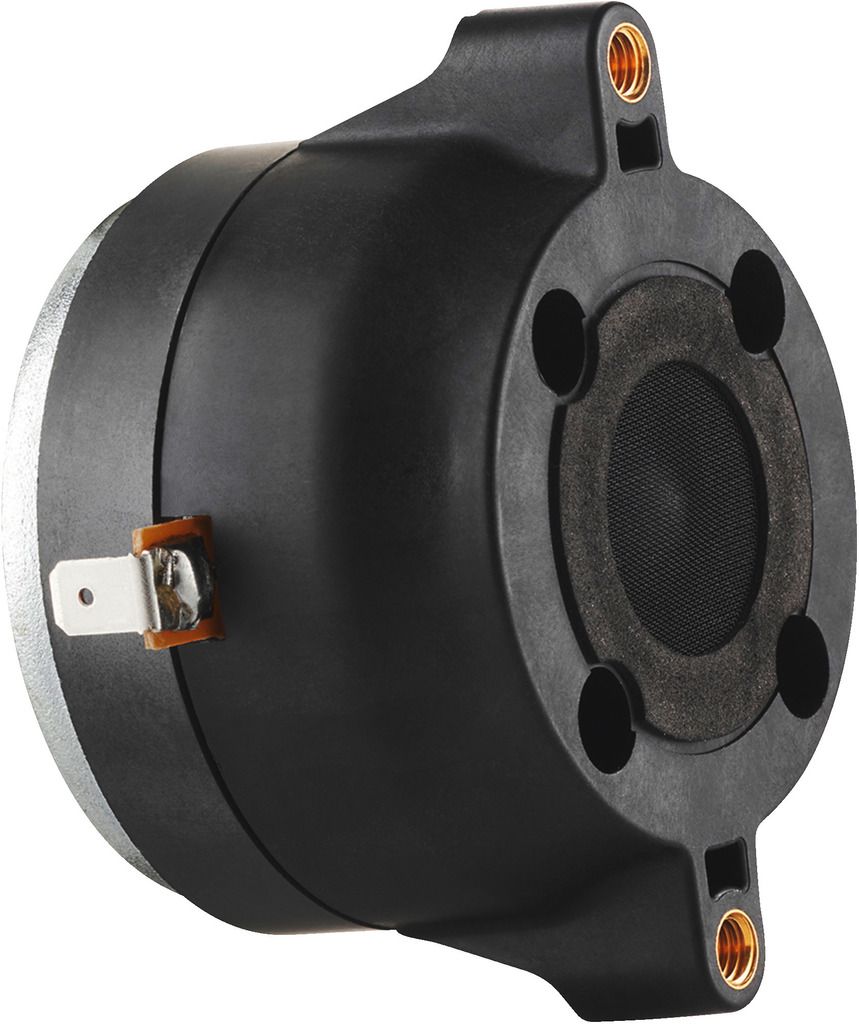

CDX1-1070/8

PA horn driver, 24 W, 8 Ω
  • 25 mm (1") compression driver with 25 mm (1") voice coil and ferrite magnet
  • One-piece PETP cone and surround
  • Recommended crossover frequency: 2,200 Hz (12 dB/oct.)
  • 2-hole screw mounting

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

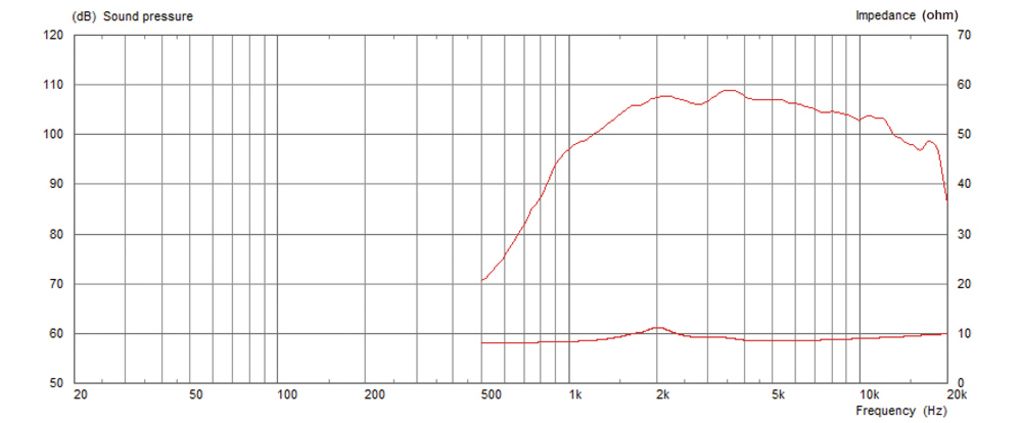

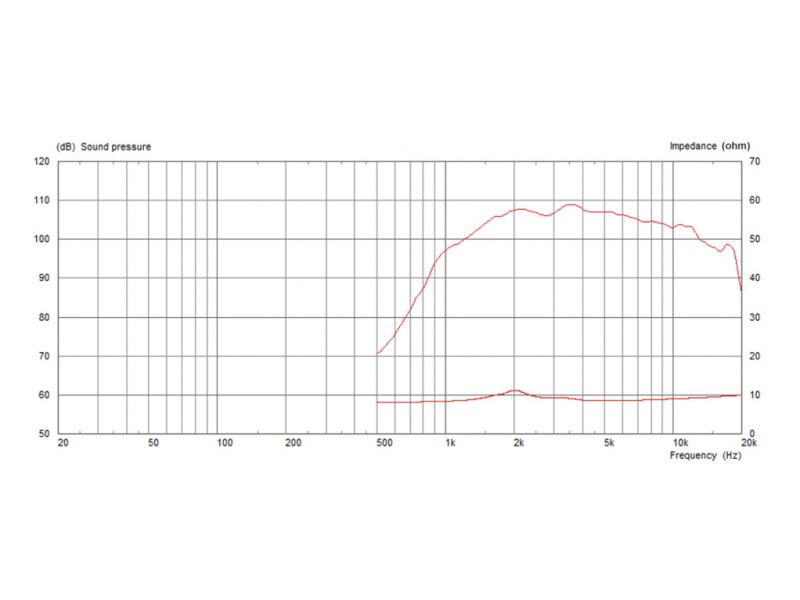

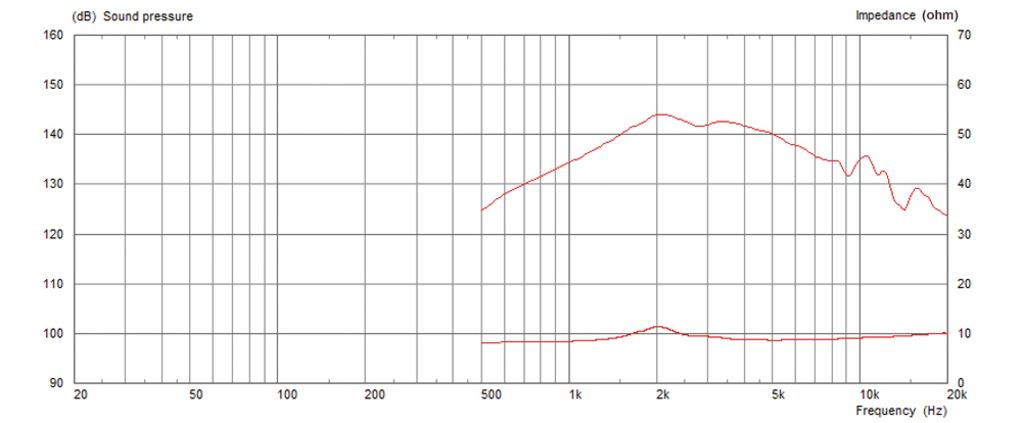

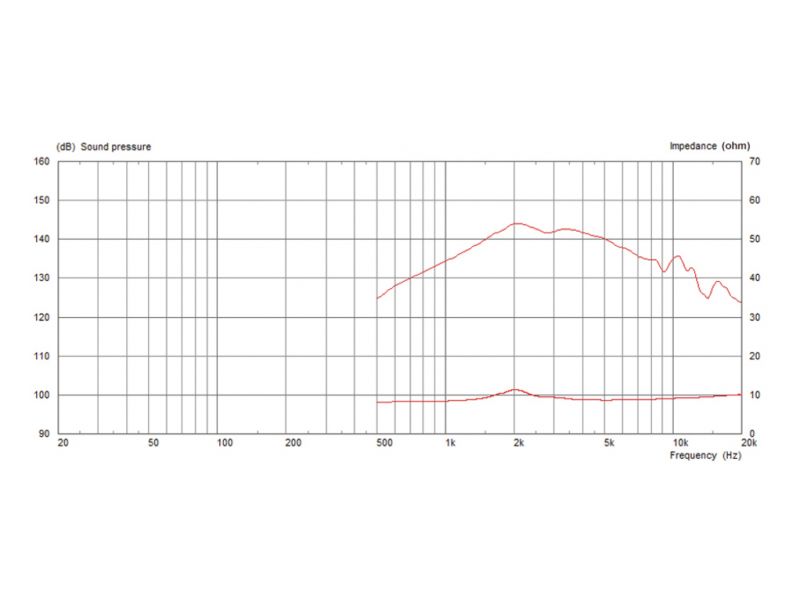

Frequency range 1,500-20,000 Hz
Rec. crossov. frequ. (fmax.) (12 dB/oct.) 2,200 Hz
Power rating (RMS) 12 W
Peak music power output (MAX) 24 W
SPL 106 dB/W/m
Voice coil diameter Ø 25 mm
Voice coil material flat copper-coated aluminium wire
Voice coil former PETP
Outlet 25 mm
Mounting cutout dep. on horn
Mounting depth dep. on horn
Mounting hole diameter Ø 76 mm (2-hole)
Dimensions Ø 70 mm x 50 mm
Outside diameter Ø 70 mm
Width Ø 70 mm
Height Ø 70 mm
Depth 50 mm
Colour black/silver
Admiss. ambient temp. 0-40 °C
Weight 0.5 kg
Packing unit 1
Type of speaker 1"
Packaging dimensions (W x H x L) 0.095 x 0.065 x 0.095 m
Gross weight 0.57 kg
Net weight 0.5 kg

Na stáhnutí

Produktová karta CDX1-1070/8 Technický produktový list konformitaetserklaerung-ce konformitaetserklaerung-ukca
