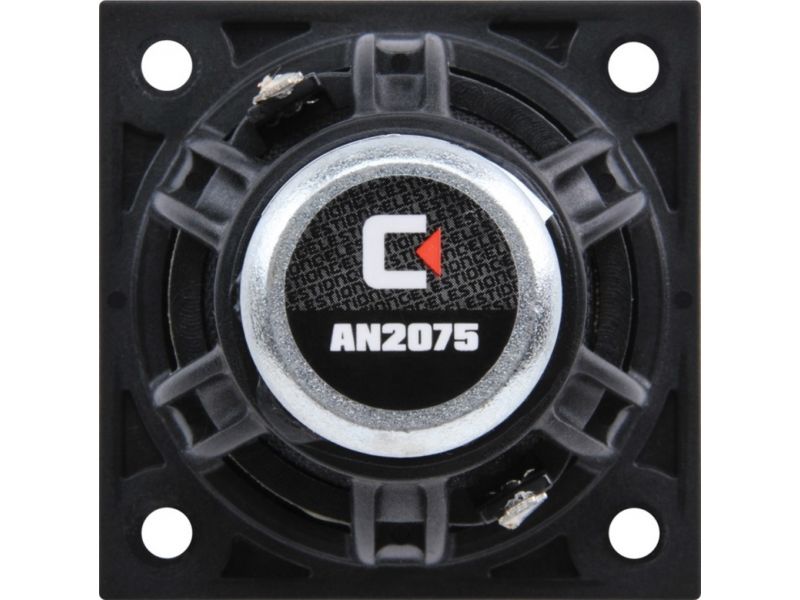

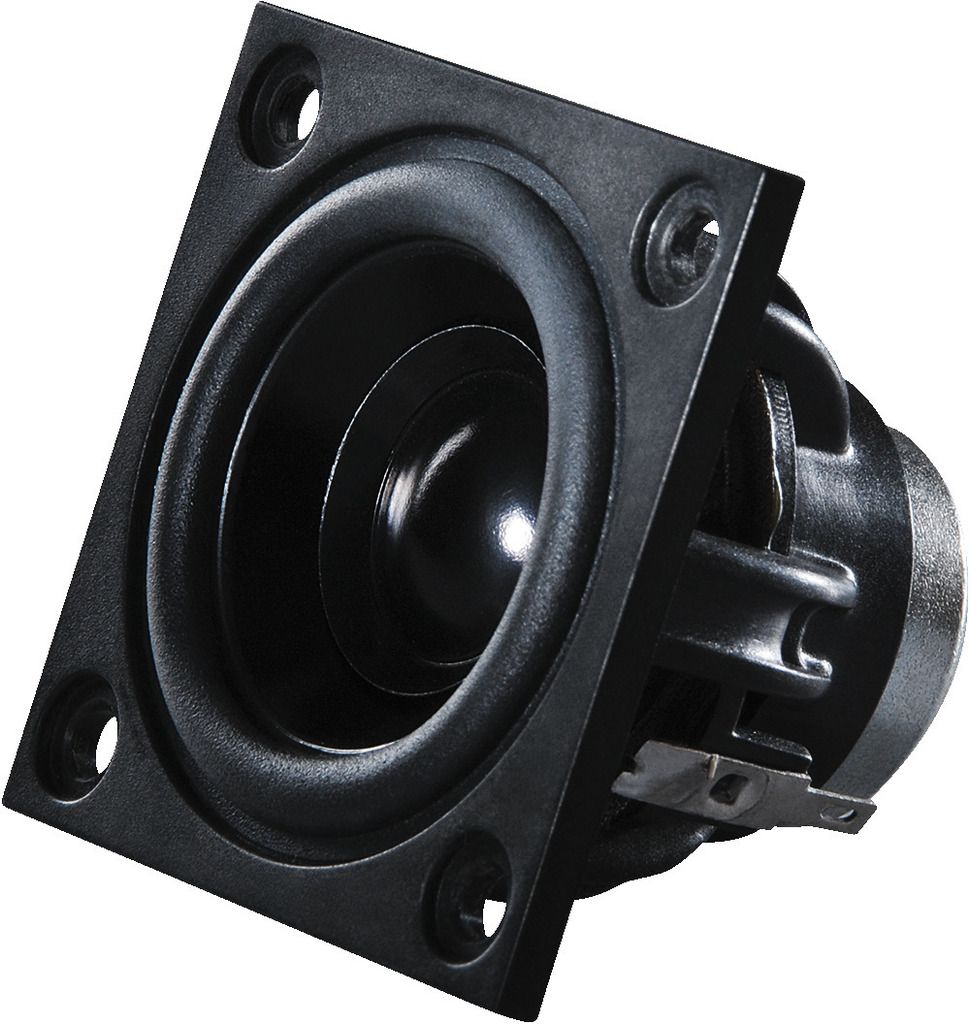

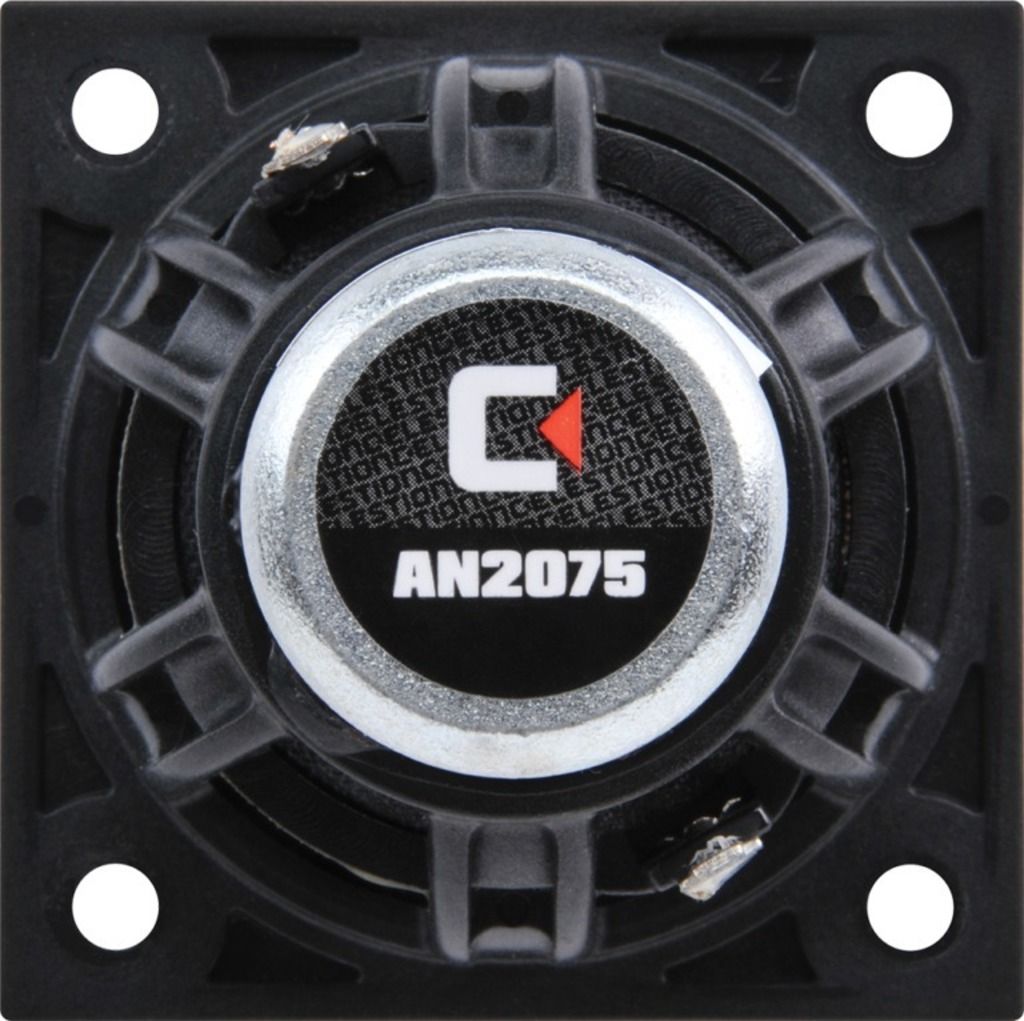

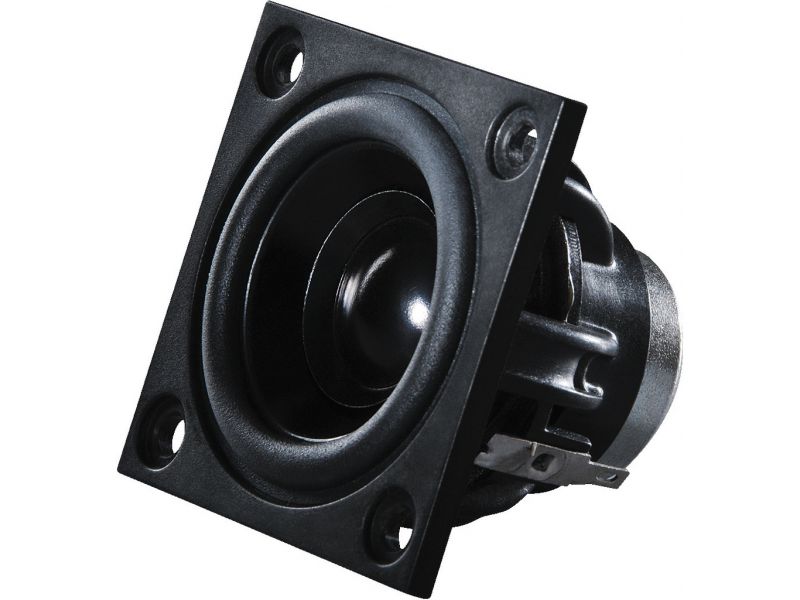

AN2075/8

Hi-fi full range speaker, 20 W, 8 Ω
  • Square basket for tight connection of the speakers used in array applications
  • Integrated waveguide (dual cone) for an improved radiation of high frequencies
  • Robust aluminium cone
  • Half-roll elastomer surround
  • Weatherproof
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com

Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

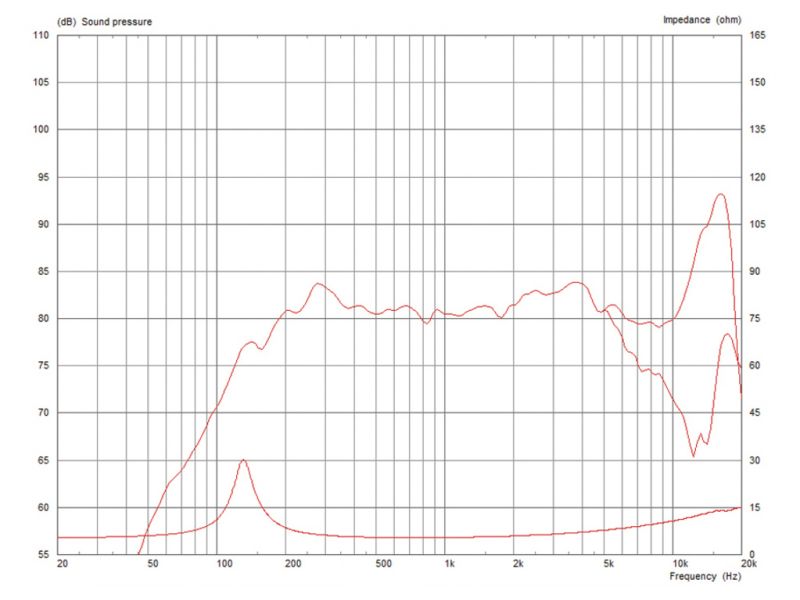

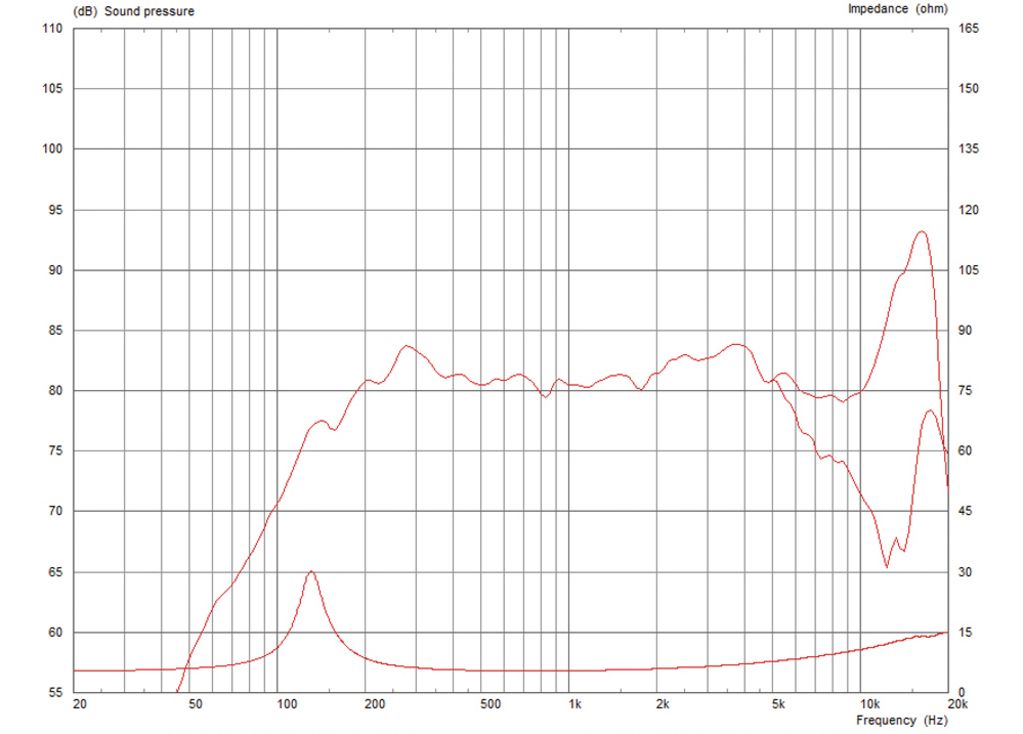

Frequency range 160-19,000 Hz
Resonant frequency (fs) 153.4 Hz
Power rating (RMS) 20 W
Peak music power output (MAX) 40 W
SPL 80 dB/W/m
Suspension compl. (Cms) 0.72 mm/N
Moving mass (Mms) 1.49 g
Mech. Q factor (Qms) 5.281
Electr. Q factor (Qes) 0.998
Total Q factor (Qts) 0.839
Equivalent volume (Vas) 1.5 l
DC resistance (Re) 5.33 Ω
Force factor (BxL) 2.71 Tm
Voice coil induct. (Le) 0.04 mH
Voice coil diameter Ø 20 mm
Voice coil winding height 6 mm
Voice coil former polyimide
Linear excursion (XMAX) ± 2.25 mm
Eff. cone area (Sd) 12.56 cm2
Mounting cutout Ø 51.1 mm
Mounting depth 43.5 mm
Mounting hole diameter Ø 62 mm
Dimensions 56.2 x 56.2 x 43.5 mm
Width 56.2 mm
Height 56.2 mm
Depth 43.5 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.1 kg
Packing unit 1
Type of speaker 2"
Packaging dimensions (W x H x L) 0.088 x 0.06 x 0.088 m
Gross weight 0.125 kg
Net weight 0.1 kg
