MMX-30
Kod EAN: 4007754214895
Compact 3-channel stereo line mixer 3 stereo input channels with one level control each 1 stereo master output, adjustable RCA connections for input channels and output 2 stereo headphone outputs, common control Signal/peak LEDs for the input channel...
103,80 € brutto
(inkl. 23% DPH)
84,39 € netto

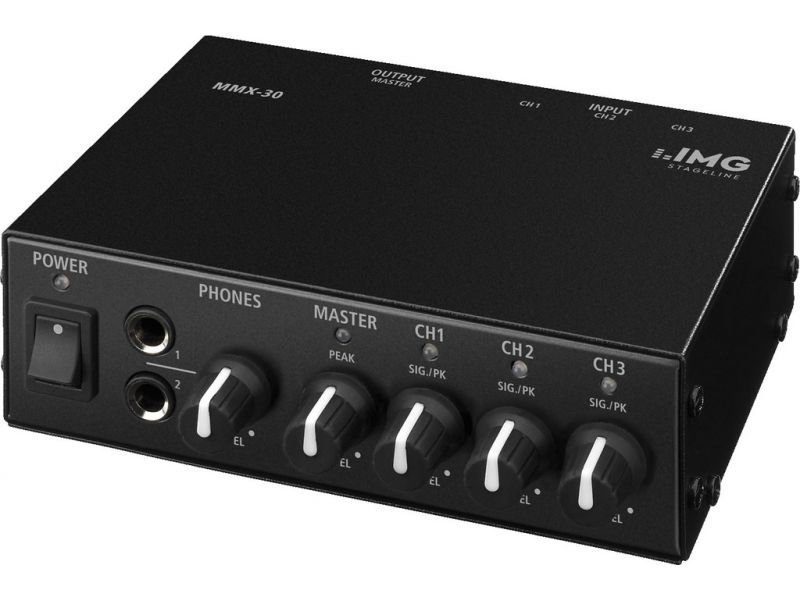

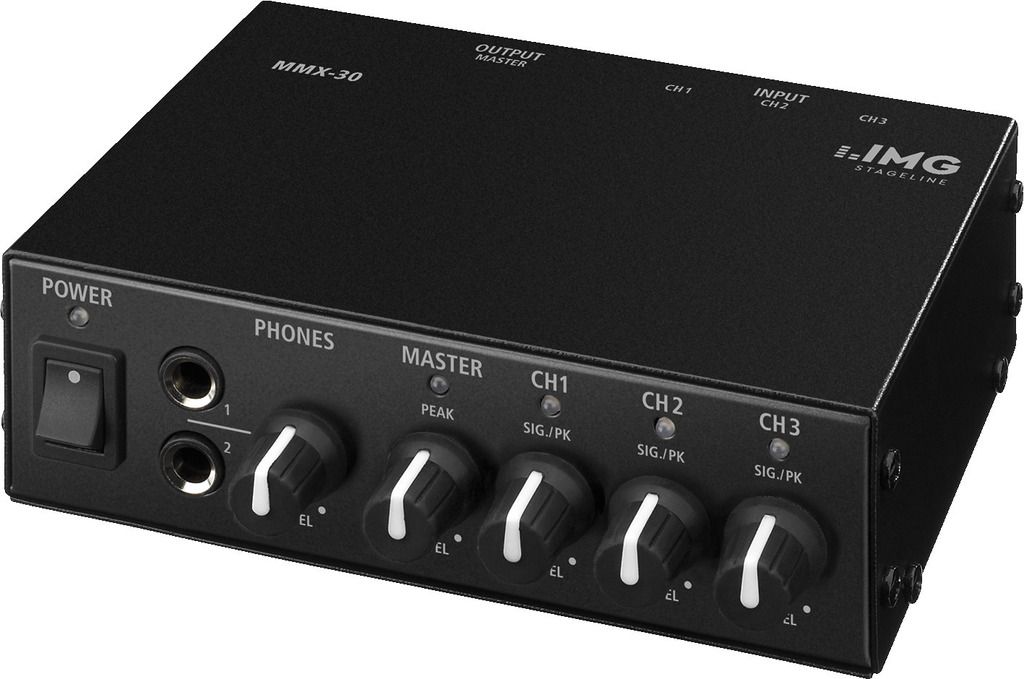

MMX-30
Compact 3-channel stereo line mixer
- 3 stereo input channels with one level control each
- 1 stereo master output, adjustable
- RCA connections for input channels and output
- 2 stereo headphone outputs, common control
- Signal/peak LEDs for the input channels and peak LED for the output
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Input channels | 3 |
| No. of stereo | 3 |
| Line input | 40 mV, 3 x RCA L/R |
| Master output | 4 V, 1 x RCA L/R |
| Headphones | 2 x 10 mW/2 x 32 Ω, 2 x 6.3 mm jack |
| Frequency range | 5-30,000 Hz |
| THD | < 0.1% |
| S/N ratio | > 66 dB |
| Power supply | via encl. plug-in power supply |
| Admiss. ambient temp. | 0-40 °C |
| Dimensions | 147 x 50 x 119 mm |
| Width | 147 mm |
| Height | 50 mm |
| Depth | 119 mm |
| Weight | 693 g |
| Packaging dimensions (W x H x L) | 0.13 x 0.065 x 0.23 m |
| Gross weight | 0.85 kg |
| Net weight | 0.693 kg |
