WDW-330-EN-10
Kod EAN: 4007754429565
PA wall-mounted loudspeaker Manufacturer information: PÖSCHEL ETG e.K.Mäuswedel 1174223 FleinDeutschlandinfo@poeschel-etg.de
WDW-330-EN-10

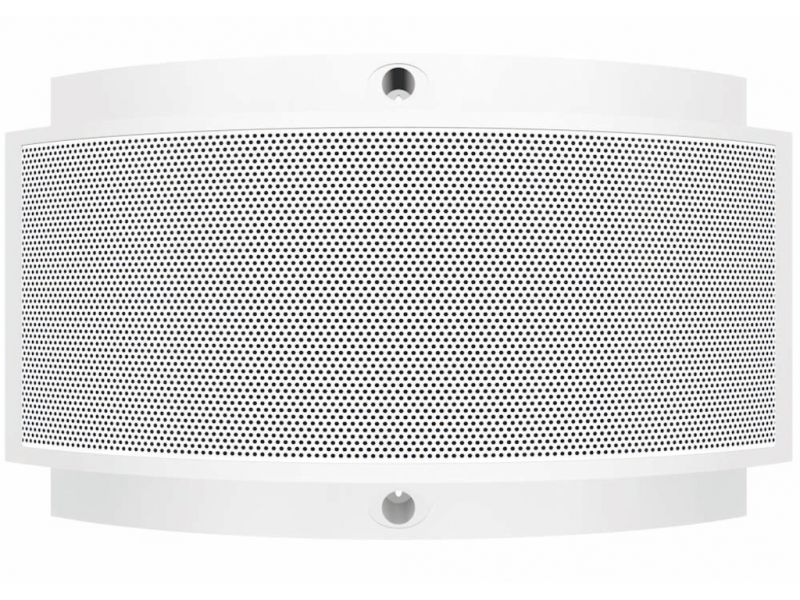

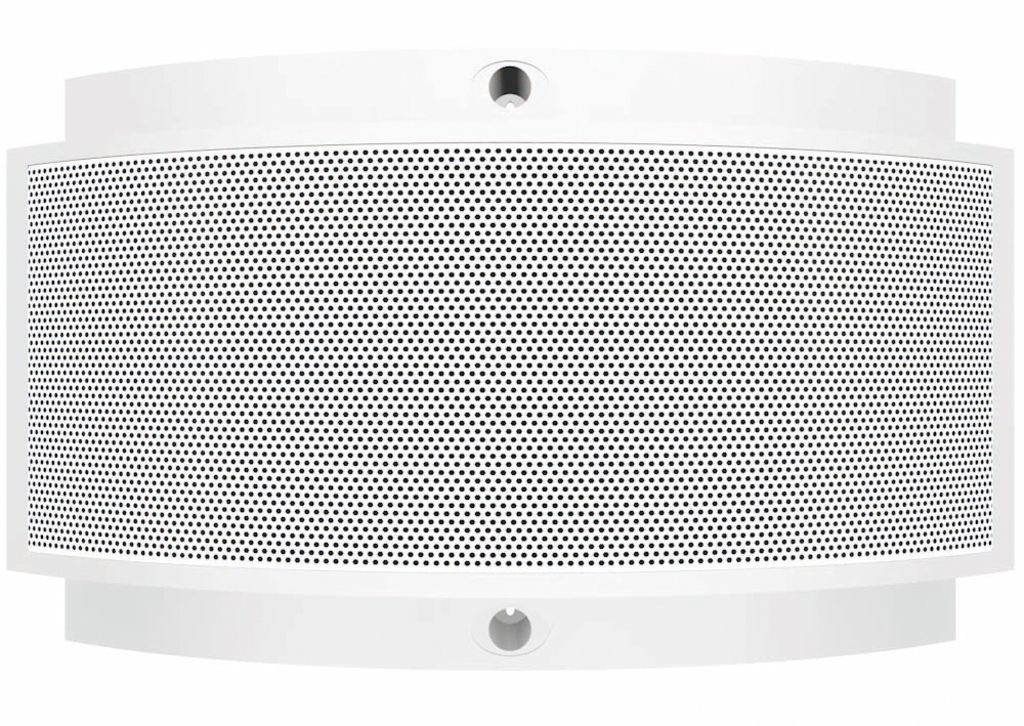

PA wall-mounted loudspeaker
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de
Parametry
| Active/passive | passive |
| Transmission technology | 100 V |
| Total power rating | 10 W |
| Power rating (RMS) | 10/5/2,5 W |
| Frequency range | 80-19,000 Hz |
| Number of speakers | 1 |
| SPL | 93 dB (1 W/1 m) 76 dB (EN, 1 W/4 m) |
| Max. rated SPL | 103 dB (1 m) 88 dB (EN, 4 m) |
| Radiation angle/beam angle | H180°/V180° (500 Hz) H180°/V180° (1 kHz) H180°/V1115° (2 kHz) H51°/V68° (4 kHz) |
| Radiation angle, horizontal | 180° (500 Hz) 180° (1 kHz) 180° (2 kHz) 51° (4 kHz) |
| Radiation angle, vertical | 180° (500 Hz) 180° (1 kHz) 115° (2 kHz) 68° (4 kHz) |
| Features | EN 54-24 certification |
| Housing material | ABS |
| Colour | White, RAL 9010 |
| Mounting device | Mounting screws |
| Dimensions | 330 x 240 x 83 mm |
| Width | 330 mm |
| Height | 240 mm |
| Depth | 83 mm |
| Weight | 1.6 kg |
| Inputs | WAGO terminal block |
| Packaging dimensions (W x H x L) | 0.343 x 0.24 x 0.89 m |
| Gross weight | 1.7 kg |
| Net weight | 1.6 kg |
