WDR-245-F-EN-10

Kod EAN: 4007754429541

PA ceiling loudspeaker with EN 54-24 certification. 100 V transmission technology High-performance full-range speaker (20 cm) with very high characteristic sound pressure level (98 dB/1 W/1 m) Metal housing with metal protective grille Fire pot Qui...

víc

Staň se partnerem
Kup teď

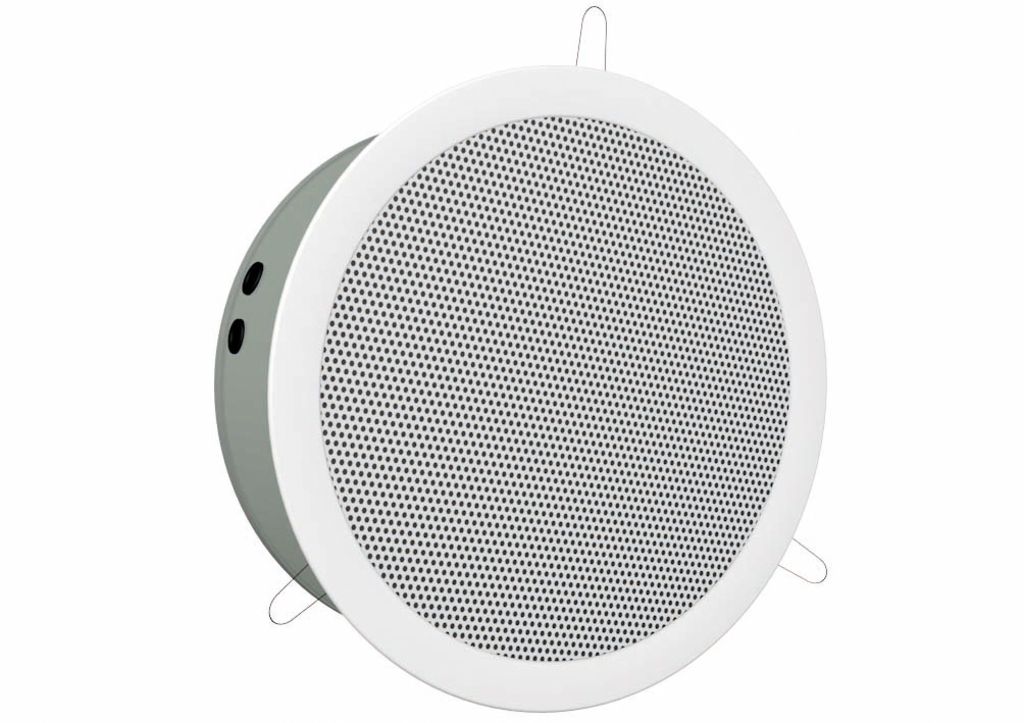

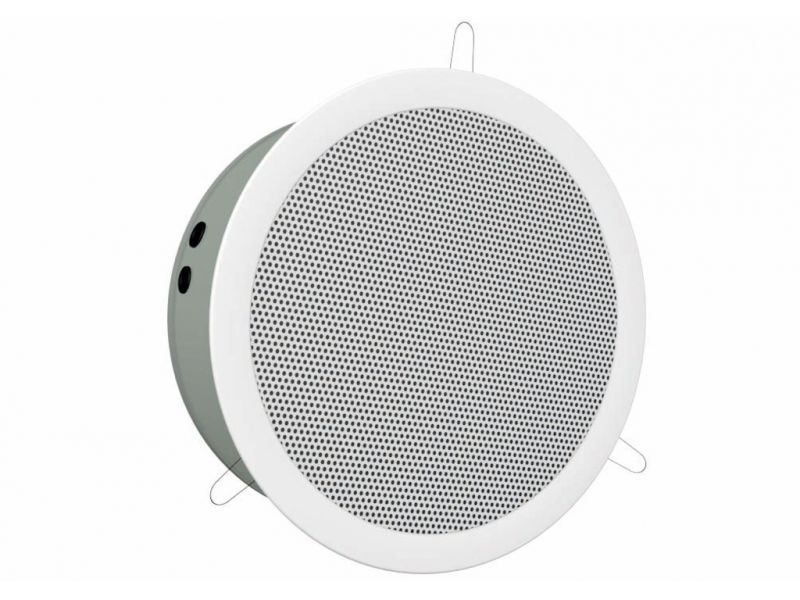

WDR-245-F-EN-10

PA ceiling loudspeaker
with EN 54-24 certification.
  • 100 V transmission technology
  • High-performance full-range speaker (20 cm) with very high characteristic sound pressure level (98 dB/1 W/1 m)
  • Metal housing with metal protective grille
  • Fire pot
  • Quick mounting device
  • 3 power taps via WAGO terminal
  • Ball impact resistance test according to DIN 18 032, part 3
Manufacturer information:
PÖSCHEL ETG e.K.
Mäuswedel 11
74223 Flein
Deutschland
info@poeschel-etg.de

Parametry

Transmission technology 100 V
Frequency range 70-19,000 Hz
Power rating (RMS) 10/5/2.5 W
SPL 98 dB (1 W/1 m) 81 dB (EN, 1 W/4 m)
Max. rated SPL 105 dB (1 m) 92 dB (EN, 4 m)
Radiation angle, horizontal 180° (500 Hz) 180° (1 kHz) 90° (2 kHz) 49° (4 kHz)
Radiation angle, vertical 180° (500 Hz) 180° (1 kHz) 90° (2 kHz) 49° (4 kHz)
Mounting cutout Ø 230 mm
Dimensions Ø 252 mm x 105 mm
Outside diameter Ø 252 mm
Width Ø 252 mm
Height Ø 252 mm
Depth 105 mm
Colour White, RAL 9010
Weight 1.5 kg
Packing unit 1
Type of speaker 200
Packaging dimensions (W x H x L) 0.27 x 0.27 x 0.115 m
Gross weight 1.7 kg
Net weight 1.6 kg

Na stáhnutí

Produktová karta WDR-245-F-EN-10
