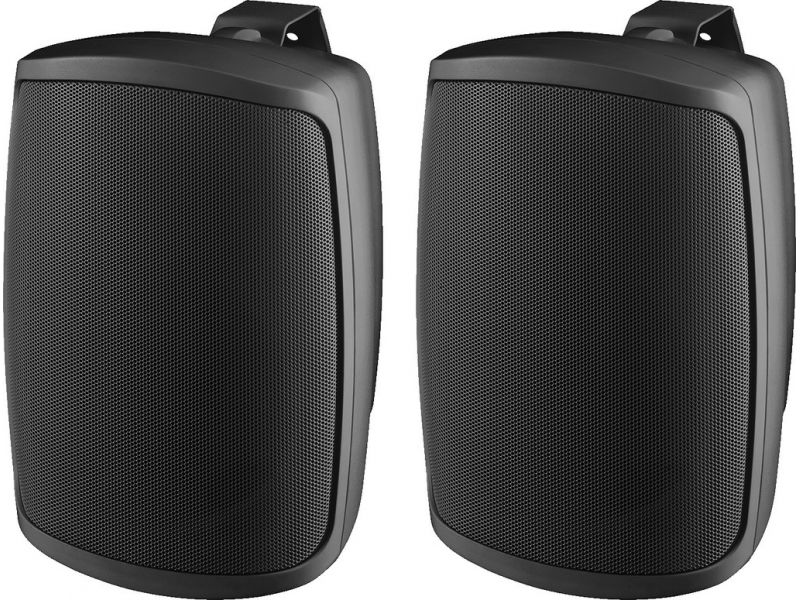

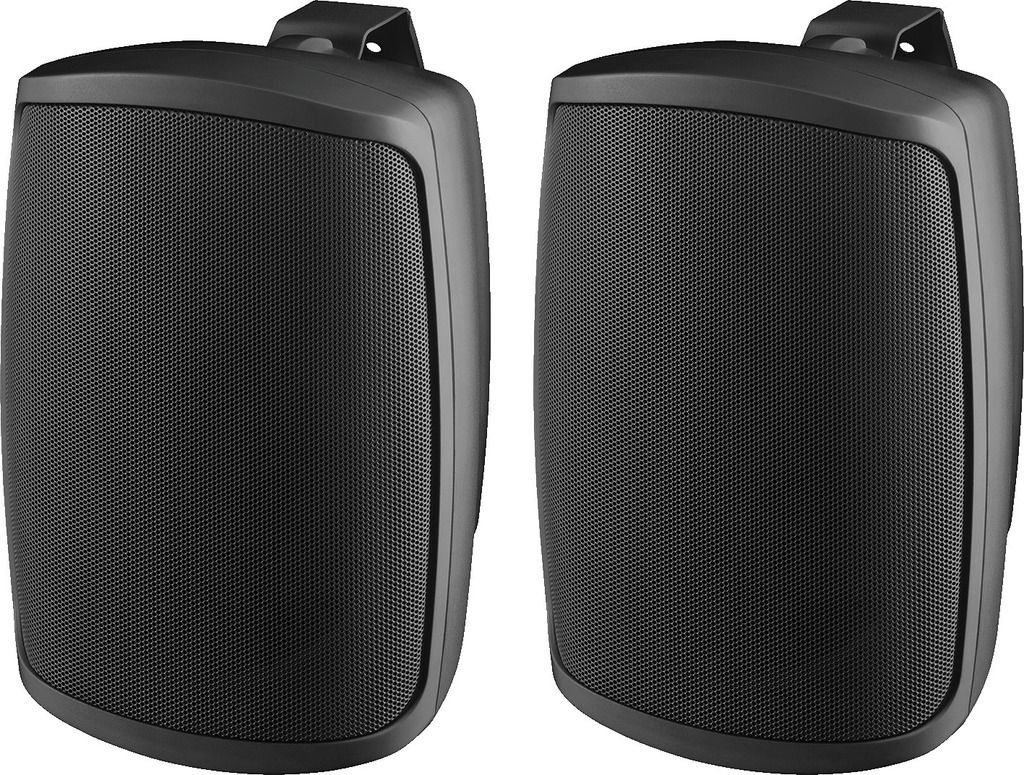

WALL-08T/SW
Kod EAN: 4007754410891
Pair of 2-way PA speaker systems 100 V wall speaker with plastic cabinet in black 4 power taps as well as switchable to 8 Ω operation 20 cm (8") bass-midrange speaker and 25 mm (1") dome tweeter High sound quality and speech intelligibility Mounting...
349,00 € brutto
(inkl. 20% DPH)
290,83 € netto
WALL-08T/SW
Pair of 2-way PA speaker systems
- 100 V wall speaker with plastic cabinet in black
- 4 power taps as well as switchable to 8 Ω operation
- 20 cm (8") bass-midrange speaker and 25 mm (1") dome tweeter
- High sound quality and speech intelligibility
- Mounting bracket for pivoting and tilting
- Connecting terminal with cover
Parametry
| Active/passive | passive |
| Transmission technology | 100 V or low-impedance |
| Total power rating | 120 W |
| Power rating (RMS) | 50/25/12.5/6.25 W (100 V) 60 W (8 Ω) |
| Impedance | 8 Ω |
| Frequency range | 35-20,000 Hz |
| System | 2-way |
| Bass speaker | 20 cm (8") bass-midrange speaker |
| Tweeter | 25 mm (1") dome tweeter |
| Number of speakers | 2 |
| Speaker size | 20 cm (8") |
| SPL | 90 dB/W/m |
| Max. rated SPL | 106 dB |
| Radiation angle/beam angle | H: 100°/V: 80° |
| Radiation angle, horizontal | 100° |
| Radiation angle, vertical | 80° |
| Housing material | plastic |
| Colour | black |
| Mounting device | mounting bracket |
| Protection class | IP65 |
| Admiss. ambient temp. | 0-40 °C |

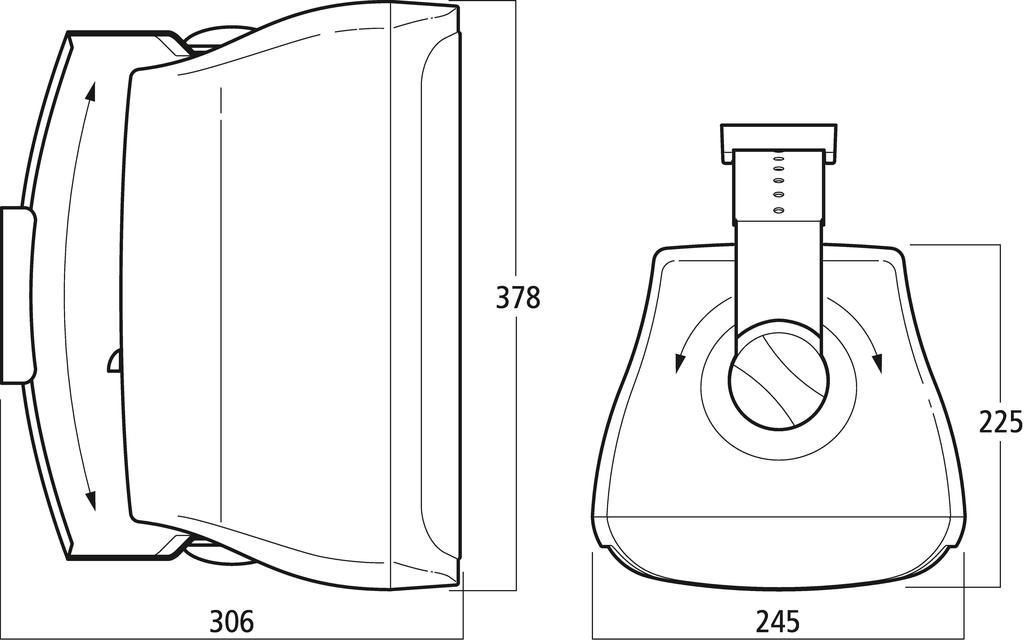

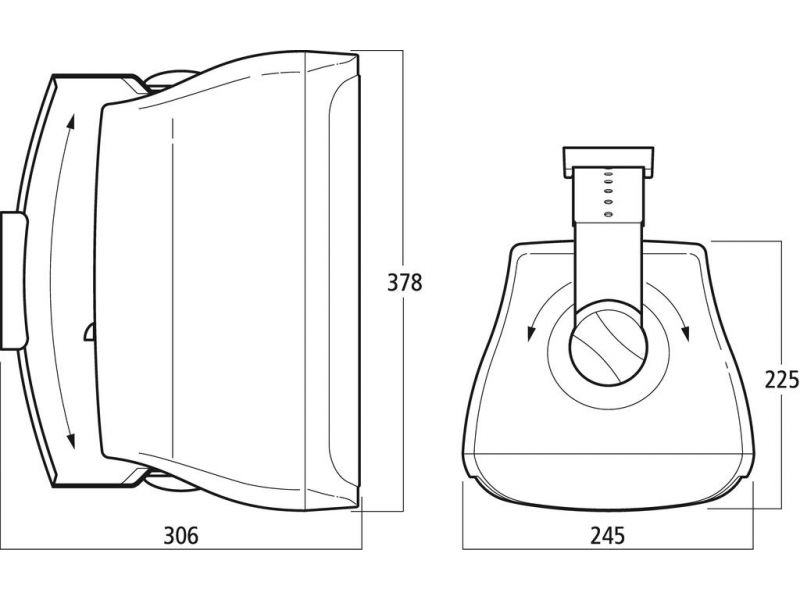

| Dimensions | 245 x 378 x 306 mm (with bracket) |
| Width | 245 mm |
| Height | 378 mm |
| Depth | 306 mm |
| Weight | 5 kg |
| Inputs | spring-loaded speaker terminal |
| Other features | for pivoting and tilting |
| Packaging dimensions (W x H x L) | 0.29 x 0.41 x 0.59 m |
| Gross weight | 12.4 kg |
| Net weight | 10.54 kg |
