ULM-164/SW

Kod EAN: 4007754182781

Universal line mixer, 6 channels. 6 stereo inputs/mono inputs 2 stereo outputs, independent of each other (master 1 via RCA and 6.3 mm jack), 1 mono output 3-way equalizer LED VU meter, switchable for both outputs Clip LED for each channel Balance...

víc

253,00 € brutto

(inkl. 20% DPH)
210,83 € netto



ULM-164/SW

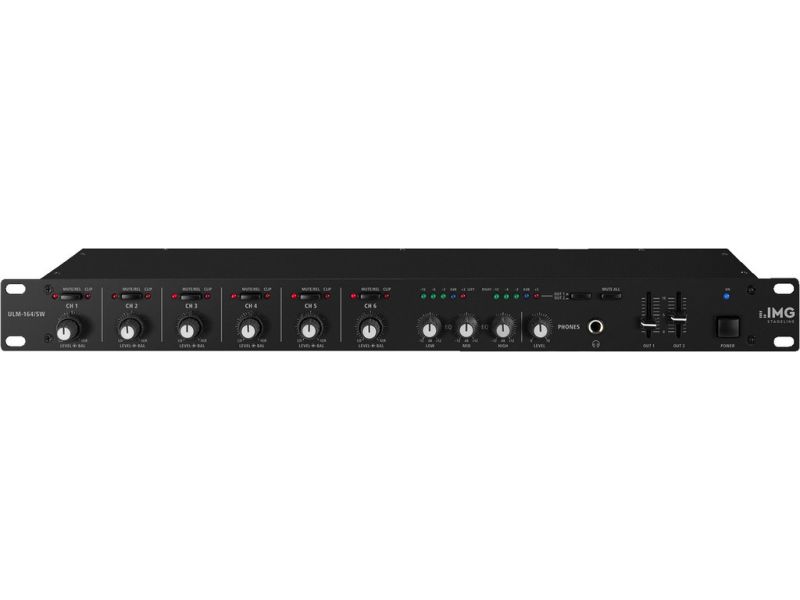

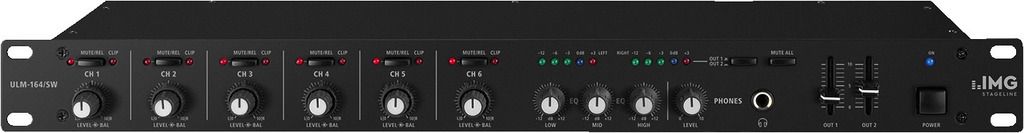

Universal line mixer,
6 channels.
  • 6 stereo inputs/mono inputs
  • 2 stereo outputs, independent of each other (master 1 via RCA and 6.3 mm jack), 1 mono output
  • 3-way equalizer
  • LED VU meter, switchable for both outputs
  • Clip LED for each channel
  • Balance controls with centre click for the stereo input channels
  • Extended muting function
  • Adjustable headphone output
  • 482 mm (19") rack installation, 1 RU

Parametry

No. of channels 6
No. of inputs 12
Line input 150 mV/50 kΩ (stereo), 6 x RCA L/R 150 mV/25 kΩ (mono), 6 x 6.3 mm jack, unbal.
Master output 1 V/600 Ω (stereo), 2 x RCA (1 x 6.3 mm) L/R 2 V/600 Ω (mono), 1 x 6.3 mm jack
Headphones ≥ 8 Ω, 1 x 6.3 mm jack
Frequency range 20-20,000 Hz
THD 0.05%
S/N ratio 69 dB, unweighted
Equalizer bass ±12 dB/80 Hz
Equalizer midrange ±12 dB/1 kHz
Equalizer treble ±12 dB/10 kHz
Power supply ˜ 230 V/50 Hz/10 VA
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 10 VA
Admiss. ambient temp. 0-40 °C
Width 482 mm
Height 48 mm
Depth 175 mm
Rack units, RU 1
Weight 2.3 kg
Packing dimensions (W x H x L) 0.18 x 0.047 x 0.482 m
Gross weight 3.035 kg
Net weight 2.32 kg
