TXS-812SET

Kod EAN: 4007754215175

Wireless 2-channel microphone system 2 microphone transmitters, 1 receiver, 1 plug-in power supply Two-channel UHF version (non-diversity) with channel mixing function which can additionally be selected Volume and squelch controls for each channel Ea...

víc

255,59 € brutto

(inkl. 23% DPH)
207,80 € netto

Staň se partnerem
Kup teď

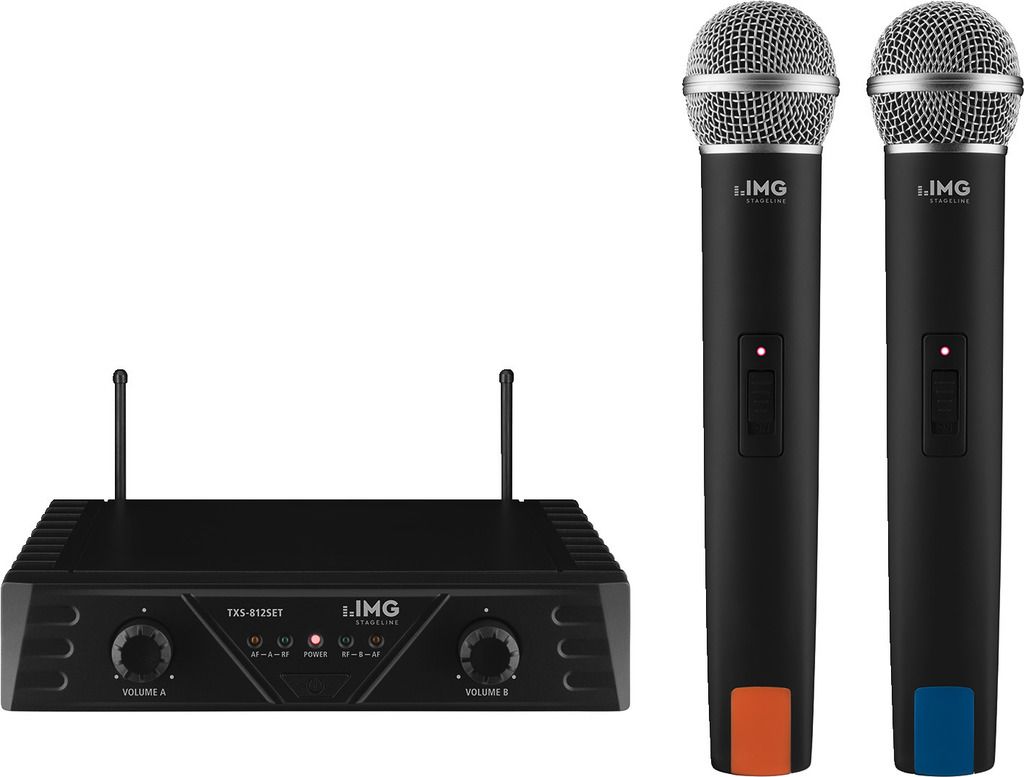

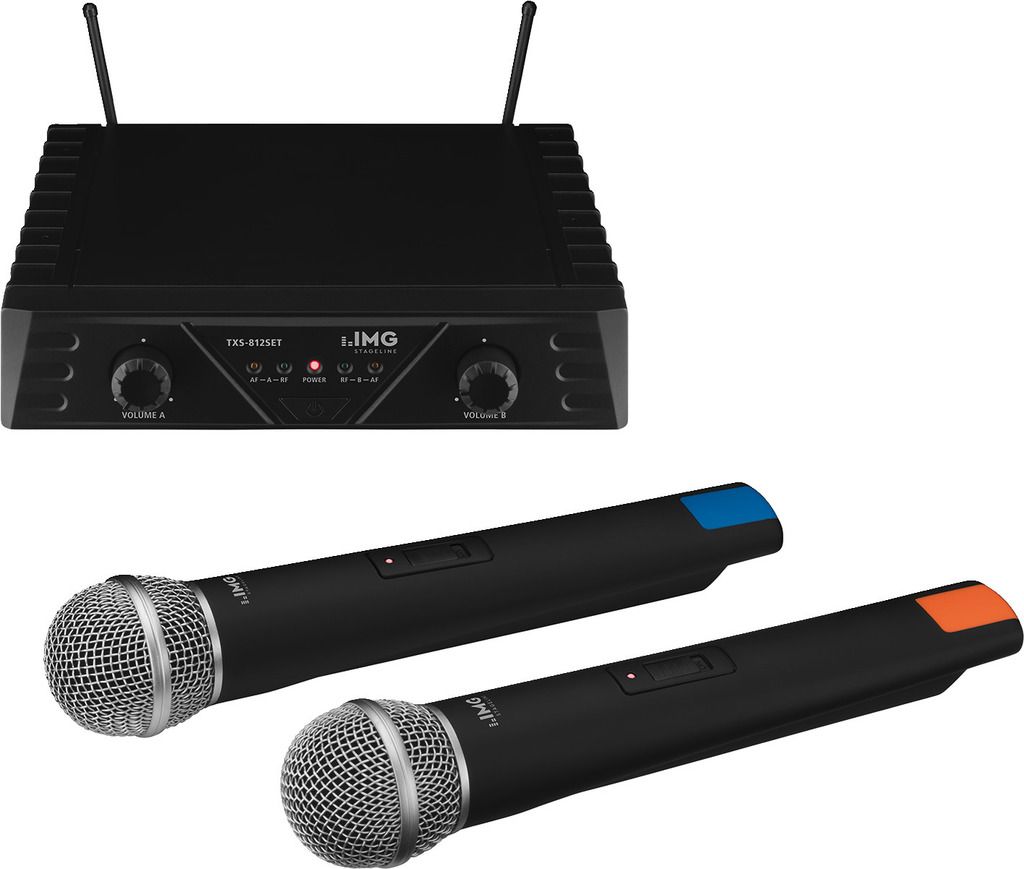

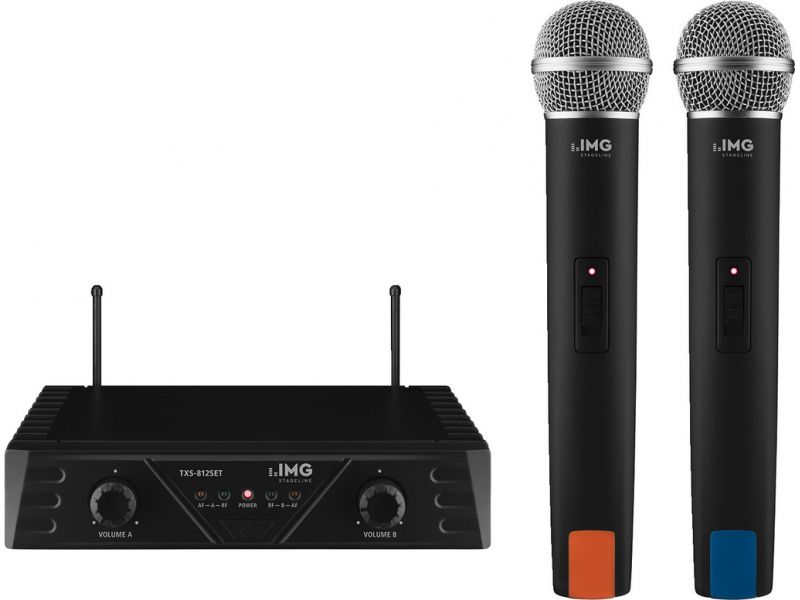

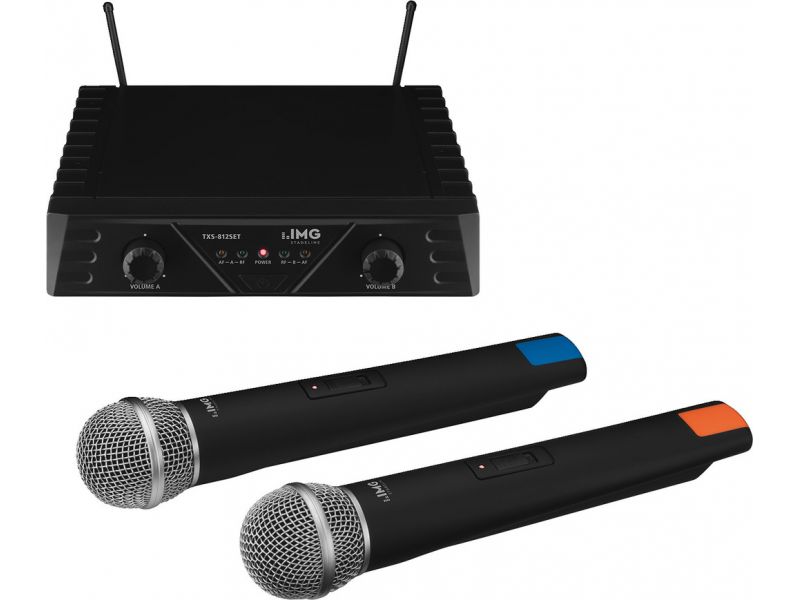

TXS-812SET

Wireless 2-channel microphone system
  • 2 microphone transmitters, 1 receiver, 1 plug-in power supply
  • Two-channel UHF version (non-diversity) with channel mixing function which can additionally be selected
  • Volume and squelch controls for each channel
  • Each channel with LEDs for indicating RF signal and audio signal

Licence-free in the EU.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit uses dangerous mains voltage. Leave servicing to skilled personnel only and do not insert anything into the air vents. Inexpert handling may result in electric shock.
Do not operate the unit and disconnect the mains plug from the socket immediately if the unit or the mains cable is visibly damaged; if a defect might have occurred after the unit was dropped or suffered a similar accident, if malfunctions occur. In any case, the unit must be repaired by skilled personnel.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
Never pull the mains cable to disconnect the mains plug from the socket, always seize the plug.
Remove the rechargeable batteries or batteries if the device is not in use for a longer period of time (e.g. more than a week). This avoids possible damage through leaking batteries/rechargeable batteries.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Batteries and rechargeable batteries must not be disposed of with household waste. They must be disposed of in accordance with local regulations for hazardous waste.

Parametry

Description wireless microphone system
Carrier frequency range 863.80 MHz , 864.20 MHz
Audio frequency range 40-15,000 Hz
Channels 2
THD < 0.5%
Dynamic range > 90 dB
RF S/N ratio > 80 dB
Admiss. ambient temp. 0-40 °C
Transmitting power < 10 mW
Operating range approx. 30 m
Power supply transmitter 2 x 1.5 V batt. AA size (not supplied)
Width transmitter 52 mm
Height transmitter 52 mm
Depth transmitter 260 mm
Weight transmitter 240 g
Audio signal receiver 0-200 mV/10 kΩ (jack)0-400 mV/10 kΩ (XLR, bal.)
Power supply receiver via encl. plug-in power supply
Width receiver 210 mm
Height receiver 46 mm
Depth receiver 190 mm
Weight receiver 560 g
Connections receiver 2 x XLR, bal.1 x 6.3 mm jack, unbal.

Na stáhnutí

Produktová karta TXS-812SET Návod na obsluhu konformitaetserklaerung-ukca-r konformitaetserklaerung-ce-red
