Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an appl...
TFX0615/8
Celestion is one of the finest-sounding names in the world of speakers.
The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.

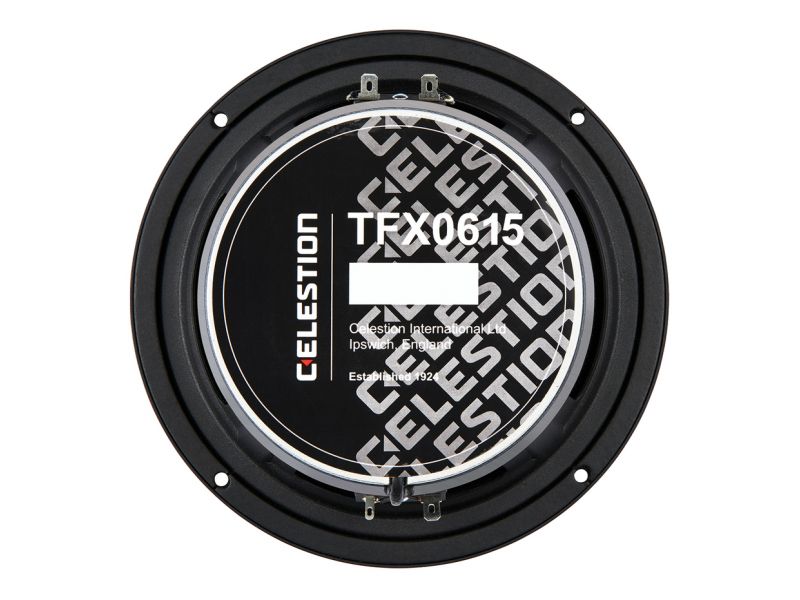

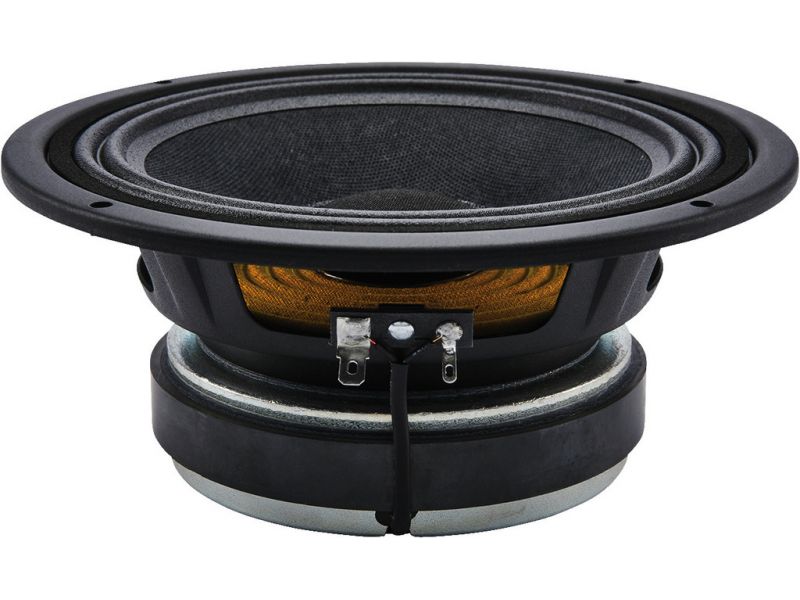

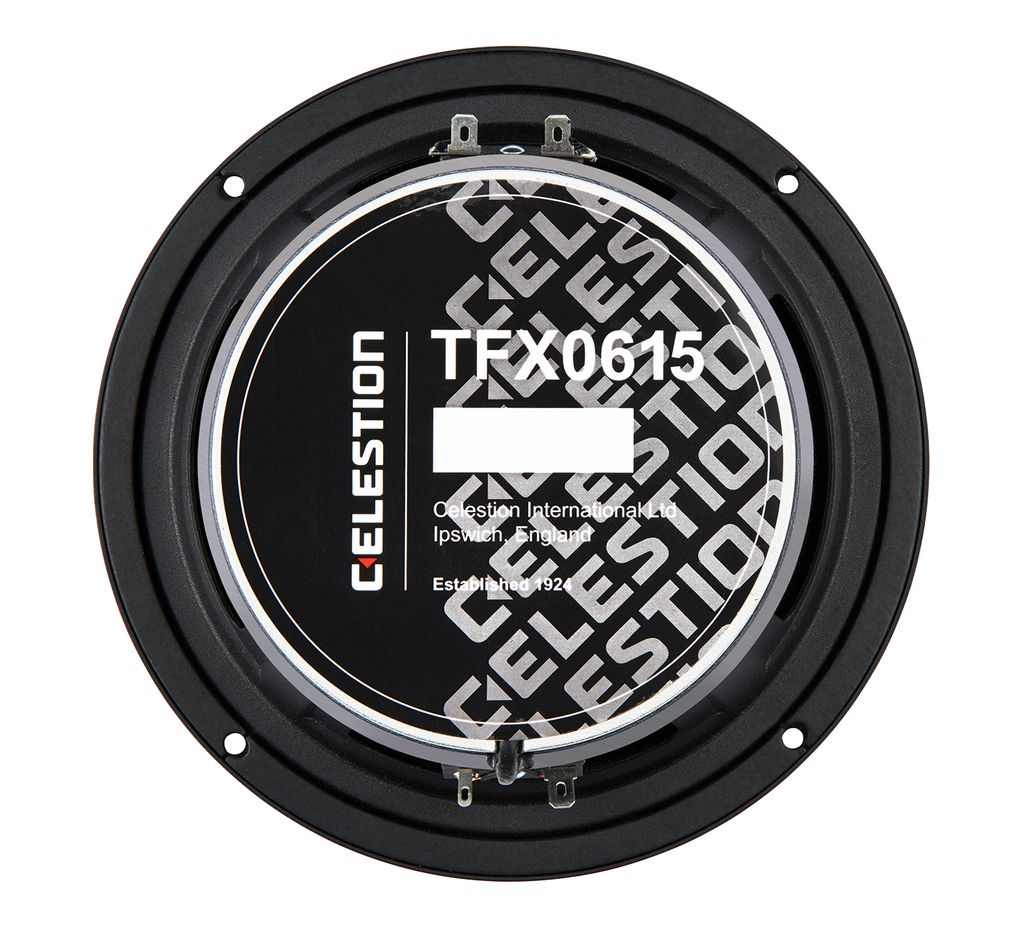

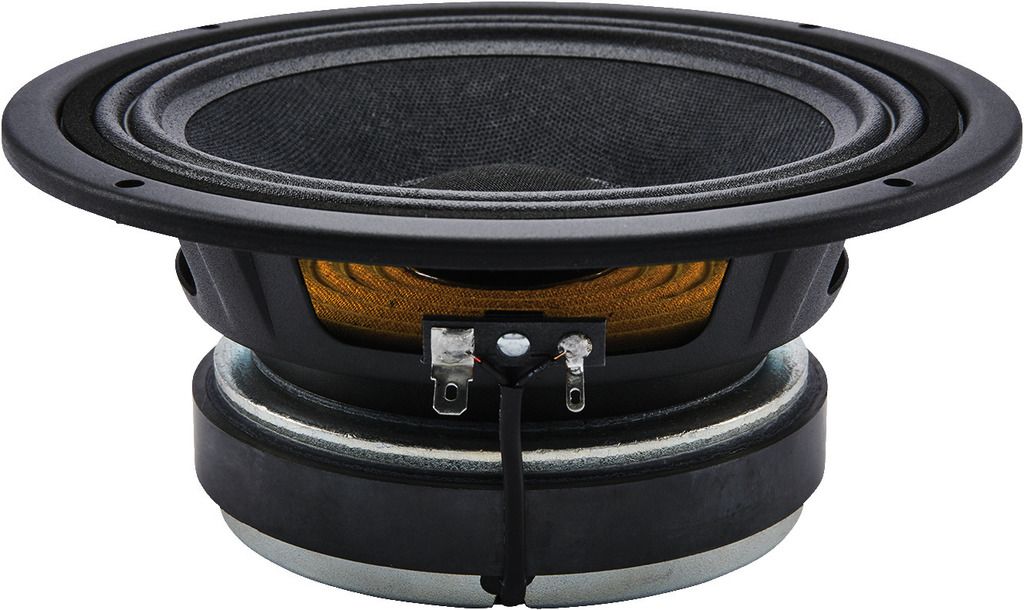

PA coaxial speaker, 150 W, 8 Ω
- 16,5 cm (6½") coaxial speaker with robust steel basket
- 25 mm (1") tweeter with silk dome and neodymium magnet
- Integrated tweeter with waveguide
- Nominal radiation angle of tweeter: 110°
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Konsul-Smidt-Str. 68
28217 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

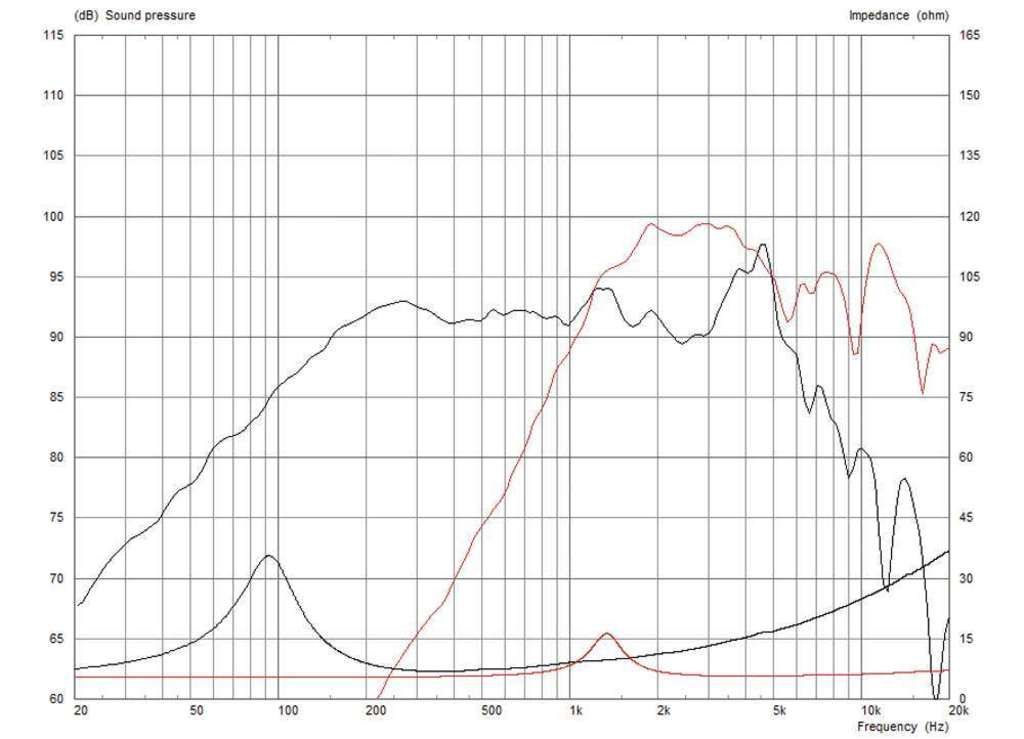

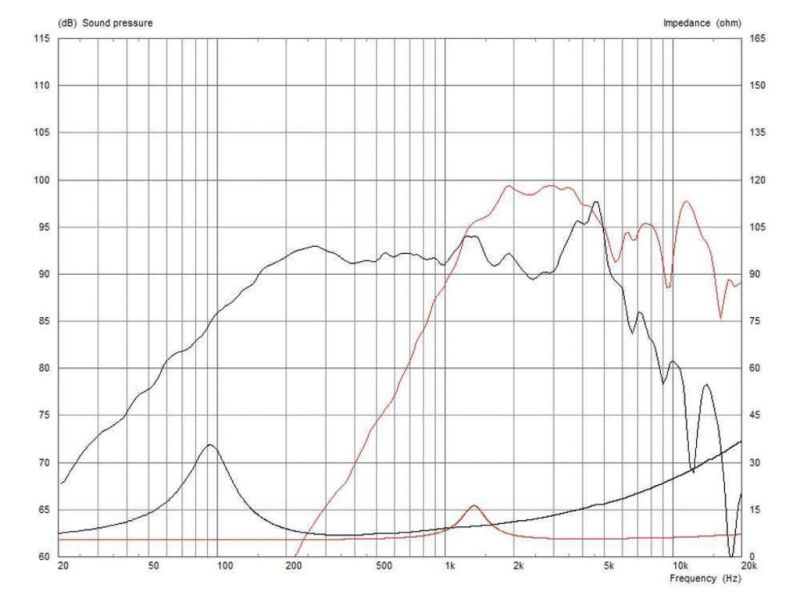

| Frequency range | 100-6,000 Hz (bass) 1,700-20,000 Hz (tweeter) |
| Resonant frequency (fs) | 97 Hz |
| Rec. crossov. frequ. (fmax.) (12 dB/oct.) | 2,200 Hz |
| Power rating (RMS) | 150 W (bass) / 10 W (tweeter) |
| Peak music power output (MAX) | 300 W (bass) / 20 W (tweeter) |
| SPL | 94 dB (bass) / 98 dB (tweeter) |
| Radiation angle, horizontal | 110° |
| Radiation angle, vertical | 110° |
| Suspension compl. (Cms) | 0.21 mm/N |
| Moving mass (Mms) | 12.62 g |
| Mech. Q factor (Qms) | 3.038 |
| Electr. Q factor (Qes) | 0.429 |
| Total Q factor (Qts) | 0.376 |
| Equivalent volume (Vas) | 7.2 l |
| DC resistance (Re) | 5.39 Ω |
| Force factor (BxL) | 9.82 Tm |
| Voice coil induct. (Le) | 0.46 mH |
| Voice coil diameter | Ø 38 mm (bass) / Ø 25 mm (tweeter) |
| Voice coil winding height | 6 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | 5.25 mm |
| Eff. cone area (Sd) | 153.944 cm2 |
| Magnet weight | 0.81 kg |
| Mounting cutout | Ø 145 mm |
| Mounting depth | 75.5 mm |
| Mounting hole diameter | Ø 168 mm |
| Dimensions | 178 x 178 x 75.5 mm |
| Outside diameter | Ø 178 mm |
| Width | 178 mm |
| Height | 178 mm |
| Depth | 75.5 mm |
| Colour | black |
| Weight | 2.1 kg |
| Packing unit | 1 |
| Type of speaker | 6.5" |
| Packaging dimensions (W x H x L) | 0.24 x 0.15 x 0.24 m |
| Gross weight | 2.65 kg |
| Net weight | 2.1 kg |
