TF0818MR/8
Kod EAN: 0739894527842
PA midrange speaker, 100 W, 8 Ω Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, the...

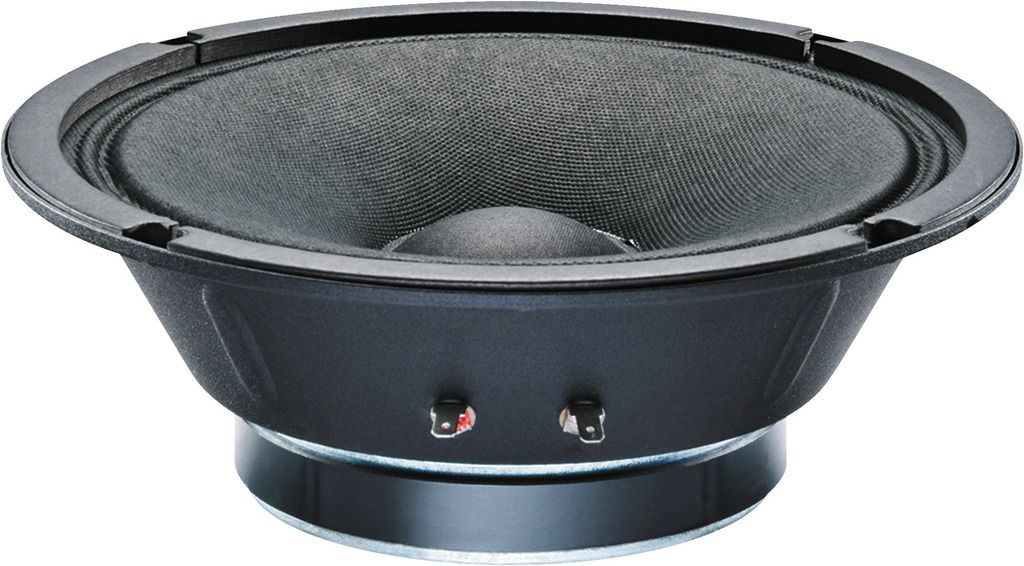

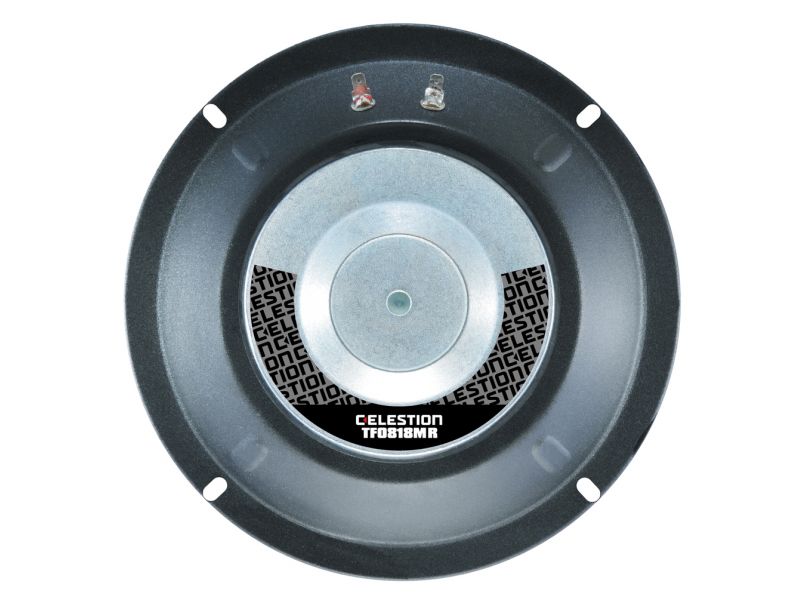

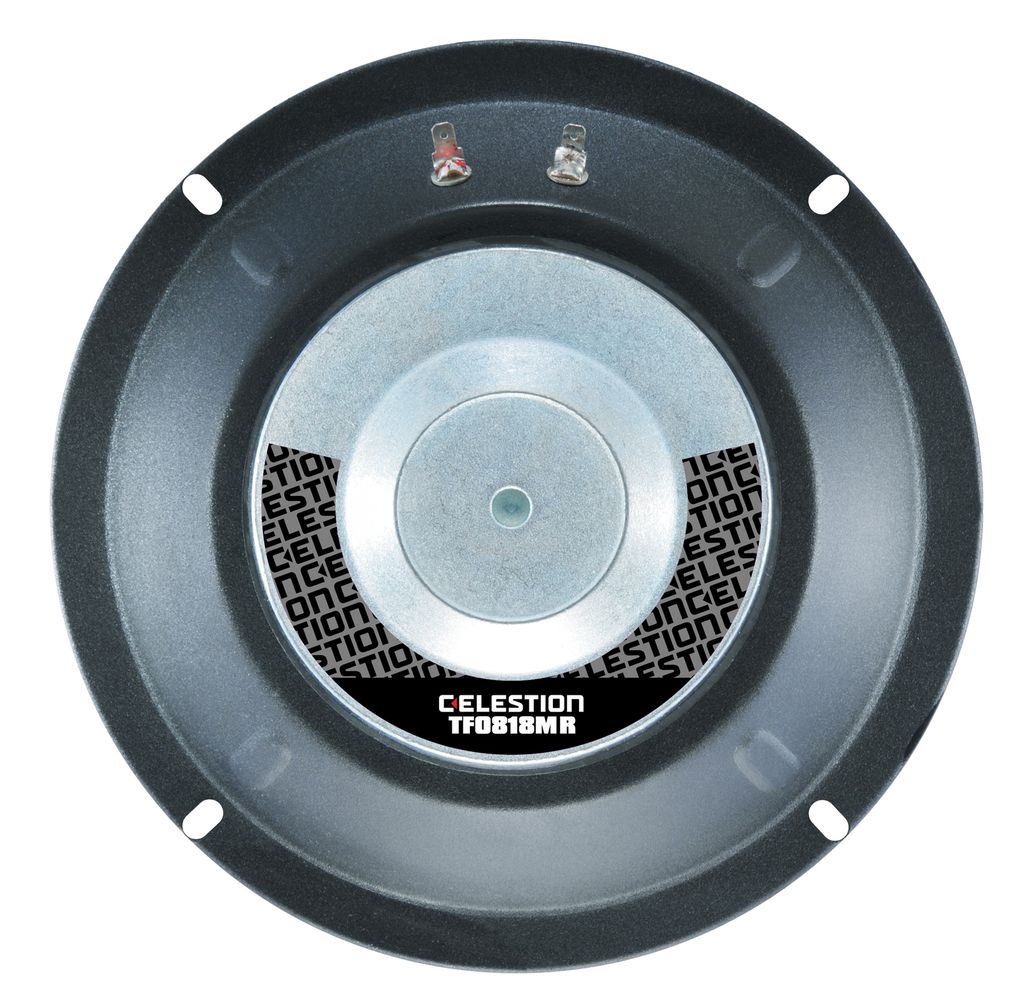

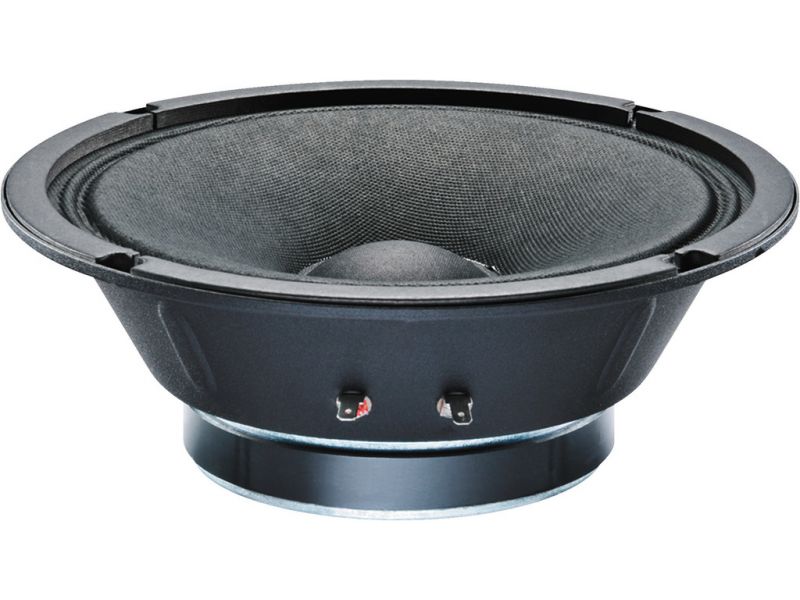

TF0818MR/8
PA midrange speaker, 100 W, 8 Ω
Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
- 20 cm (8") PA midrange speaker of high power capability with closed sheet steel basket
- Very high efficiency
- Very linear frequency response
- Easy installation, no extra cabinet volume required
- High-quality Kevlar fibre-reinforced cellulose cone
- Heat-resistant 44.5 mm (1.75") voice coil on a Kapton voice coil former
- Ideally suited for multi-way PA speaker systems
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 800-5,000 Hz |
| Resonant frequency (fs) | 453 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 99 dB/W/m |
| DC resistance (Re) | 6.63 Ω |
| Voice coil induct. (Le) | 0.31 mH |
| Voice coil diameter | Ø 44 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Magnet weight | 0.57 kg |
| Mounting cutout | Ø 183 mm |
| Mounting depth | 85 mm |
| Mounting hole diameter | Ø 195-199 mm |
| Dimensions | Ø 203 mm x 85 mm |
| Outside diameter | Ø 203 mm |
| Width | Ø 203 mm |
| Height | Ø 203 mm |
| Depth | 85 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.83 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.235 x 0.102 x 0.229 m |
| Gross weight | 2.2 kg |
| Net weight | 1.83 kg |
