TF0818/8
Kod EAN: 0739894533249
PA bass-midrange speaker, 100 W, 8 Ω Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus...

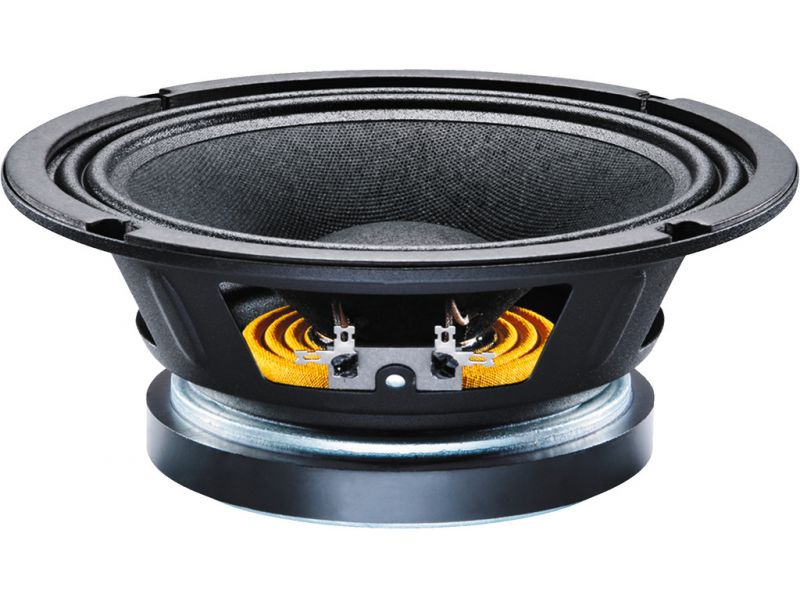

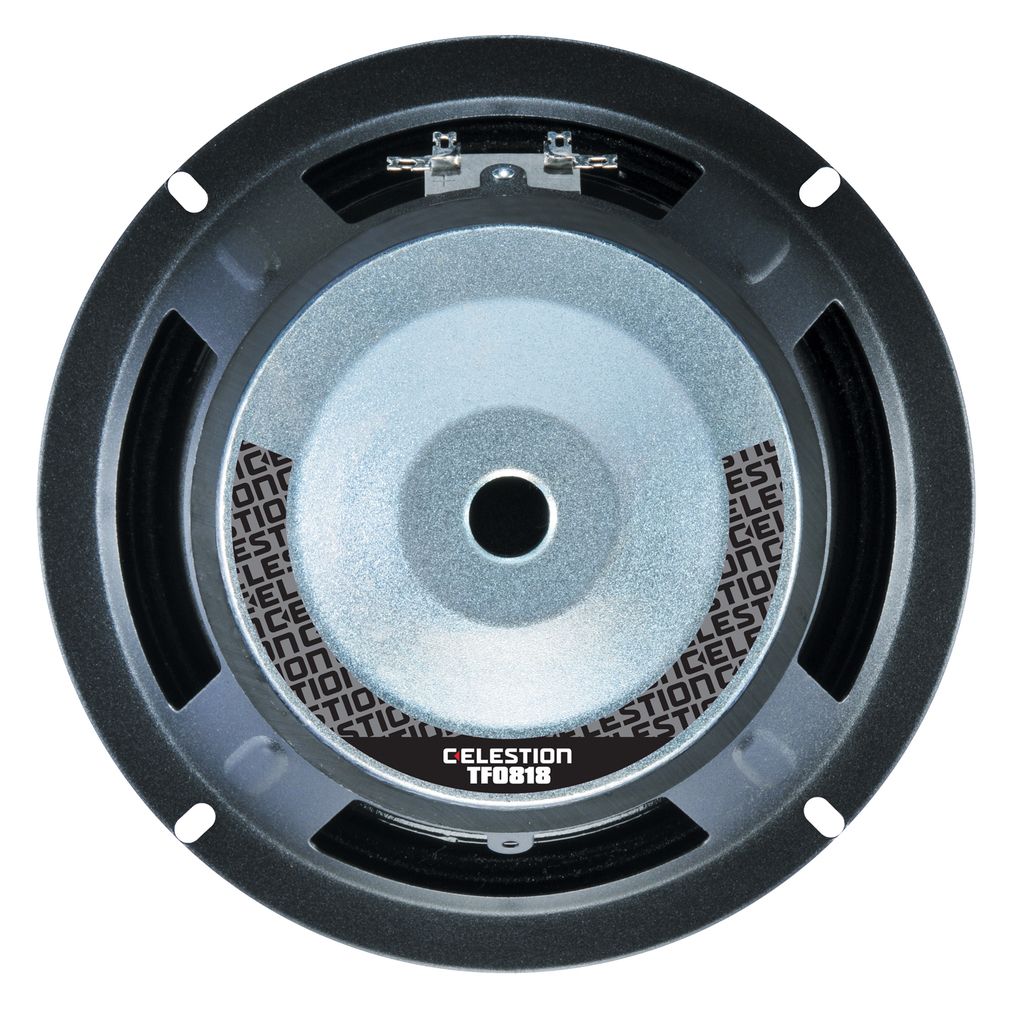

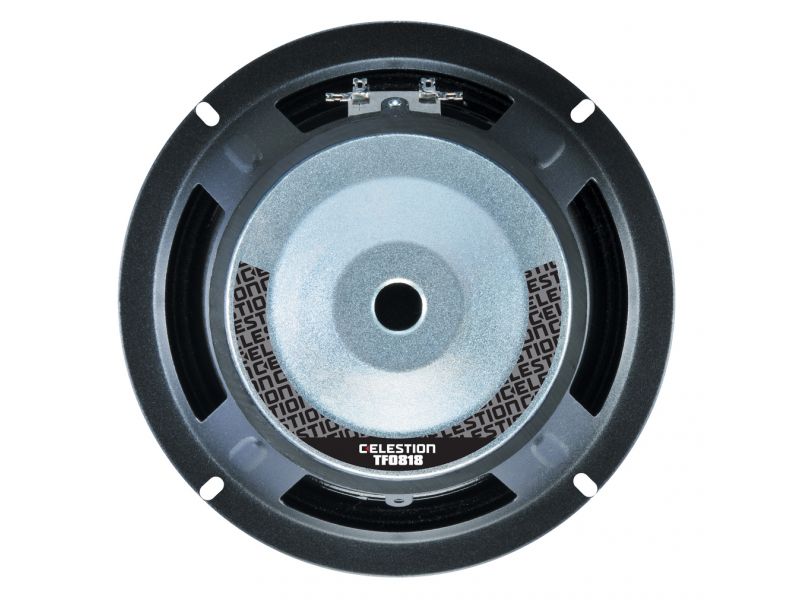

TF0818/8
PA bass-midrange speaker, 100 W, 8 Ω
Celestion is one of the finest-sounding names in the world of speakers. The speakers of the TF series feature an excellent price-performance ratio and at the same time provide excellent sound characteristics. Thus, they are ideally suited for an application in high-performance PA speaker systems which provide a powerful sound.
- PA bass-midrange speaker with an excellent sound and sufficient reserves in the bass range
- High-quality Kevlar fibre-reinforced cellulose cone
- Heat-resistant 44.5 mm voice coil on a Kapton voice coil former
- Excellent frequency response linearity and wide bandwidth
- Robust sheet steel basket
- Ideally suited for compact PA top speaker systems with subwoofer support
Manufacturer information:
Celestion International Ltd
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Claydon Business Park, Great Blakenham,
Ipswich
Suffolk IP6 0NL
United Kingdom
info@celestion.com
Importer:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Deutschland
info@monacor.com
Zum Falsch 36
28307 Bremen
Deutschland
info@monacor.com
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 70-6,000 Hz |
| Resonant frequency (fs) | 94 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 94 dB/W/m |
| Suspension compl. (Cms) | 0.13 mm/N |
| Moving mass (Mms) | 19.57 g |
| Mech. Q factor (Qms) | 3.311 |
| Electr. Q factor (Qes) | 0.493 |
| Total Q factor (Qts) | 0.429 |
| Equivalent volume (Vas) | 9.4 l |
| DC resistance (Re) | 6.72 Ω |
| Force factor (BxL) | 12.95 Tm |
| Voice coil induct. (Le) | 0.75 mH |
| Voice coil diameter | Ø 44 mm |
| Voice coil winding height | 13 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 5 mm |
| Eff. cone area (Sd) | 226.98 cm2 |
| Magnet weight | 0.88 kg |
| Mounting cutout | Ø 183 mm |
| Mounting depth | 99 mm |
| Mounting hole diameter | Ø 195-199 mm |
| Dimensions | Ø 208 mm x 99 mm |
| Outside diameter | Ø 208 mm |
| Width | Ø 208 mm |
| Height | Ø 208 mm |
| Depth | 99 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.3 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.229 x 0.102 x 0.229 m |
| Gross weight | 2.8 kg |
| Net weight | 2.3 kg |
