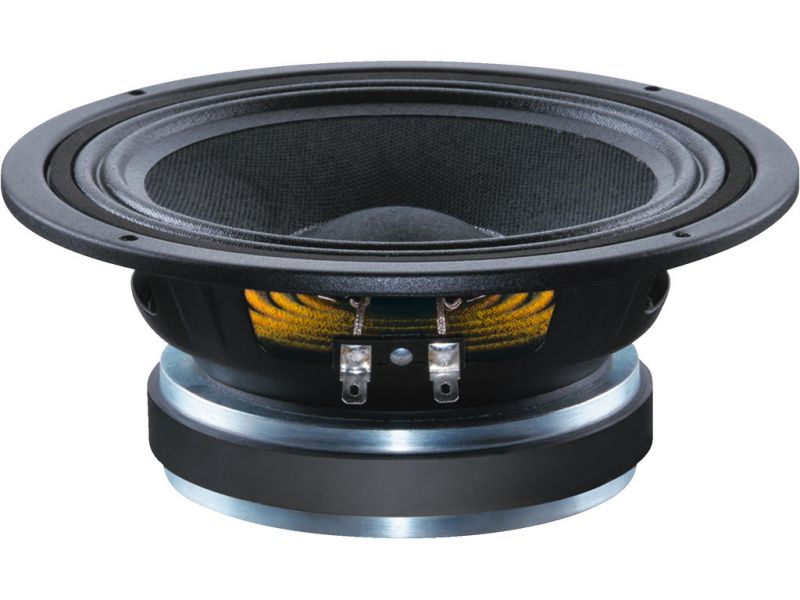

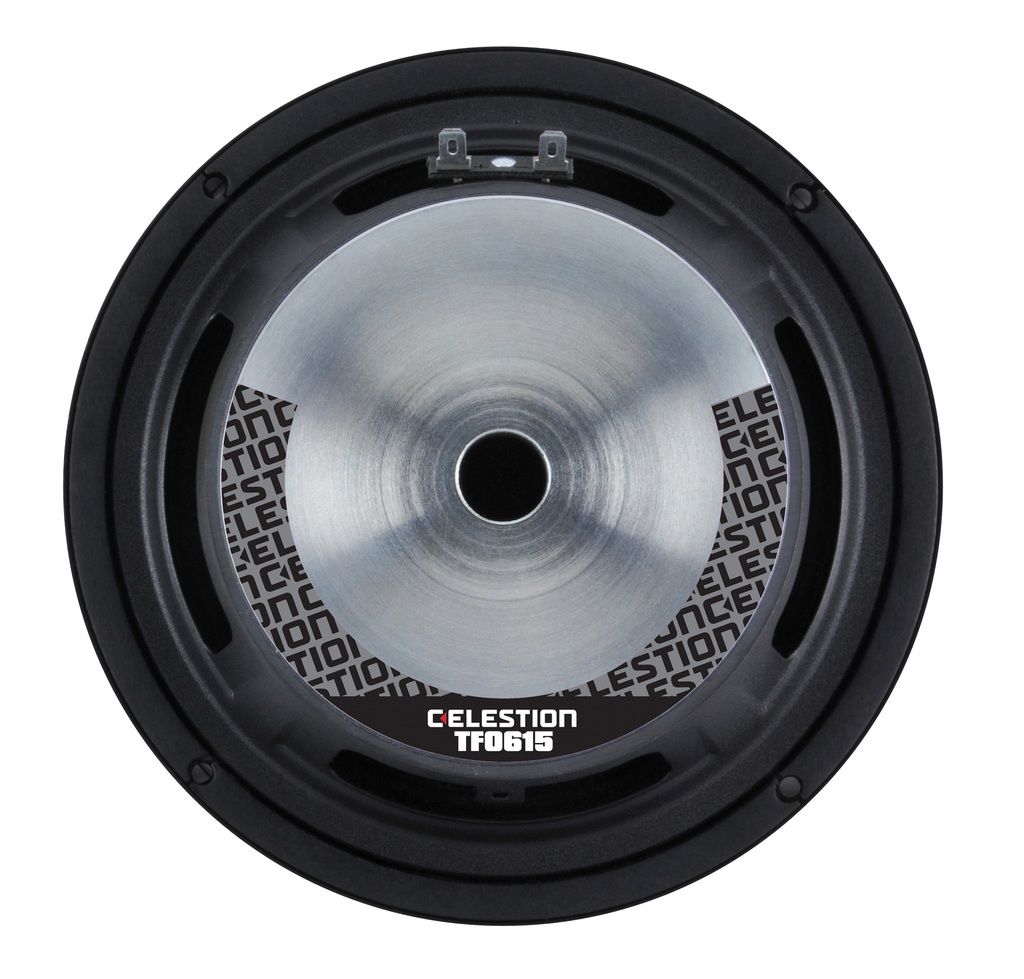

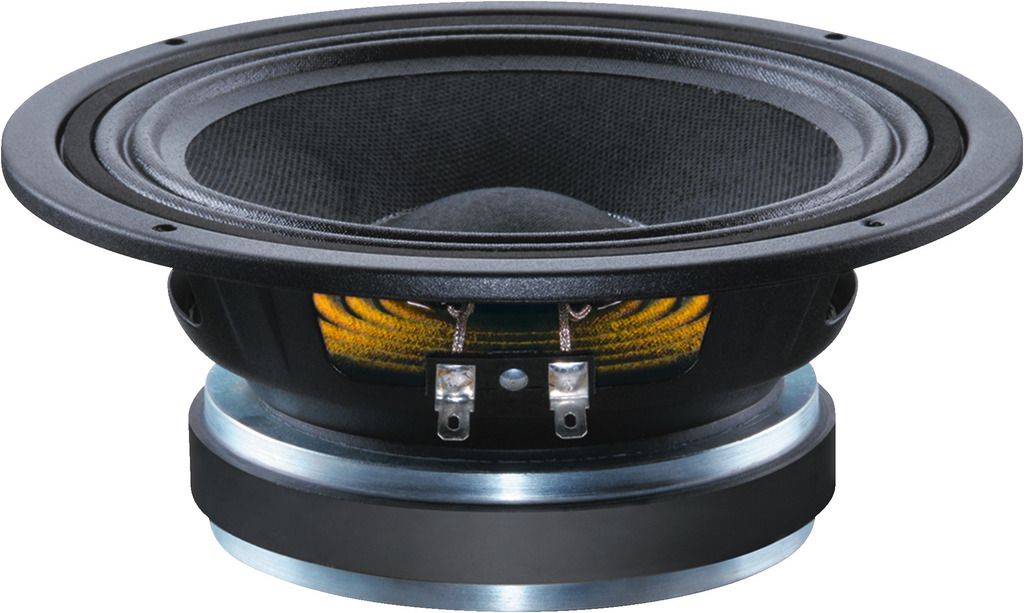

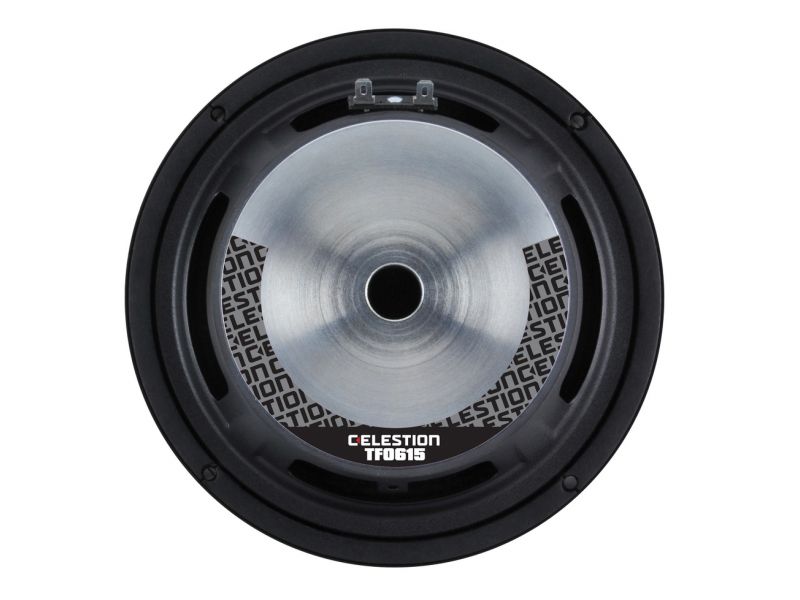

TF0615/8
PA bass-midrange speaker, 100 W, 8 Ω
- 16 cm (6") PA midrange speaker with an excellent sound and sufficient reserves in the bass range down to approx. 100 Hz
- High-quality Kevlar fibre-reinforced cellulose cone
- Heat-resistant 38 mm voice coil on a Kapton voice coil former

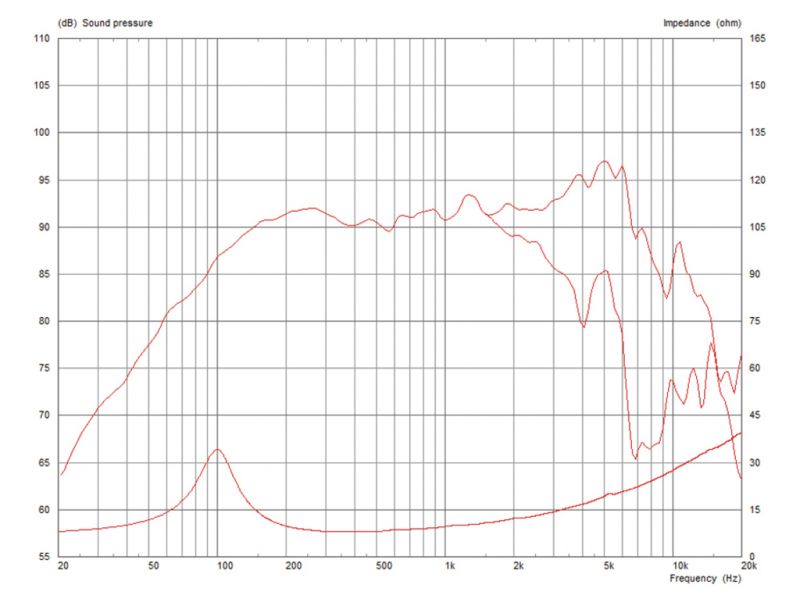

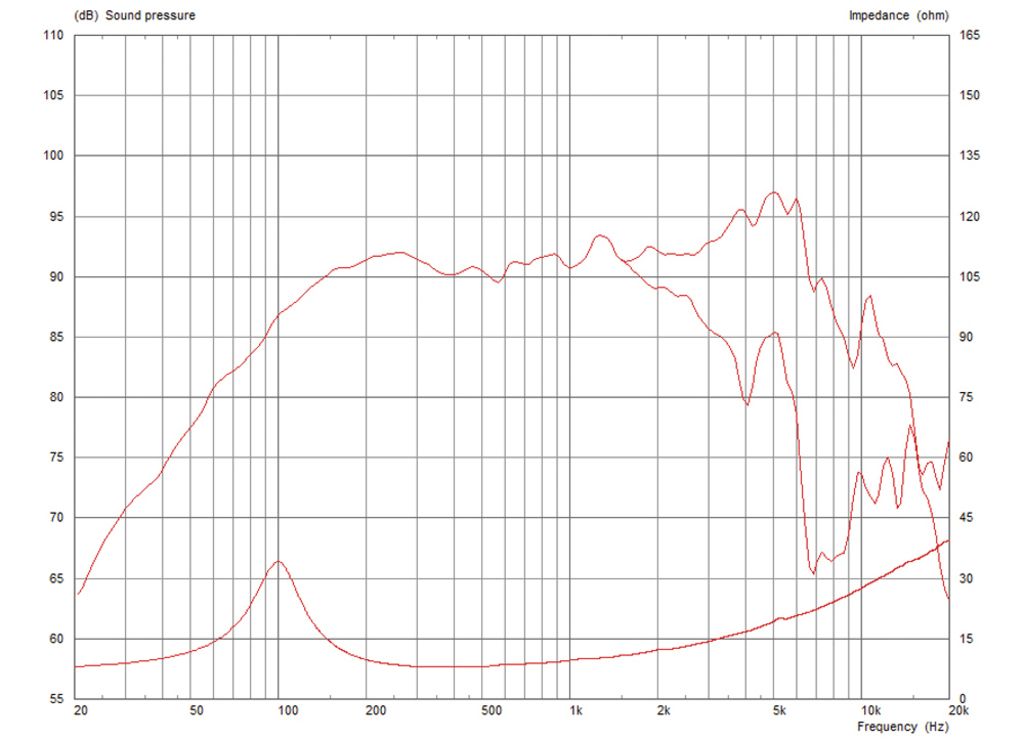

- Excellent frequency response linearity and wide bandwidth
- Ideally suited for compact PA top speaker systems with subwoofer support
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | 85-6,000 Hz |
| Resonant frequency (fs) | 104.7 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 95 dB/W/m |
| Suspension compl. (Cms) | 0.19 mm/N |
| Moving mass (Mms) | 12.09 g |
| Mech. Q factor (Qms) | 3.949 |
| Electr. Q factor (Qes) | 0.719 |
| Total Q factor (Qts) | 0.608 |
| Equivalent volume (Vas) | 6.4 l |
| DC resistance (Re) | 7.08 Ω |
| Force factor (BxL) | 8.85 Tm |
| Voice coil induct. (Le) | 0.47 mH |
| Voice coil diameter | Ø 38 mm |
| Voice coil winding height | 6.5 mm |
| Voice coil material | copper wire |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 1.75 mm |
| Eff. cone area (Sd) | 153.94 cm2 |
| Magnet weight | 0.48 kg |
| Mounting cutout | Ø 147 mm |
| Mounting depth | 74 mm |
| Mounting hole diameter | Ø 168.5 mm |
| Dimensions | Ø 178 mm x 74 mm |
| Outside diameter | Ø 178 mm |
| Width | Ø 178 mm |
| Height | Ø 17 mm |
| Depth | 74 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.4 kg |
| Packing unit | 1 |
| Type of speaker | 6" |
| Packaging dimensions (W x H x L) | 0.203 x 0.102 x 0.203 m |
| Gross weight | 2 kg |
| Net weight | 1.4 kg |
