DT-25N
Kod EAN: 4007754154641
Neodymový Hi-Fi výškový reproduktor, 40 W, 8 Ω
SPH-68X/AD
Kod EAN: 4007754025507
Reproduktor s plným rozsahom, 30 W, 8 Ω Vyvŕtané pólové jadro Kmitacia cievka s plochým drôtom Veľmi dobrá linearita frekvenčnej odozvy aj vo vysokofrekvenčnom rozsahu Pre všeobecné použitie
49,20 € brutto
(inkl. 20% DPH)
41,00 € netto

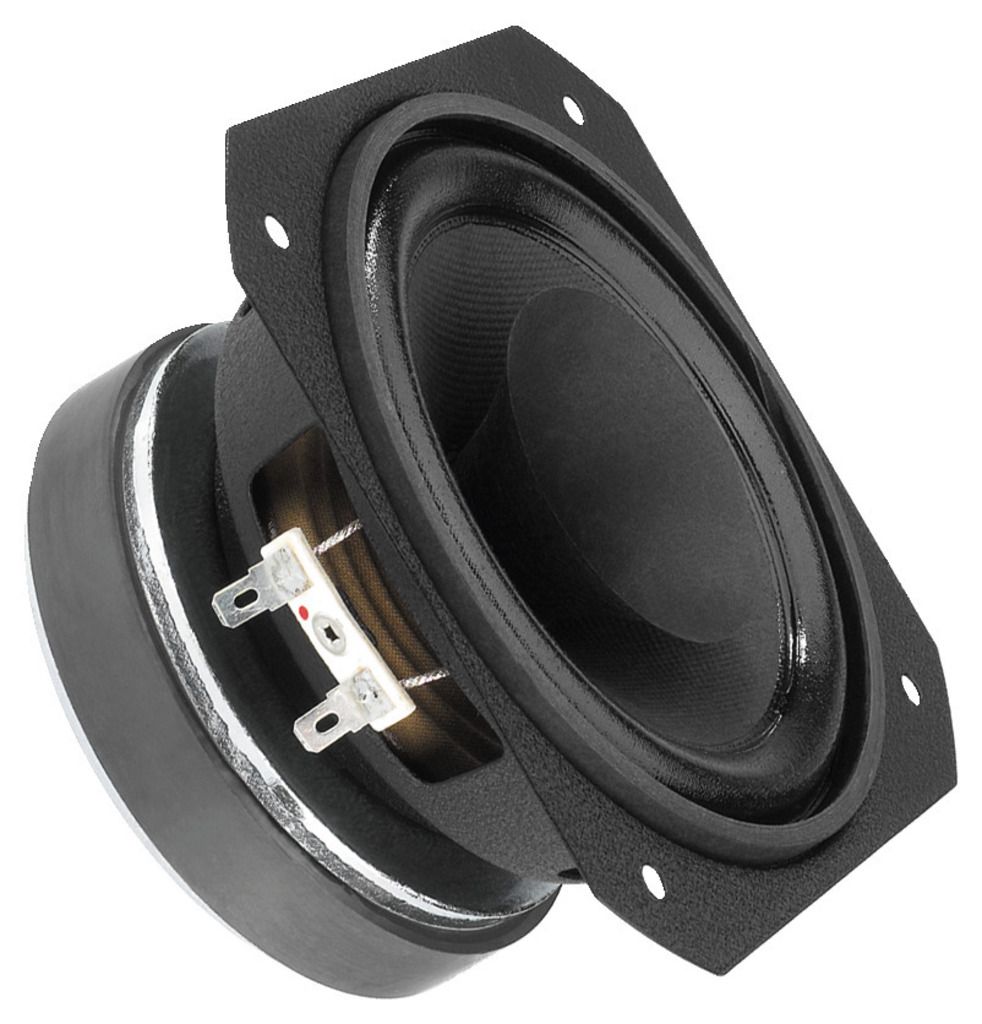

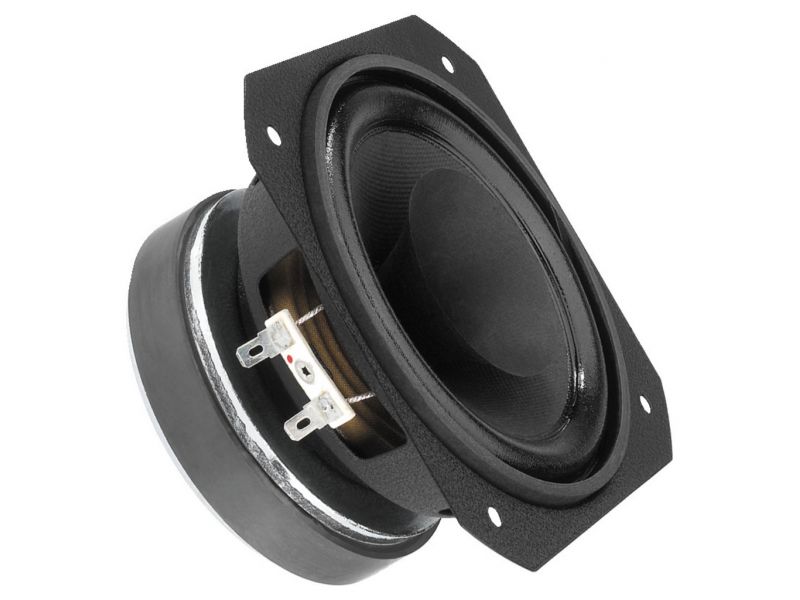

SPH-68X/AD
Reproduktor s plným rozsahom, 30 W, 8 Ω
- Vyvŕtané pólové jadro
- Kmitacia cievka s plochým drôtom
- Veľmi dobrá linearita frekvenčnej odozvy aj vo vysokofrekvenčnom rozsahu
- Pre všeobecné použitie
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

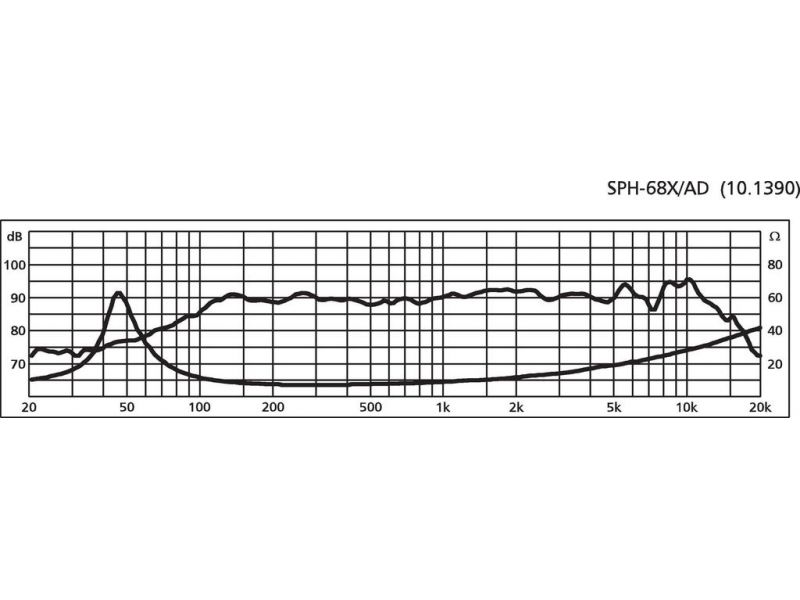

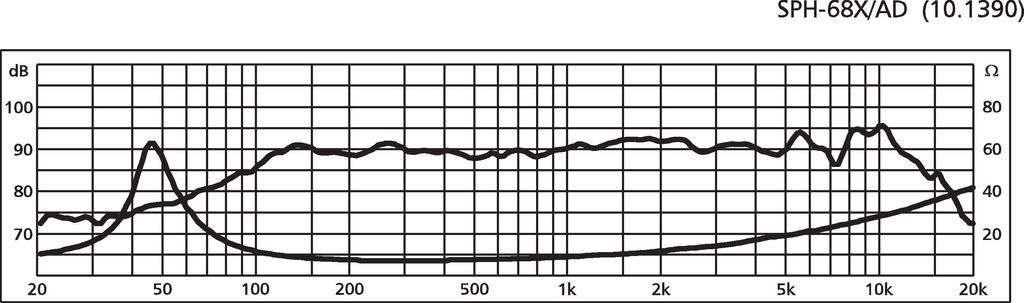

| Frequency range | f3-20,000 Hz |
| Resonant frequency (fs) | 60 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 1.1 mm/N |
| Moving mass (Mms) | 6.5 g |
| Mech. Q factor (Qms) | 3.19 |
| Electr. Q factor (Qes) | 0.49 |
| Total Q factor (Qts) | 0.43 |
| Equivalent volume (Vas) | 9.7 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 5.70 Tm |
| Voice coil induct. (Le) | 0.5 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 1 mm |
| Eff. cone area (Sd) | 80 cm2 |
| Magnet weight | 370 g |
| Magnet diameter | Ø 100 mm |
| Mounting cutout | Ø 122 mm |
| Mounting depth | 70 mm |

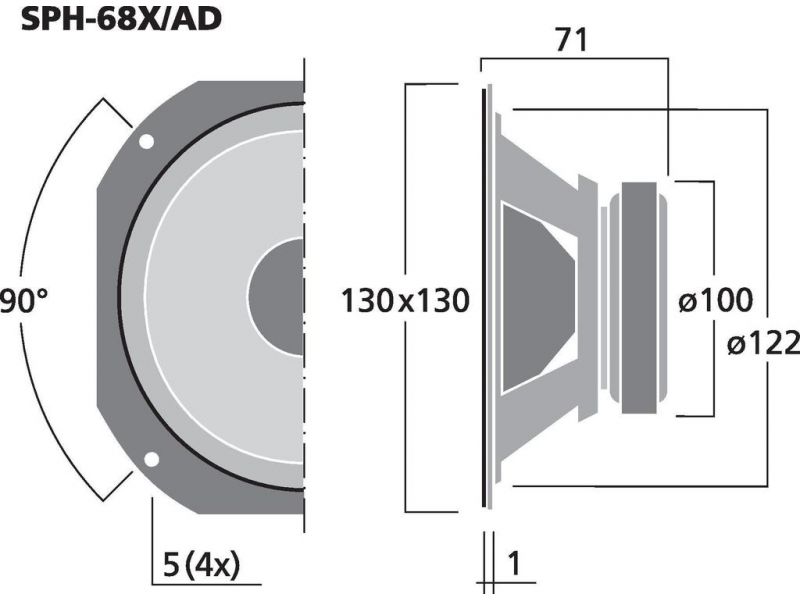

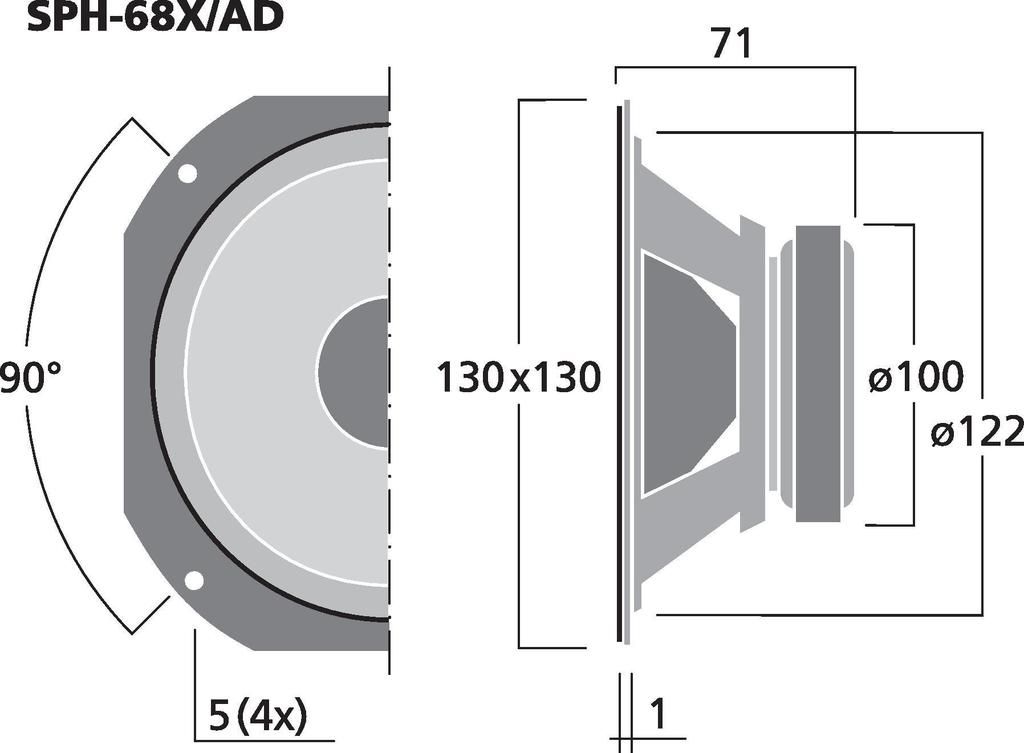

| Dimensions | 130 x 130 x 71 mm |
| Width | 130 mm |
| Height | 130 mm |
| Depth | 71 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.07 kg |
| Packing unit | 1 |
| Type of speaker | 5" |
| Packaging dimensions (W x H x L) | 0.135 x 0.085 x 0.135 m |
| Gross weight | 1.15 kg |
| Net weight | 1.07 kg |
