SPH-225C
Kod EAN: 4007754157642
High-end basový reproduktor, 120 W, 8 Ω Vysoká tuhosť v membráne Extra dlhá exkurzia Malá strata a nízke skreslenie Pre pôsobivé základné basy v akejkoľvek vysoko kvalitnej hi-fi kombinácii a menších subwooferoch Možné aj ako stredobasový reproduktor v...
167,00 € brutto
(inkl. 20% DPH)
139,17 € netto

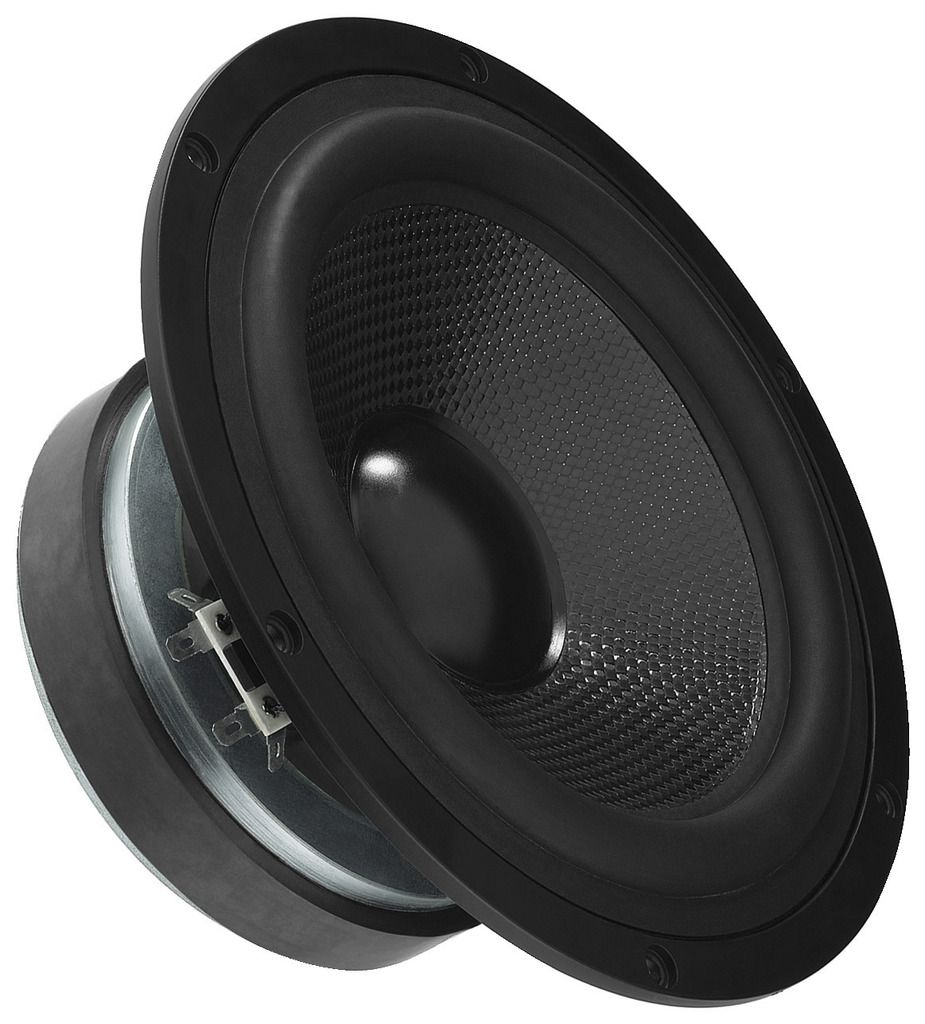

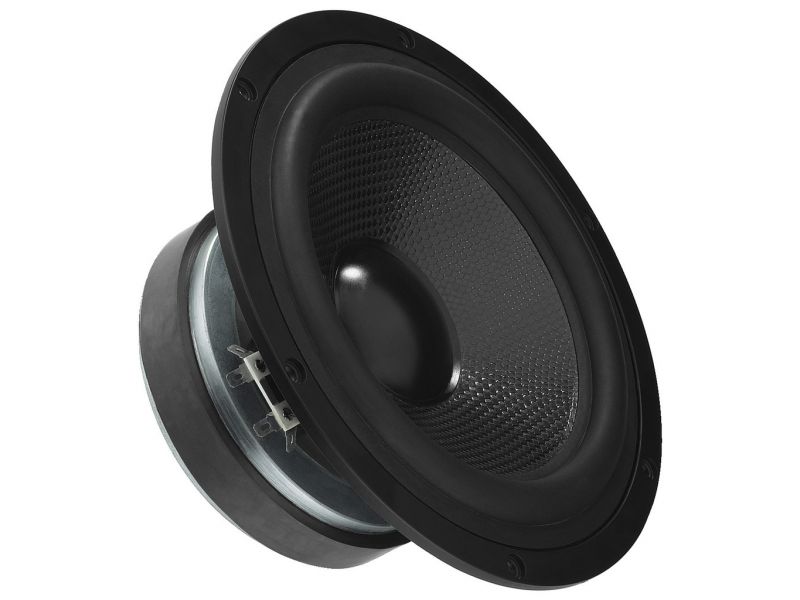

SPH-225C
High-end basový reproduktor, 120 W, 8 Ω
- Vysoká tuhosť v membráne
- Extra dlhá exkurzia
- Malá strata a nízke skreslenie
- Pre pôsobivé základné basy v akejkoľvek vysoko kvalitnej hi-fi kombinácii a menších subwooferoch
- Možné aj ako stredobasový reproduktor v dvojpásmových kombináciách
- Vhodné pre skrinky extra malých rozmerov
Klang+Ton 06/2014“Used in the speaker building concept MonaLisa: usually rather unobtrusive with a harmonised tuning, this speaker can still show an impressive performance, even at very high volume levels and when listening over longer periods of time. It provides a powerful bass and midrange reproduction and features an elegance which can only be realised with high-quality materials.”
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |
| Frequency range | f3-3,000 Hz |
| Resonant frequency (fs) | 39 Hz |
| Power rating (RMS) | 120 W |
| Peak music power output (MAX) | 200 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 0.43 mm/N |
| Moving mass (Mms) | 36.6 g |
| Mech. Q factor (Qms) | 4.94 |
| Electr. Q factor (Qes) | 0.31 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 24 l |
| DC resistance (Re) | 5.9 Ω |
| Force factor (BxL) | 13.17 Tm |
| Voice coil induct. (Le) | 0.8 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 6 mm |
| Eff. cone area (Sd) | 201 cm2 |
| Magnet weight | 1.1 kg |
| Magnet diameter | Ø 140 mm |

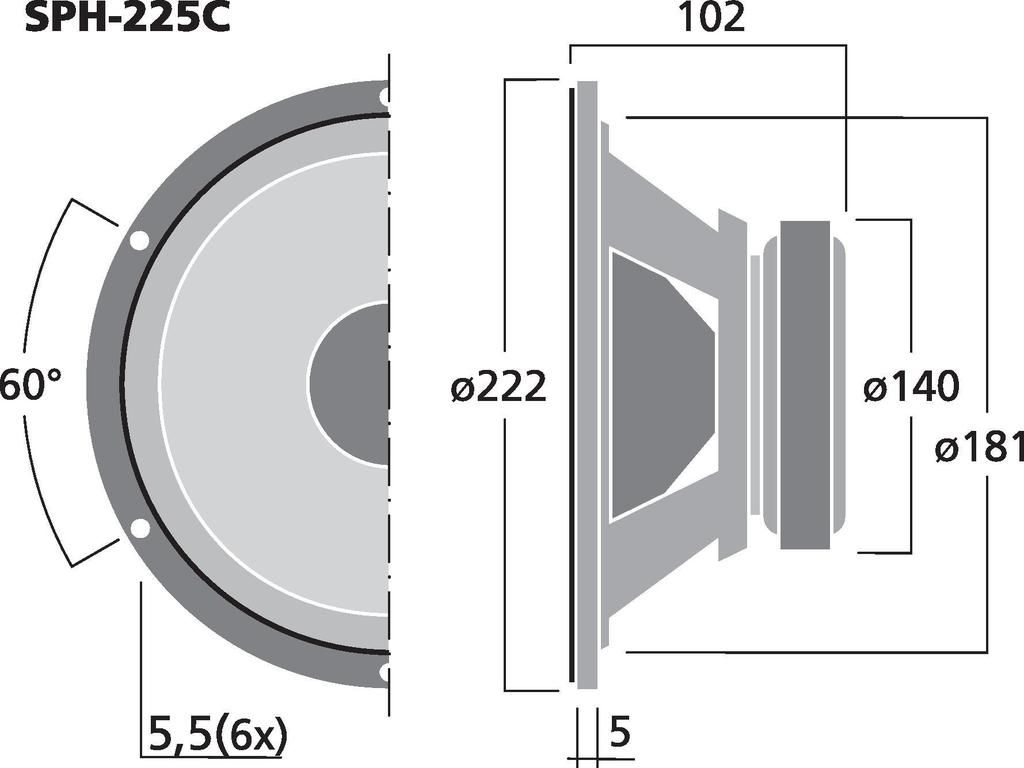

| Mounting cutout | Ø 181 mm |
| Mounting depth | 97 mm |
| Mounting hole diameter | Ø 209 mm |
| Dimensions | Ø 222 mm x 102 mm |
| Outside diameter | Ø 222 mm |
| Width | Ø 222 mm |
| Height | Ø 222 mm |
| Depth | 102 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.52 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.24 x 0.14 x 0.24 m |
| Gross weight | 3.88 kg |
| Net weight | 3.52 kg |
