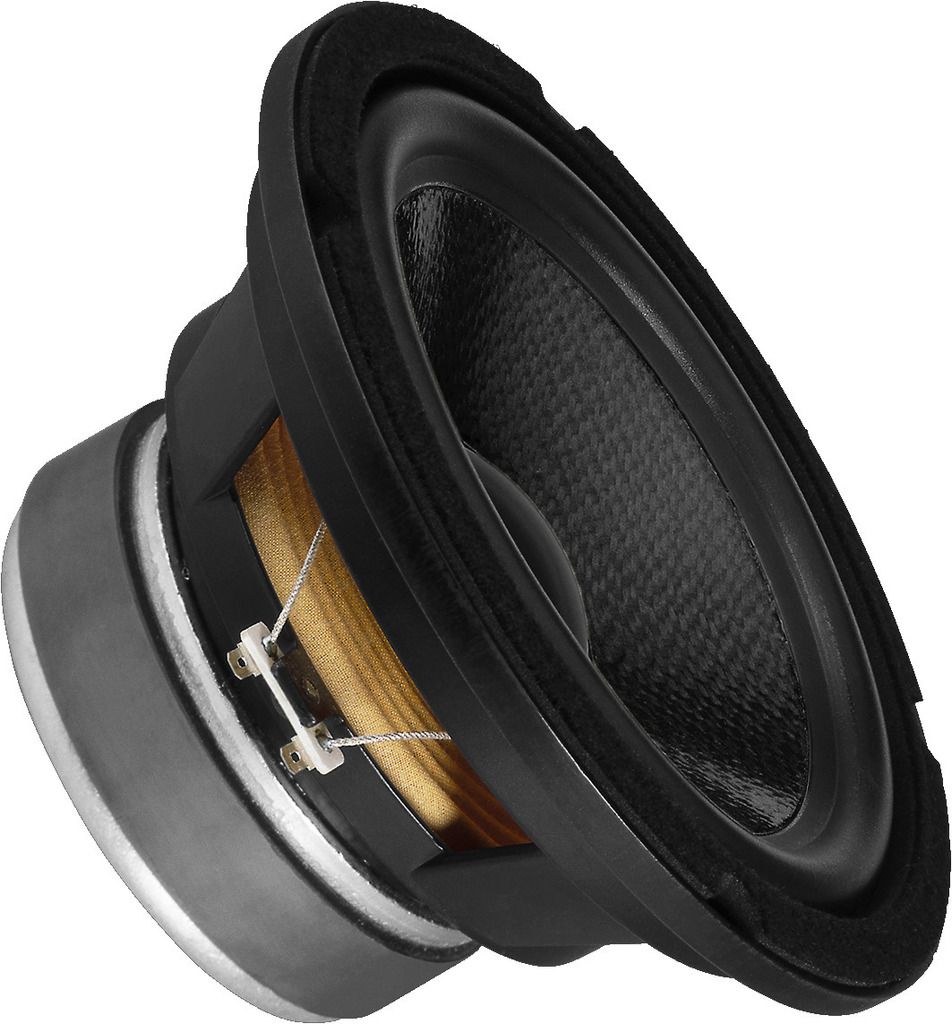

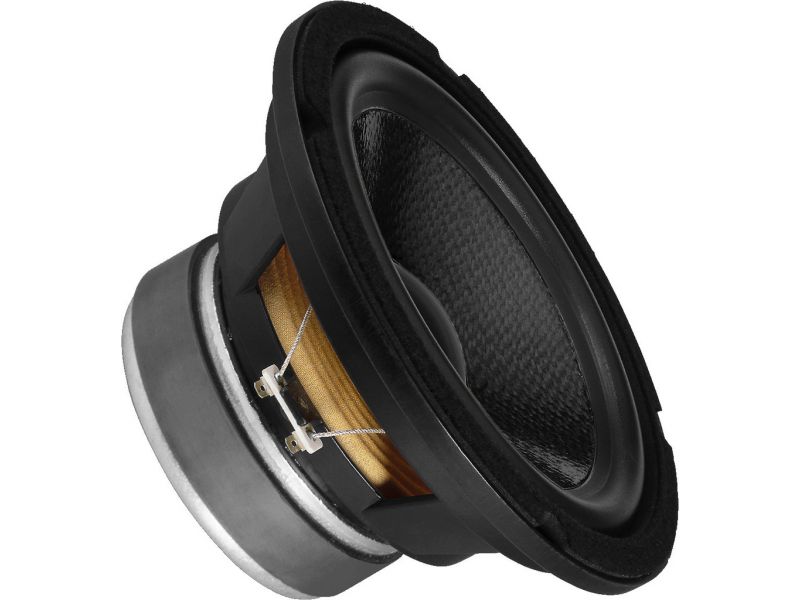

SPH-200KE/SW
Kod EAN: 4007754415131
Top hi-fi bass-midrange speaker, 120 W, 8 Ω Black Kevlar cone Diecast aluminium basket for 3-way and also 2-way combinations of highest quality For full range applications Excellent bass reproduction in the entire hi-fi range
128,00 € brutto
(inkl. 20% DPH)
106,67 € netto
SPH-200KE/SW
Top hi-fi bass-midrange speaker, 120 W, 8 Ω
- Black Kevlar cone
- Diecast aluminium basket for 3-way and also 2-way combinations of highest quality
- For full range applications
- Excellent bass reproduction in the entire hi-fi range
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

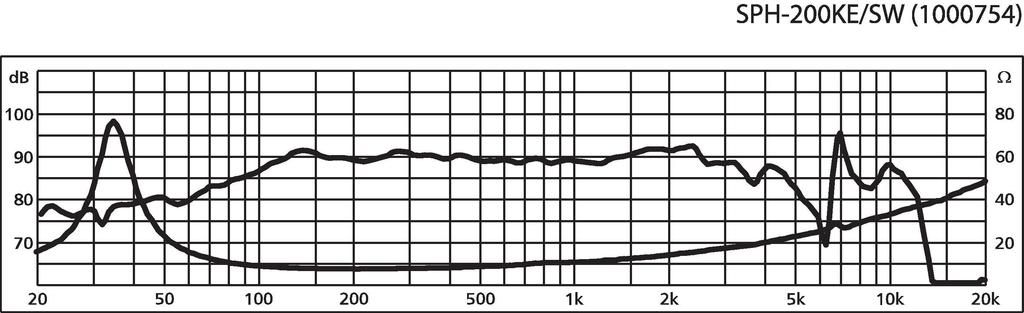

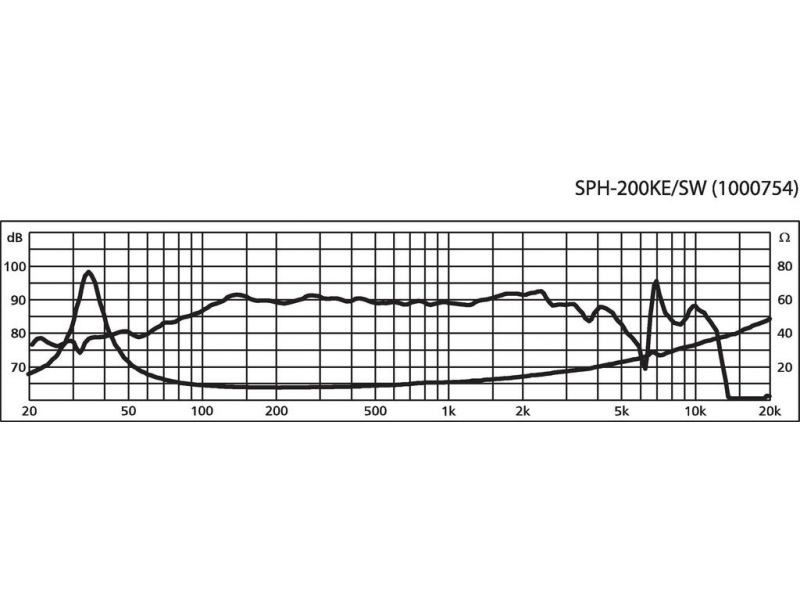

| Frequency range | f3-4,500 Hz |
| Resonant frequency (fs) | 28 Hz |
| Power rating (RMS) | 80 W |
| Peak music power output (MAX) | 120 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 0.89 mm/N |
| Moving mass (Mms) | 37 g |
| Mech. Q factor (Qms) | 4.65 |
| Electr. Q factor (Qes) | 0.41 |
| Total Q factor (Qts) | 0.38 |
| Equivalent volume (Vas) | 54 l |
| DC resistance (Re) | 6.2 Ω |
| Force factor (BxL) | 9.90 Tm |
| Voice coil induct. (Le) | 0.75 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 4.75 mm |
| Eff. cone area (Sd) | 207 cm2 |
| Magnet weight | 840 g + 50 g |
| Magnet diameter | Ø 120 mm |

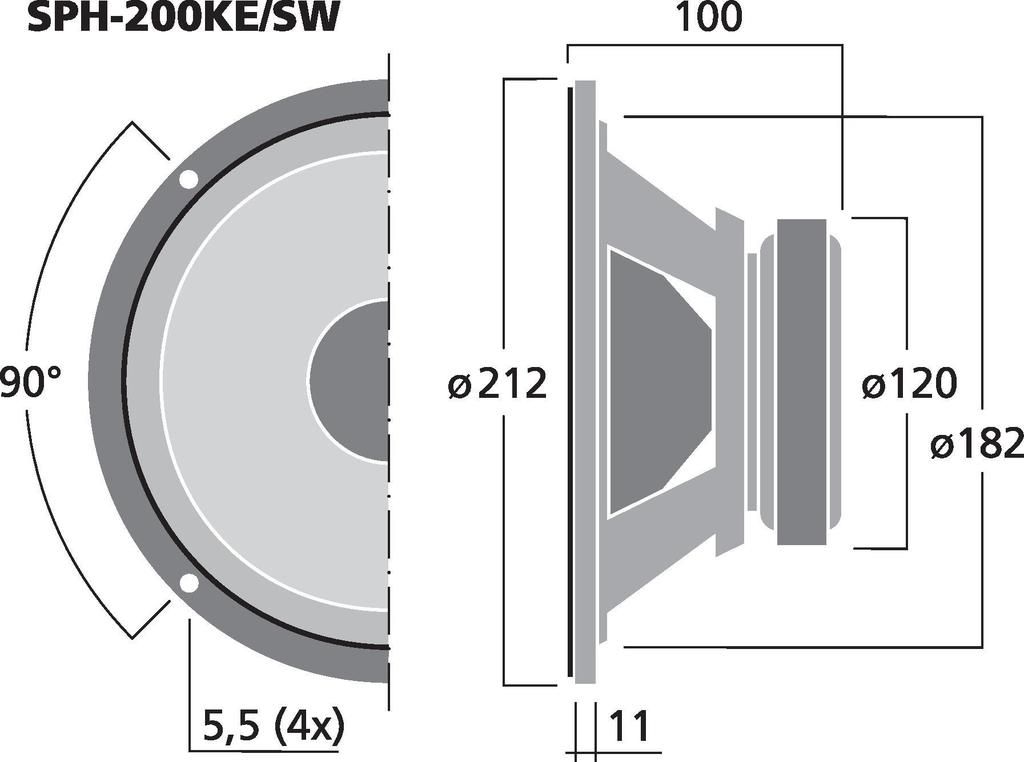

| Mounting cutout | Ø 182 mm |
| Mounting depth | 89 mm |
| Dimensions | Ø 212 mm x 100 mm |
| Outside diameter | Ø 212 mm |
| Width | Ø 212 mm |
| Height | Ø 212 mm |
| Depth | 100 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 2.70 kg |
| Packing unit | 1 |
| Type of speaker | 8" |
| Packaging dimensions (W x H x L) | 0.22 x 0.124 x 0.23 m |
| Gross weight | 2.94 kg |
| Net weight | 2.70 kg |
