QB200-4W
Kod EAN: 4043106037316
Nástenný hifi reproduktor, 4Ohm
SPH-176
Kod EAN: 4007754165487
High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω Coated paper cone, yet high pulsed power Rubber surround Bass-optimised drive characteristics Allows for setting up speaker systems of highest level stability with an amazingly deep bass reproductio...
58,30 € brutto
(inkl. 20% DPH)
48,58 € netto

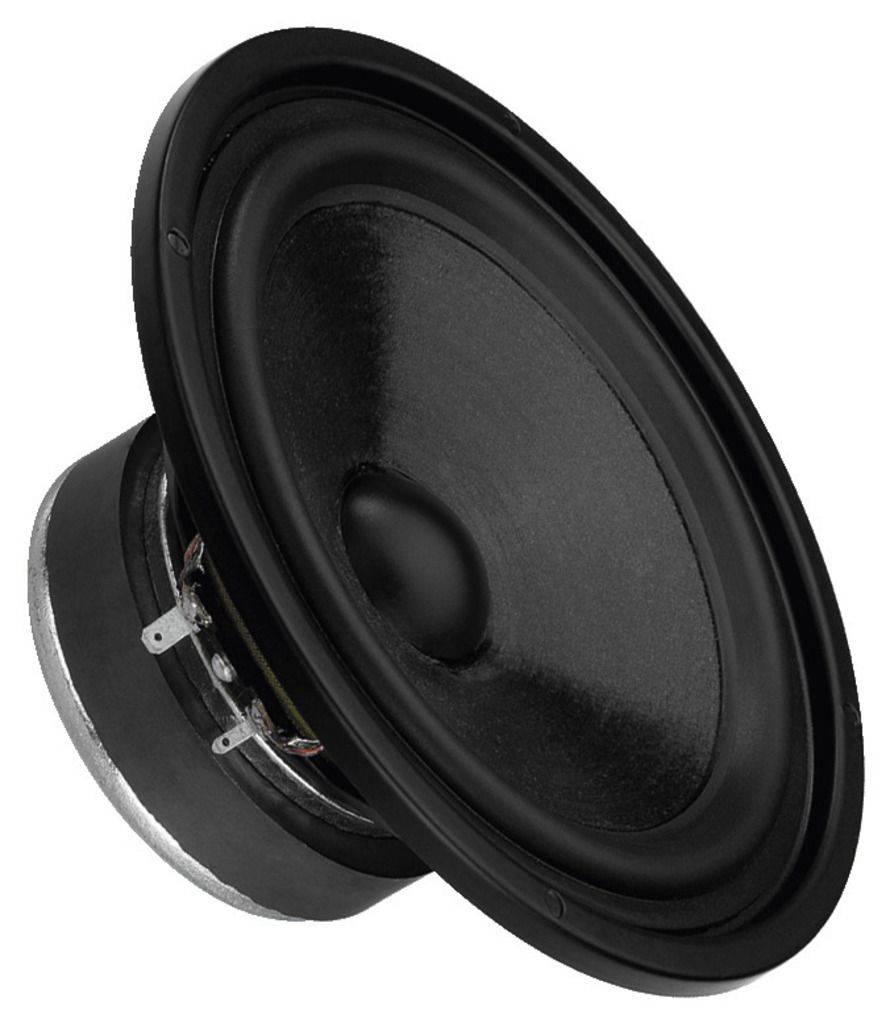

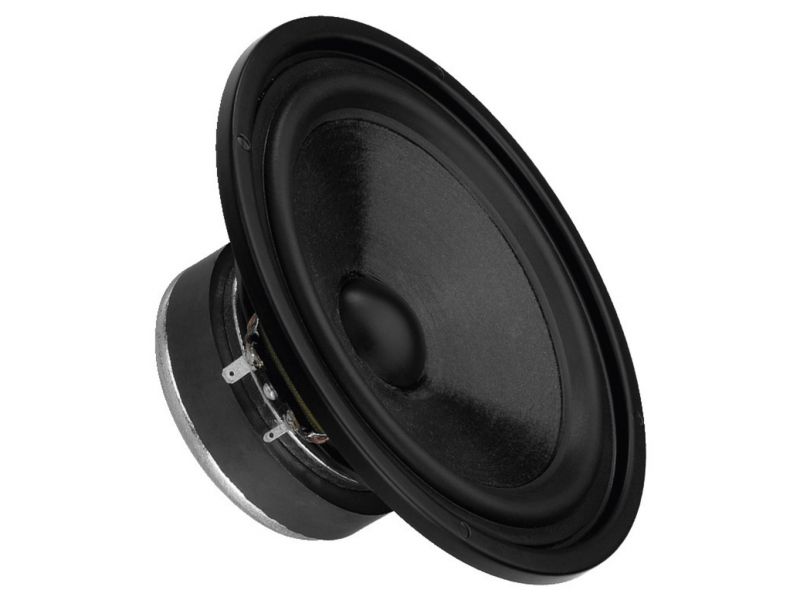

SPH-176
High-quality hi-fi bass-midrange speaker, 70 W, 8 Ω
- Coated paper cone, yet high pulsed power
- Rubber surround
- Bass-optimised drive characteristics
- Allows for setting up speaker systems of highest level stability with an amazingly deep bass reproduction
- Ideally suited for various applications, from 2-way hi-fi speakers and attractive dual bass arrangements to very small subwoofers
Parametry
| Impedance (Z) | 8 Ω |
| Frequency range | f3-4,500 Hz |
| Resonant frequency (fs) | 39 Hz |
| Power rating (RMS) | 70 W |
| Peak music power output (MAX) | 120 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 1.01 mm/N |
| Moving mass (Mms) | 14 g |
| Mech. Q factor (Qms) | 2.27 |
| Electr. Q factor (Qes) | 0.44 |
| Total Q factor (Qts) | 0.37 |
| Equivalent volume (Vas) | 27 l |
| DC resistance (Re) | 6.6 Ω |
| Force factor (BxL) | 7.70 Tm |
| Voice coil induct. (Le) | 0.75 mH |
| Voice coil diameter | Ø 25 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 5.5 mm |
| Eff. cone area (Sd) | 140 cm2 |
| Magnet weight | 450 g |
| Magnet diameter | Ø 90 mm |

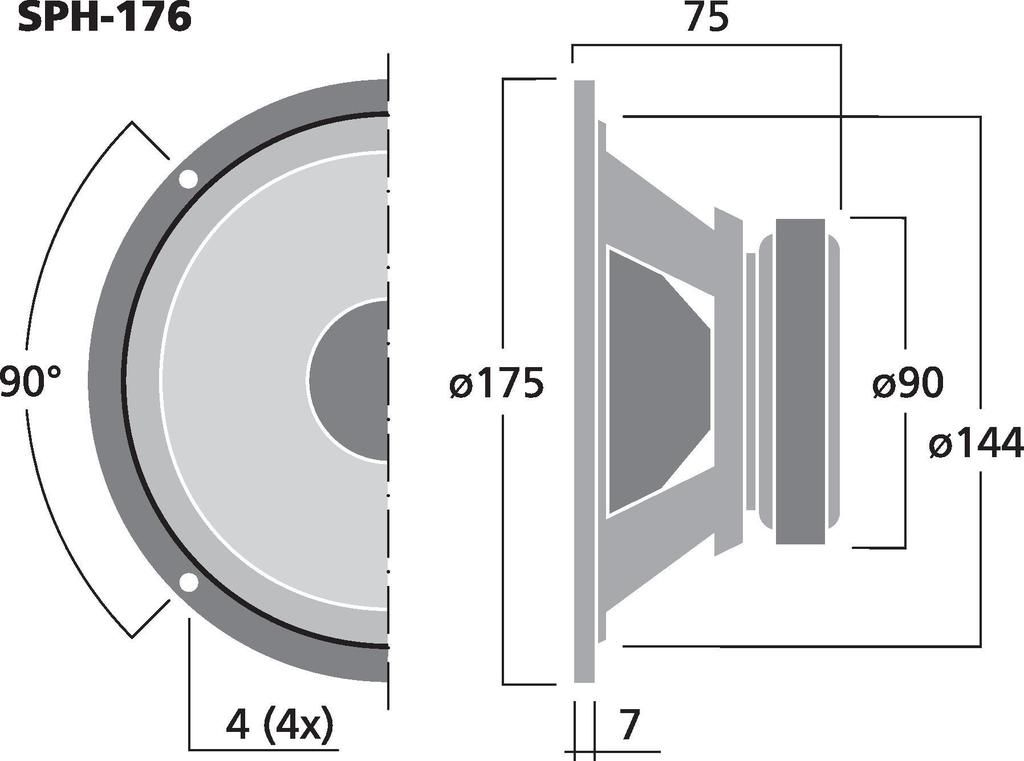

| Mounting cutout | Ø 144 mm |
| Mounting depth | 68 mm |
| Dimensions | Ø 175 mm x 75 mm |
| Outside diameter | Ø 175 mm |
| Width | Ø 175 mm |
| Depth | 75 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.23 kg |
| Packing unit | 1 |
| Type of speaker | 6.75" |
| Packing dimensions (W x H x L) | 0.195 x 0.1 x 0.195 m |
| Gross weight | 1.34 kg |
| Net weight | 1.23 kg |
