QB200-4W
Kod EAN: 4043106037316
Nástenný hifi reproduktor, 4Ohm
SPH-135KEP
Kod EAN: 4007754068153
Hi-fi bass-midrange speaker, 50 W, 8 Ω Kevlar cone Phase plug Also to be used as a bass-midrange speaker in small bookshelf speaker systems providing a deep bass reproduction Optimum sound source for the entire vocal range above 200 Hz
98,30 € brutto
(inkl. 20% DPH)
81,92 € netto

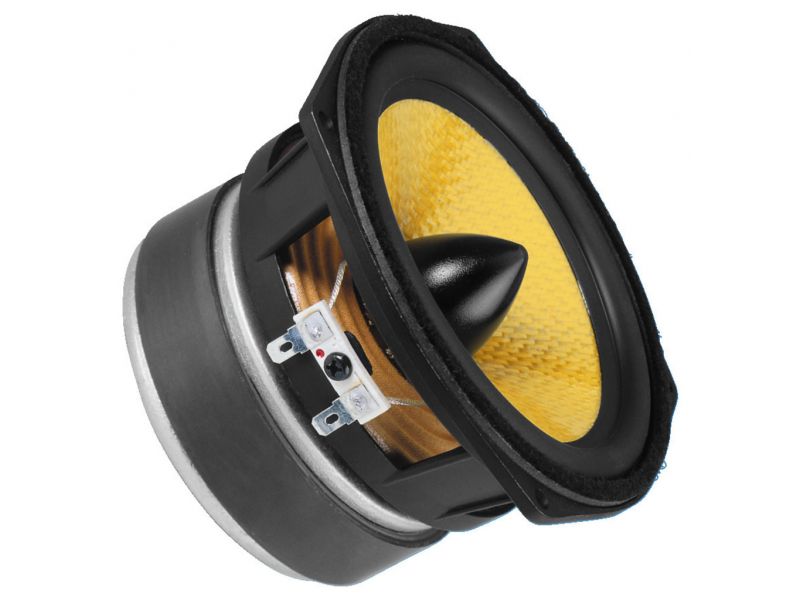

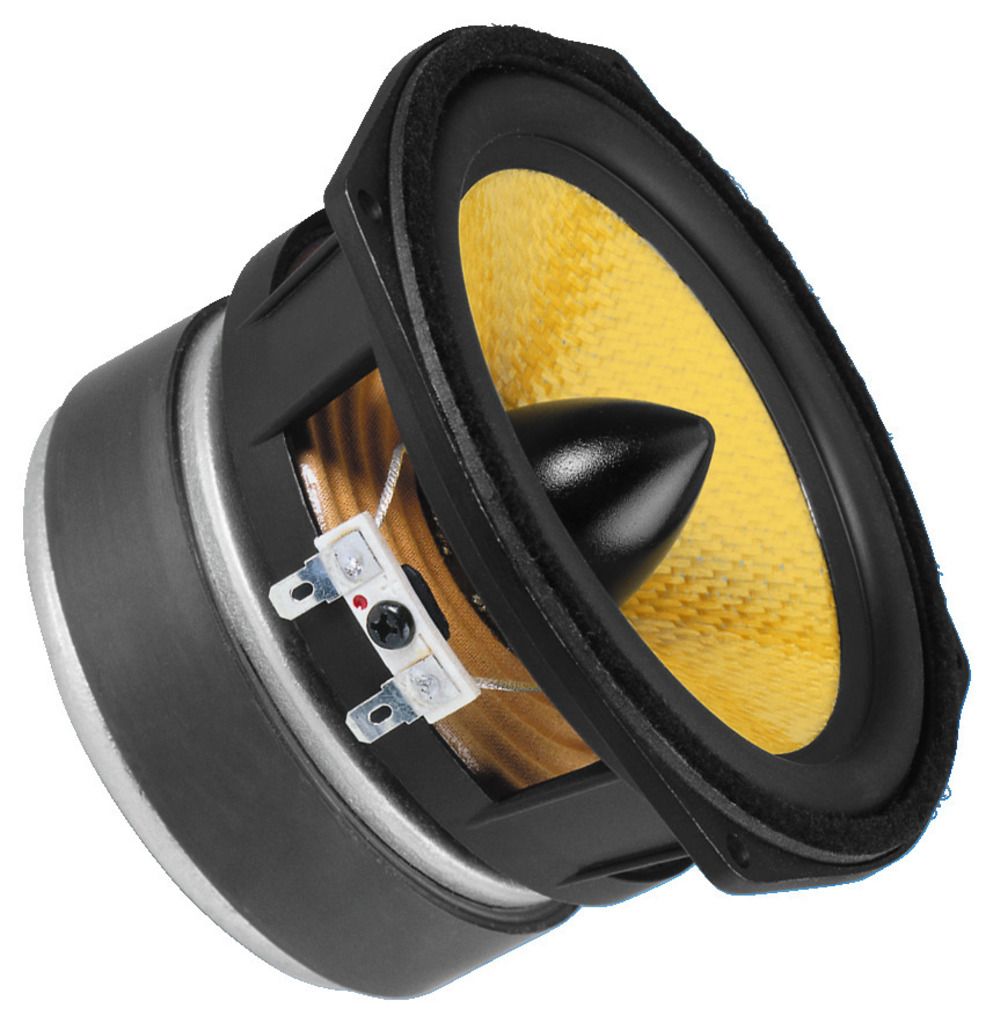

SPH-135KEP
Hi-fi bass-midrange speaker, 50 W, 8 Ω
- Kevlar cone
- Phase plug
- Also to be used as a bass-midrange speaker in small bookshelf speaker systems providing a deep bass reproduction
- Optimum sound source for the entire vocal range above 200 Hz
Parametry
| Impedance (Z) | 8 Ω |
| Frequency range | f3-10,000 Hz |
| Resonant frequency (fs) | 45 Hz |
| Power rating (RMS) | 50 W |
| Peak music power output (MAX) | 80 W |
| SPL | 89 dB/W/m |
| Suspension compl. (Cms) | 1.23 mm/N |
| Moving mass (Mms) | 10 g |
| Mech. Q factor (Qms) | 5.54 |
| Electr. Q factor (Qes) | 0.32 |
| Total Q factor (Qts) | 0.30 |
| Equivalent volume (Vas) | 15.5 l |
| DC resistance (Re) | 6 Ω |
| Force factor (BxL) | 7.50 Tm |
| Voice coil induct. (Le) | 0.75 mH |
| Voice coil diameter | Ø 35.5 mm |
| Voice coil former | Kapton |
| Linear excursion (XMAX) | ± 3.25 mm |
| Eff. cone area (Sd) | 95 cm2 |
| Magnet weight | 550 g + 17 g |
| Magnet diameter | Ø 100 mm |

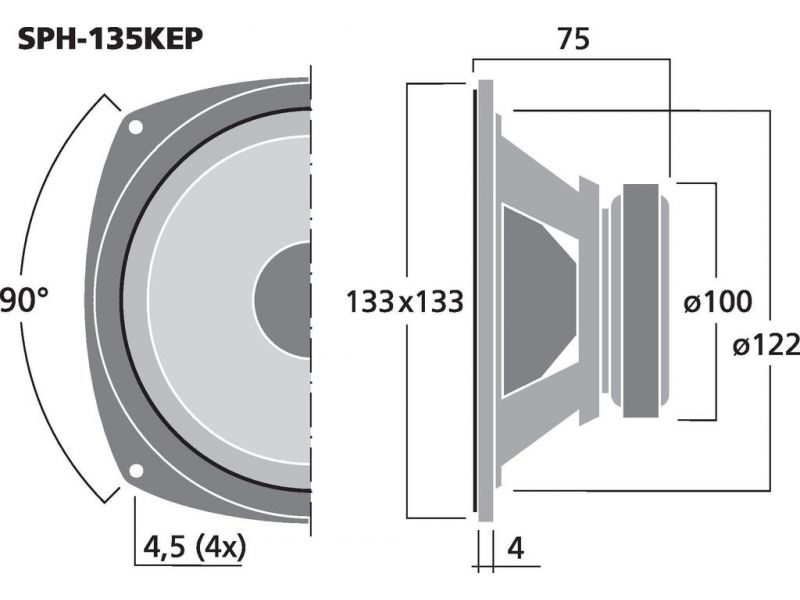

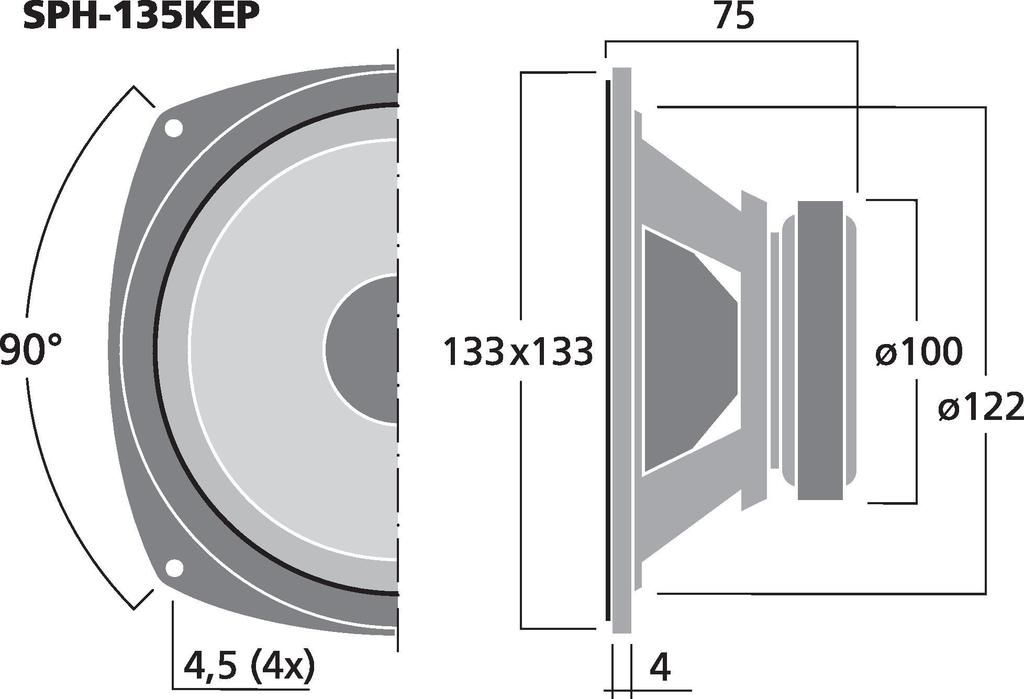

| Mounting cutout | Ø 122 mm |
| Mounting depth | 71 mm |
| Dimensions | 133 x 133 x 75 mm |
| Width | 133 mm |
| Height | 133 mm |
| Depth | 75 mm |
| Colour | black/yellow |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 1.62 kg |
| Packing unit | 1 |
| Type of speaker | 5.25" |
| Packing dimensions (W x H x L) | 0.145 x 0.105 x 0.145 m |
| Gross weight | 1.7 kg |
| Net weight | 1.62 kg |
