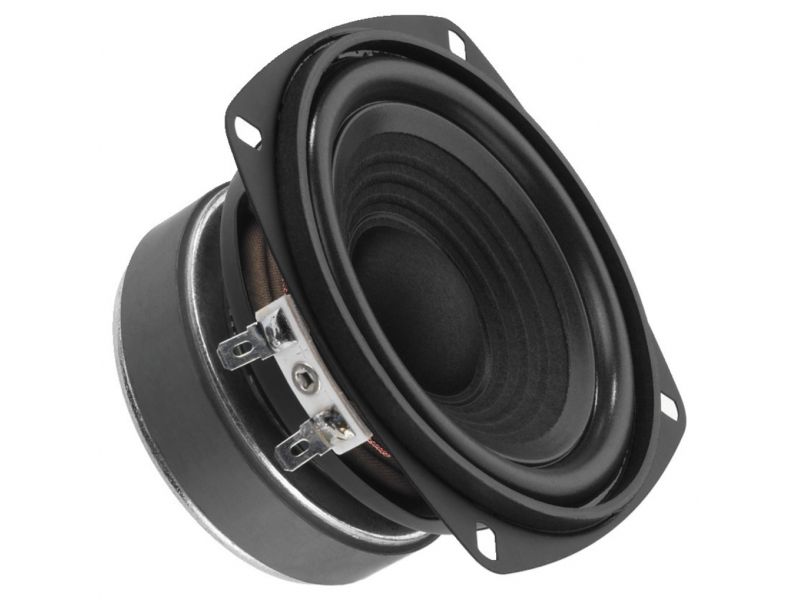

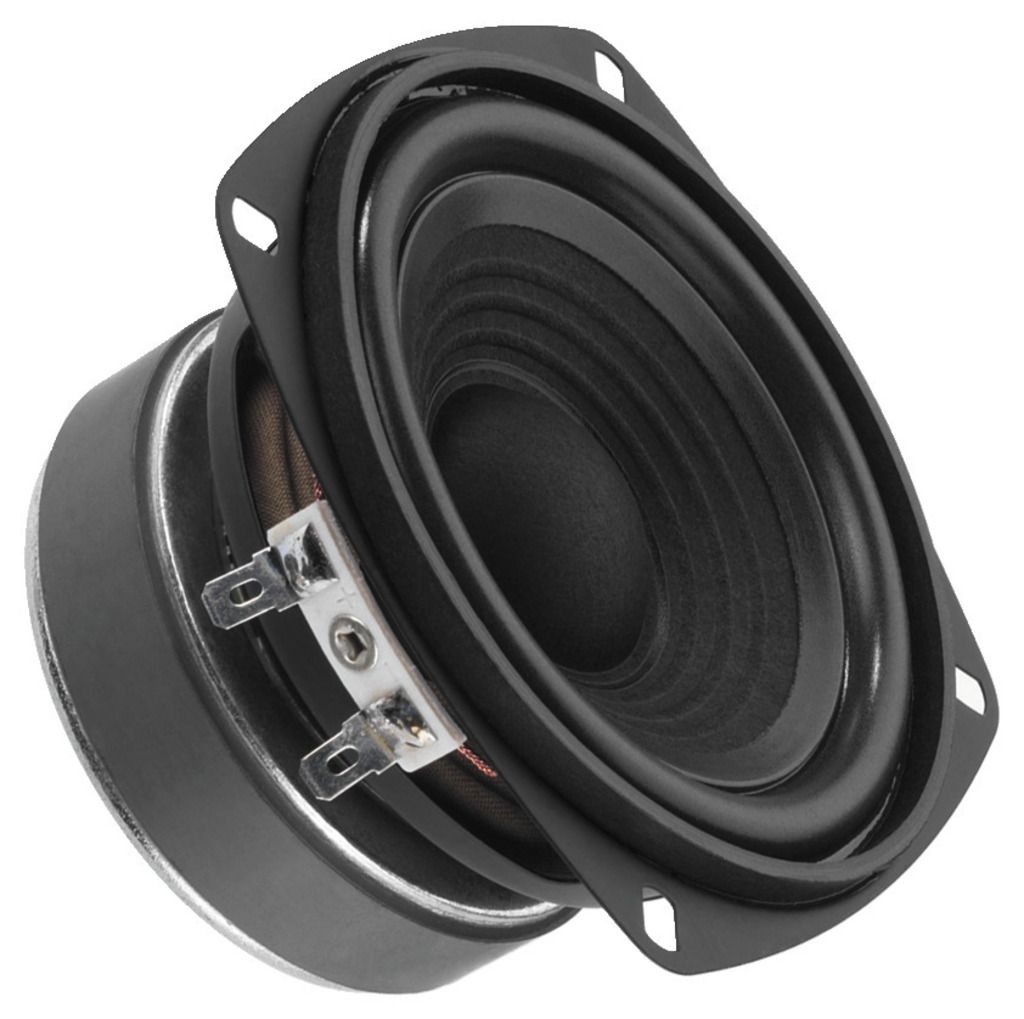

SP-60/8

Kod EAN: 4007754024814

Hi-fi stredobasové reproduktory, 30 W, 8 Ω (/8) a 4 Ω (/4) Vyvŕtané pólové jadro Dobrá linearita frekvenčnej odozvy Pre malé reproduktorové systémy v rozsahu hi-fi

19,50 € brutto

(inkl. 20% DPH)
16,25 € netto



SP-60/8

Hi-fi stredobasové reproduktory, 30 W, 8 Ω (/8) a 4 Ω (/4)
  • Vyvŕtané pólové jadro
  • Dobrá linearita frekvenčnej odozvy
  • Pre malé reproduktorové systémy v rozsahu hi-fi

Parametry

Impedance (Z) 8 Ω
Transmission technology cable

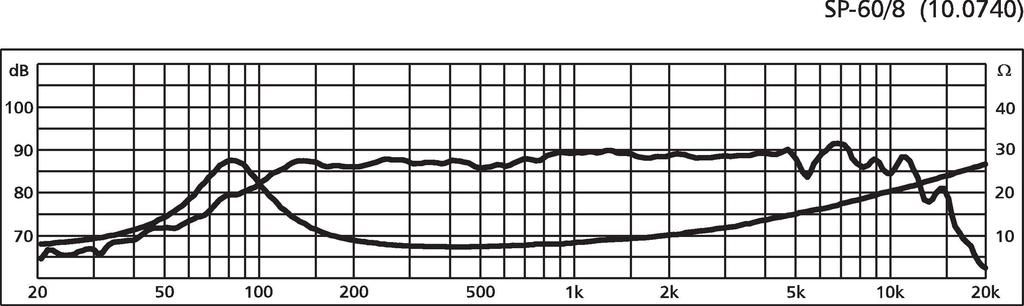

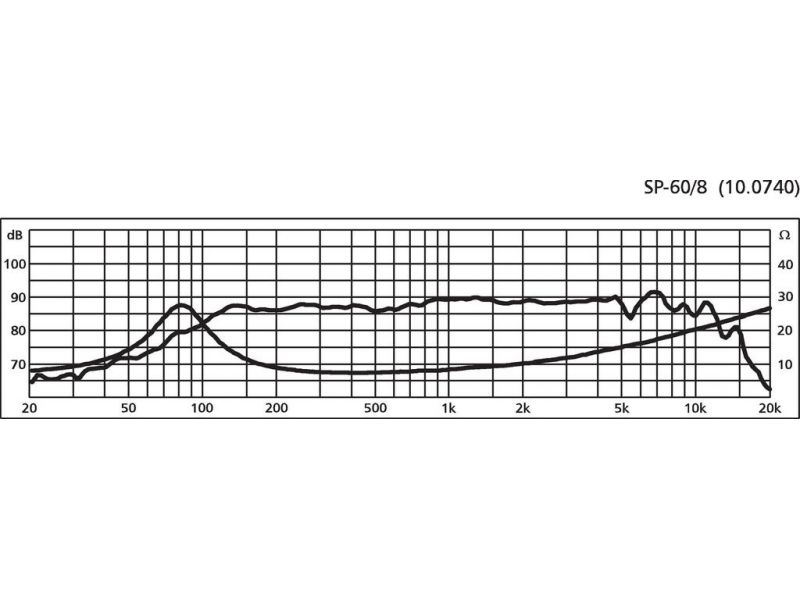

Frequency range f3-8,000 Hz
Resonant frequency (fs) 65 Hz
Power rating (RMS) 30 W
Peak music power output (MAX) 60 W
SPL 90 dB/W/m
Suspension compl. (Cms) 0.8 mm/N
Moving mass (Mms) 4 g
Mech. Q factor (Qms) 2.10
Electr. Q factor (Qes) 0.64
Total Q factor (Qts) 0.49
Equivalent volume (Vas) 6 l
DC resistance (Re) 6.5 Ω
Force factor (BxL) 4.10 Tm
Voice coil induct. (Le) 0.3 mH
Voice coil diameter Ø 25.5 mm
Voice coil former aluminium
Linear excursion (XMAX) ± 2 mm
Eff. cone area (Sd) 55 cm2
Magnet weight 280 g
Magnet diameter Ø 80 mm

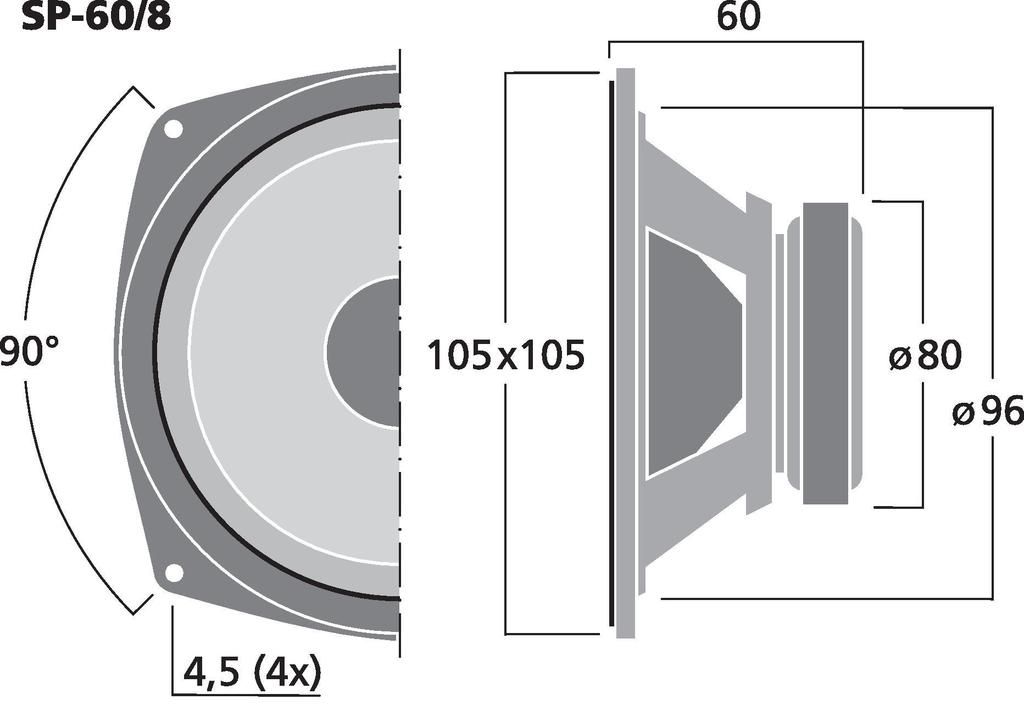

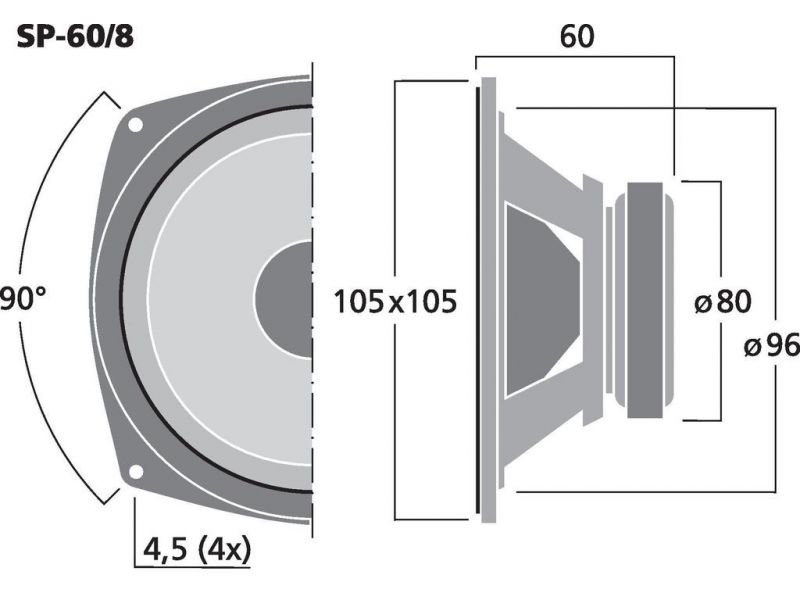

Mounting cutout Ø 96 mm
Mounting depth 60 mm
Dimensions 105 x 105 x 60 mm
Width 105 mm
Height 105 mm
Depth 60 mm
Colour black
Admiss. ambient temp. 0-40 °C
Weight 0.654 kg
Packing unit 1
Type of speaker 4"
Packing dimensions (W x H x L) 0.11 x 0.065 x 0.11 m
Gross weight 0.686 kg
Net weight 0.654 kg
