QB200-4W
Kod EAN: 4043106037316
Nástenný hifi reproduktor, 4Ohm
SP-60/4
Kod EAN: 4007754024807
Hi-fi bass-midrange speakers, 30 W, 8 Ω (/8) and 4 Ω (/4) Drilled pole core Good frequency response linearity For small speaker systems in the hi-fi range
23,00 € brutto
(inkl. 20% DPH)
19,17 € netto

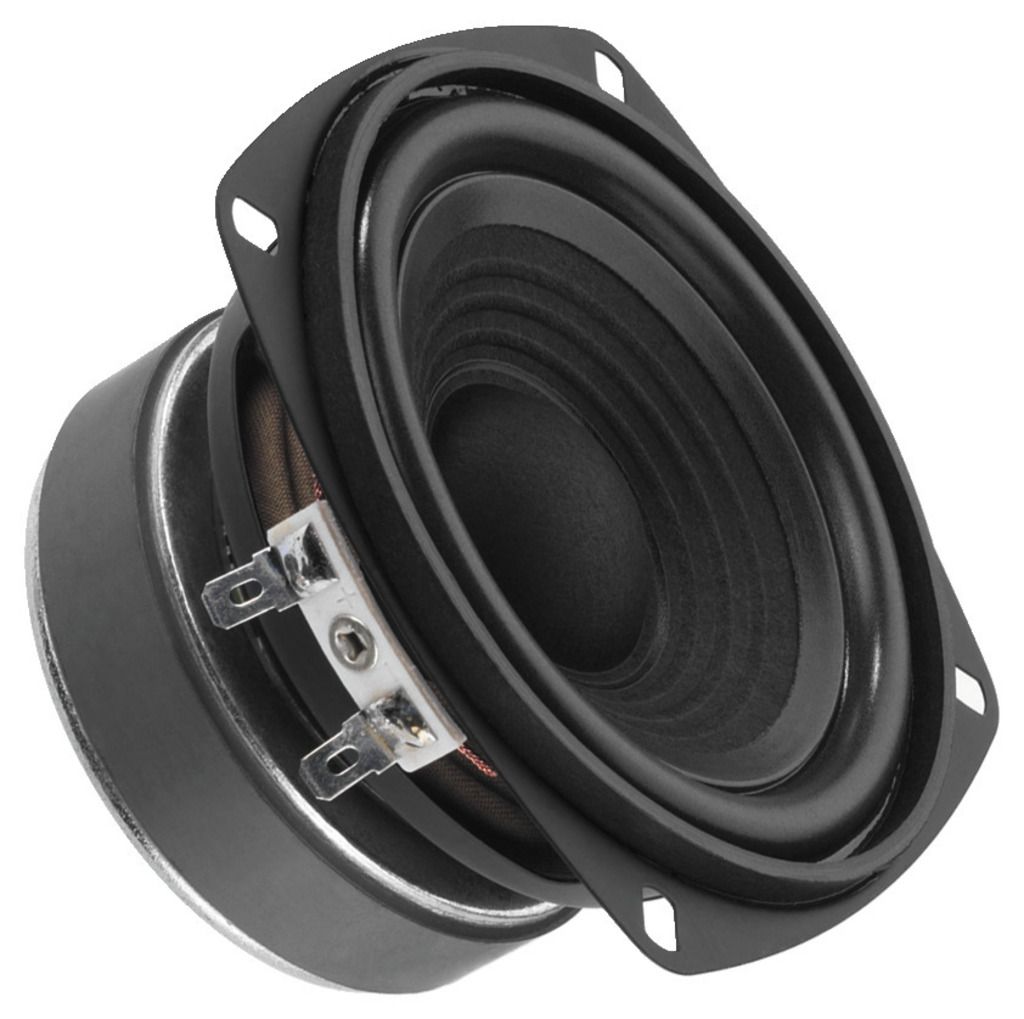

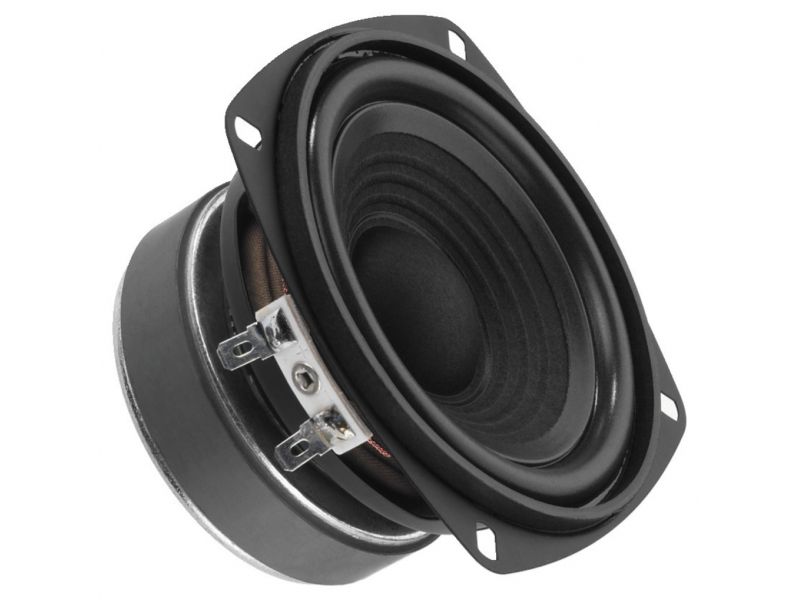

SP-60/4
Hi-fi bass-midrange speakers, 30 W, 8 Ω (/8) and 4 Ω (/4)
- Drilled pole core
- Good frequency response linearity
- For small speaker systems in the hi-fi range
Parametry
| Impedance (Z) | 4 Ω |

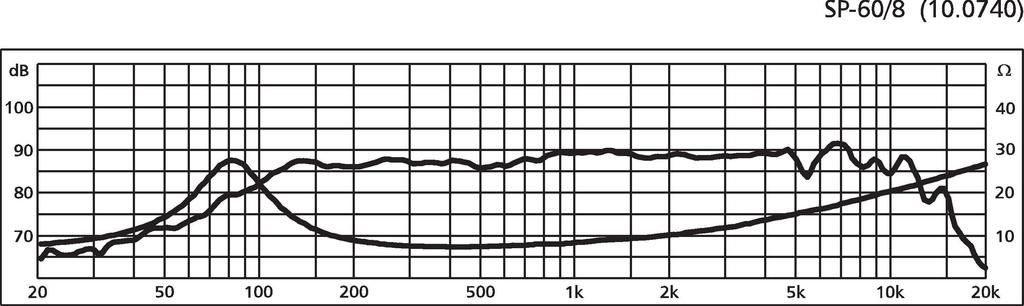

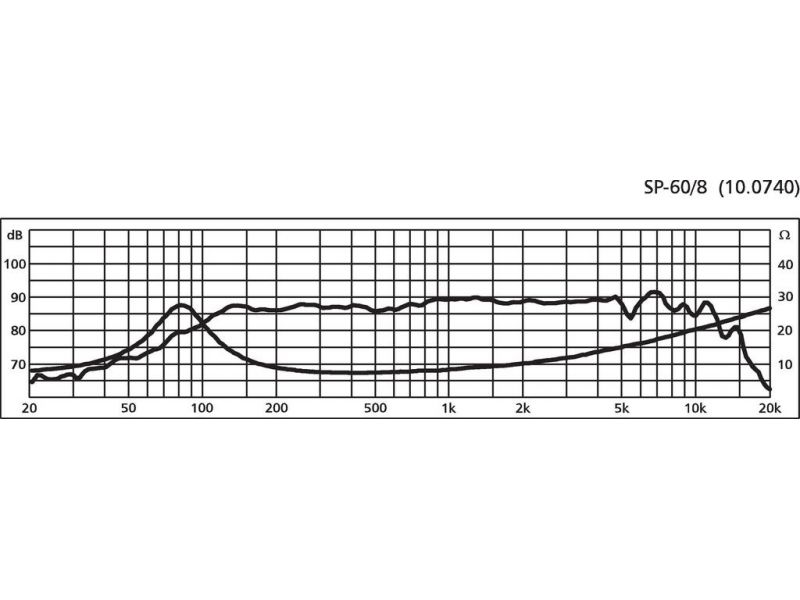

| Frequency range | f3-8,000 Hz |
| Resonant frequency (fs) | 65 Hz |
| Power rating (RMS) | 30 W |
| Peak music power output (MAX) | 60 W |
| SPL | 90 dB/W/m |
| Suspension compl. (Cms) | 0.8 mm/N |
| Moving mass (Mms) | 4 g |
| Mech. Q factor (Qms) | 2.10 |
| Electr. Q factor (Qes) | 0.64 |
| Total Q factor (Qts) | 0.49 |
| Equivalent volume (Vas) | 6 l |
| DC resistance (Re) | 3.3 Ω |
| Force factor (BxL) | 2.90 Tm |
| Voice coil induct. (Le) | 0.2 mH |
| Voice coil diameter | Ø 25.5 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2 mm |
| Eff. cone area (Sd) | 55 cm2 |
| Magnet weight | 280 g |
| Magnet diameter | Ø 80 mm |
| Mounting cutout | Ø 96 mm |
| Mounting depth | 60 mm |

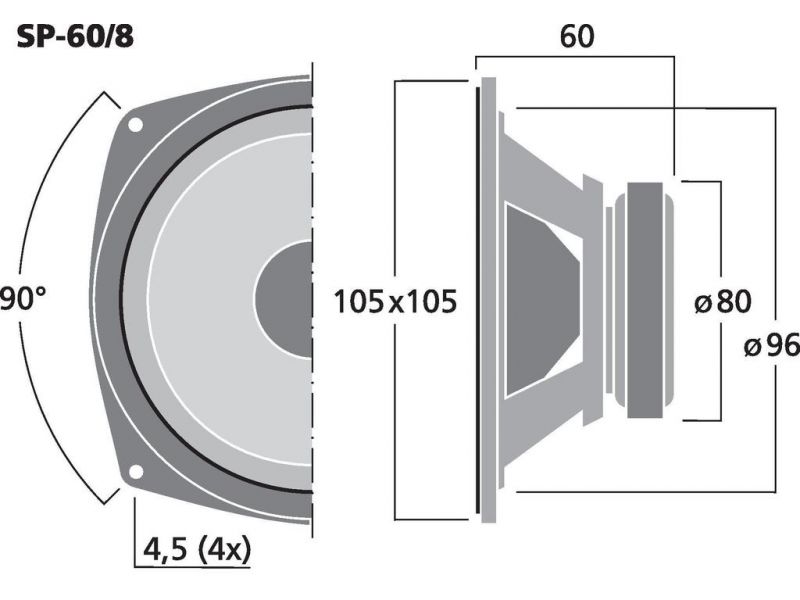

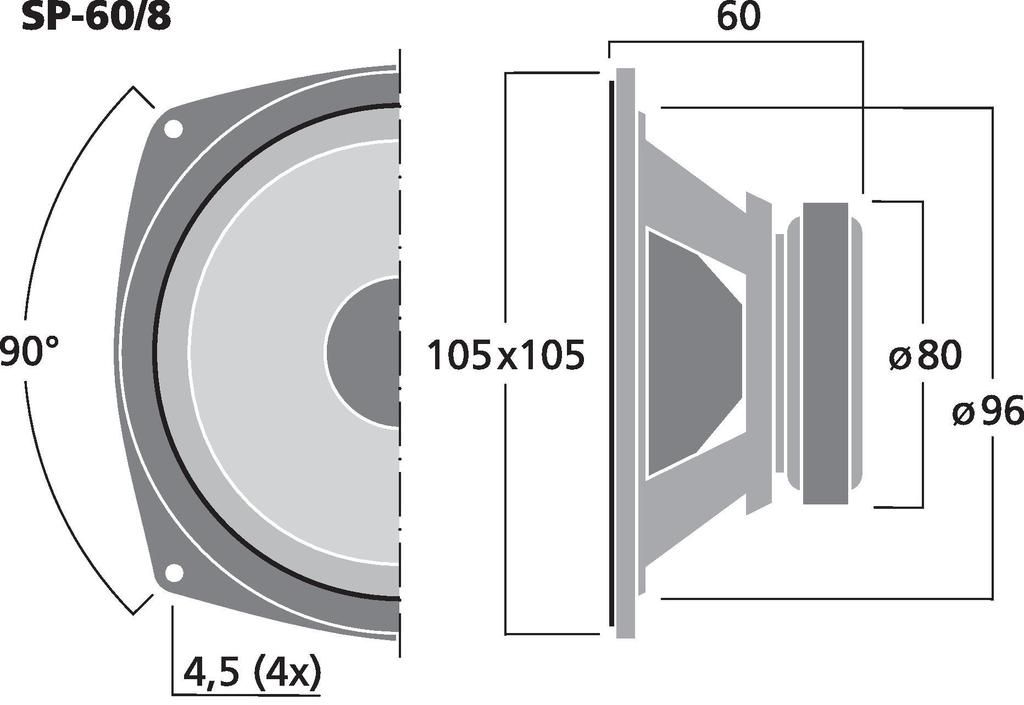

| Dimensions | 105 x 105 x 60 mm |
| Width | 105 mm |
| Height | 105 mm |
| Depth | 60 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.654 kg |
| Packing unit | 1 |
| Type of speaker | 4" |
| Packing dimensions (W x H x L) | 0.11 x 0.065 x 0.115 m |
| Gross weight | 0.685 kg |
| Net weight | 0.654 kg |
