SP-310CX
Kod EAN: 4007754246582
2-pásmový koaxiálny PA reproduktor, s integrovaným horn tweeterom. Vysoko výkonný 25 cm PA basový reproduktor (10 ") s vysokou účinnosťou Koaxiálne usporiadaný výškový reproduktor s 25 mm (1 ", kmitočet cievky = 44 mm) vysokofrekvenčným meničom Vynikaj...
216,00 € brutto
(inkl. 20% DPH)
180,00 € netto

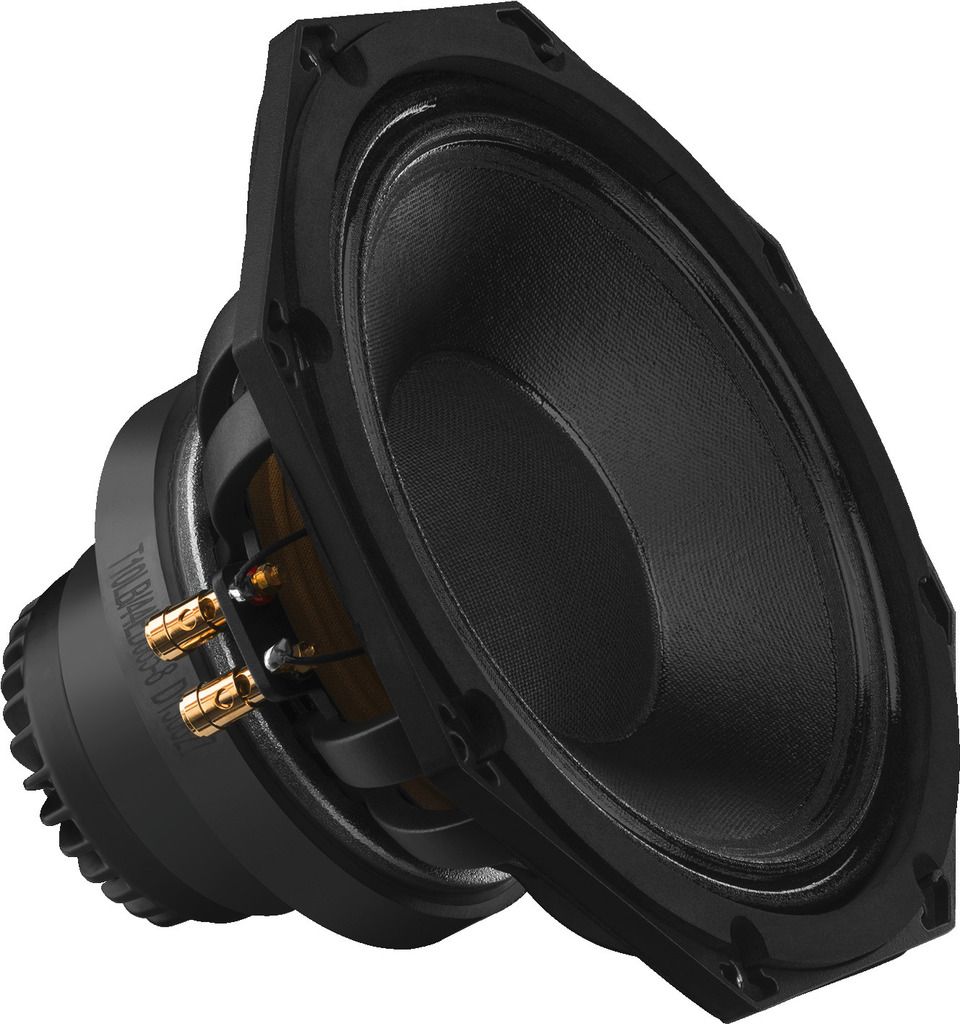

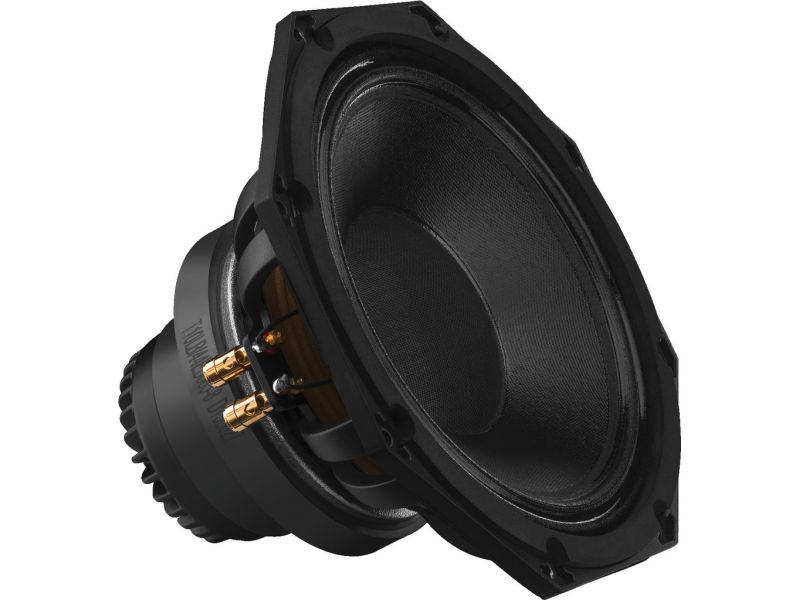

SP-310CX
2-pásmový koaxiálny PA reproduktor,
s integrovaným horn tweeterom.
- Vysoko výkonný 25 cm PA basový reproduktor (10 ") s vysokou účinnosťou
- Koaxiálne usporiadaný výškový reproduktor s 25 mm (1 ", kmitočet cievky = 44 mm) vysokofrekvenčným meničom
- Vynikajúce zvukové vlastnosti
- Stabilný liatý kôš so zadným vetraním centrovacieho pavúka
- 64 mm (2½") žiaruvzdorná kmitacia cievka na polyamidovej kmitacej cievke (TIL)
- Vynikajúce a rovnomerné vyžarovanie
- Ideálne sa hodí pre pódiové monitory alebo veľmi kompaktné širokopásmové reproduktorové systémy
- Prevádzka povolená iba s frekvenčnou výhybkou(odporúčaná deliaca frekvencia: >1,800 Hz)
Klang+Ton 02/2016“The speaker system Studio 10 features a very neutral sound with great power reserves. Suitable as a studio monitor as well as for hi-fi applications of high requirements. The Studio 10 provides a well-balanced and neutral sound which achieves top results.” (SP-310CX in a project from K+T)
Klang+Ton 02/2016The SP-310CX applied in the Studio 10, a project from K+T:
“The speaker system Studio 10 features a very neutral sound with great power reserves. Poor recordings are not enhanced, high-quality recordings show their full potential - a perfect tool!”
Klang+Ton 01/2016“Despite its compact size, the thorough development resulted in a speaker system with a high power capability which can surely meet audiophile requirements. It is an ideal coaxial speaker for hi-fi and monitoring.”
Parametry
| Impedance (Z) | 2 x 8 Ω |
| Transmission technology | cable |

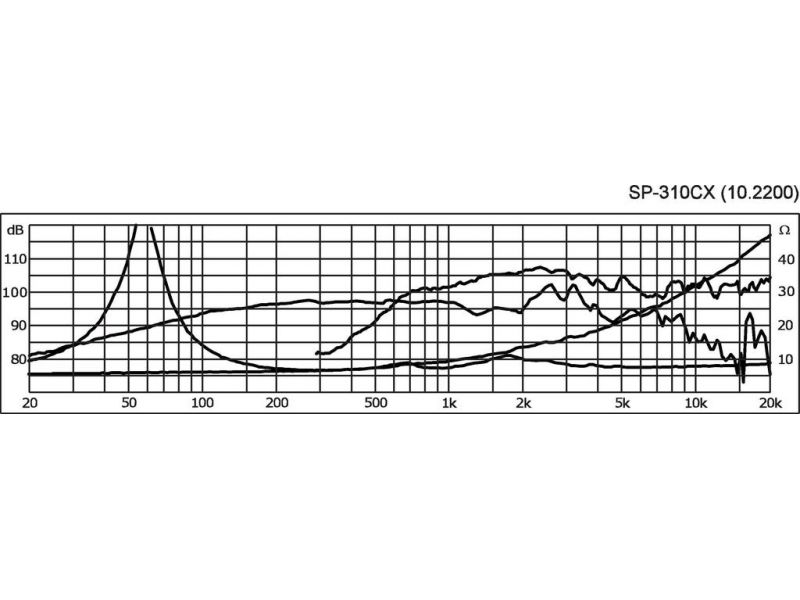

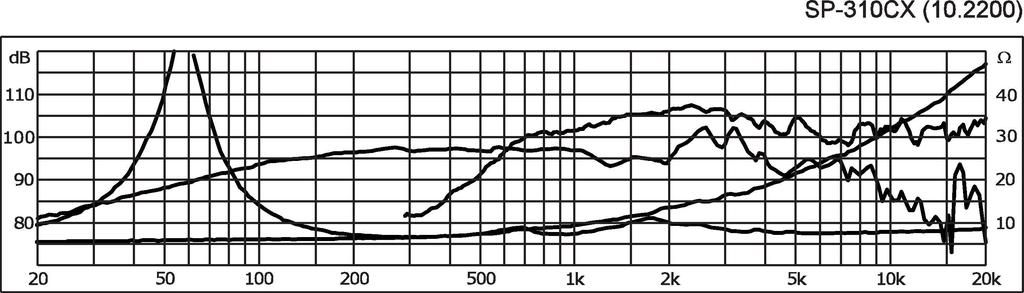

| Frequency range | f3-3,000 Hz (bass) 1,000-22,000 Hz (tweeter) |
| Resonant frequency (fs) | 60 Hz (bass), 700 Hz (tweeter) |
| Power rating (RMS) | 200 W (bass) / 50 W (tweeter) |
| Peak music power output (MAX) | 400 W (bass) / 100 W (tweeter) |
| SPL | 96 dB (bass) / 105 dB (tweeter) |
| Suspension compl. (Cms) | 0.24 mm/N |
| Moving mass (Mms) | 32 g |
| Mech. Q factor (Qms) | 3.24 |
| Electr. Q factor (Qes) | 0.36 |
| Total Q factor (Qts) | 0.32 |
| Equivalent volume (Vas) | 41 l |
| DC resistance (Re) | 5.6 Ω |
| Force factor (BxL) | 13.30 Tm |
| Voice coil induct. (Le) | 0.65 mH |
| Voice coil diameter | Ø 64 mm (bass) / Ø 44 mm (tweeter) |
| Voice coil former | polyimide |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 346 cm2 |
| Magnet weight | 1.6 kg |
| Magnet diameter | Ø 156 mm/Ø 110 mm |
| Mounting cutout | Ø 232 mm |
| Mounting depth | 173.5 mm |

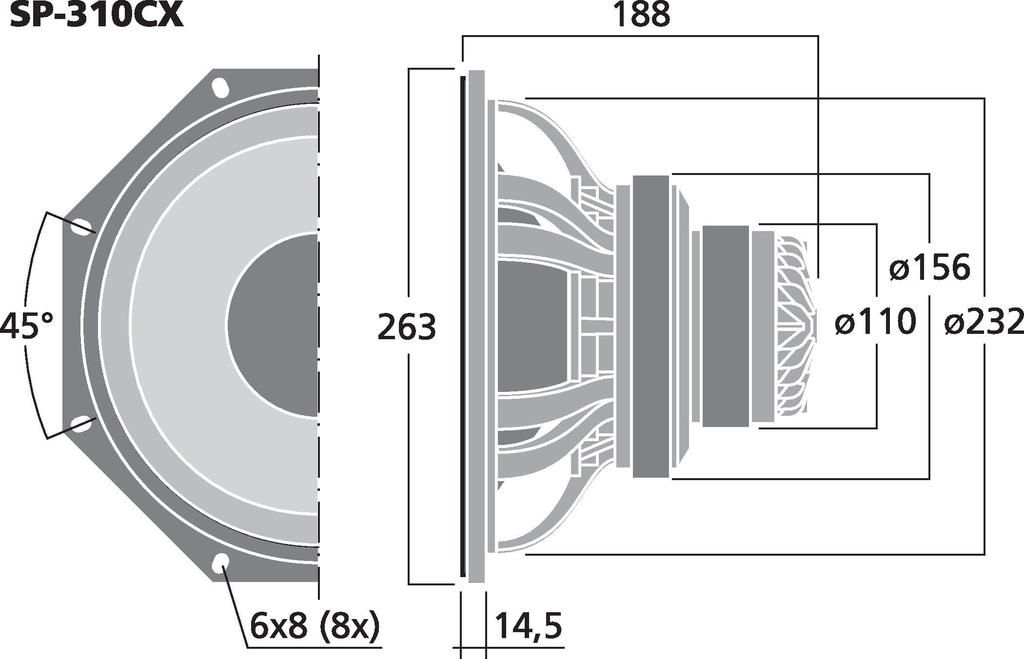

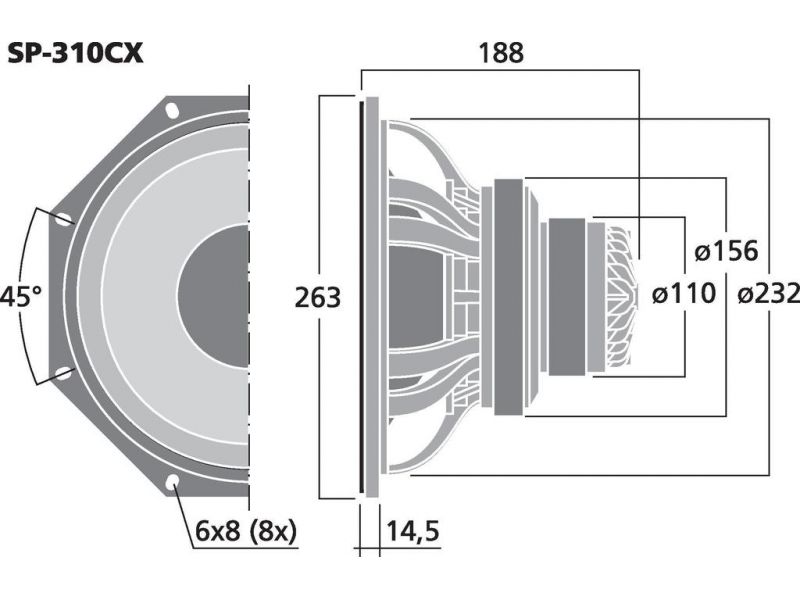

| Dimensions | 263 x 263 x 188 mm |
| Width | 263 mm |
| Height | 263 mm |
| Depth | 188 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 6.24 kg |
| Packing unit | 1 |
| Type of speaker | 10" |
| Packaging dimensions (W x H x L) | 0.34 x 0.25 x 0.35 m |
| Gross weight | 7.15 kg |
| Net weight | 6.24 kg |
