SP-300P
Kod EAN: 4007754024586
Basový reproduktor, 100 W, 8 Ω s vyvŕtaným pólovým jadrom Stabilná papierová membrána pre reprodukciu basov s vysokým výkonom
119,00 € brutto
(inkl. 20% DPH)
99,17 € netto

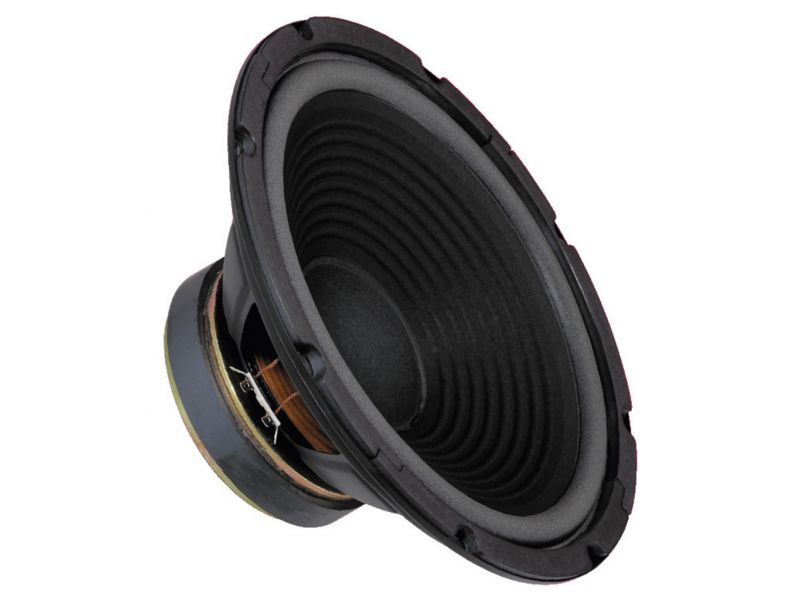

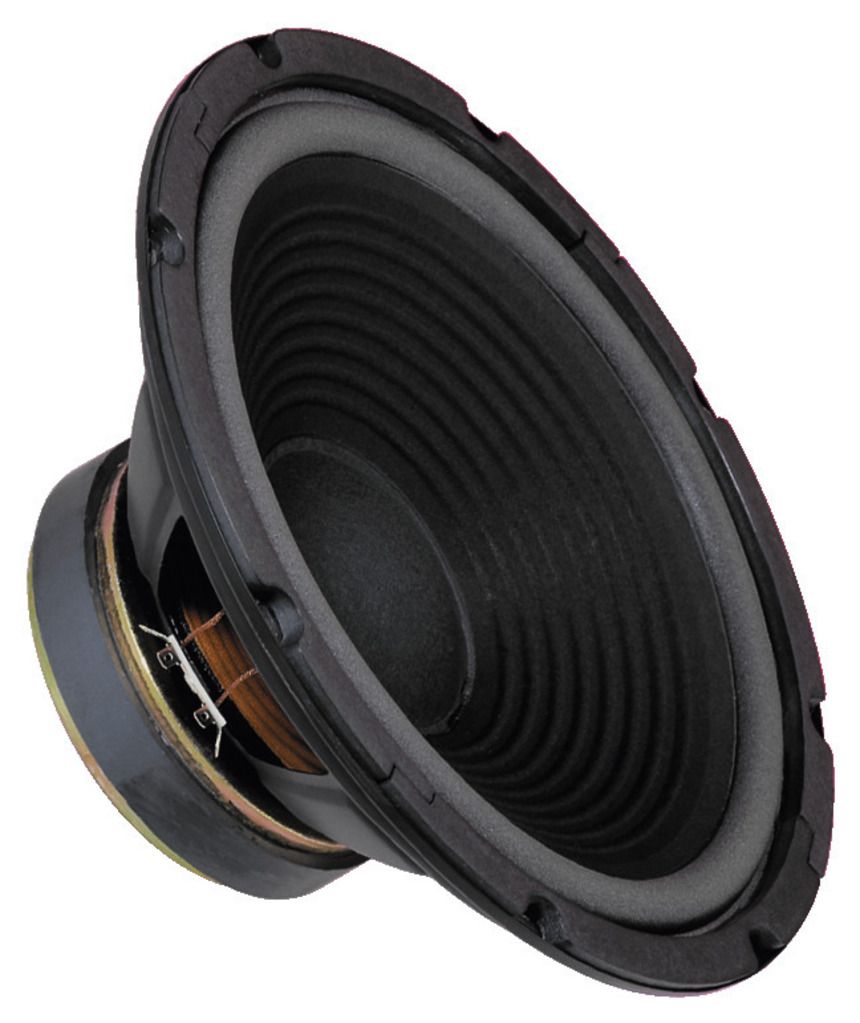

SP-300P
Basový reproduktor, 100 W, 8 Ω
- s vyvŕtaným pólovým jadrom
- Stabilná papierová membrána pre reprodukciu basov s vysokým výkonom
Parametry
| Impedance (Z) | 8 Ω |
| Transmission technology | cable |

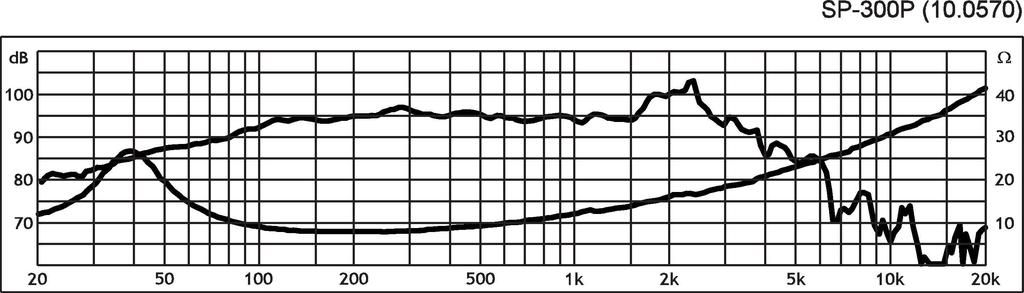

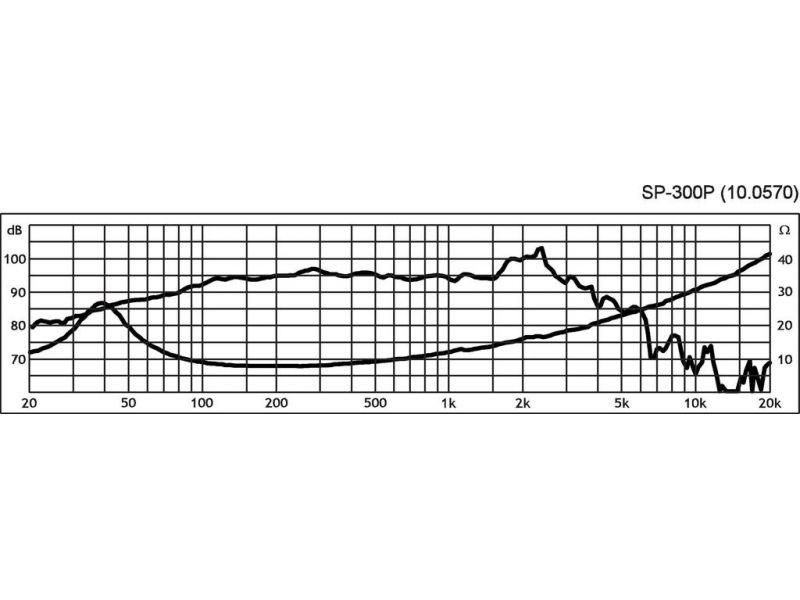

| Frequency range | f3-4,000 Hz |
| Resonant frequency (fs) | 30 Hz |
| Power rating (RMS) | 100 W |
| Peak music power output (MAX) | 200 W |
| SPL | 96 dB/W/m |
| Suspension compl. (Cms) | 0.77 mm/N |
| Moving mass (Mms) | 42 g |
| Mech. Q factor (Qms) | 1.74 |
| Electr. Q factor (Qes) | 0.37 |
| Total Q factor (Qts) | 0.31 |
| Equivalent volume (Vas) | 266 l |
| DC resistance (Re) | 6.5 Ω |
| Force factor (BxL) | 11.70 Tm |
| Voice coil induct. (Le) | 0.8 mH |
| Voice coil diameter | Ø 50 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 2.5 mm |
| Eff. cone area (Sd) | 495 cm2 |
| Magnet weight | 1.2 kg |

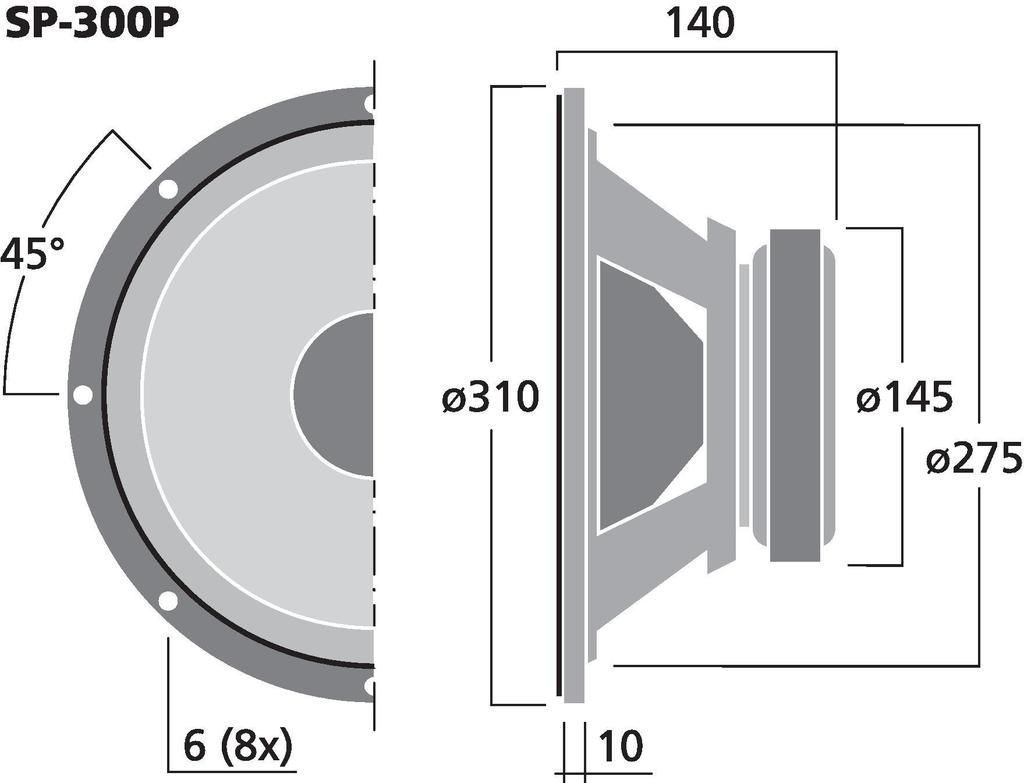

| Magnet diameter | Ø 145 mm |
| Mounting cutout | Ø 275 mm |
| Mounting depth | 130 mm |
| Dimensions | Ø 310 mm x 140 mm |
| Outside diameter | Ø 310 mm |
| Width | Ø 310 mm |
| Height | Ø 310 mm |
| Depth | 140 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 3.4 kg |
| Packing unit | 1 |
| Type of speaker | 12" |
| Packaging dimensions (W x H x L) | 0.32 x 0.165 x 0.325 m |
| Gross weight | 3.86 kg |
| Net weight | 3.4 kg |
