SP-30
Kod EAN: 4007754024531
Univerzálny reproduktor, 5 W, 4 Ω Duálny kuželŠiroká frekvenčná odozva Pre všeobecné použitie od reproduktorov do auta po stĺpové reproduktory
15,60 € brutto
(inkl. 20% DPH)
13,00 € netto

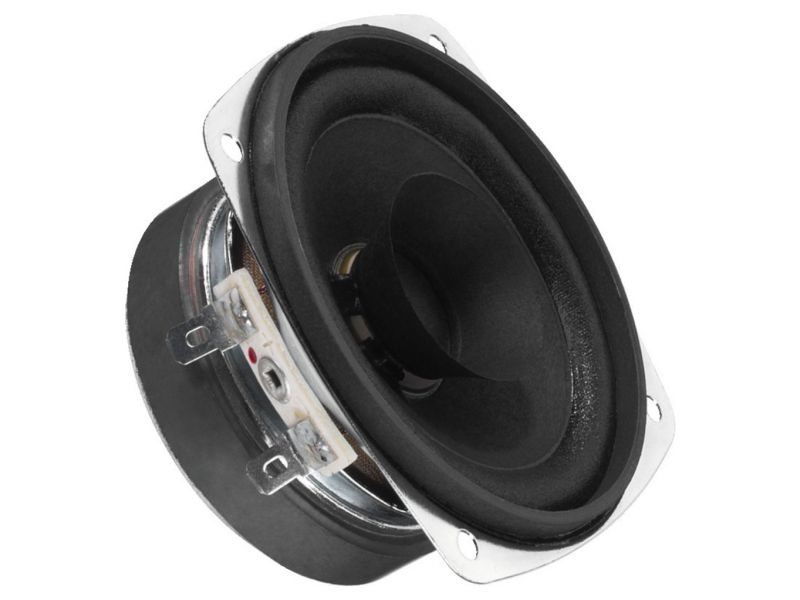

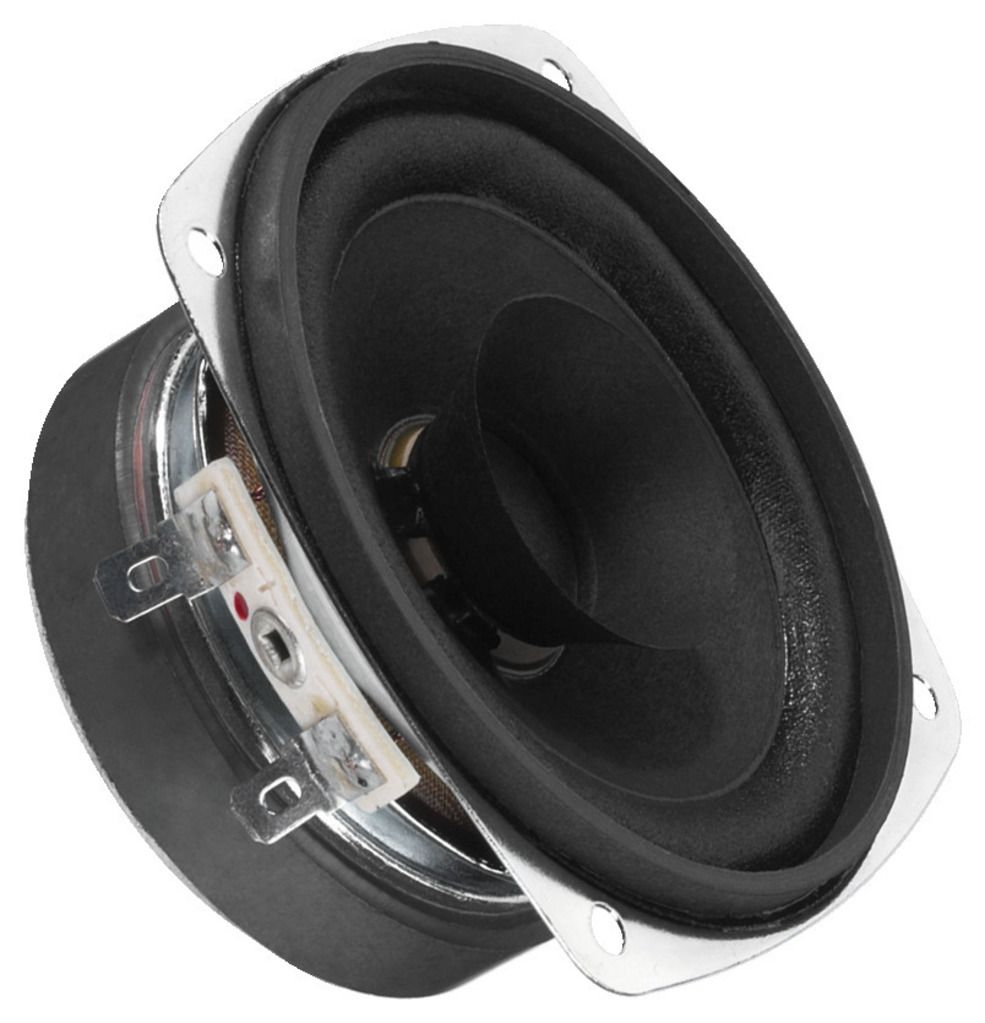

SP-30
Univerzálny reproduktor, 5 W, 4 Ω
- Duálny kužel
- Široká frekvenčná odozva
- Pre všeobecné použitie od reproduktorov do auta po stĺpové reproduktory
Parametry
| Impedance (Z) | 4 Ω |
| Transmission technology | cable |
| Frequency range | f3-15,000 Hz |
| Resonant frequency (fs) | 150 Hz |
| Power rating (RMS) | 5 W |
| Peak music power output (MAX) | 10 W |
| SPL | 88 dB/W/m |
| Suspension compl. (Cms) | 0.52 mm/N |
| Moving mass (Mms) | 1.7 g |
| Mech. Q factor (Qms) | 2.5 |
| Electr. Q factor (Qes) | 1.04 |
| Total Q factor (Qts) | 0.73 |
| Equivalent volume (Vas) | 0.7 l |
| DC resistance (Re) | 3.5 Ω |
| Force factor (BxL) | 2.33 Tm |
| Voice coil induct. (Le) | 0.18 mH |
| Voice coil diameter | Ø 20 mm |
| Voice coil former | aluminium |
| Linear excursion (XMAX) | ± 1.5 mm |
| Eff. cone area (Sd) | 31 cm2 |
| Magnet weight | 150 g |
| Magnet diameter | Ø 60 mm |

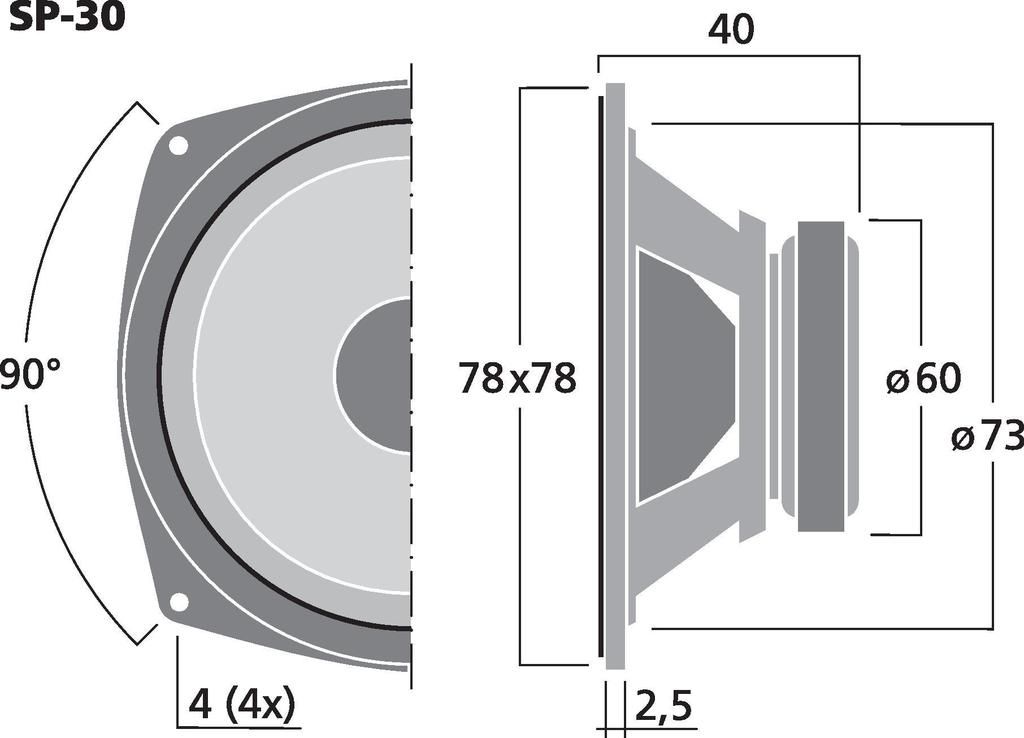

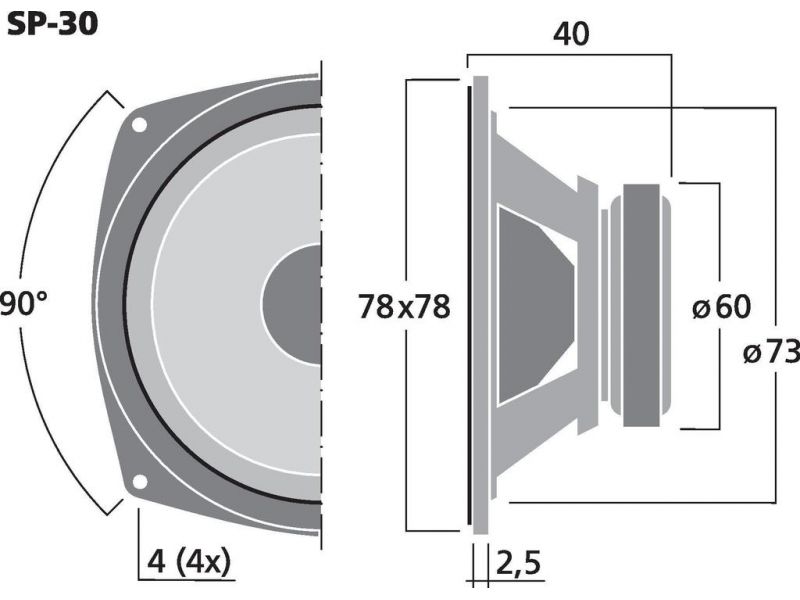

| Mounting cutout | Ø 73 mm |
| Mounting depth | 37.5 mm |
| Dimensions | 78 x 78 x 40 mm |
| Width | 78 mm |
| Height | 78 mm |
| Depth | 40 mm |
| Colour | black |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 0.26 kg |
| Packing unit | 1 |
| Type of speaker | 3" |
| Packaging dimensions (W x H x L) | 0.085 x 0.05 x 0.085 m |
| Gross weight | 0.285 kg |
| Net weight | 0.26 kg |
