SP-12A/302PA

Kod EAN: 4007754191059

PA bass-midrange speaker, 300 W, 8 Ω Of very high power capability 30 cm (12") professional speaker of long excursion Diecast basket Cone with water-repellent coating Very neat workmanship with front-facing basket Wide frequency response of low disto...

víc

133,00 € brutto

(inkl. 20% DPH)
110,83 € netto




SP-12A/302PA

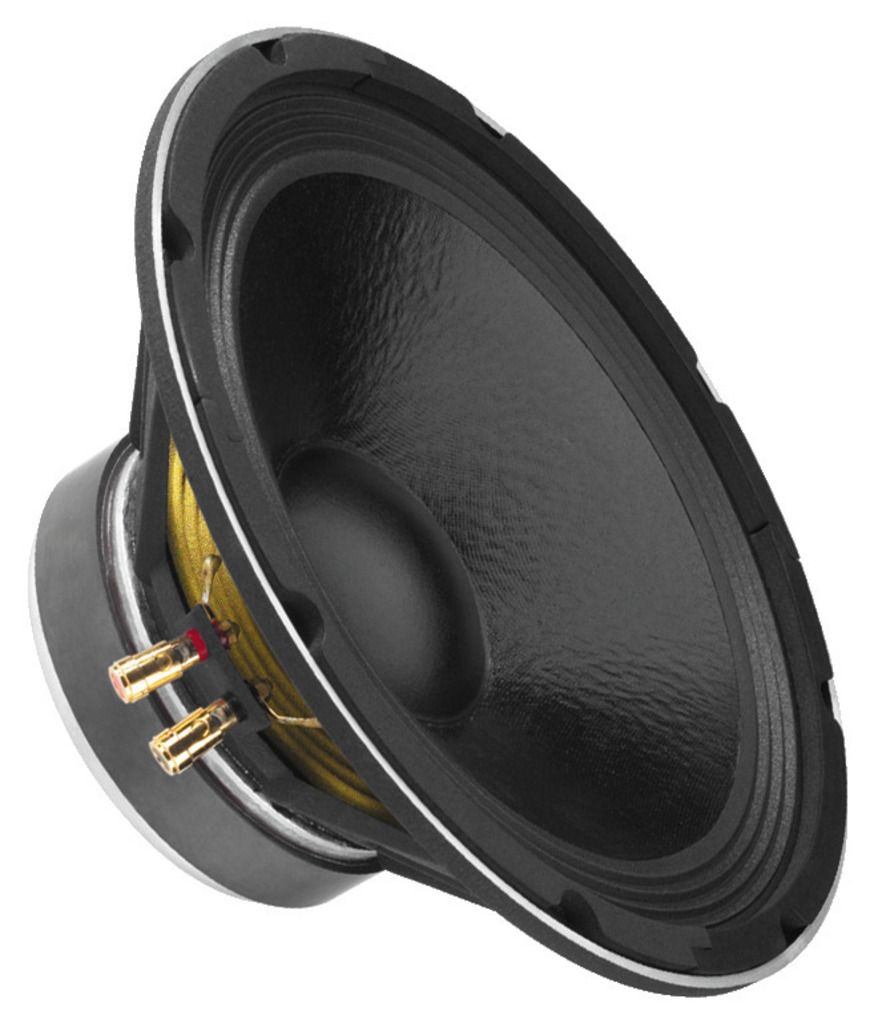

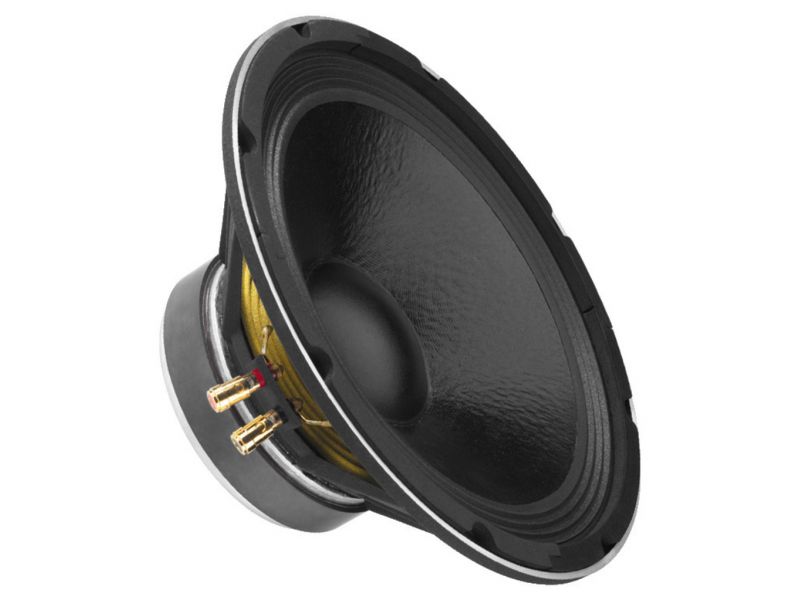

PA bass-midrange speaker, 300 W, 8 Ω
  • Of very high power capability
  • 30 cm (12") professional speaker of long excursion
  • Diecast basket
  • Cone with water-repellent coating
  • Very neat workmanship with front-facing basket
  • Wide frequency response of low distortion
  • High efficiency
  • Excellent bass reproduction
  • Drive system with drilled pole core and additional magnet for optimising the magnetic field and impedance linearisation
  • For bass-reflex cabinets from 30 litres on already
  • For all kinds of professional and semiprofessional PA applications
HOBBY HiFi 05/2013
“With the SP-12A/302PA, IMG Stage Line offers a bass speaker of high power capability for 3-way systems which features an impressively deep bass, a superior level stability and an excellent sound quality.”

Parametry

Impedance (Z) 8 Ω

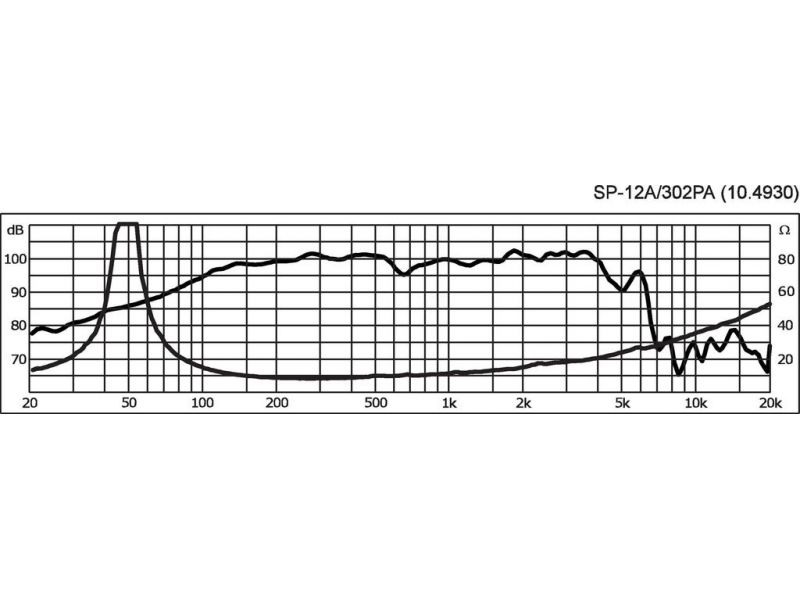

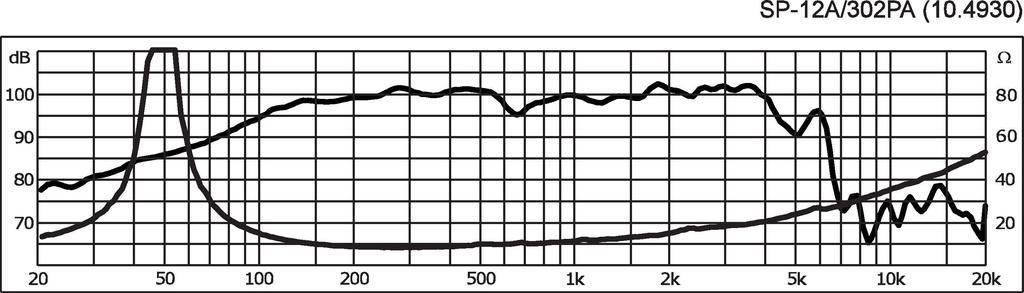

Frequency range f3-4,000 Hz
Resonant frequency (fs) 50 Hz
Power rating (RMS) 300 W
Peak music power output (MAX) 600 W
Sensitivity 99 dB/W/m
Suspension compl. (Cms) 0.19 mm/N
Moving mass (Mms) 50 g
Mech. Q factor (Qms) 7.87
Electr. Q factor (Qes) 0.35
Total Q factor (Qts) 0.34
Equivalent volume (Vas) 77 l
DC resistance (Re) 6.4 Ω
Force factor (BxL) 16.98 Tm
Voice coil induct. (Le) 0.8 mH
Voice coil diameter Ø 66 mm
Voice coil former Kapton
Linear excursion (XMAX) ± 5 mm
Eff. cone area (Sd) 530 cm2
Magnet weight 2 kg

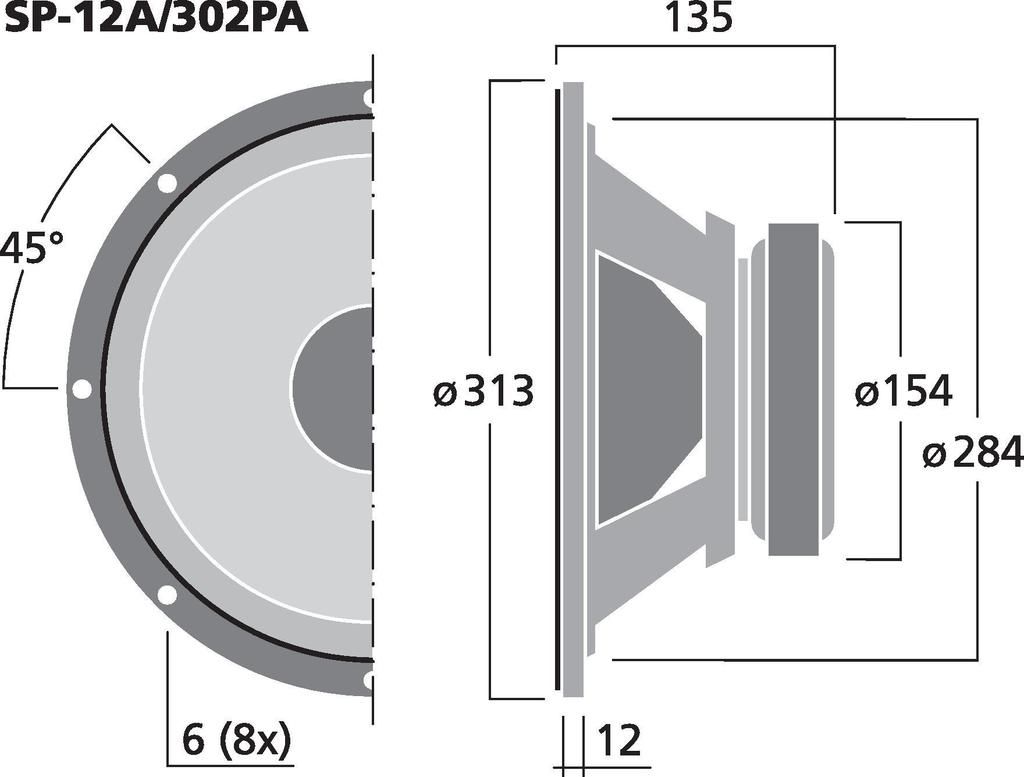

Magnet diameter Ø 154 mm
Mounting cutout Ø 284 mm
Mounting depth 123 mm
Dimensions Ø 313 mm x 135 mm
Outside diameter Ø 313 mm
Width Ø 313 mm
Depth 135 mm
Admiss. ambient temp. 0-40 °C
Weight 5.1 kg
Packing unit 1
Type of speaker 12"
