DT-25N
Kod EAN: 4007754154641
Neodymium hi-fi tweeter, 40 W, 8 Ω
PREAMP-1UP
Kod EAN: 4007754179477
Flush-mounted preamplifier For connection of power amplifiers Fitted metal base plate Connections and level controls for line input and microphone input Description of features: Preamplifier for connecting a dynamic microphone with 6.3 mm plug...
353,19 € brutto
(inkl. 23% DPH)
287,15 € netto

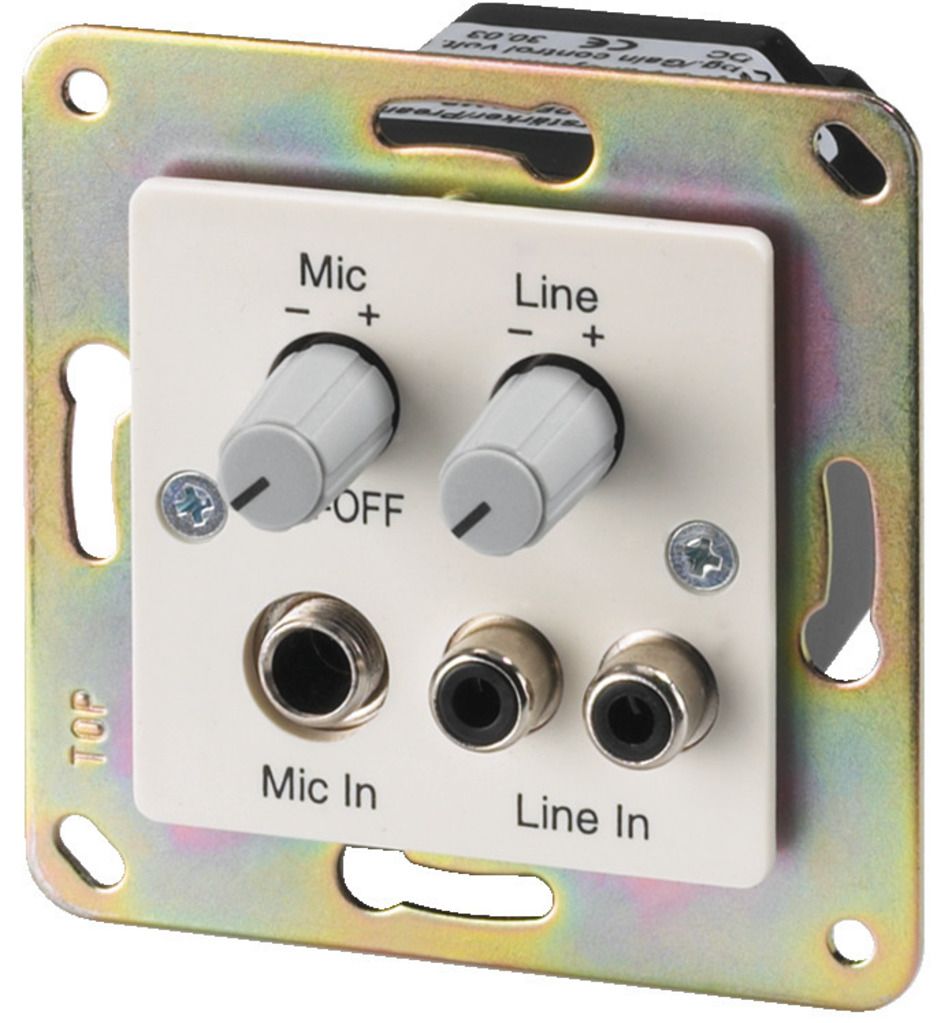

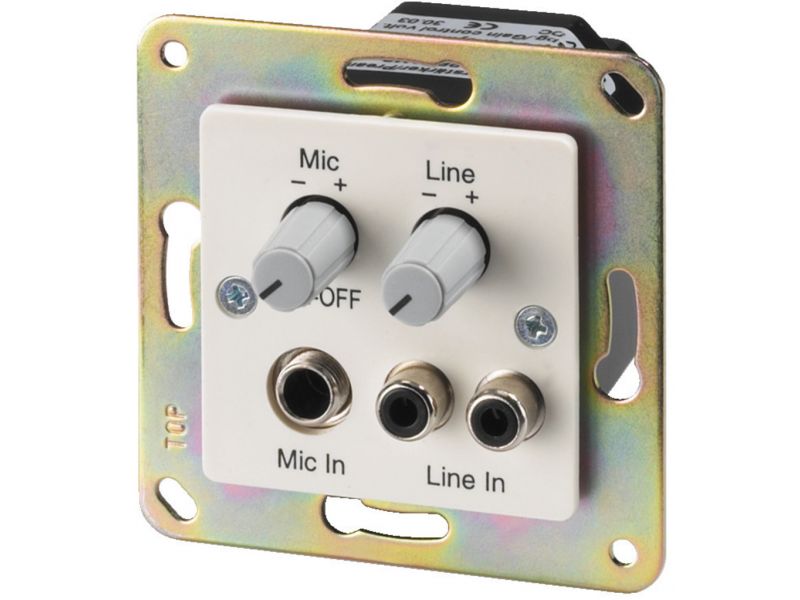

PREAMP-1UP
Flush-mounted preamplifier
- For connection of power amplifiers
- Fitted metal base plate
- Connections and level controls for line input and microphone input
Description of features:
Preamplifier for connecting a dynamic microphone with 6.3 mm plug and a line source (e.g. tuner, CD player or MP3 player) via RCA jacks. Suitable for residential premises, small training rooms, practices, etc. ...The volume of the sound sources can be adjusted separately. The PREAMP-1UP features an on/off switch. The preamplified signal can then be transmitted to several power amplifiers (low-voltage and/or 100 V amplifier). Installation is done in a standard flush-mounted socket with a depth of 63 mm. The scope of delivery includes an imprinted cover (50 x 50 mm). A respective adapter frame for the corresponding range of switches is available from electrical wholesalers.
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.
Parametry
| Line input | 400 mV (line) 4 mV (mic) |
| Input control voltage | DC 0-10 V |
| Line output | 5 V max./50 Ω |
| Frequency range | 20-20,000 Hz (line) 40-15,000 Hz (mic) |
| Power supply | DC 22-26 V/0.025 A |
| Admiss. ambient temp. | 0-40 °C |
| Weight | 139 g |
| Connections | 7-pole terminal strip, removable 1 x RCA L/R (line) 1 x 6.3 mm jack (mic) |
