PATL-105

Kod EAN: 4007754277012

5-way 100 V transformer, for connecting a 100 V audio signal source to devices with line inputs. Suitable for PA mixing amplifiers PA-1120, PA-1240, PA-6240, PA-6480, PA-6000 Transforming 100 V output signals into line signals to 5 lines (galvanica...

víc

95,69 € brutto

(inkl. 23% DPH)
77,80 € netto

Staň se partnerem
Kup teď

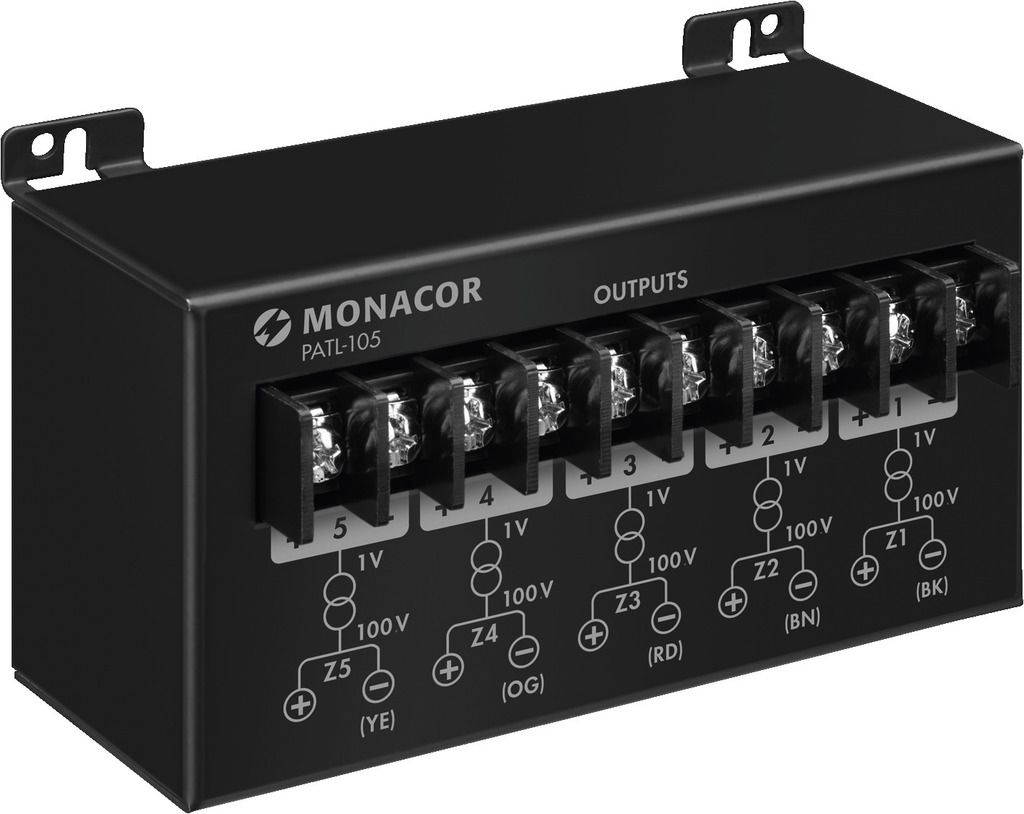

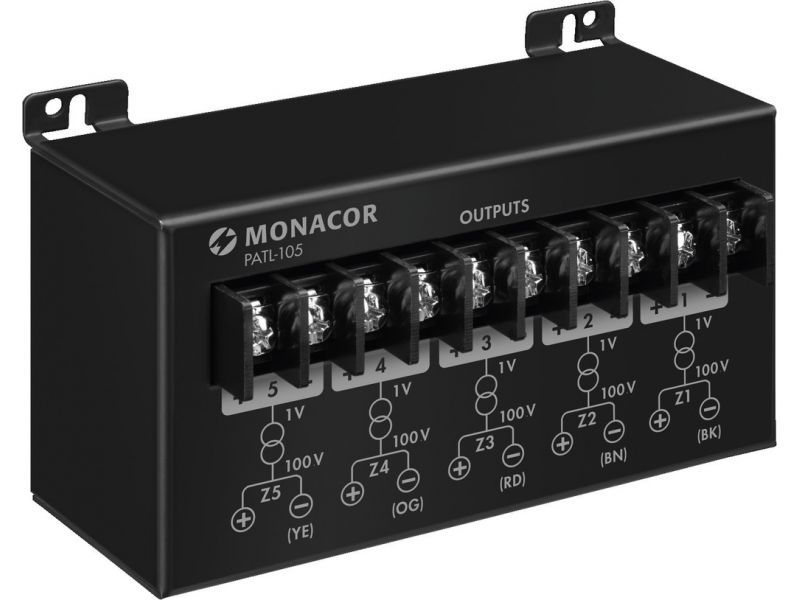

PATL-105

5-way 100 V transformer,
for connecting a 100 V audio signal source to devices with line inputs.
  • Suitable for PA mixing amplifiers PA-1120, PA-1240, PA-6240, PA-6480, PA-6000
  • Transforming 100 V output signals into line signals to 5 lines (galvanically isolated)
  • To be mounted directly to the rear panel of a respective amplifier
  • Frequency range: 15-30,000 Hz
  • Dimensions: 120 x 75 x 60 mm
  • Weight: 405 g
Manufacturer information:
MONACOR INTERNATIONAL GmbH & Co. KG
Zum Falsch 36
28307 Bremen
Germany
info@monacor.com
Safety Notes and Warning Messages
During operation, there is a hazard of contact with a voltage of up to 100 V at the connection cables. Installation must be carried out by skilled personnel only.
The unit is suitable for indoor use only. Protect it against dripping water and splash water, high air humidity and heat (admissible ambient temperature range: 0 - 40 °C).
If the unit is to be put out of operation permanently, take it to a local recycling plant for a disposal which is not harmful to the environment.

Parametry

Description 100 V transformer
Frequency range 15-30,000 Hz
Input impedance 20 kΩ
Output impedance 200 Ω
Admiss. ambient temp. 0-40 °C
Dimensions 120 x 75 x 60 mm
Weight 405 g
Inputs cable lugs
Outputs screw terminals

Na stáhnutí

Produktová karta PATL-105 pdf-zeichnung Návod na obsluhu
