PA-704

Kod EAN: 4007754274240

Mono PA mixing amplifier 1 x 35 W 2 low-impedance microphone inputs 1 aux input, 1 phono input Speaker outputs via screw terminal contacts Input and output level controls 2-way tone control for the output Connection for a microphone talk button to sw...

víc

191,00 € brutto

(inkl. 20% DPH)
159,17 € netto



PA-704

Mono PA mixing amplifier
  • 1 x 35 W
  • 2 low-impedance microphone inputs
  • 1 aux input, 1 phono input

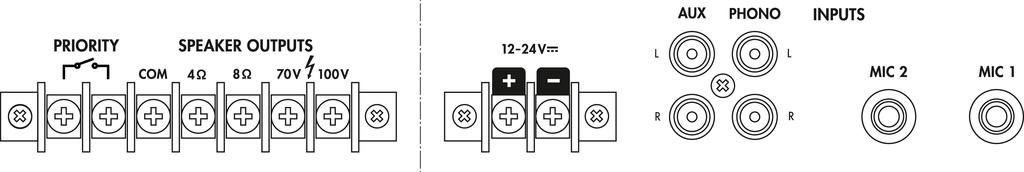

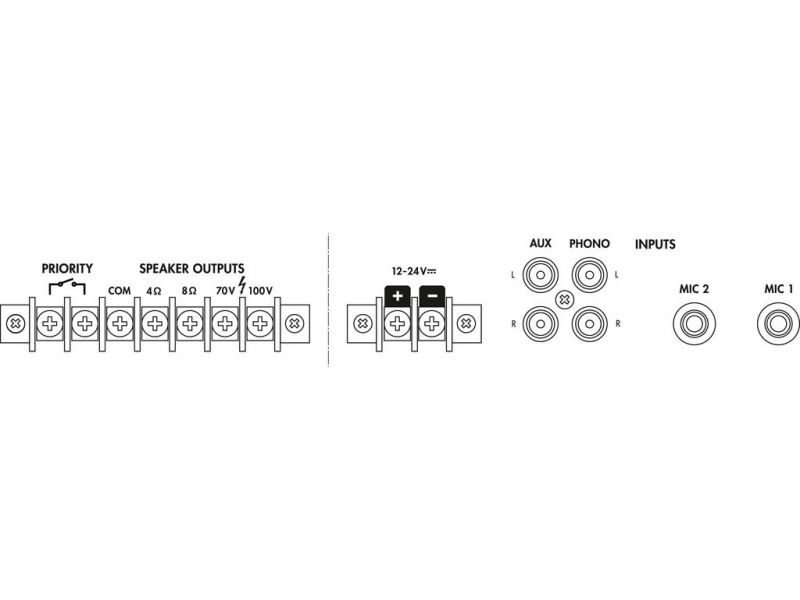

  • Speaker outputs via screw terminal contacts
  • Input and output level controls
  • 2-way tone control for the output
  • Connection for a microphone talk button to switch off the other sources during announcements
  • Mains operation and 12-24 V emergency power operation

Parametry

Peak output power 70 W
Power rating 35 W
Channels 4
Inputs 5 mV (mic), 210 mV (aux), 5 mV (phono)
Frequency range 100-18,000 Hz
Equalizer bass ±10 dB/150 Hz
Equalizer treble ±10 dB/6 kHz
S/N ratio > 55 dB
THD < 1%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 100 VA
Operating voltage (possible alternative) DC 12-24 V
Power supply (possible alternative) DC 2.5 A
Admiss. ambient temp. 0-40 °C
Width 320 mm
Height 85 mm
Depth 230 mm
Weight 4.97 kg
Connections 2 x 6.3 mm jack (mic), 1 x RCA L/R (aux), 1 x RCA L/R (phono), screw contacts (speakers)
Packing dimensions (W x H x L) 0.37 x 0.14 x 0.28 m
Gross weight 5.33 kg
Net weight 4.97 kg
