QB200-4W
Kod EAN: 4043106037316
Nástenný hifi reproduktor, 4Ohm
PA-5480
Kod EAN: 4007754171112
5-zone mono PA mixing amplifier 1 x 480 W 5 zones, can be controlled individually Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable) Bass, treble a...
972,00 € brutto
(inkl. 20% DPH)
810,00 € netto

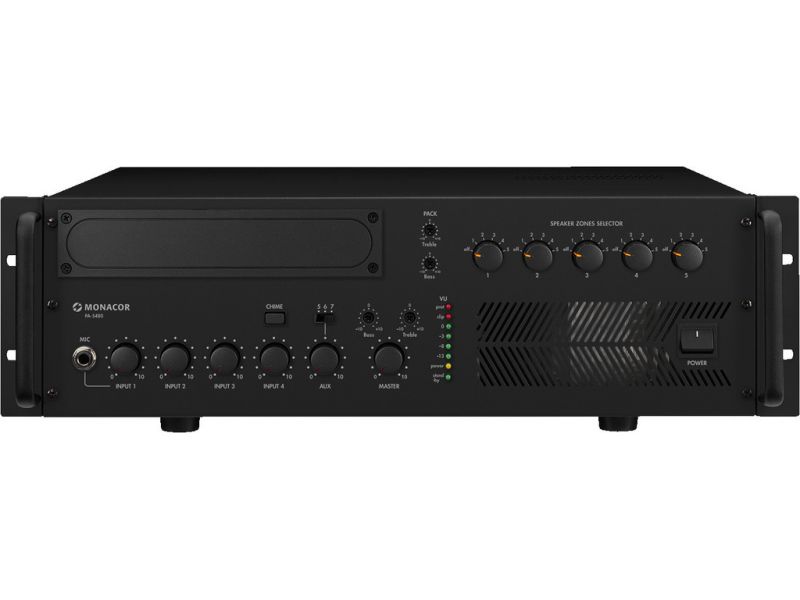

PA-5480
5-zone mono PA mixing amplifier
- 1 x 480 W
- 5 zones, can be controlled individually
- Chime, wailing sound, automatic mute, chime and siren can also be activated via external momentary push-button, 2-tone chime or 4-tone chime (selectable)
- Bass, treble and master controls, level display via LEDs, regulated fan
- Insertions for various functions are available at option
- 18 V phantom power for electret microphones
- Connection for desktop microphone PA-5000PTT
- Alarm announcement with insertion PA-1120DMT (available at option)
- Mains operation and 24 V emergency power operation
- Removable mounting brackets
Parametry
| Peak output power | 680 W |
| Power rating | 480 W |
| Power rating at 8 Ω | 1 x 480 W |
| Power rating at 100 V | 480 W |
| Channels | 5 |
| Zones | 5 |
| Inputs | 2.5 mV/2 kΩ (mic 1), 2.5 mV/2 kΩ, 0.3 V/200 kΩ (mic/line 2-4), 0.3 V/5 kΩ (line 5-7), 0.775 V/10 kΩ (preamplifier) |
| Frequency range | 55-16,000 Hz |
| Equalizer bass | ± 10 dB/100 Hz |
| Equalizer treble | ± 10 dB/10 kHz |
| S/N ratio | > 70 dB (mic), > 80 dB (line) |
| THD | < 1% |
| Phantom power | 18 V |
| Mains voltage | ~ 230 V |
| Mains frequency | 50 Hz |
| Power consumption, operation | 1,500 VA |
| Operating voltage (possible alternative) | DC 24 V |
| Power supply (possible alternative) | DC 40 A |
| Admiss. ambient temp. | 0-40 °C |
| Width | 482 mm |
| Height | 133 mm |
| Depth | 352 mm |
| Rack units, RU | 3 |
| Weight | 17 kg |

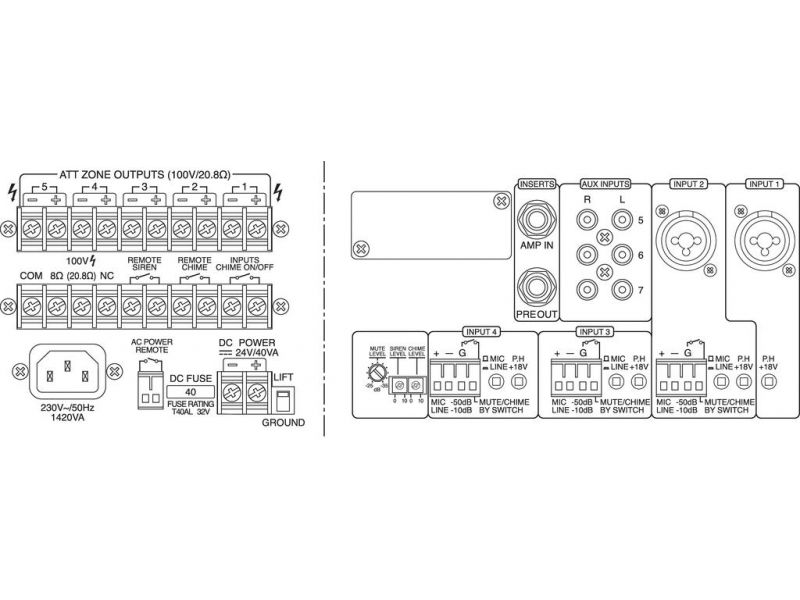

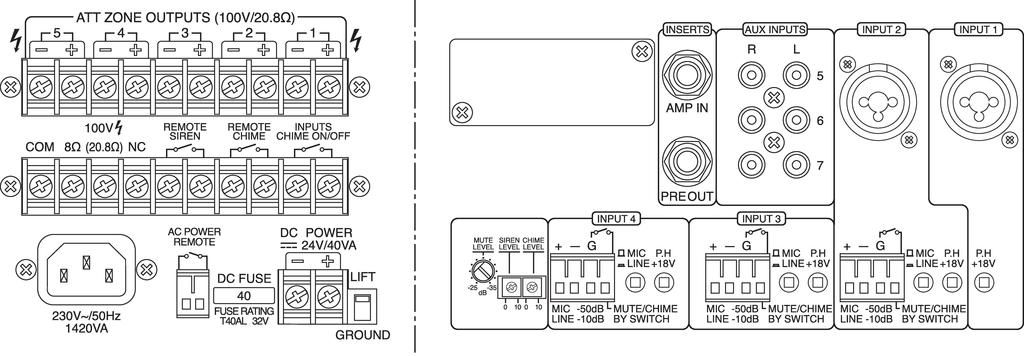

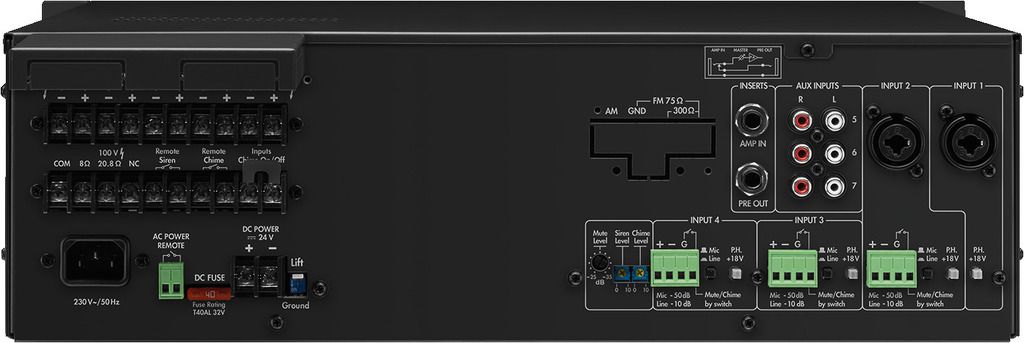

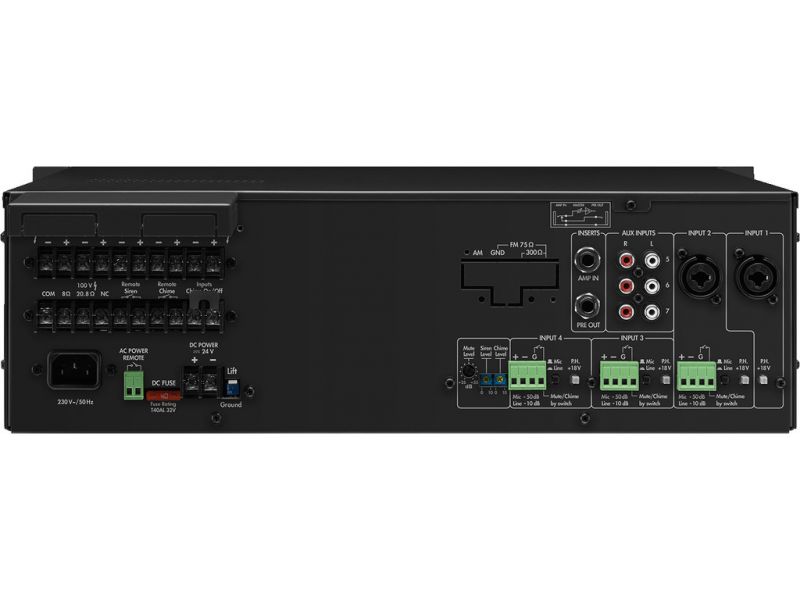

| Connections | 1 x 6.3 mm jack (mic), 2 x combo 6.3 mm/XLR (mic/line), 3 x RCA L/R (line), 3 x plug-in terminals (line), 1 x 6.3 mm jack (preamplifier input), screw contacts (push-to-talk mic), screw contacts (zone paging mic), 1 x 6.3 mm jack (preamplifier output), screw contacts (chime button), screw contacts (speakers) |
| Packing dimensions (W x H x L) | 0.55 x 0.22 x 0.48 m |
| Gross weight | 19.76 kg |
| Net weight | 17.62 kg |
