PA-4120D

Kod EAN: 4007754274479

4-channel class D PA power amplifier 4 x 120 W Class D concept with a high efficiency to cut energy costs Temperature-controlled fan, continuously adjustable Connection for external on/off switch Connection for external mute switch LED indication for...

víc

1 090,00 € brutto

(inkl. 20% DPH)
908,33 € netto



PA-4120D

4-channel class D PA power amplifier
  • 4 x 120 W
  • Class D concept with a high efficiency to cut energy costs
  • Temperature-controlled fan, continuously adjustable
  • Connection for external on/off switch
  • Connection for external mute switch
  • LED indication for protect, peak, signal and 100 V/4 Ω operation

Parametry

Power rating 480 W
Power rating at 4 Ω 4 x 120 W
Power rating at 100 V 4 x 120 W
Output impedance 100 V/83 Ω, 4 Ω
Channels 4
Inputs 775 mV/20 kΩ, bal.
Frequency range 80-16,000 Hz
S/N ratio > 95 dB(A)
THD < 0.1%
Mains voltage ~ 230 V
Mains frequency 50 Hz
Power consumption, operation 850 VA
Admiss. ambient temp. 0-40 °C
Width 483 mm
Height 52 mm
Depth 320 mm
Rack units, RU 1
Weight 5.1 kg

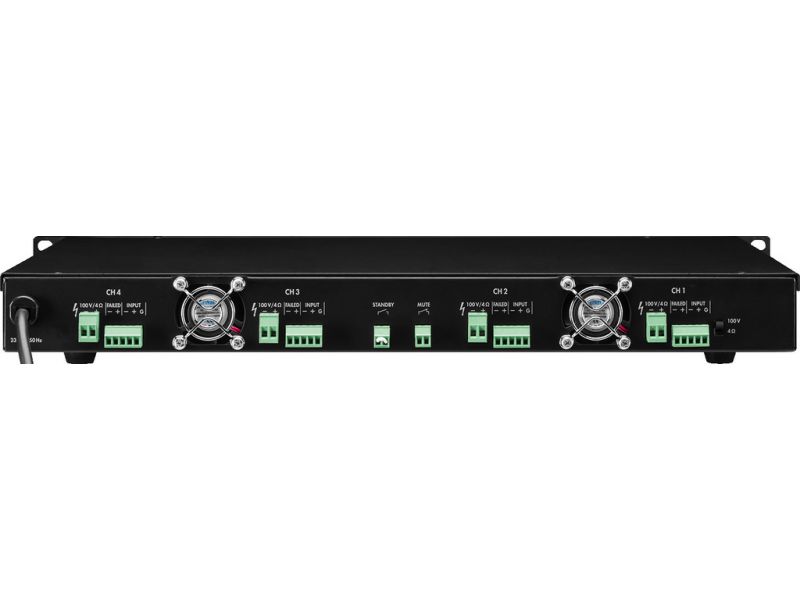

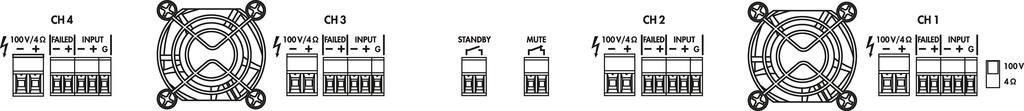

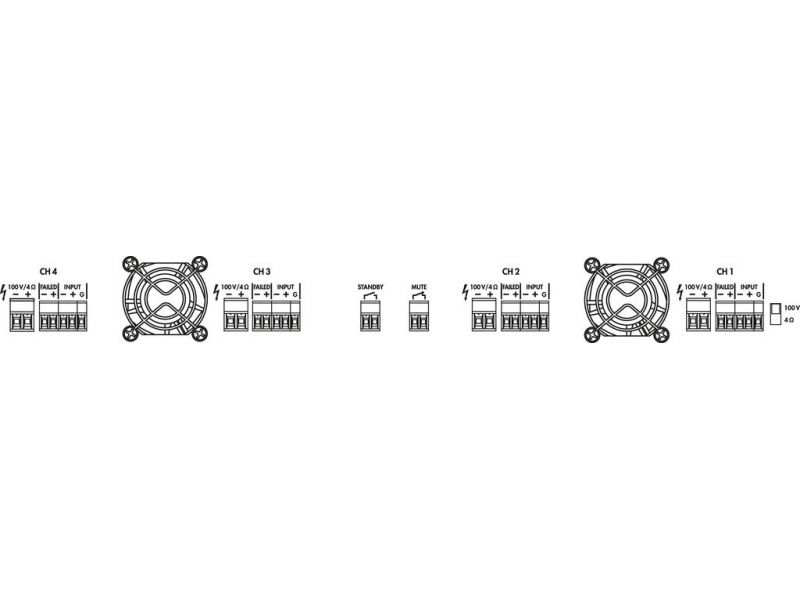

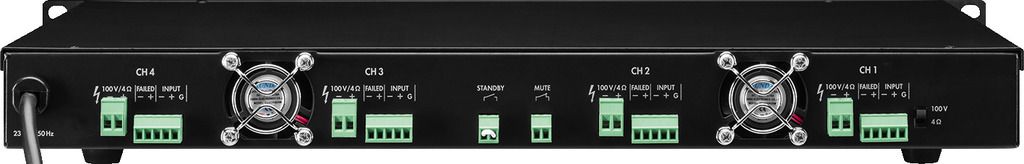

Connections screw contacts (inputs), screw contacts (speakers)
Packing dimensions (W x H x L) 0.54 x 0.14 x 0.39 m
Gross weight 6.05 kg
Net weight 5.12 kg
